MINI EXCAVATORS
Complete your big outdoor jobs more efficiently with an affordable excavator from Groundhog Equipment LLC. We sell custom-built excavators from 1 to 6 tons that are all assembled right here in the USA!
Call (570) 837-1003 to learn more.
MINI EXCAVATORS

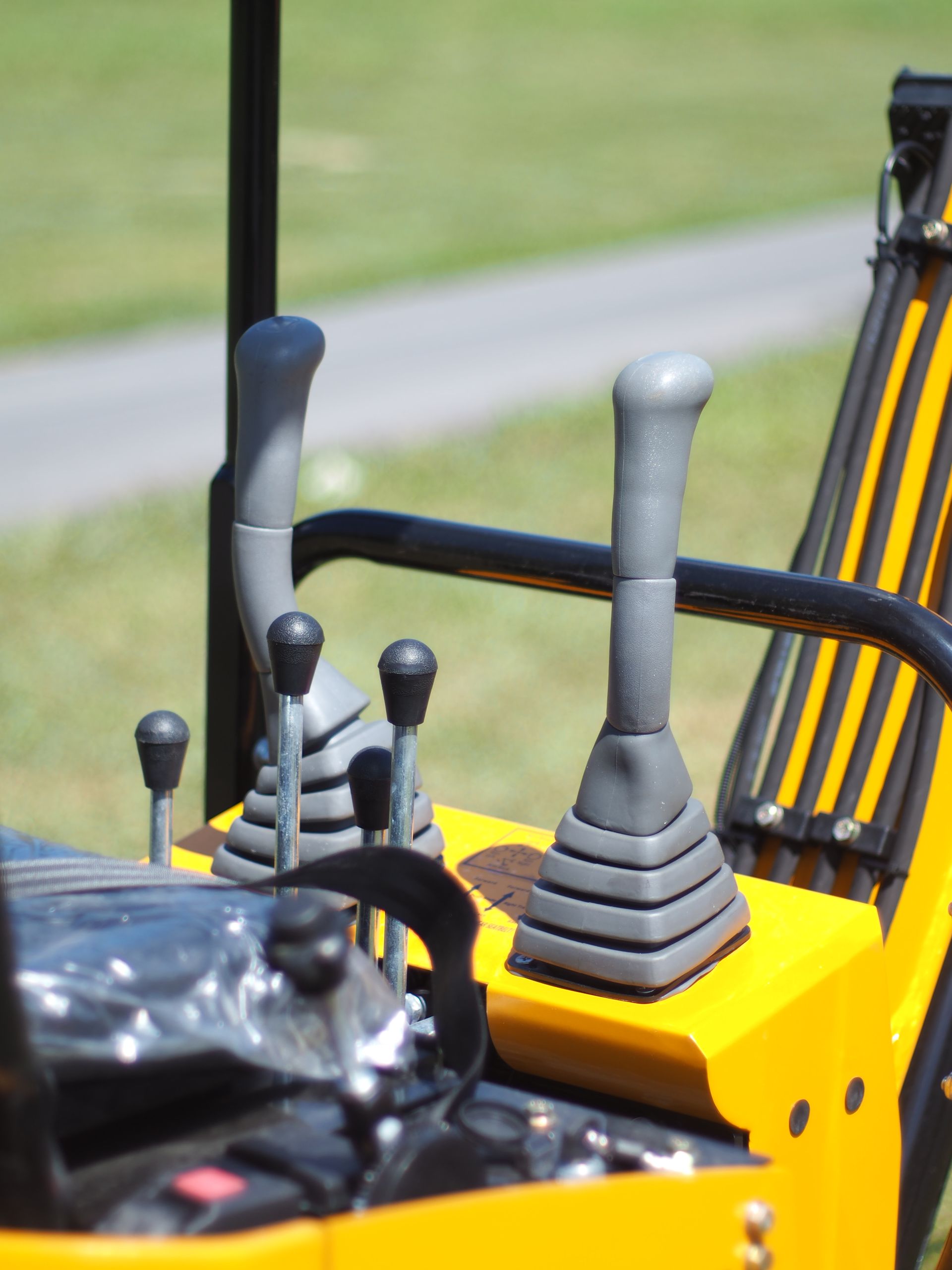

- Hydraulic pilot servo operation system
- Steel or rubber track
- Telescopic track frame
- Compact and light with a small turning radius
- Open cabin with canopy

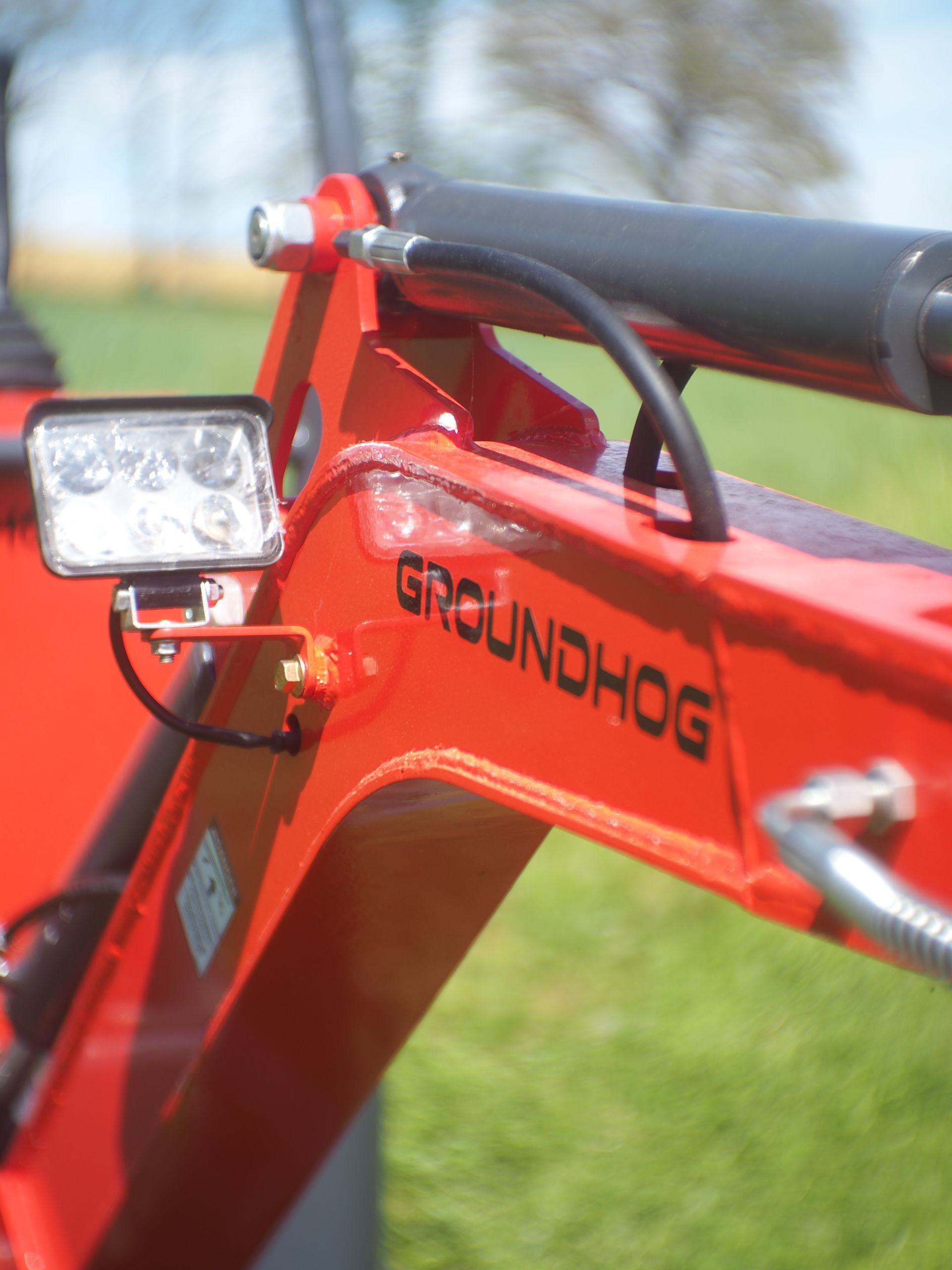

- LED Boom light
- Grease gun
- Toolbox
- Free hydraulic thumb and auxiliary hydraulics on every excavator!
Measurements are from the end of the cab instead of the center post like most manufacturers. We’ve listed the specifications to give you more precise representation, so you know what to expect.
OPTIONAL FEATURES
- 2 post ROPS
- Cab enclosure
- Heat and air conditioning
- Color options
- Side swing boom
- Retractable or expandable tracks
- Steel tracks
- 2 Speed

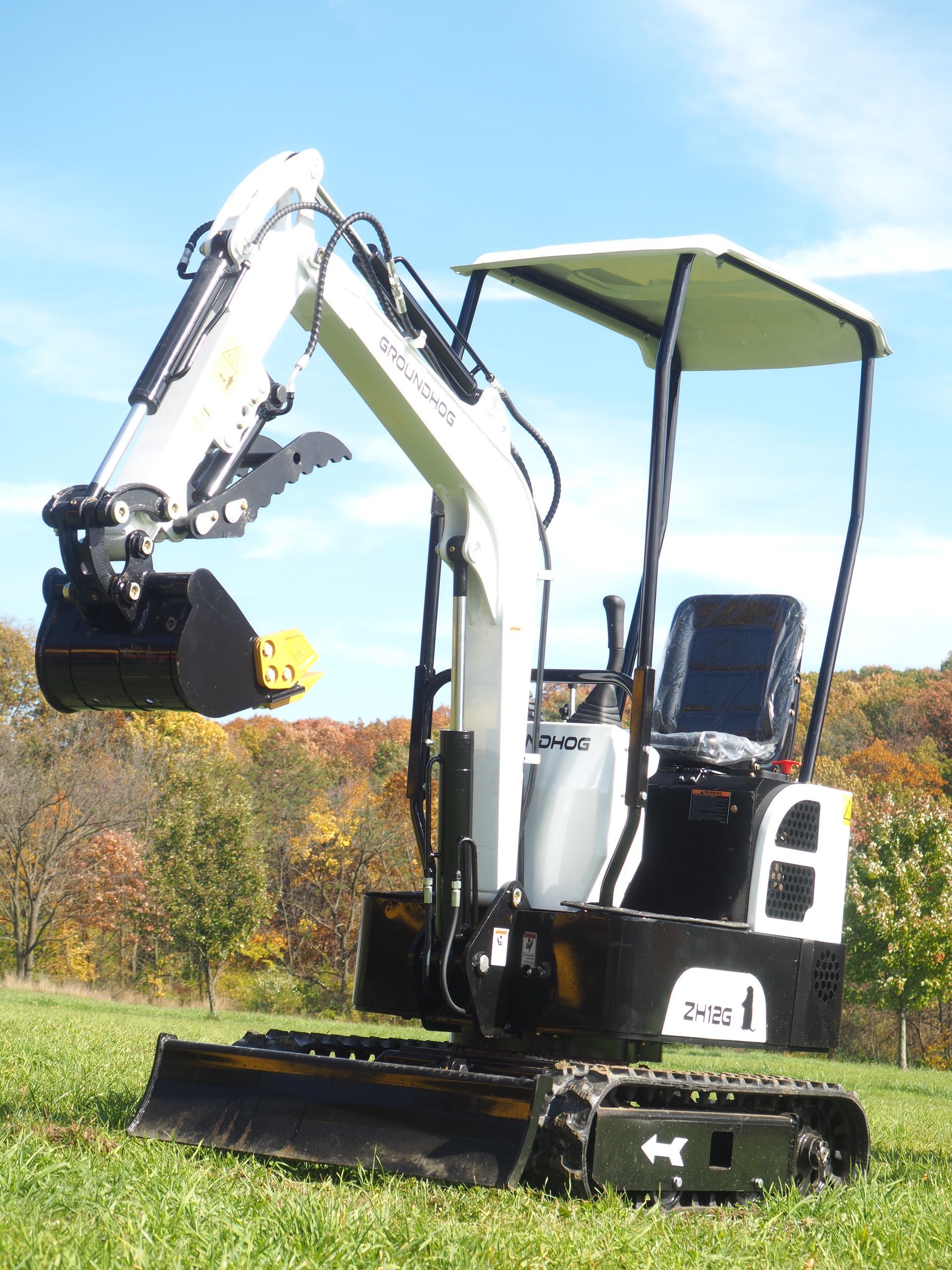

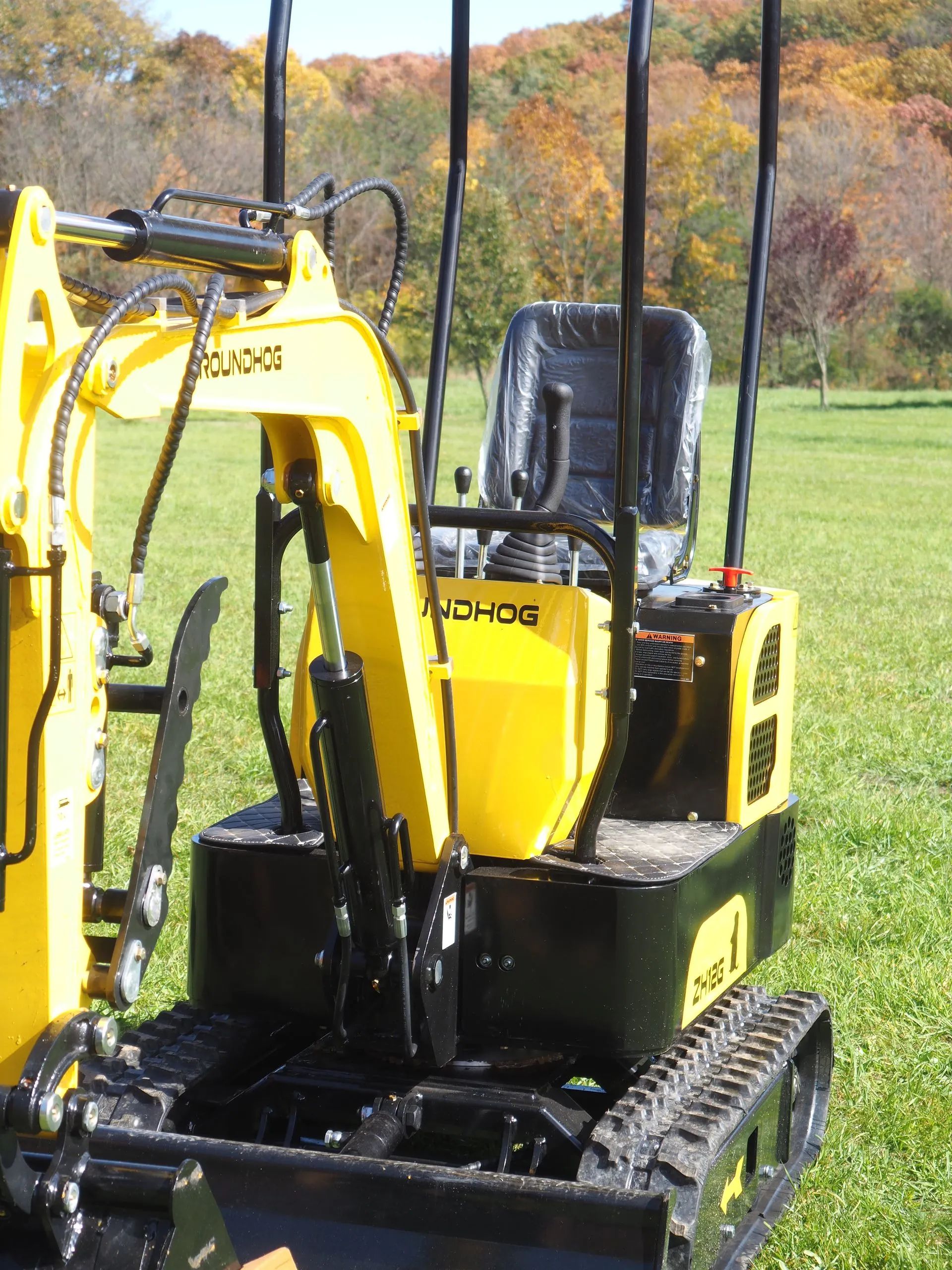

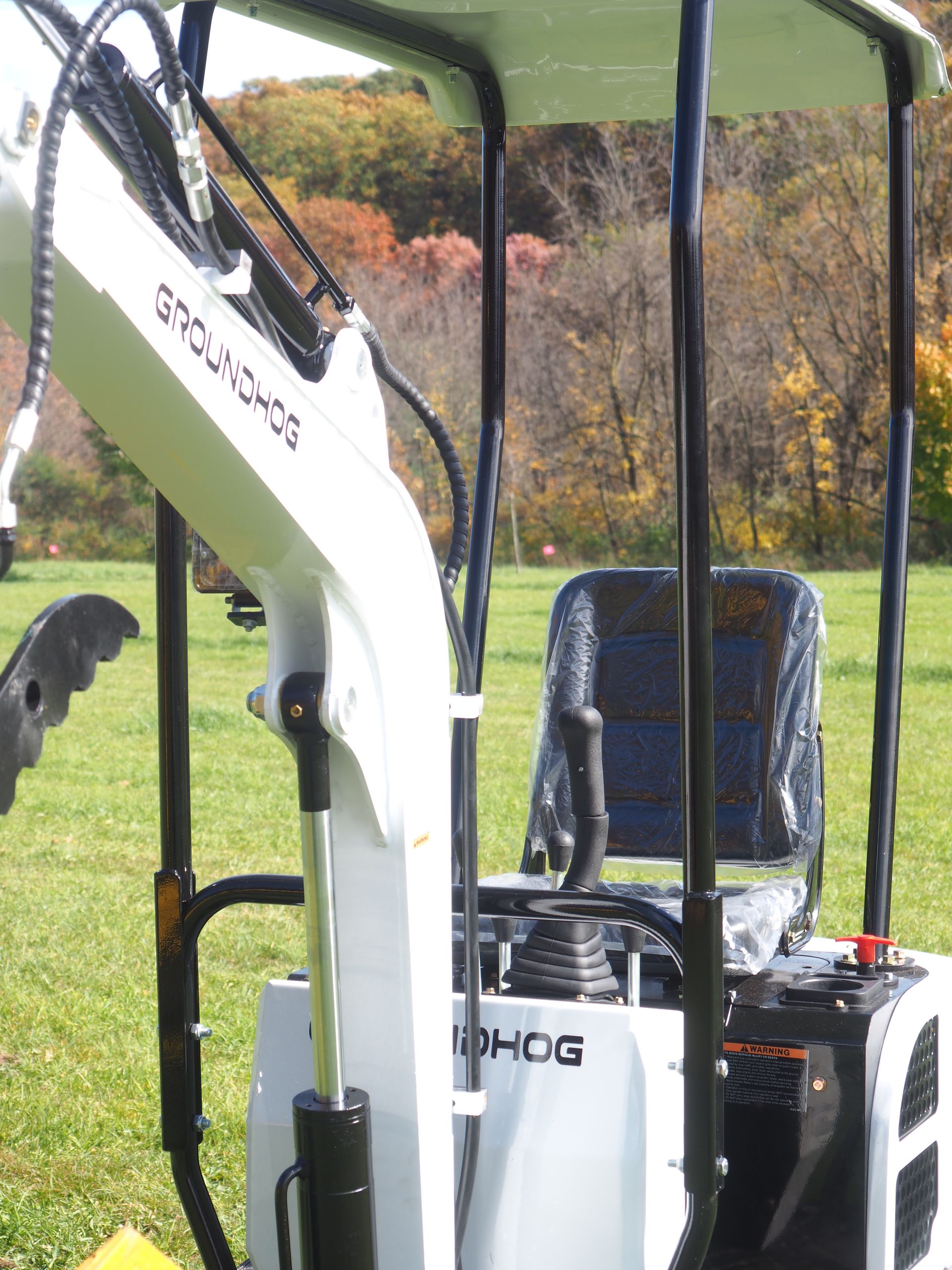

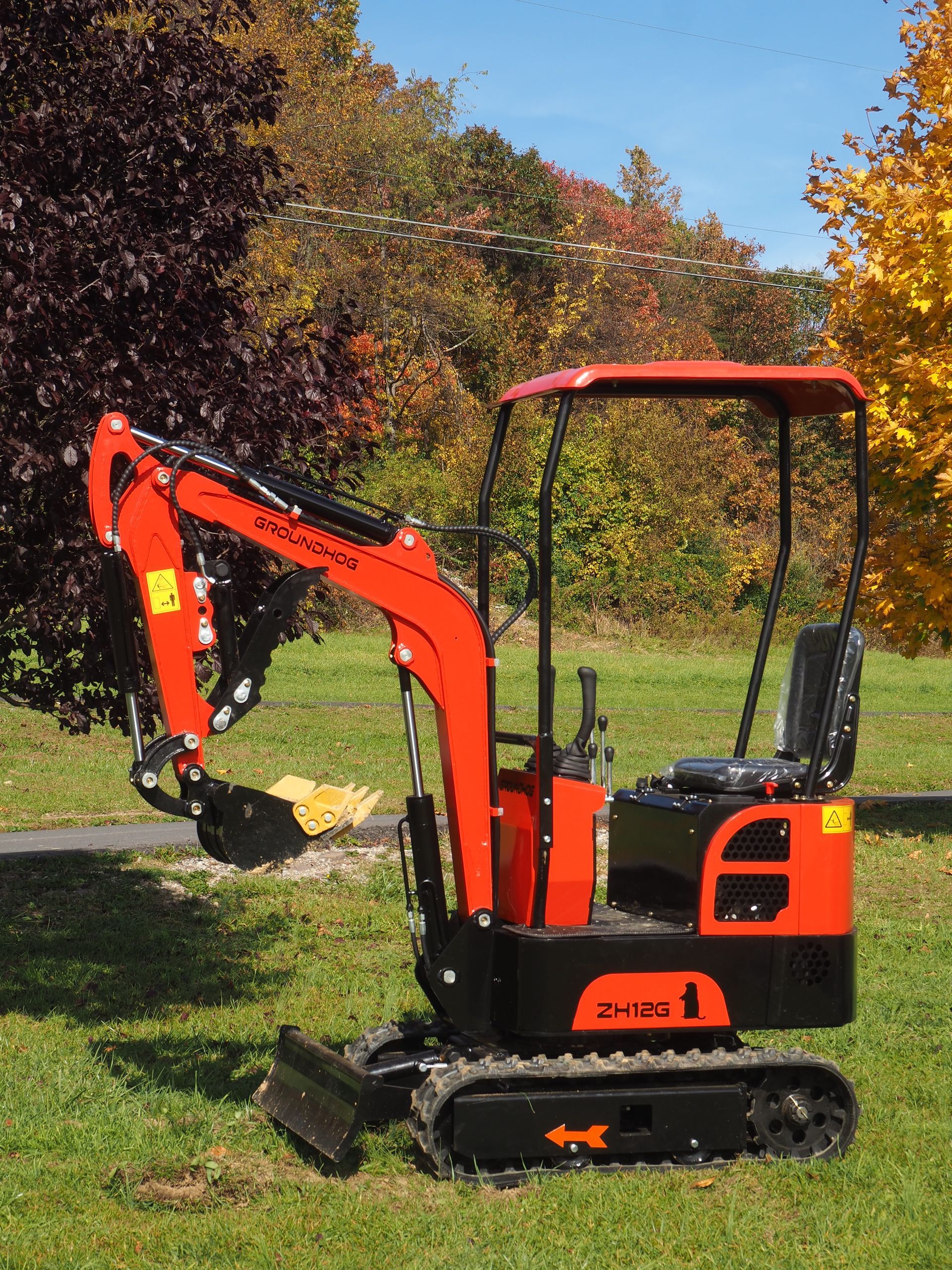

12 SERIES MINI EXCAVATOR
12 Series Excavator Starting Prices

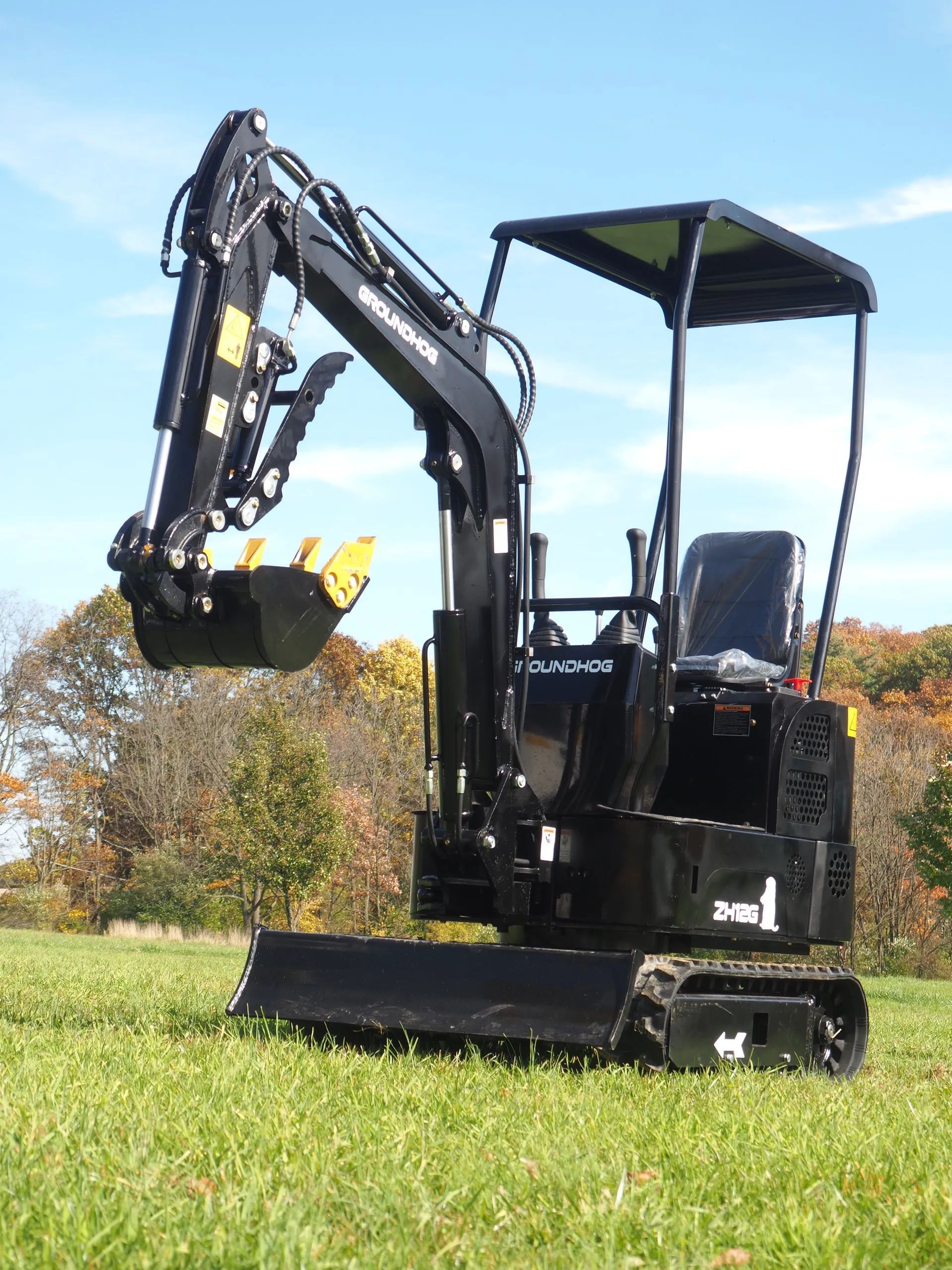

- ZH12G $6,900.

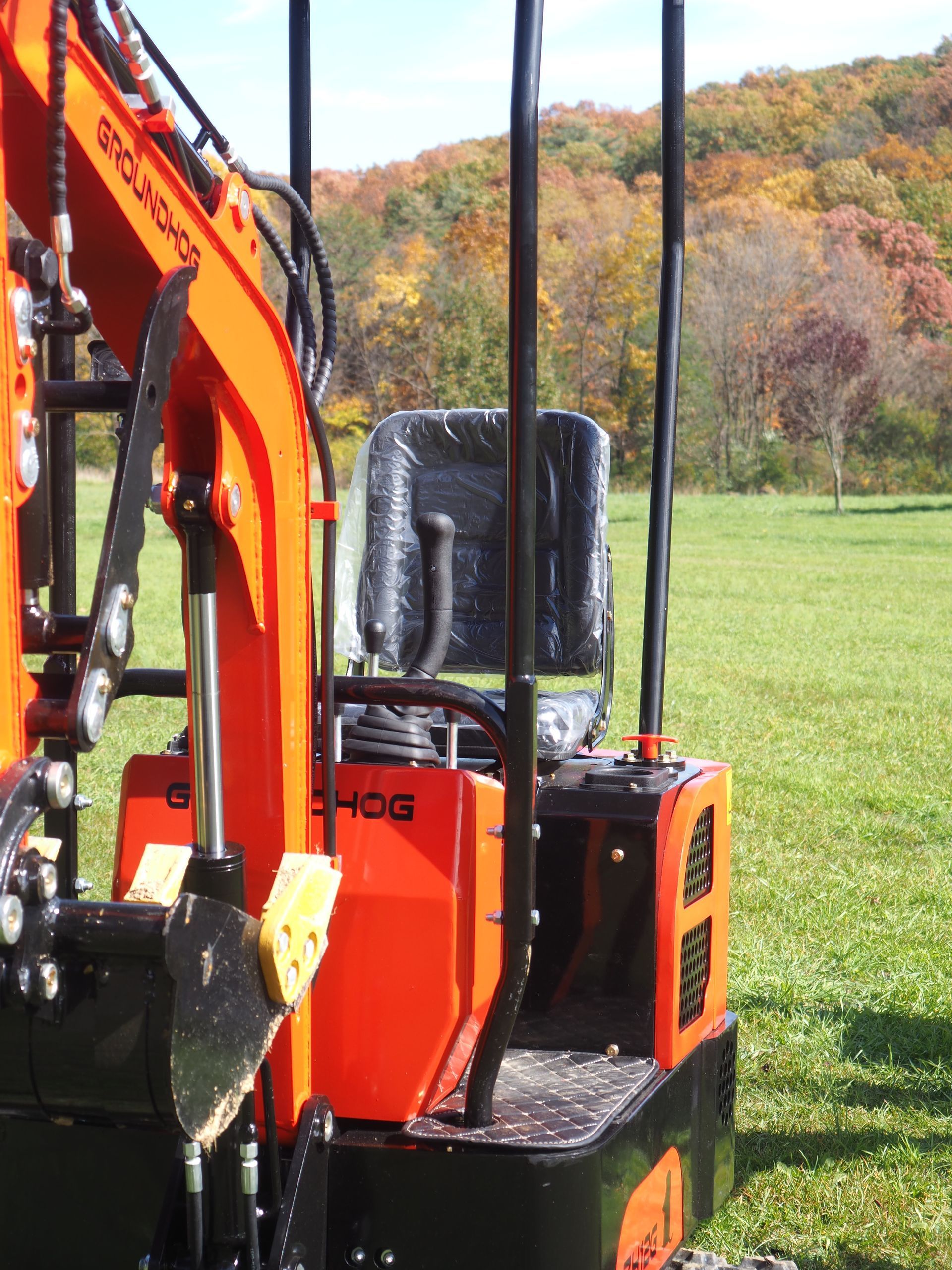

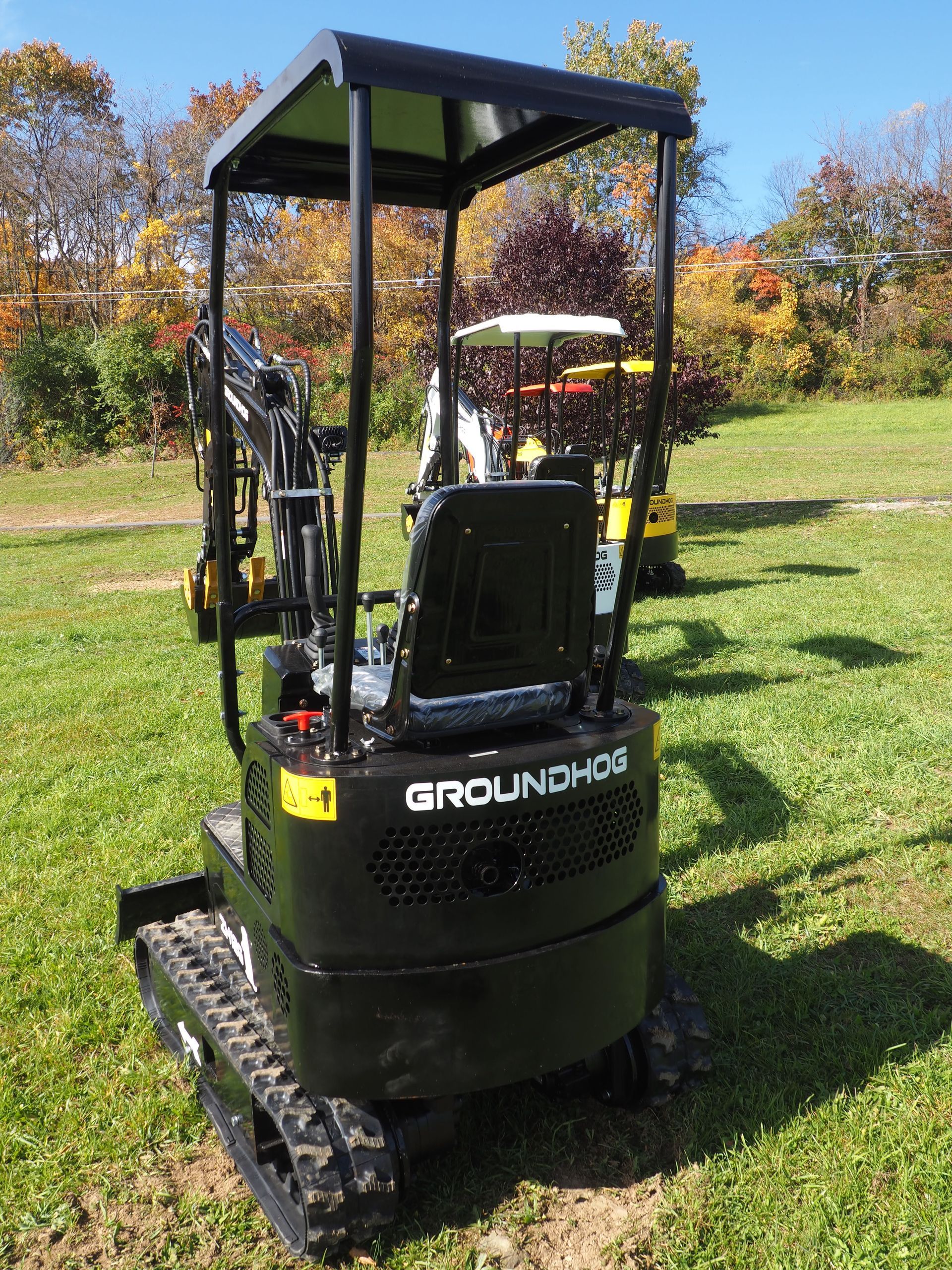

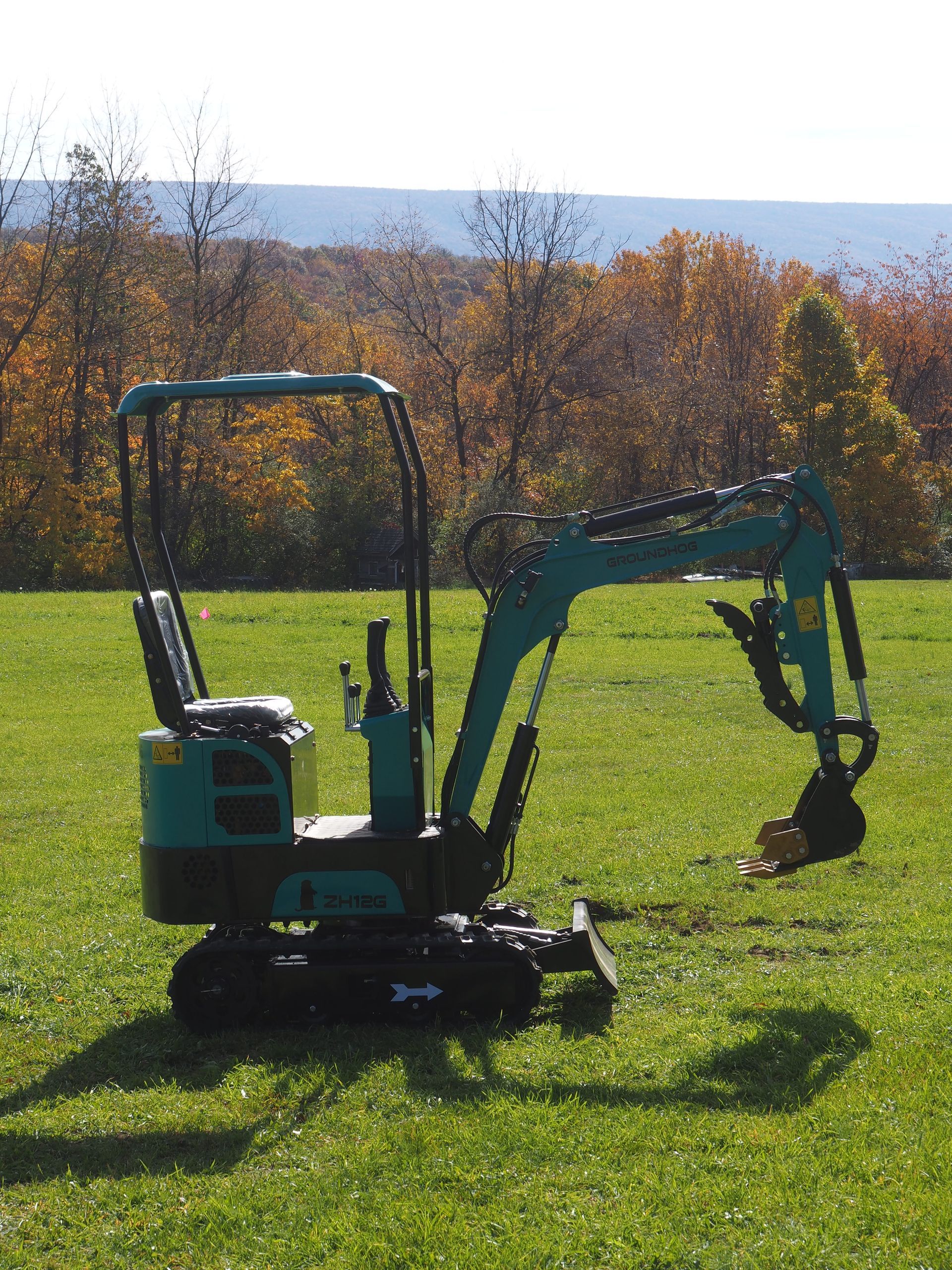

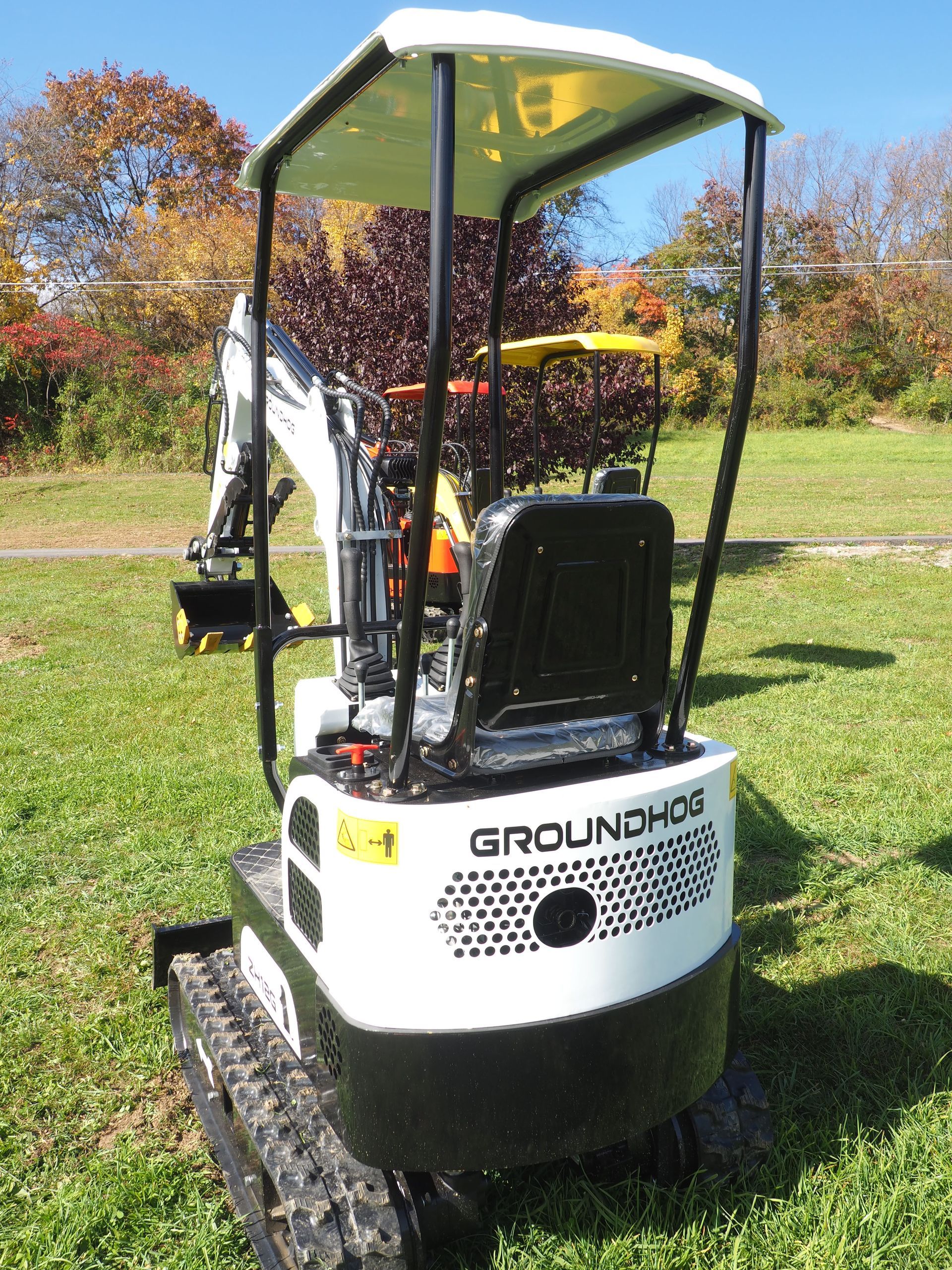

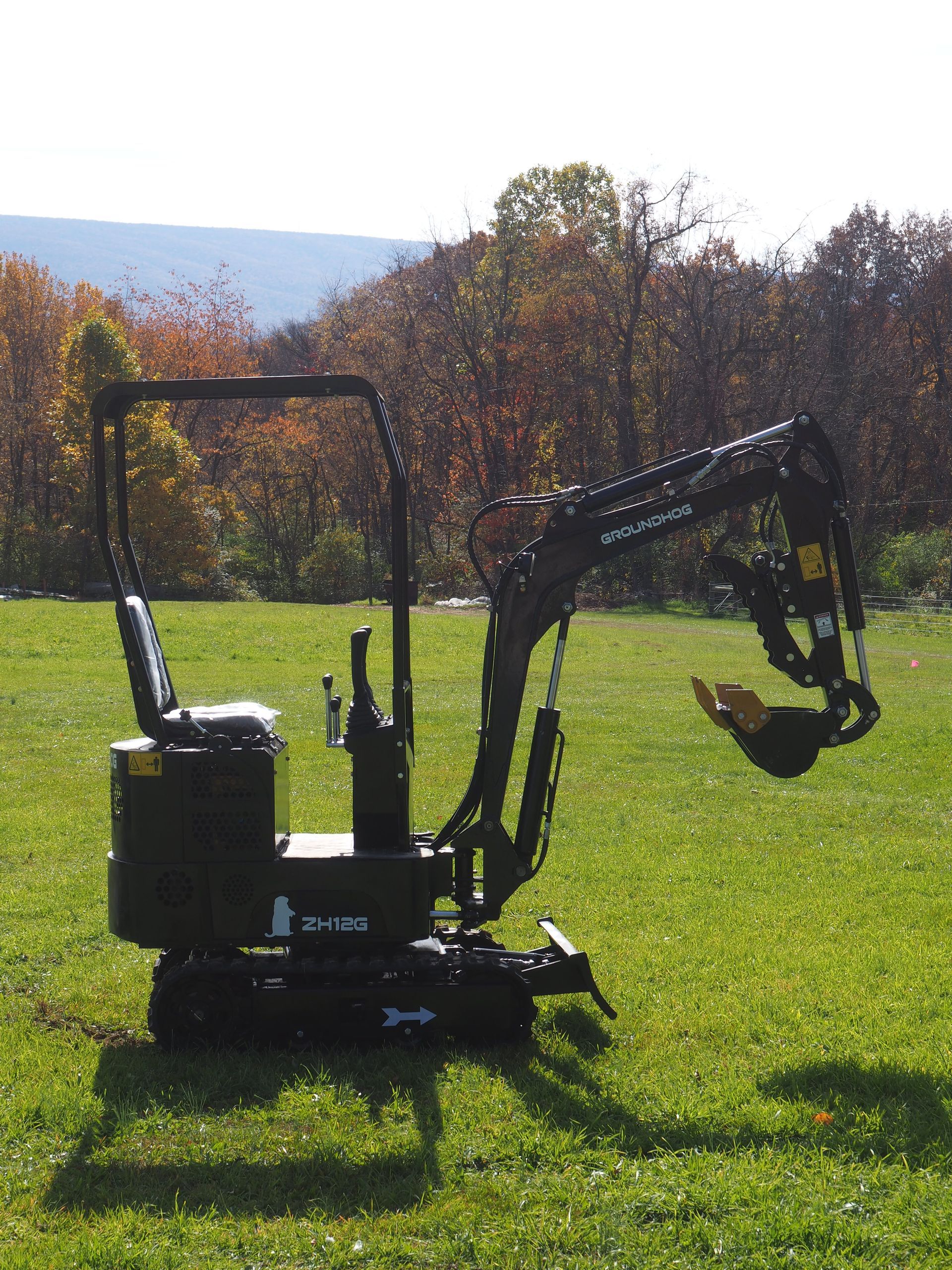

ZH12G Excavator Specs
All ZH12G models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, Hydraulic oil cooler, metal console, Hydraulic thumb and a 4 post canopy. Upgrade Options: Side Swing Boom, Window Tint and Retractable Tracks | ZH12G $6,900 |
Operating Weight – Rubber Tracks | 1970 lbs |
Operating Weight – Steel Tracks | 2570 lbs |
Engine | Briggs and Stratton XR |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | G5-6 |
Travel Speed | 1 mph |
Overall Dimension | 85″ x 39″ |
Machine Width | 39″ |
Machine Height | 7’1″ |
Ground Clearance | 6″ |
Track Length | 47″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 55″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Height | 8′ 6″ |
Max Dumping Height | 6′ 4″ |
Max Reach | 8’8″ |
Max Digging Radius | 9’7″ |
Bucket Size | 16″ Tooth |
Breakout Weight | 2300 lbs |
Max Digging Depth | 5′ 6″ |
Hydraulic Flow Rate | 4.7 gpm |

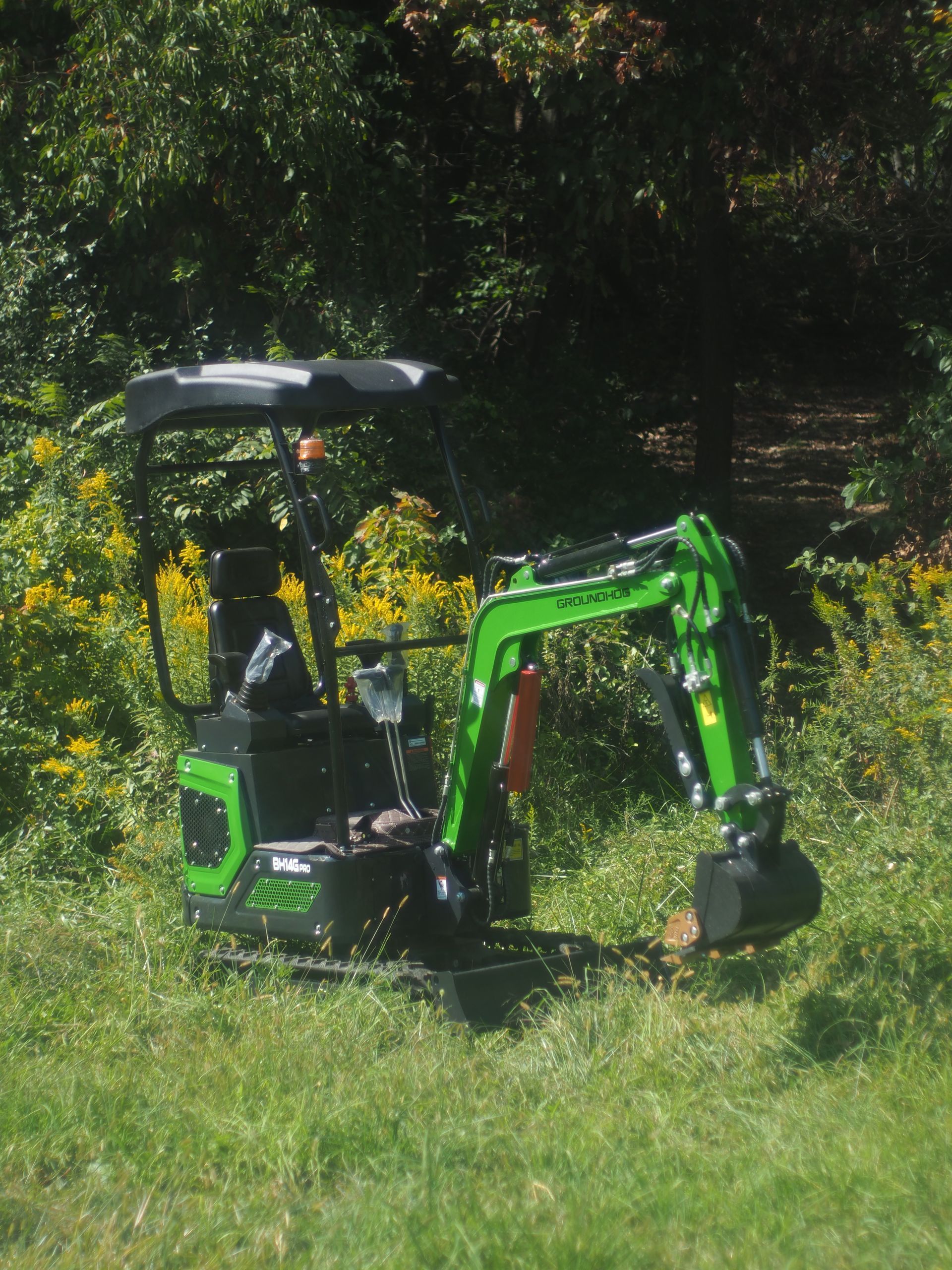

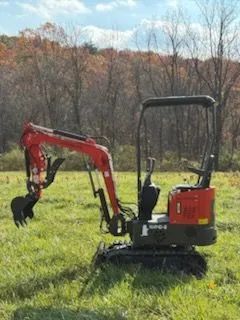

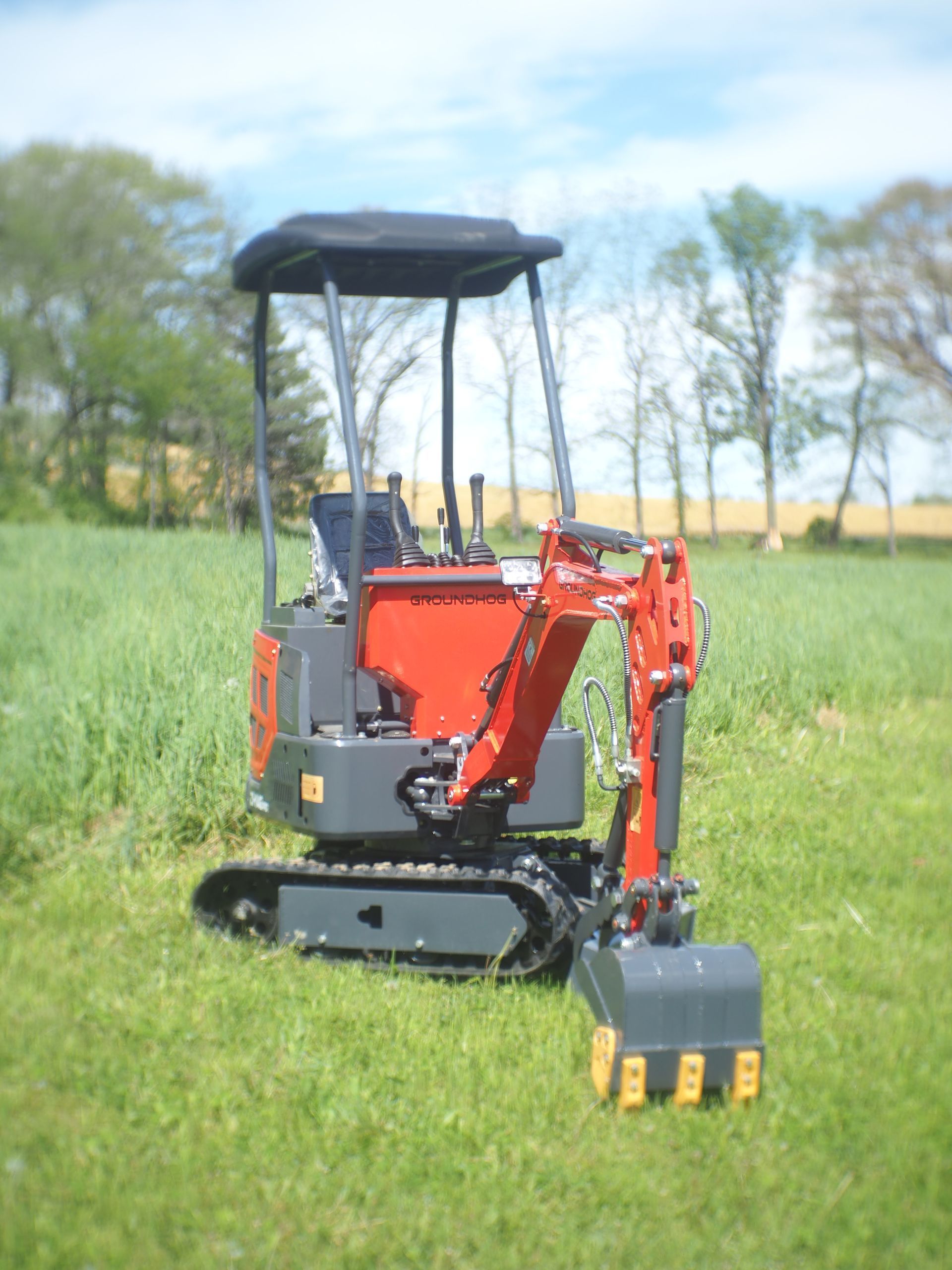

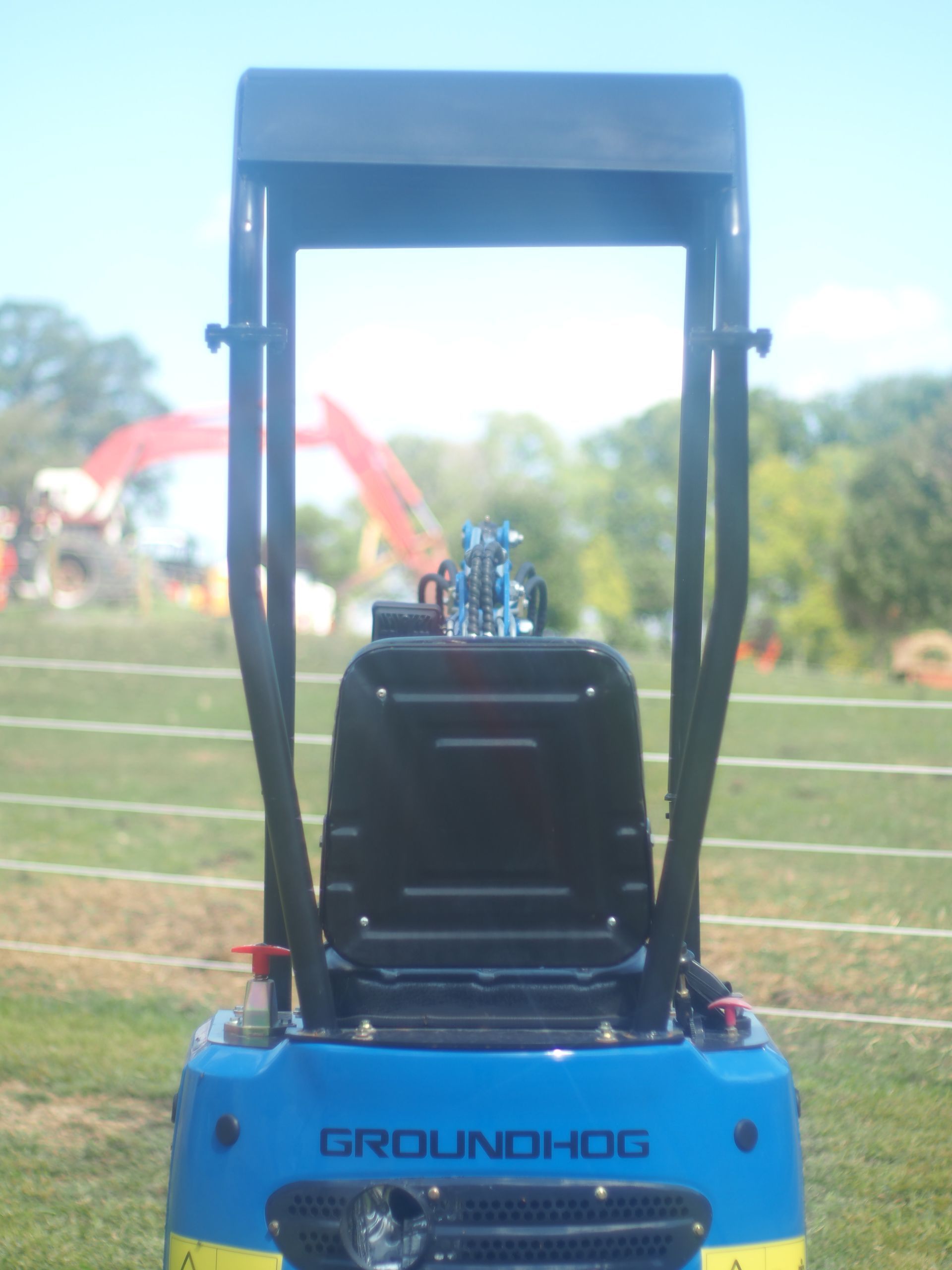

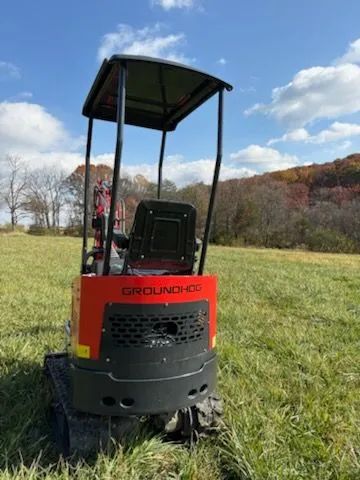

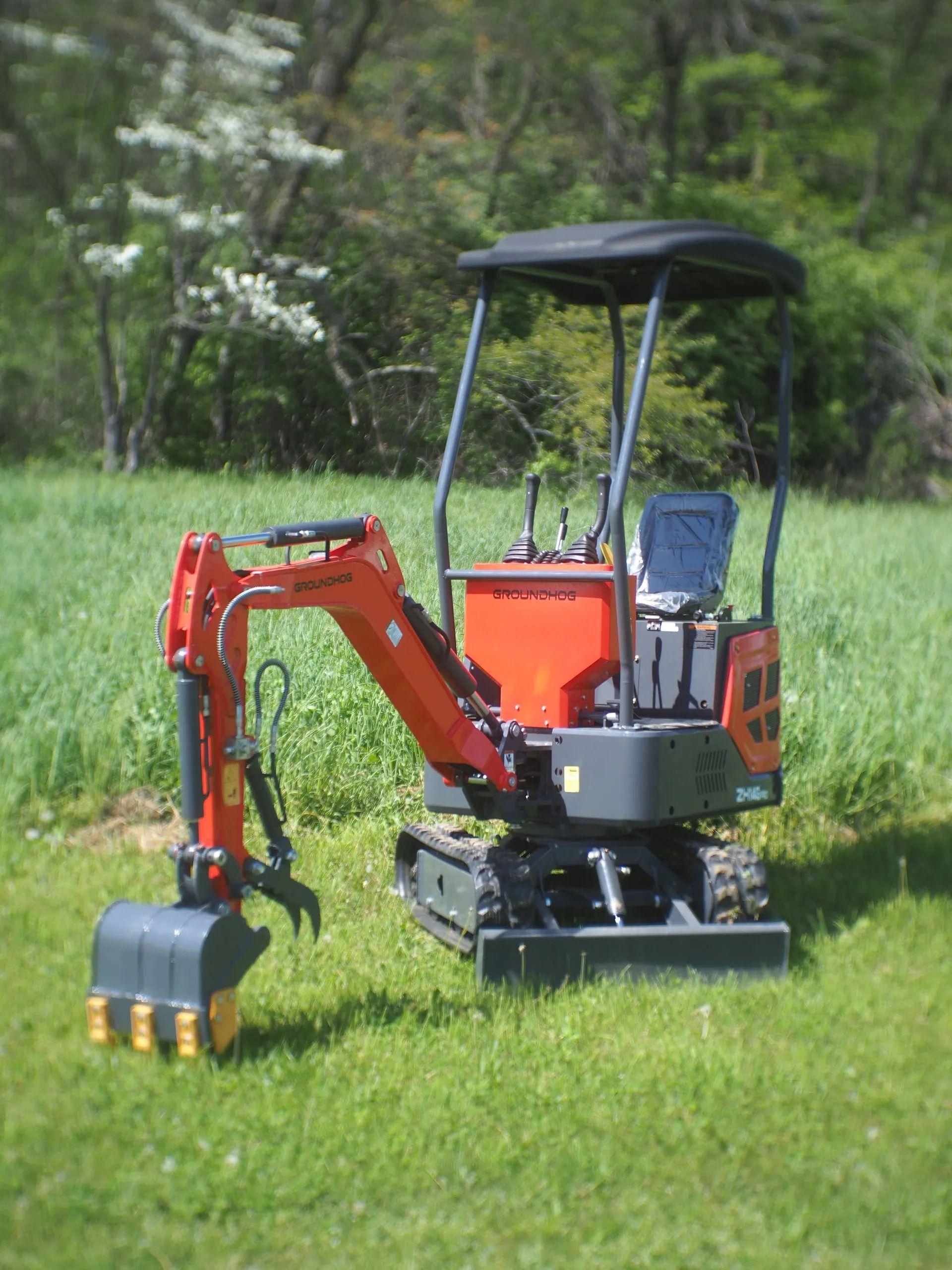

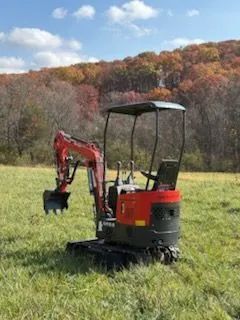

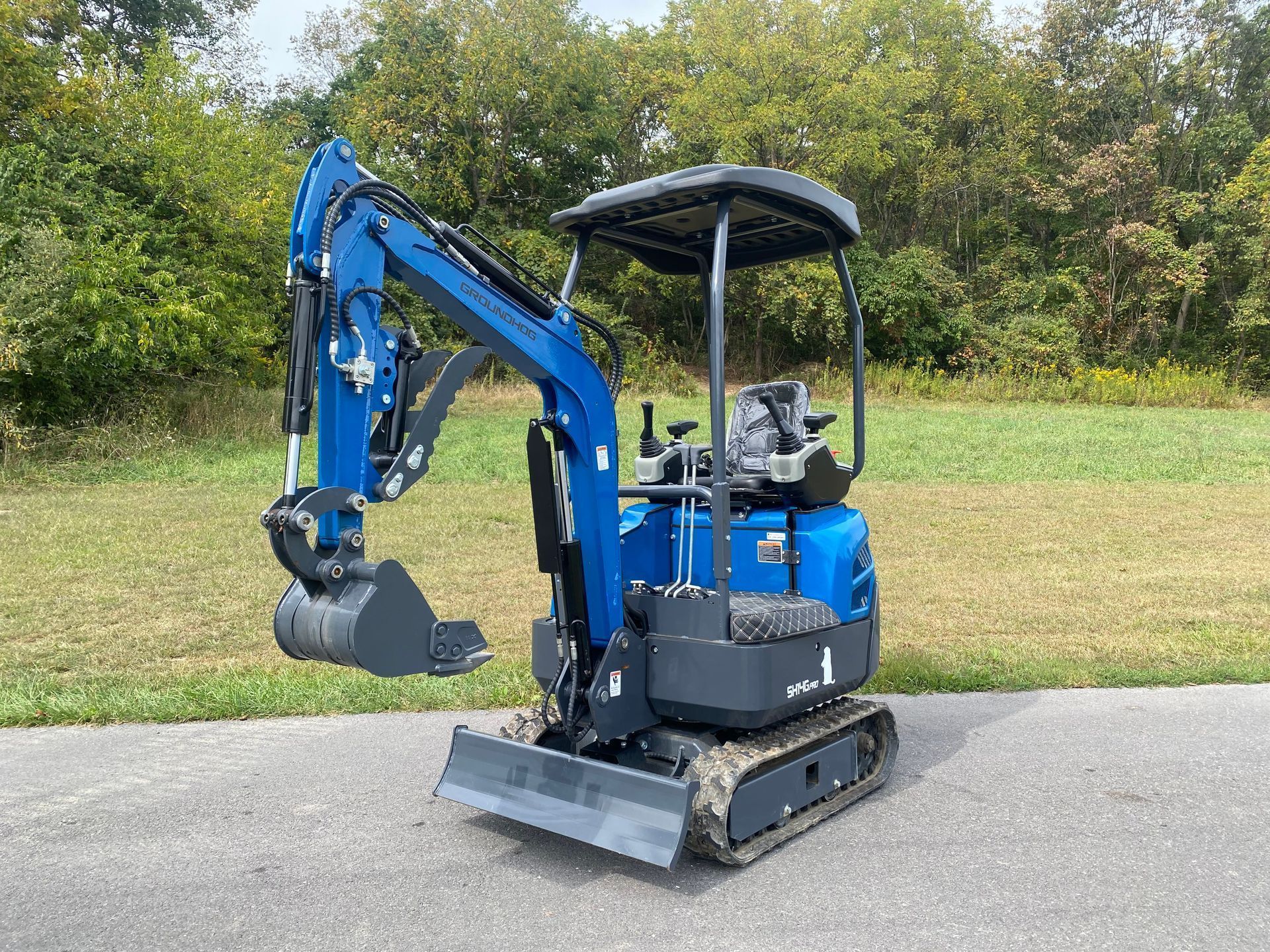

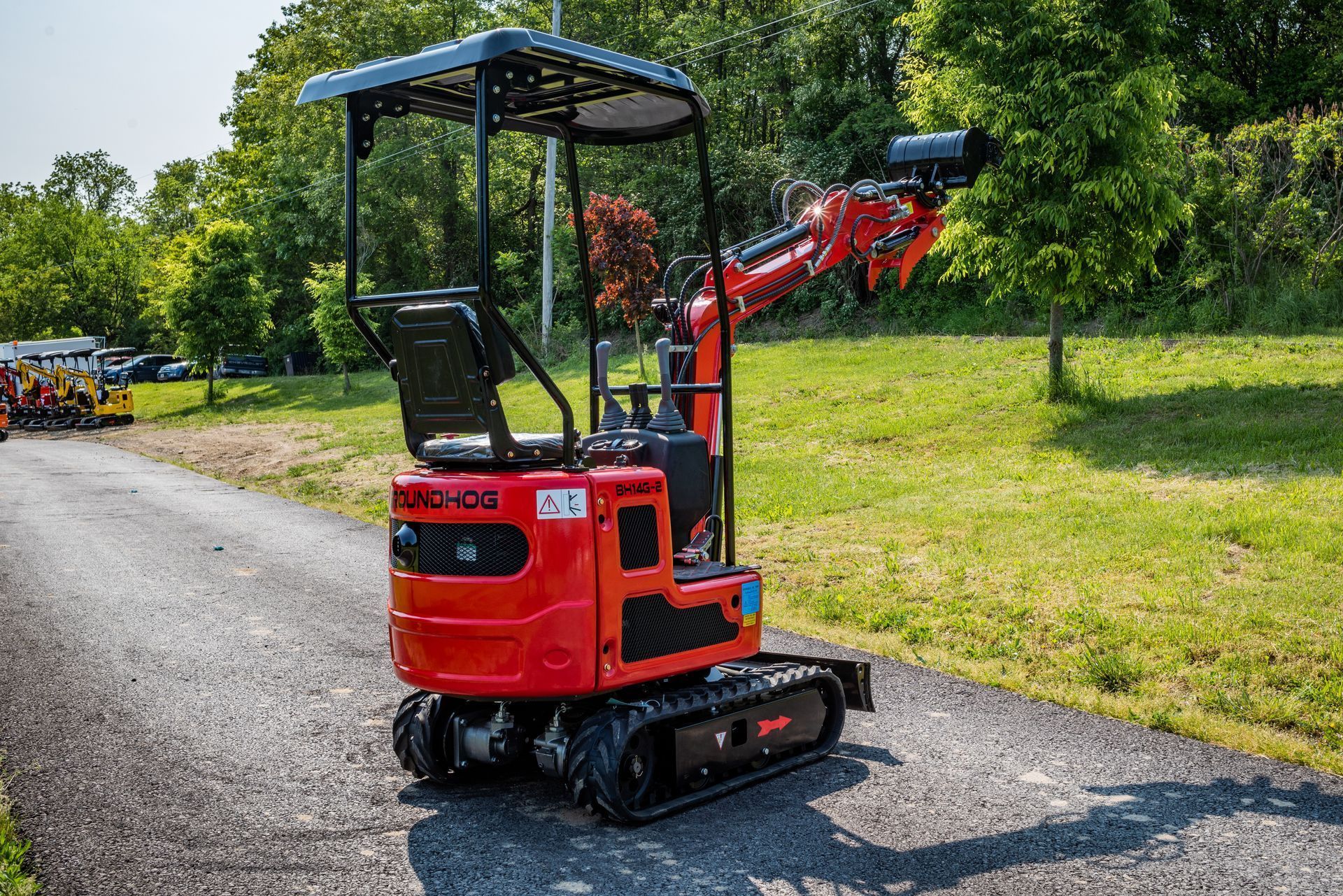

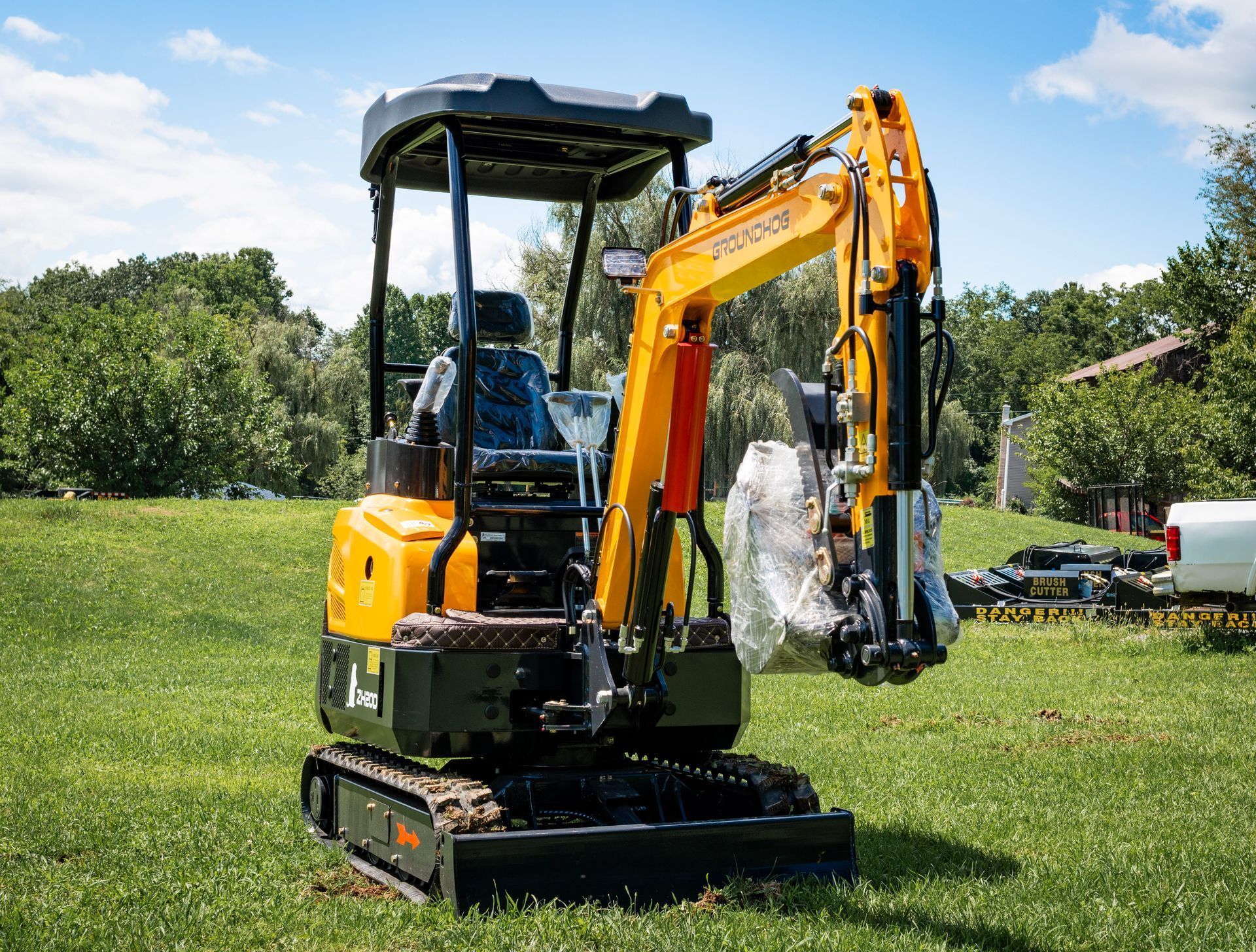

14 SERIES MINI EXCAVATOR
14 Series Excavator Starting Prices
- KH14G $8,900
- KH14G-2 $9,900
- KH14G Pro $10,900
- BH14G $9,900
- BH14G-2 $8,900
- BH14G Pro $10,900
- ZH14G Pro $8,900
- SH14G Pro $9,900

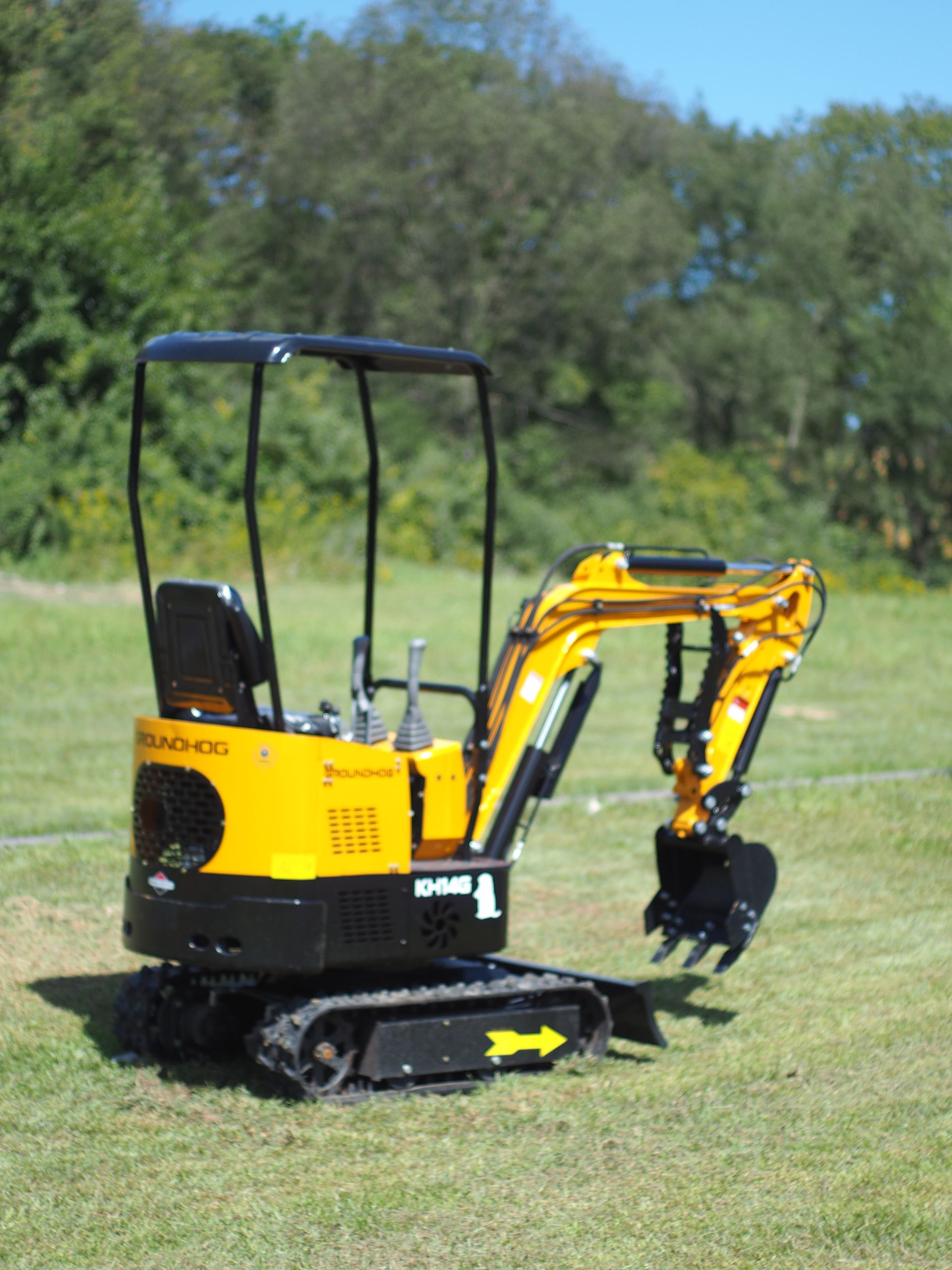

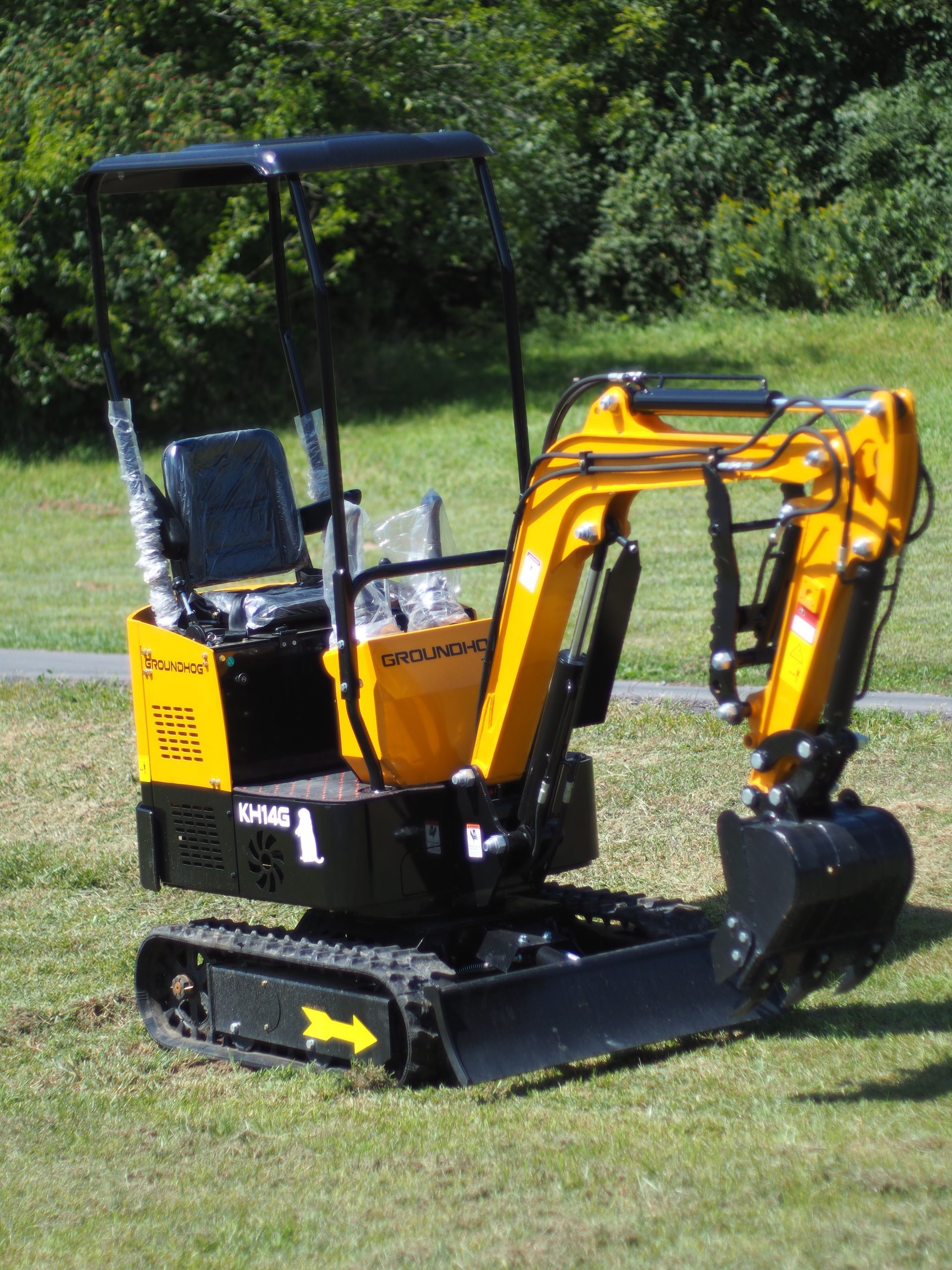

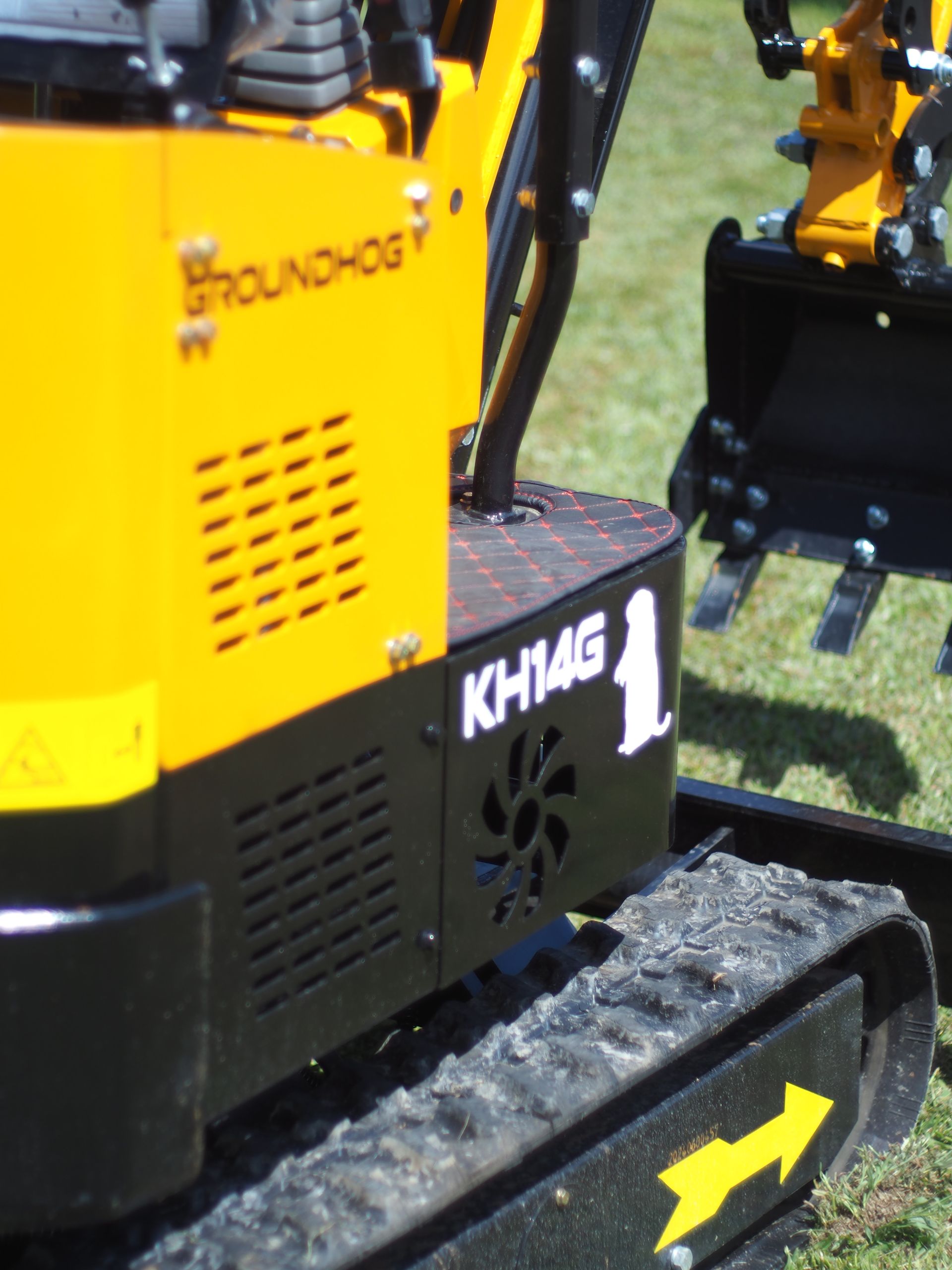

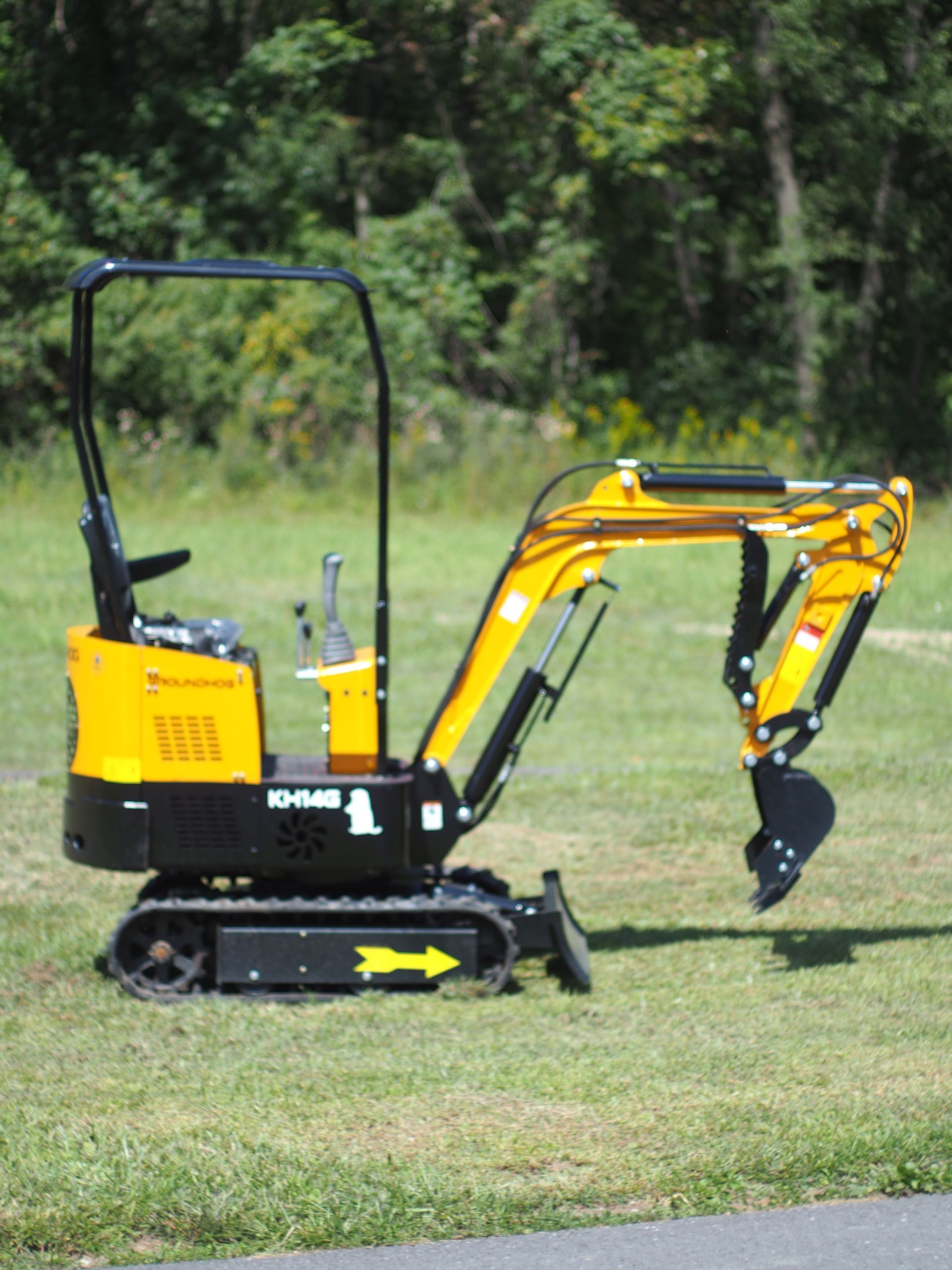

KH14G Excavator Specs
All KH14G models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine. The base model has an oil cooler and a 4 Post Canopy. Optional Upgrades: Side Swing, Window Tint and Retractable Tracks | KH14G $8,900 |
Operating Weight – Rubber Tracks | 2100 lbs |
Operating Weight – Steel Tracks | 2700 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 88″ |
Ground Clearance | 6″ |
Track Length | 48″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 54″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5’1″ |
Max Digging Height | 103″ |
Max Dumping Height | 73″ |
Max Reach | 8’11” |
Max Digging Radius | 9’3″ |
Hydraulic Flow Rate | 4.7 gpm |
Bucket Size | 16″ Tooth |

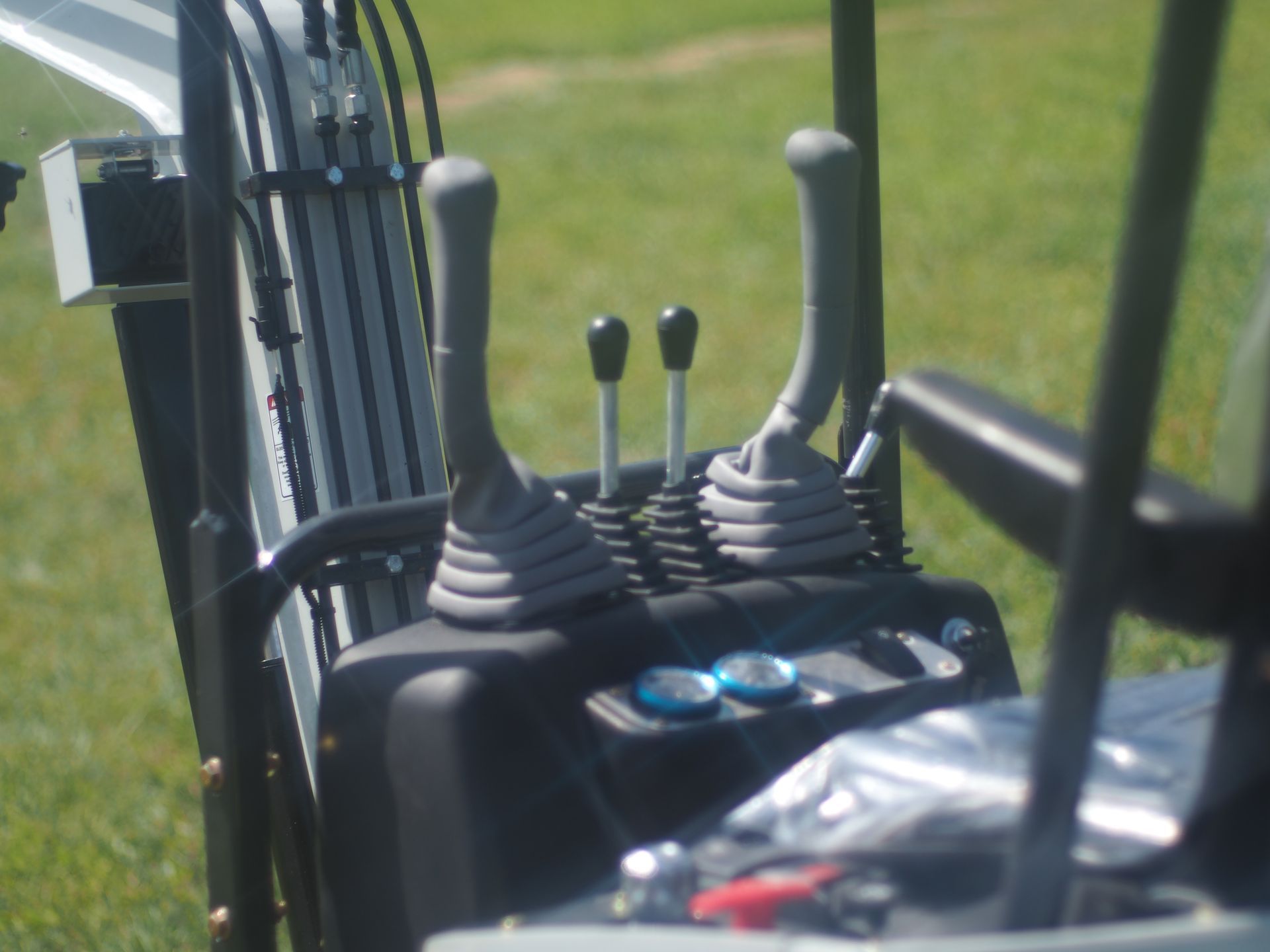

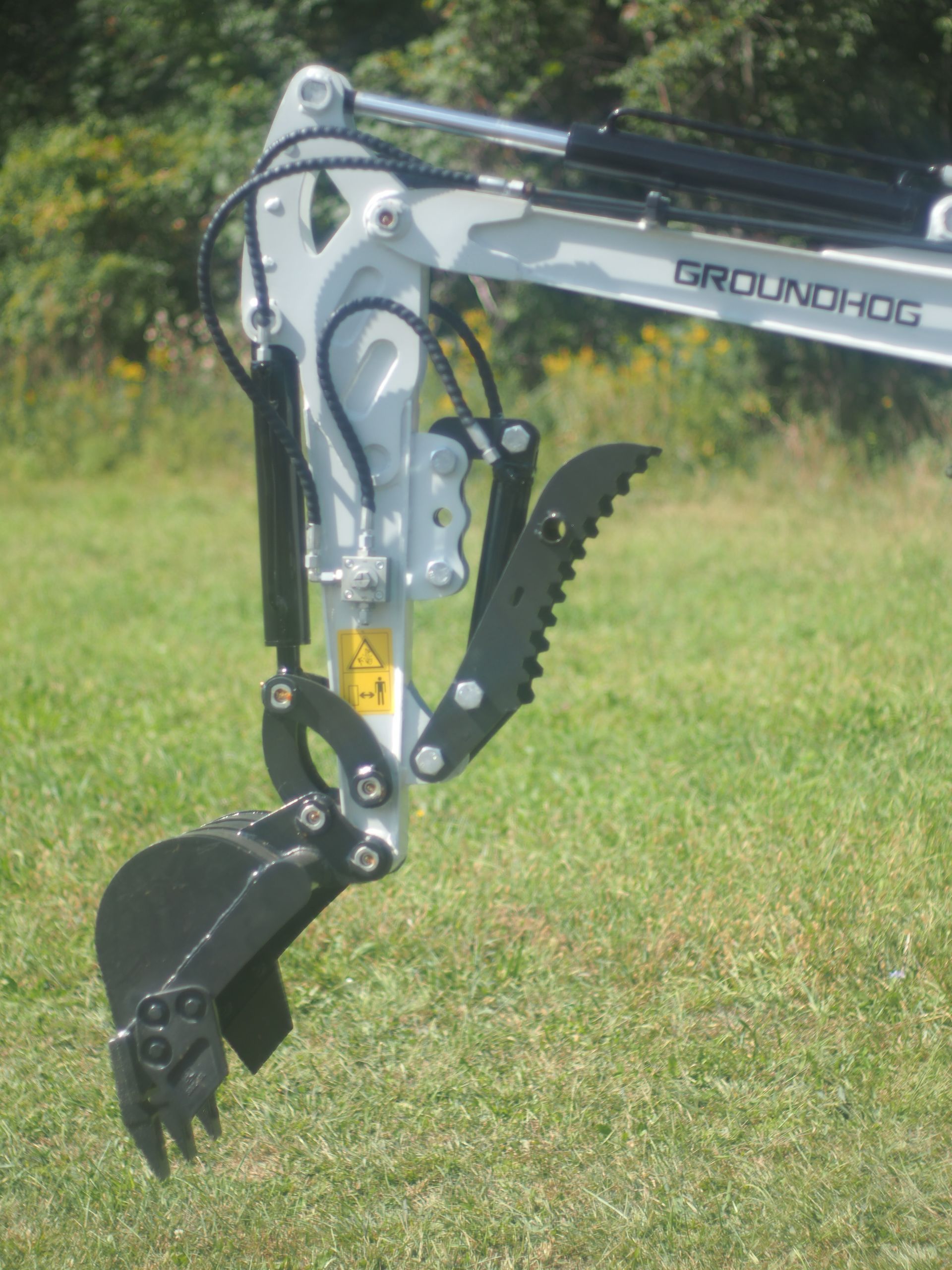

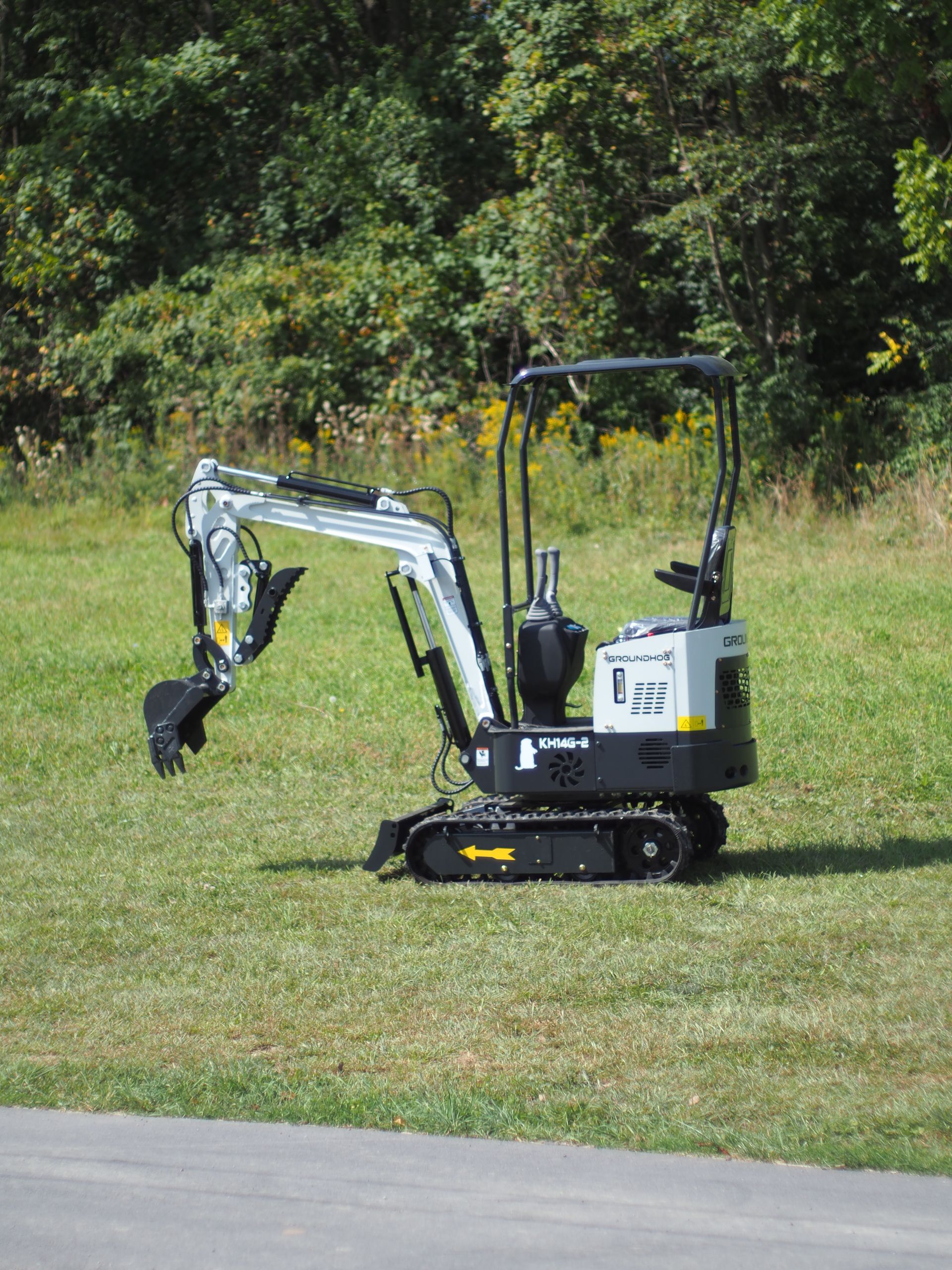

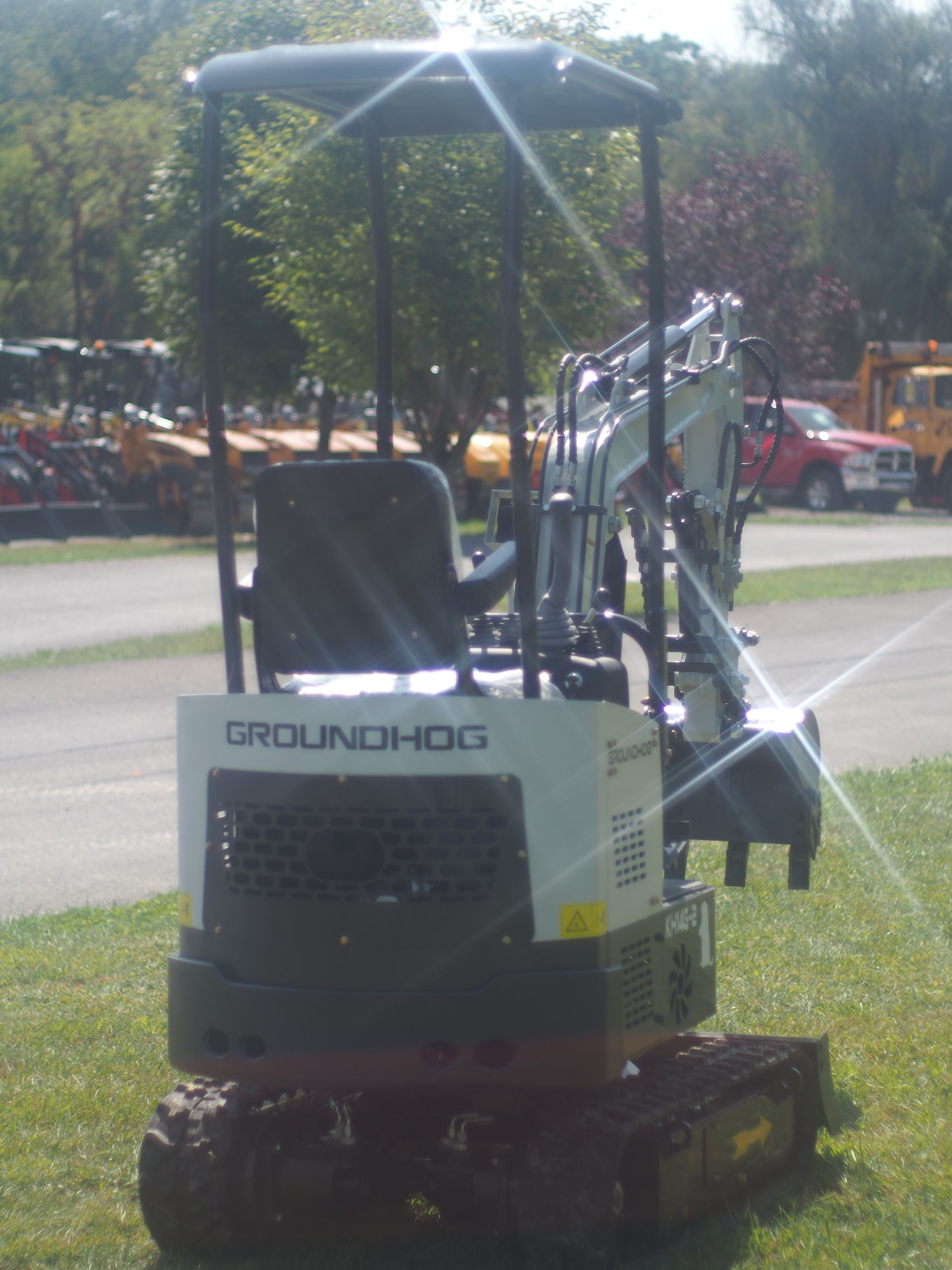

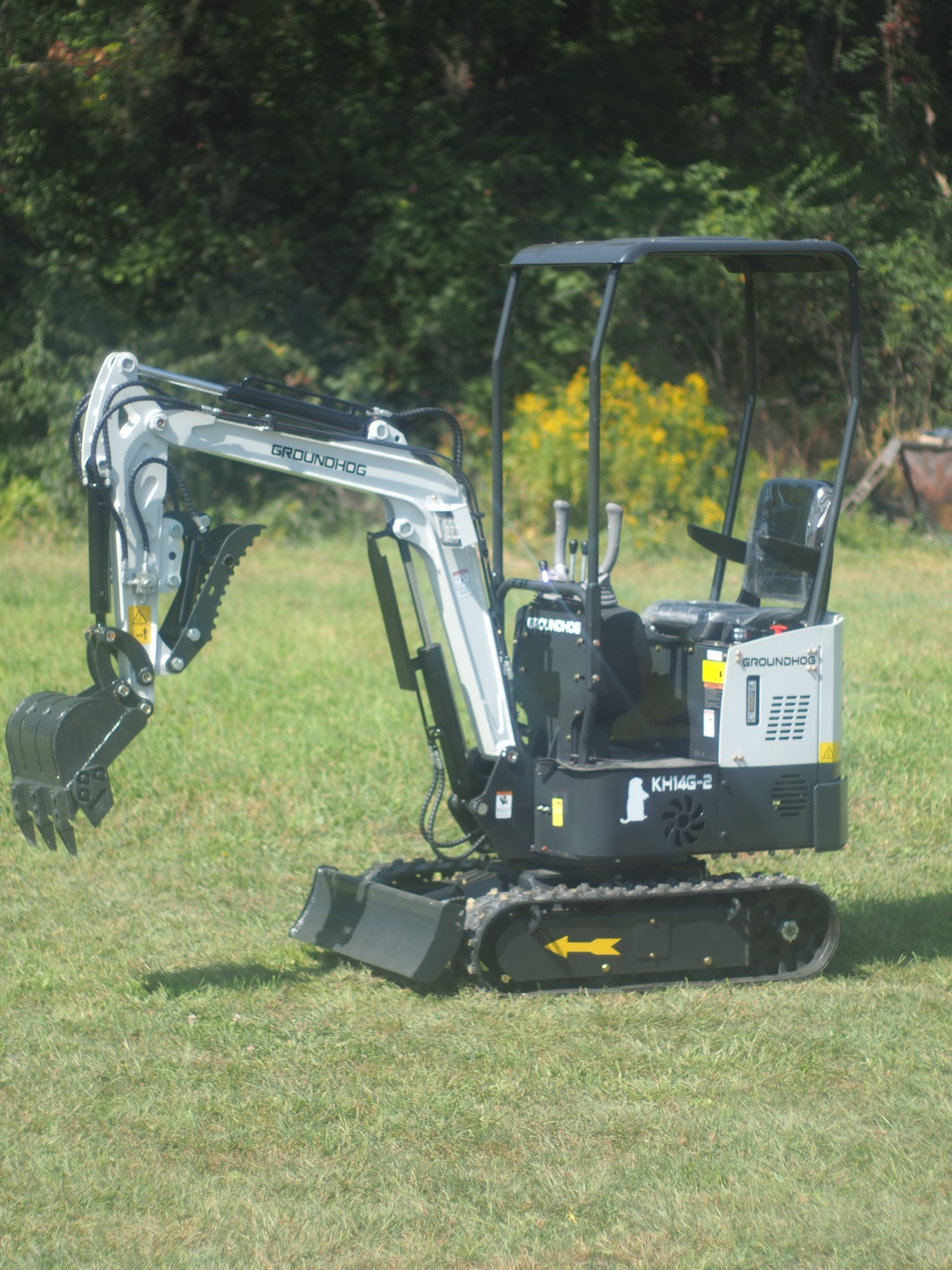

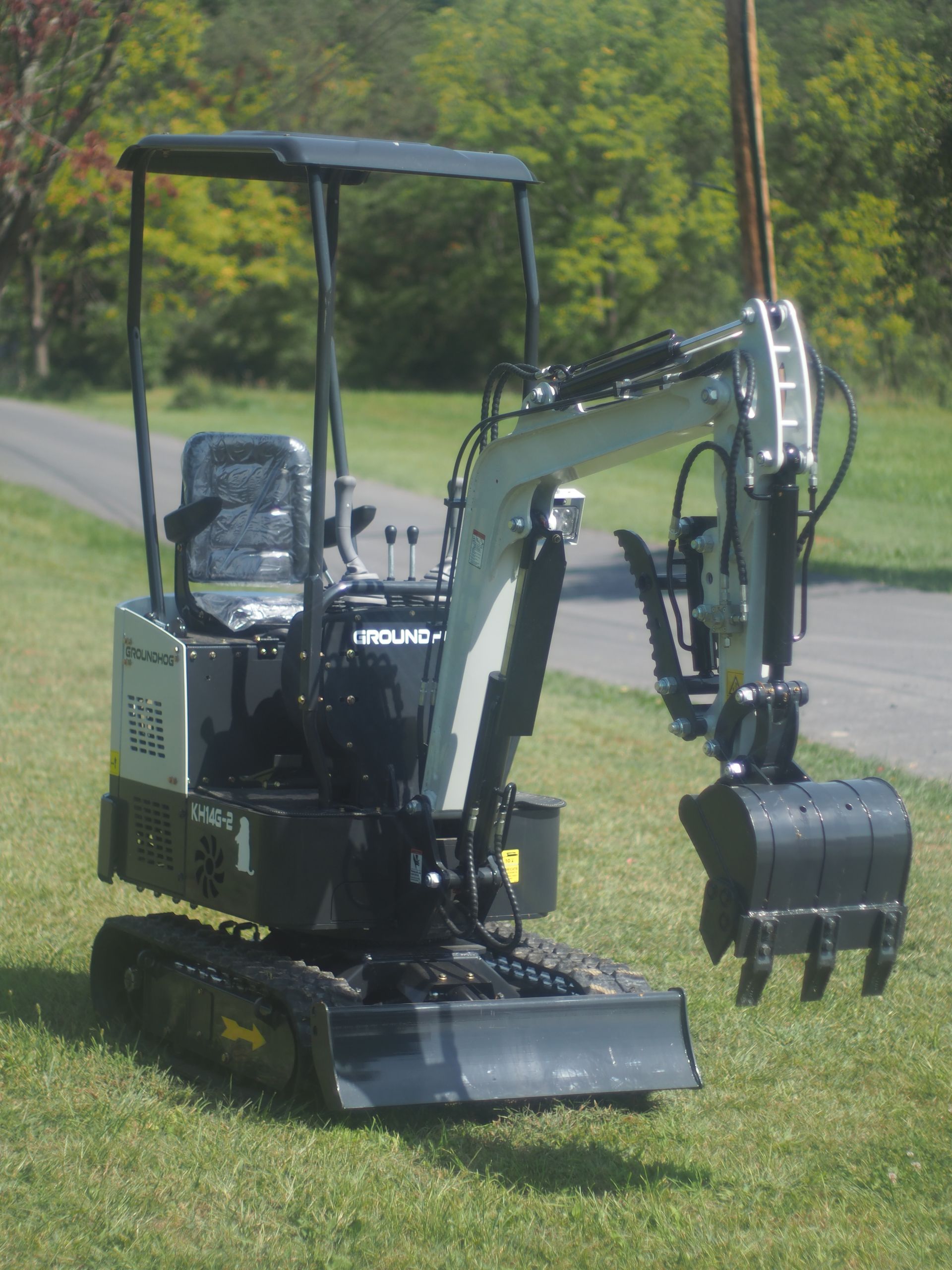

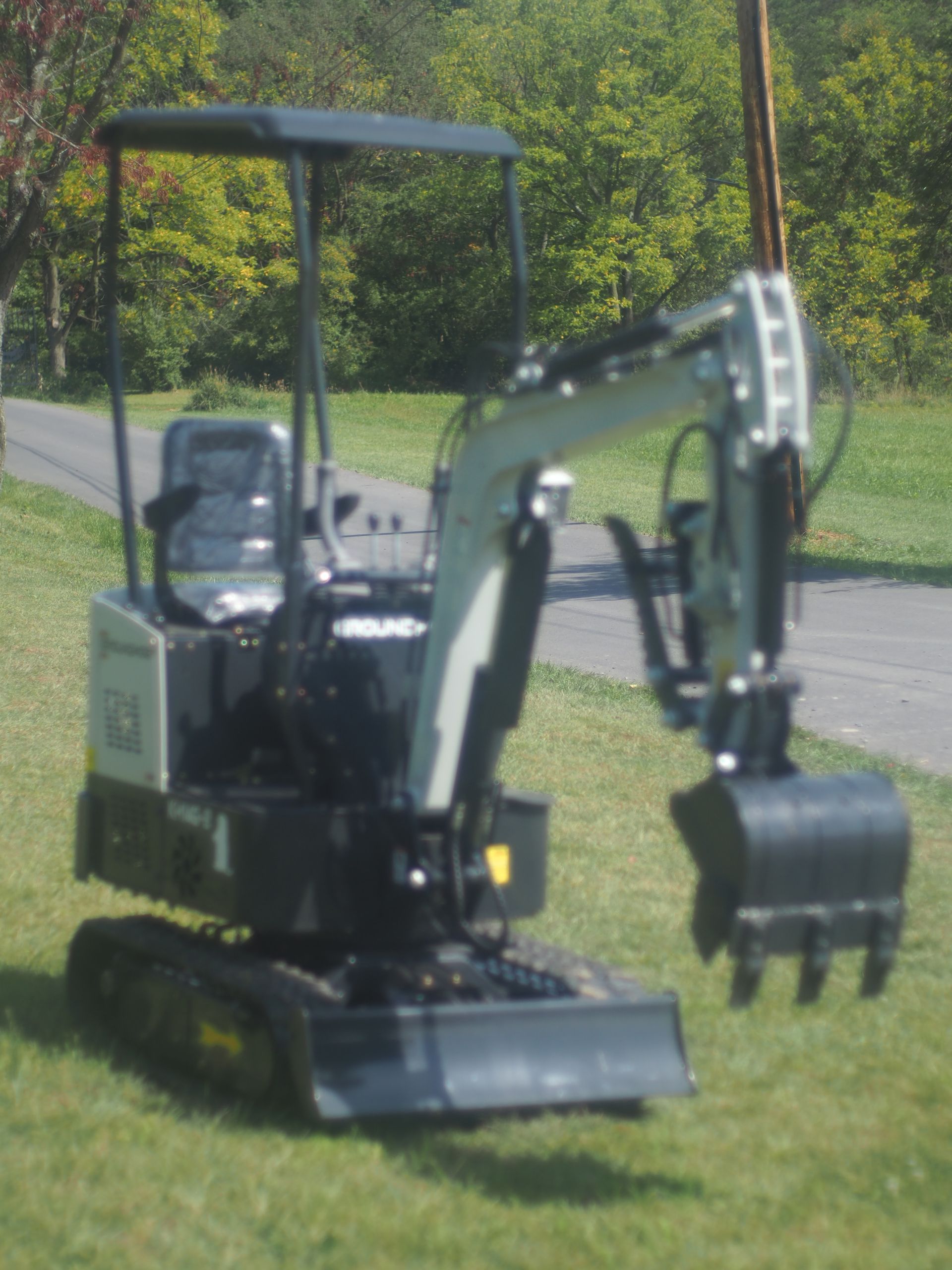

KH14G-2 Excavator Specs
All KH14G-2 models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, an oil cooler, 4 Post Canopy, Poly Molded Console, Tie-down Points, Cylinder Protectors, and Hard Lines. Optional Upgrades: Side Swing, Window Tint and Retractable Tracks | KH14G-2 $9,900 |
Operating Weight – Rubber Tracks | 2100 lbs |
Operating Weight – Steel Tracks | 2700 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 88″ |
Ground Clearance | 6″ |
Track Length | 48″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 54″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5’1″ |
Max Digging Height | 103″ |
Max Dumping Height | 73″ |
Max Reach | 8’11” |
Max Digging Radius | 9’3″ |
Hydraulic Flow Rate | 4.7 gpm |
Bucket Size | 16″ Tooth |

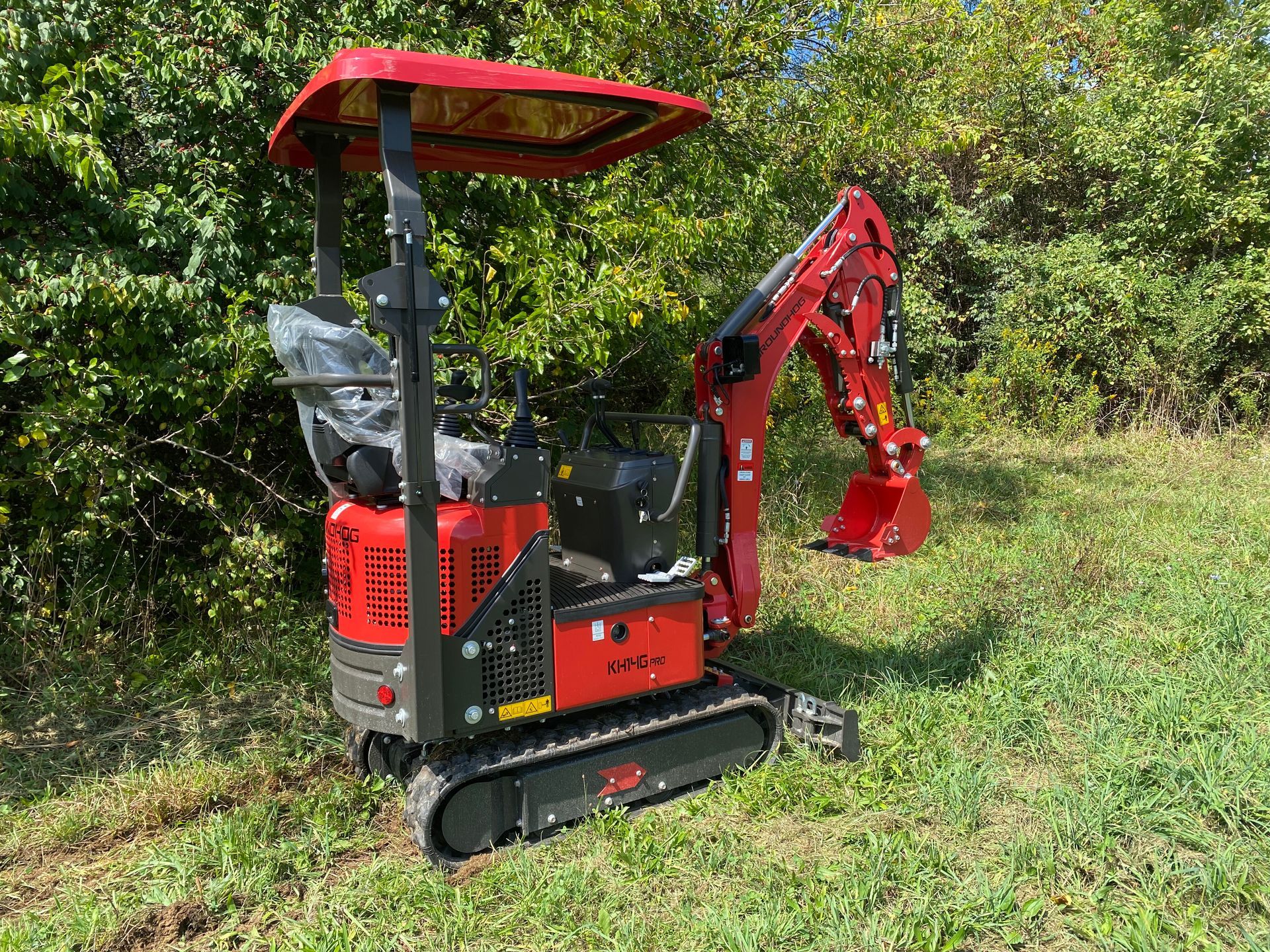

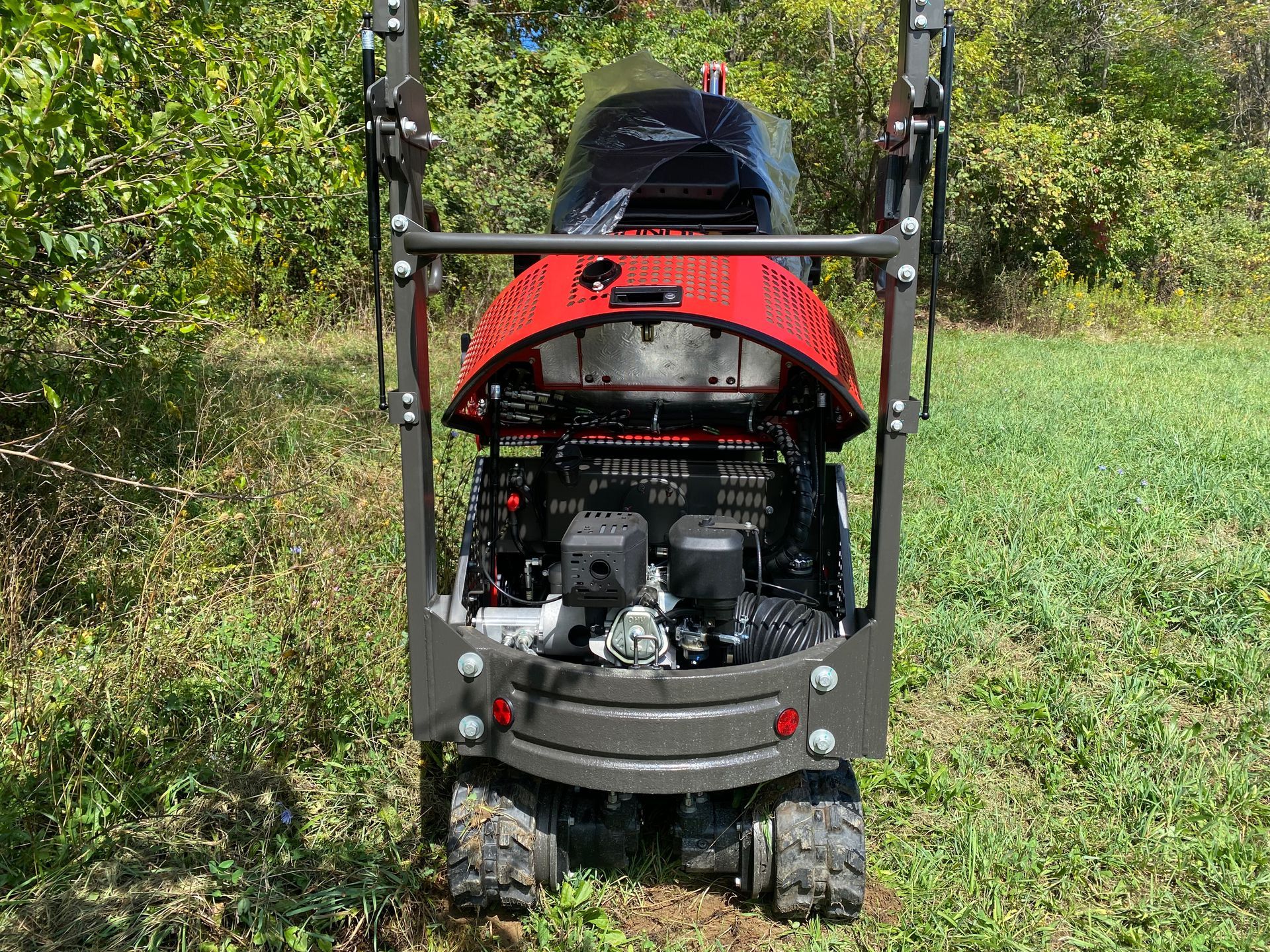

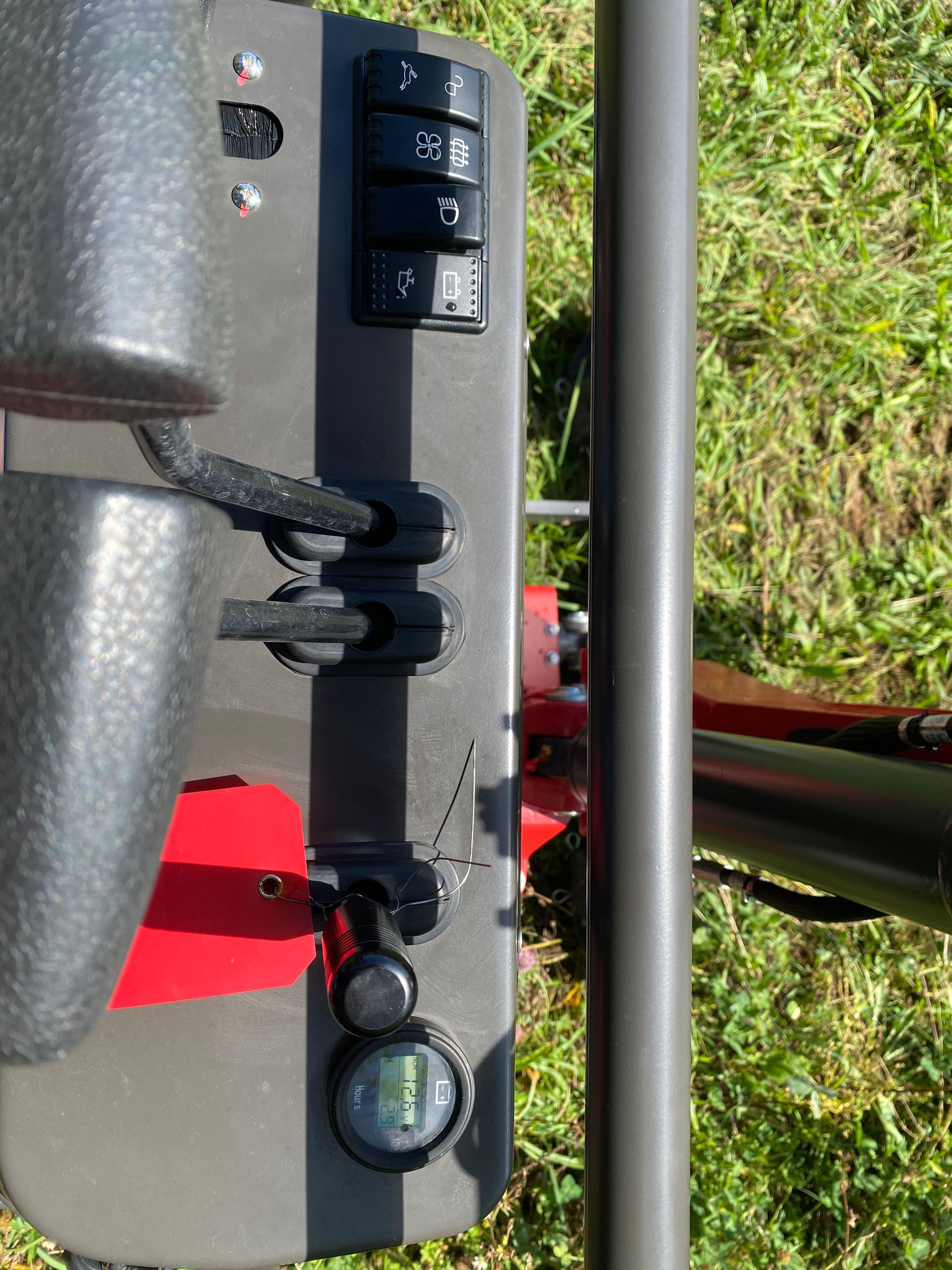

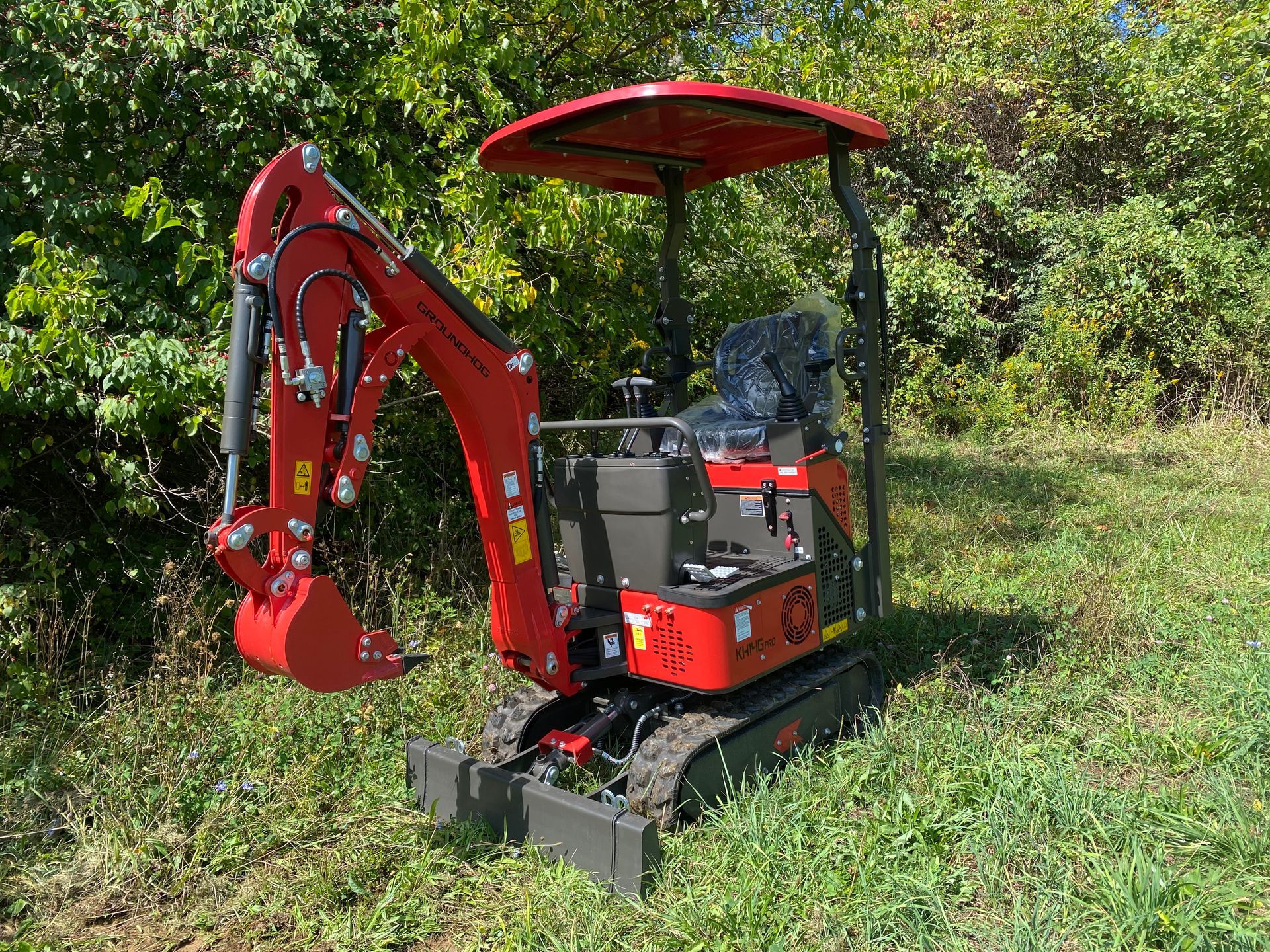

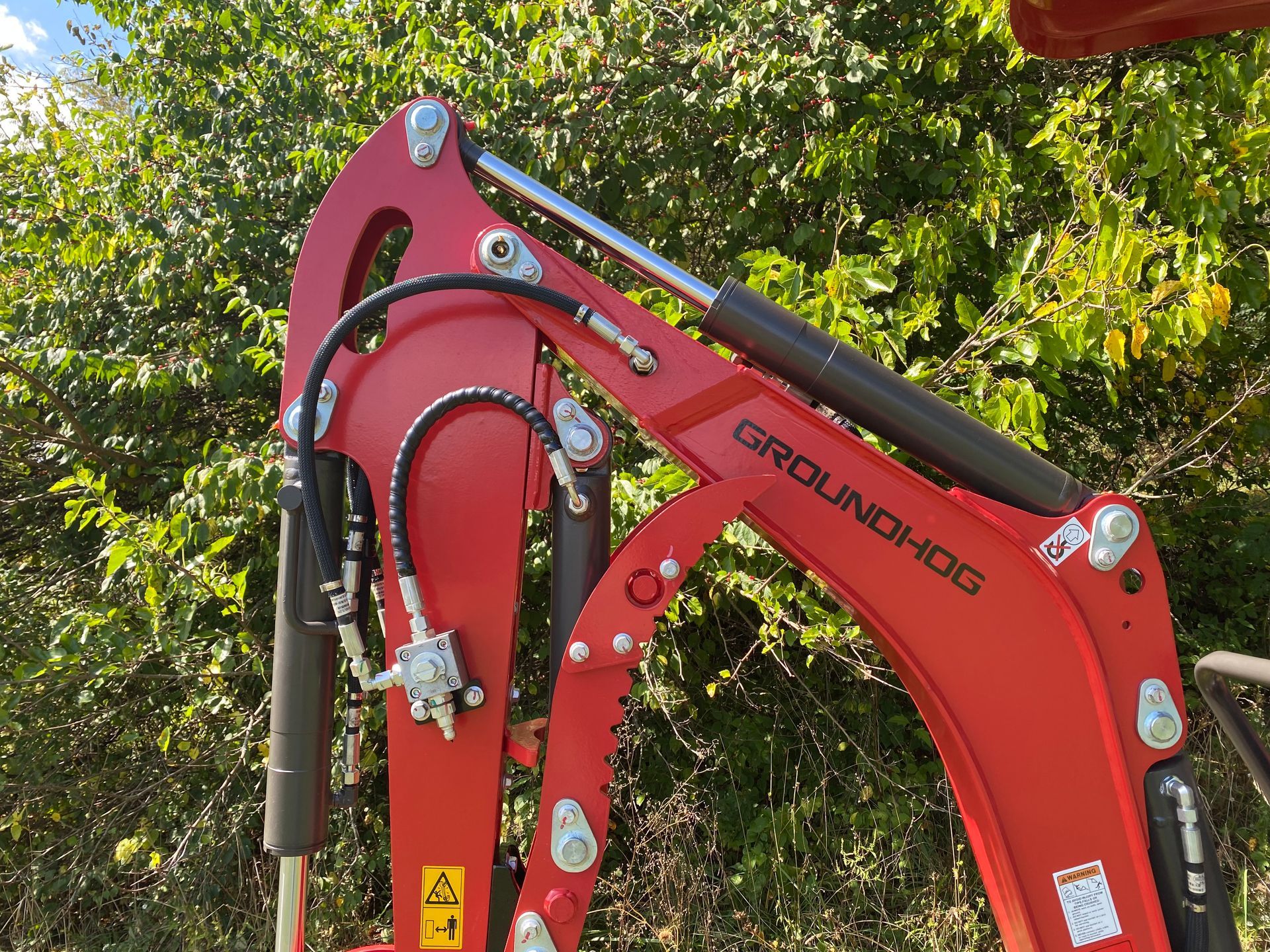

KH14G Pro Excavator Specs

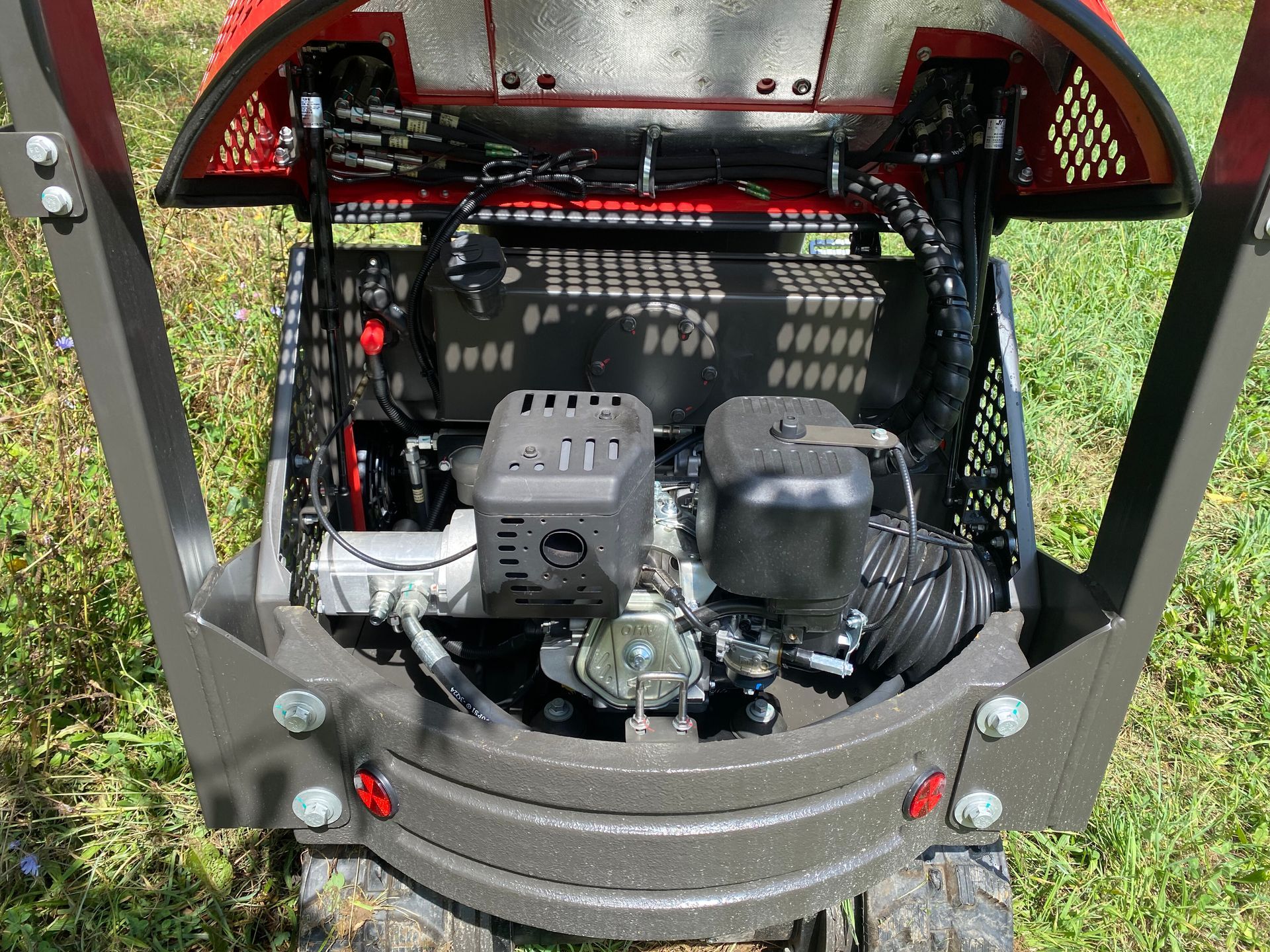

The KH14G Pro has a 14HP Briggs & Stratton Gas Engine, 2 Post Folding ROPS, Pilot Controls, Hydraulic Joysticks, Double Stacked Pump, Oil cooler, Greaseable Track Tensioner, and Hydraulic lines run through the boom. Optional Upgrades: Side Swing, Window Tint and Retractable Tracks | KH14G Pro $10,900 |
Operating Weight – Rubber Tracks | 2200 lbs |
Operating Weight – Steel Tracks | 2800 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 89 1/8″ |
Ground Clearance | 6″ |
Track Length | 48″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 54″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5’1″ |
Max Digging Height | 103″ |
Max Dumping Height | 73″ |
Max Reach | 8’11” |
Max Digging Radius | 9’3″ |
Hydraulic Flow Rate | 4.7 gpm |
Bucket Size | 16″ Tooth |

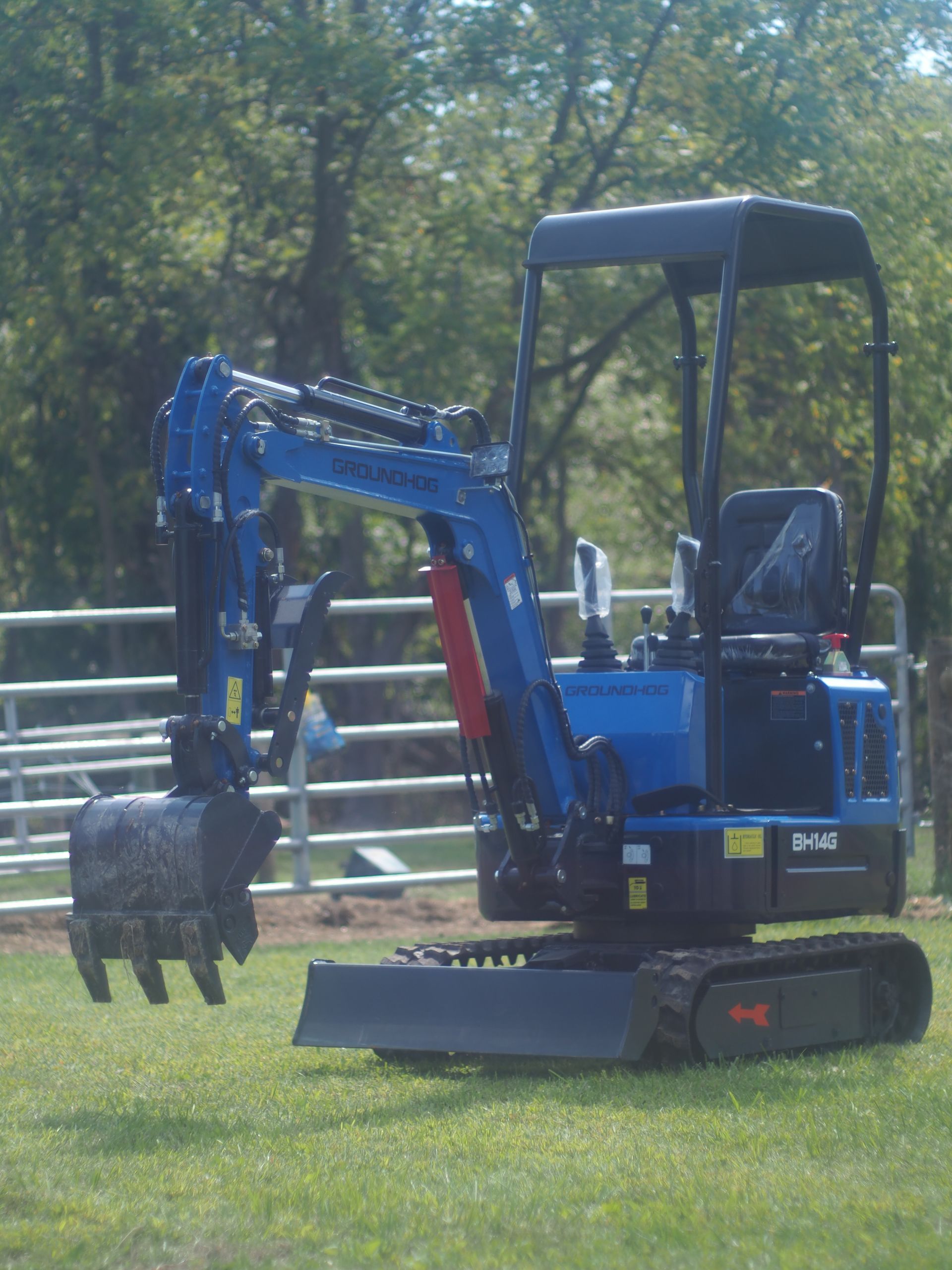

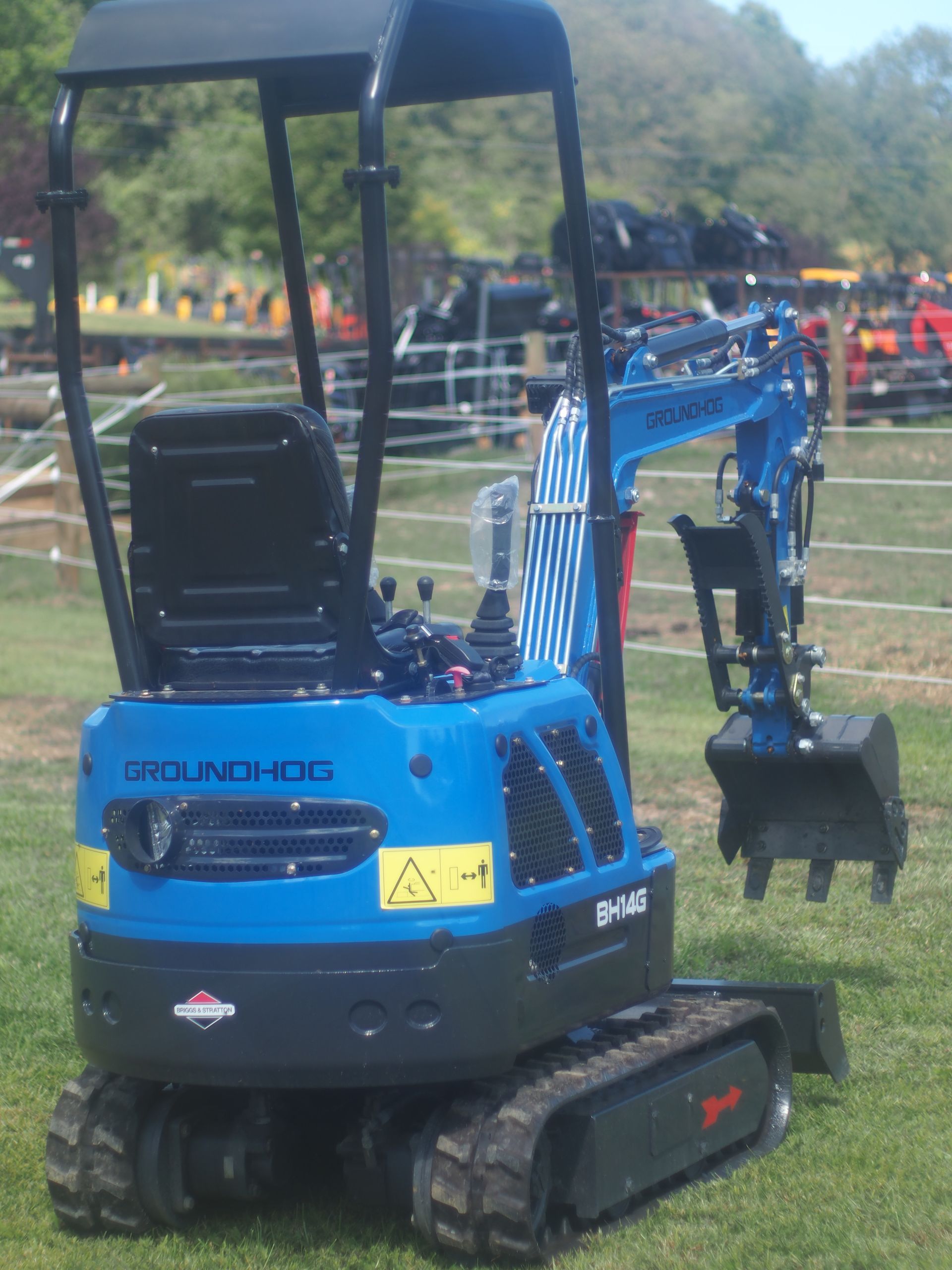

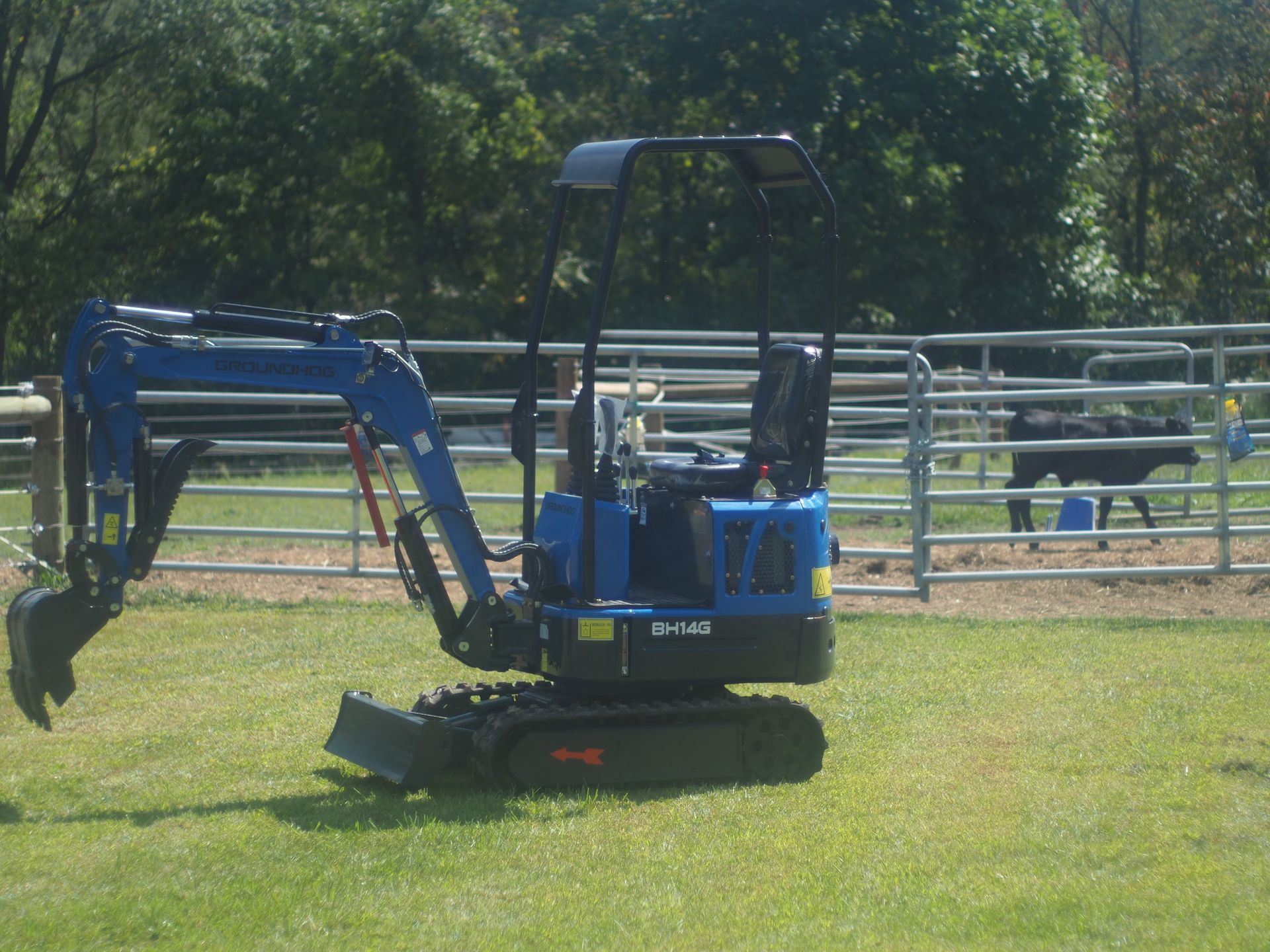

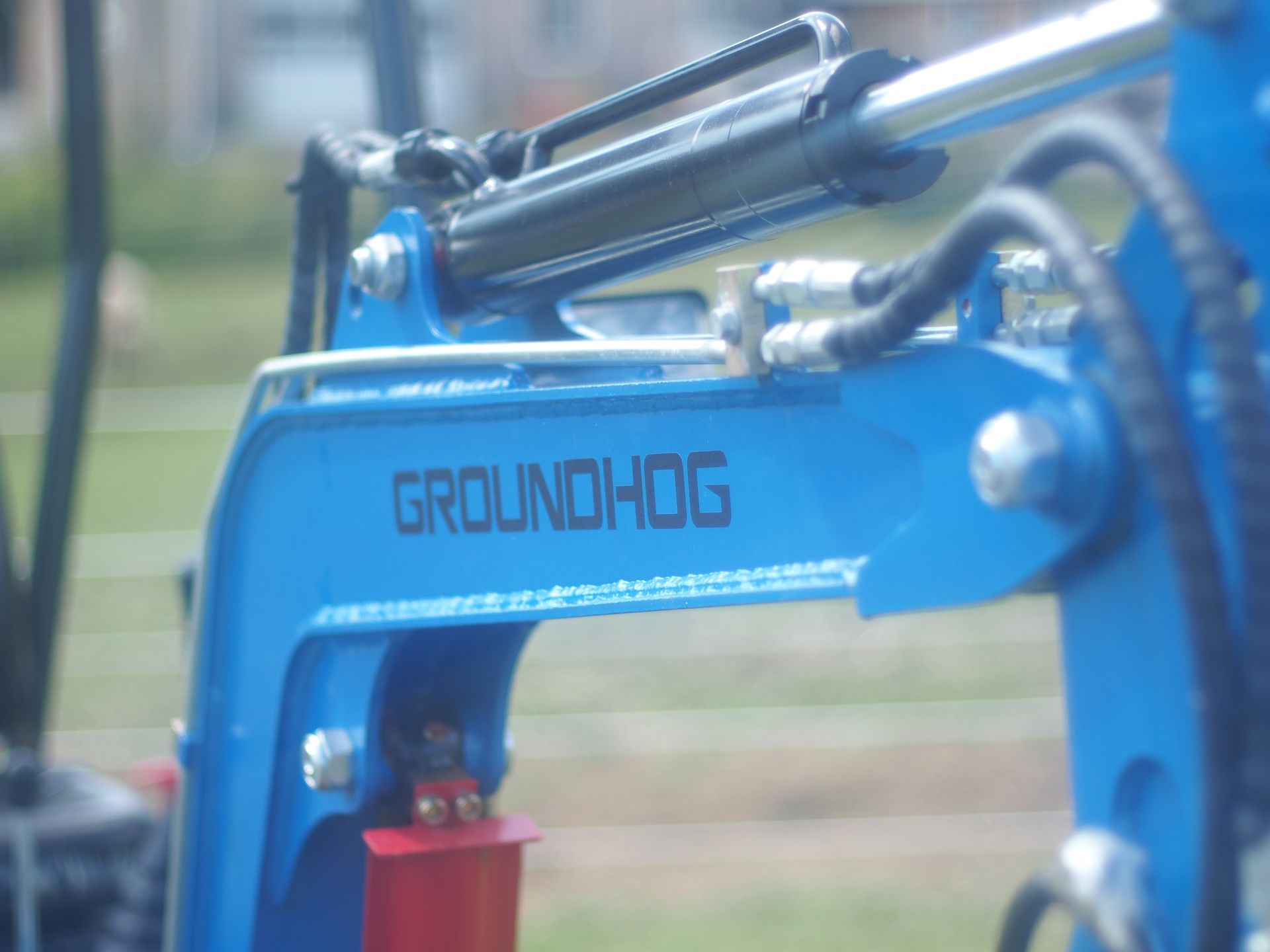

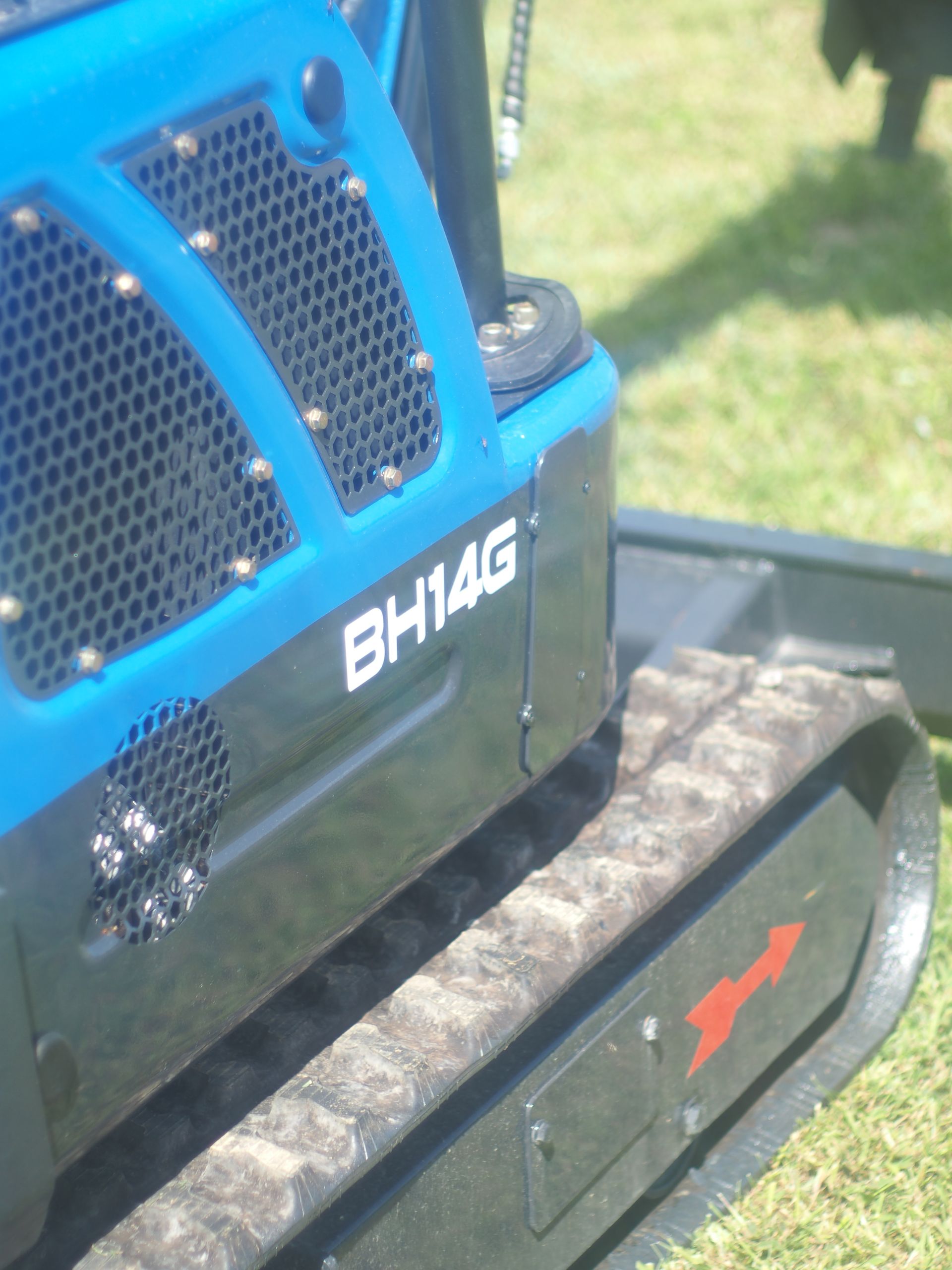

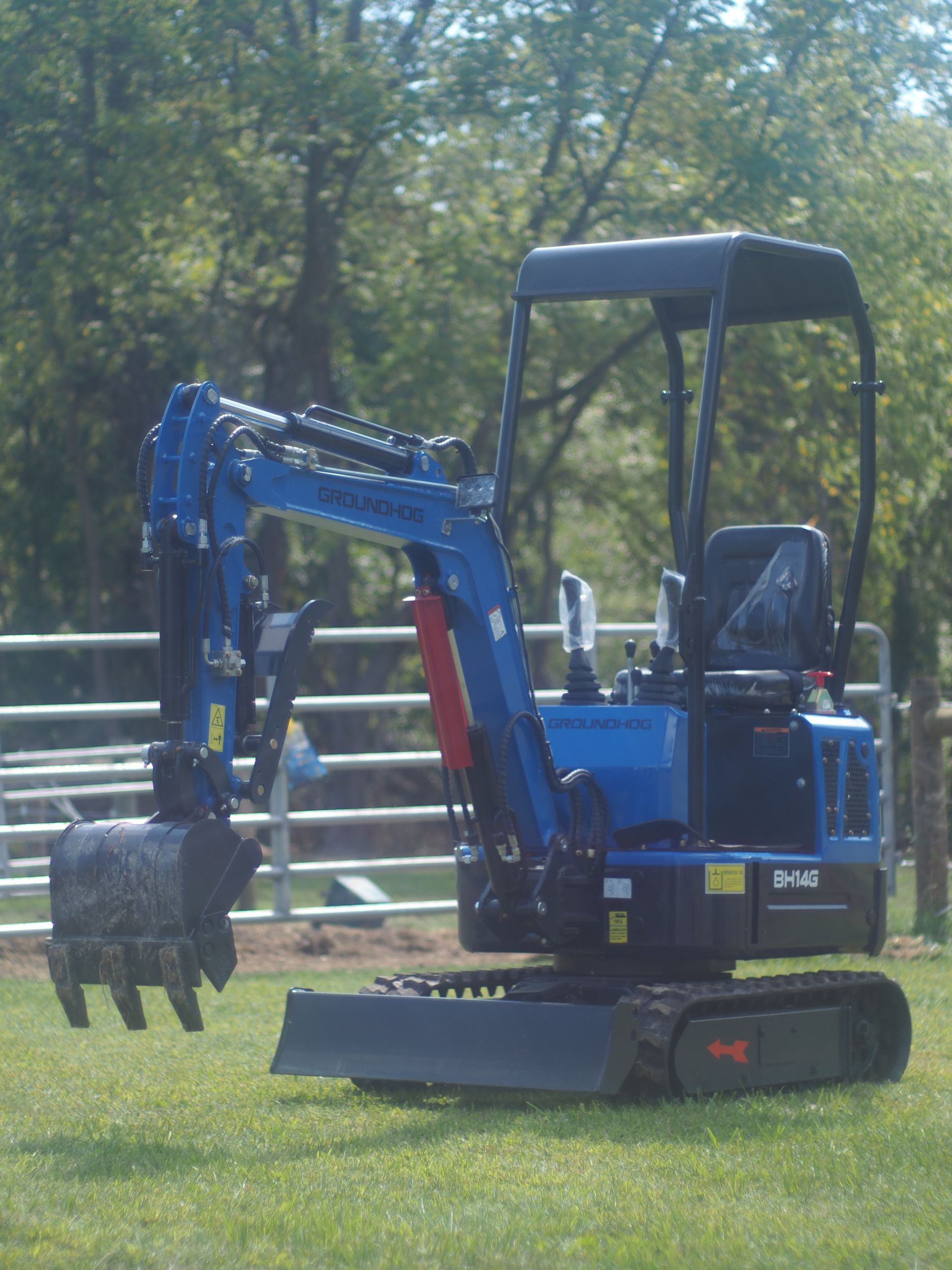

BH14G Excavator Specs
All BH14G models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, Oil cooler, wider hydraulic thumb, and a 4 post ROPS. Optional Upgrades: Side Swing, Window Tint, and Retractable Tracks | BH14G $9,900 |
Operating Weight – Rubber Tracks | 2100 lbs |
Operating Weight – Steel Tracks | 2700 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | One G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 7’4″ |
Ground Clearance | 6″ |
Track Length | 43″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 49″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5′ 1″ |
Max Digging Height | 98″ |
Max Dumping Height | 69″ |
Max Reach | 8’11” |
Max Digging Radius | 9’5″ |
Bucket Size | 16″ Tooth |

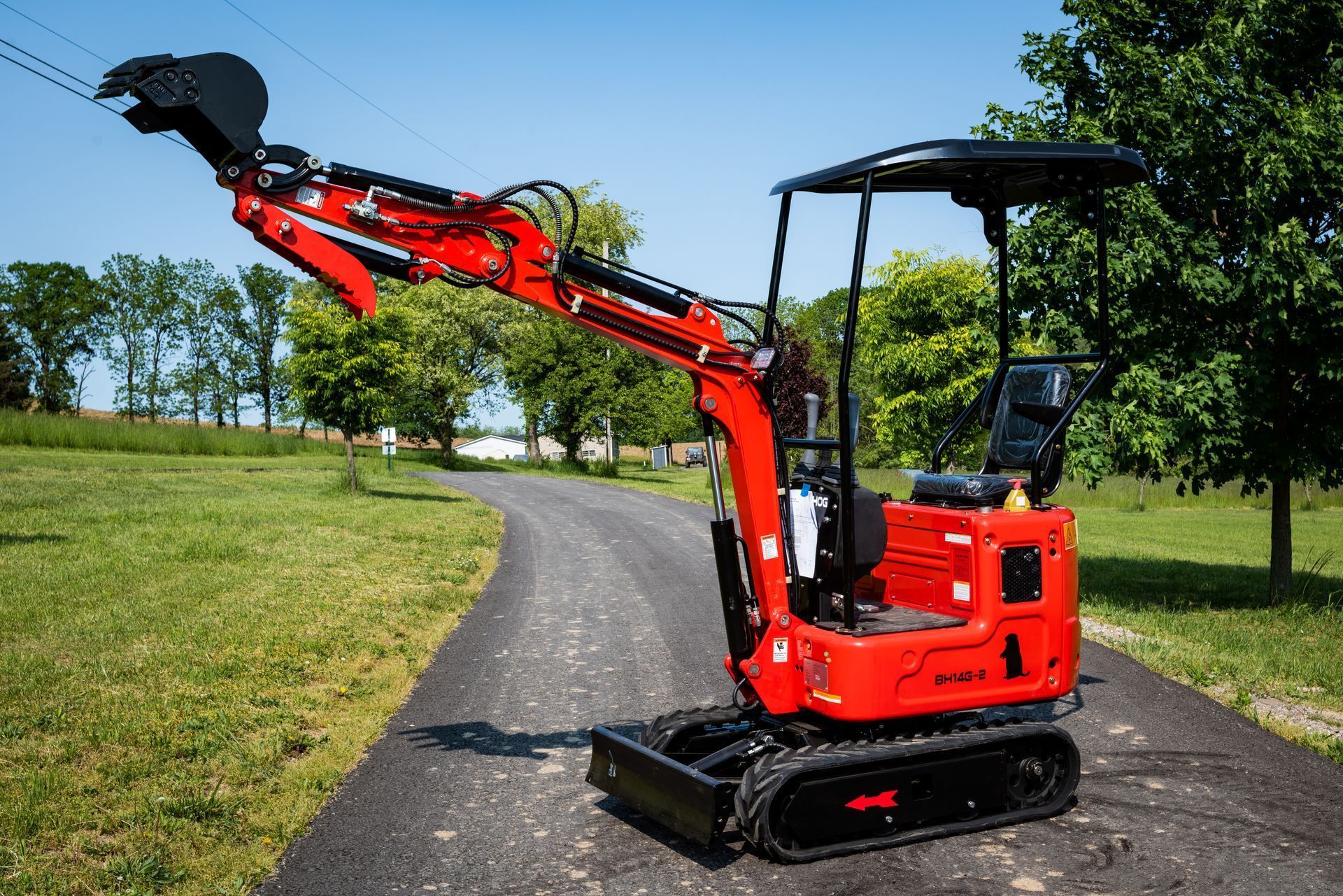

BH14G-2 Excavator Specs
All BH14G-2 models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, Oil cooler, wider hydraulic thumb, and a 4 post ROPS, molded gauges, a double gusset boom, a higher console, shorter drive sticks, auxiliary fuel tank, and an optional counterweight. Optional Upgrades: Side Swing, Window Tint, and Retractable Tracks | BH14G-2 $8,900 |
Operating Weight – Rubber Tracks | 2,200 lbs |
Operating Weight – Steel Tracks | 2,800 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | One G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 7’4″ |
Ground Clearance | 6″ |
Track Length | 43″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 49″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 6′ 1″ |
Max Digging Height | 98″ |
Max Dumping Height | 69″ |
Max Reach | 8’11” |
Max Digging Radius | 9’5″ |
Bucket Size | 16″ Tooth |

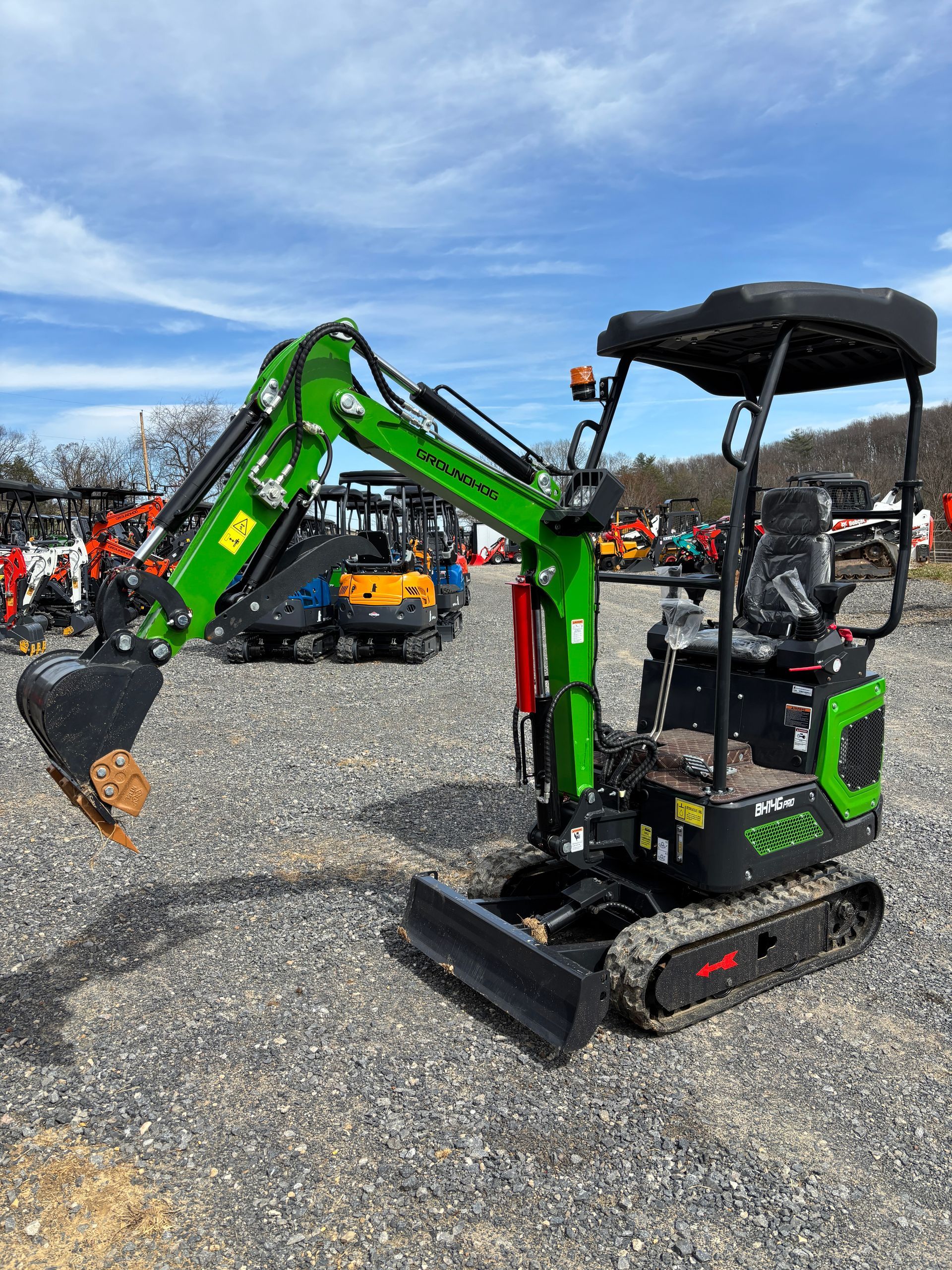

BH14G Pro Excavator Specs
All BH14G models come equipped with a 14 HP Briggs and Stratton XR Professional gas engine, Oil cooler, wider hydraulic thumb, and a 4 post ROPS, Pilot Controls with Hydraulic Joysticks, Oil cooler, Threaded Track Tensioner, a Poly Molded Roof to prevent rattling, and a USB port. Optional Upgrades: Side Swing, Window Tint, and Retractable Tracks | BH14G Pro $10,900 |
Operating Weight – Rubber Tracks | 2100 lbs |
Operating Weight – Steel Tracks | 2700 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | One G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 7’4″ |
Ground Clearance | 6″ |
Track Length | 43″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 49″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5′ 1″ |
Max Digging Height | 98″ |
Max Dumping Height | 69″ |
Max Reach | 8’11” |
Max Digging Radius | 9’5″ |
Bucket Size | 16″ Tooth |

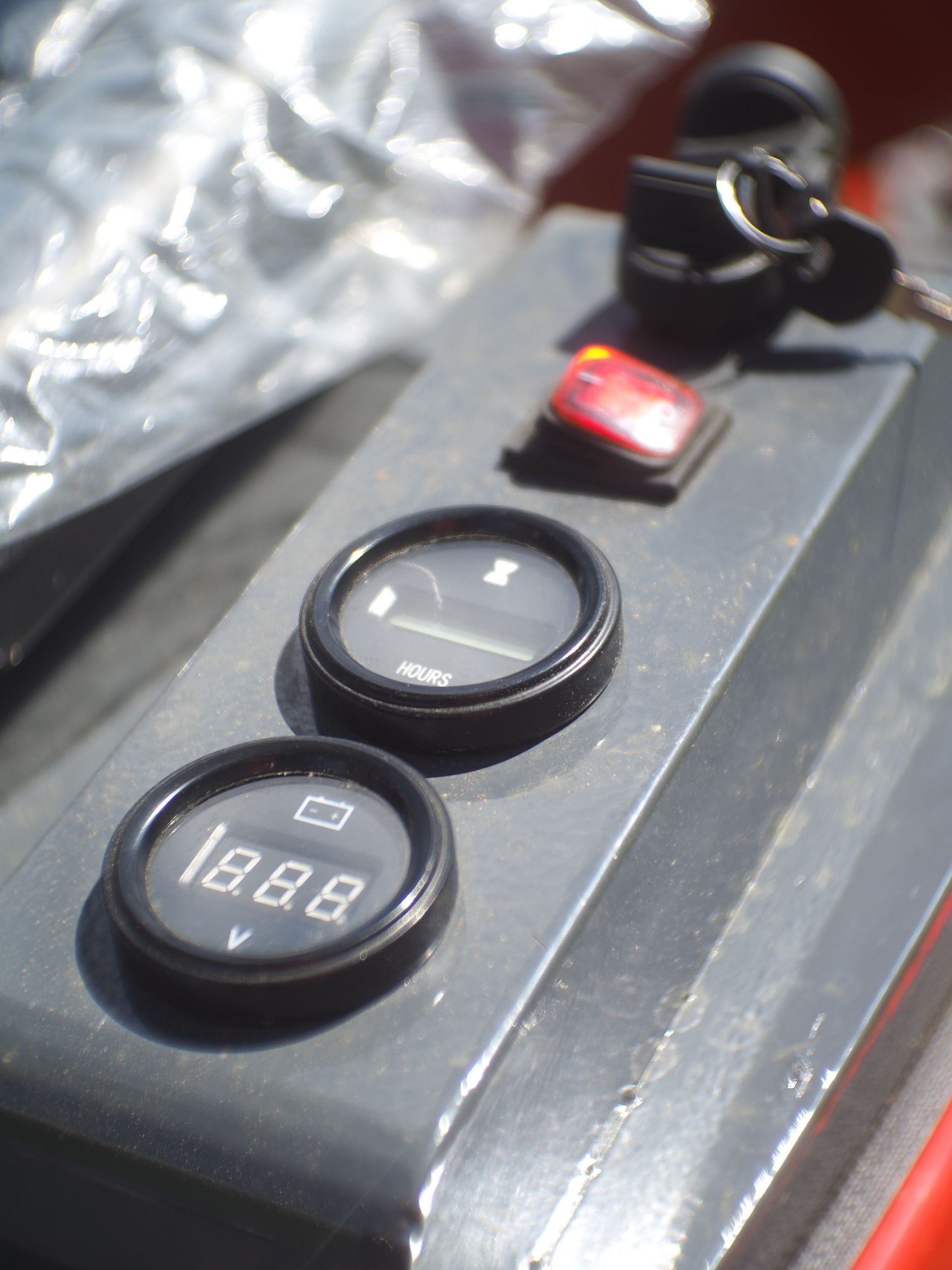

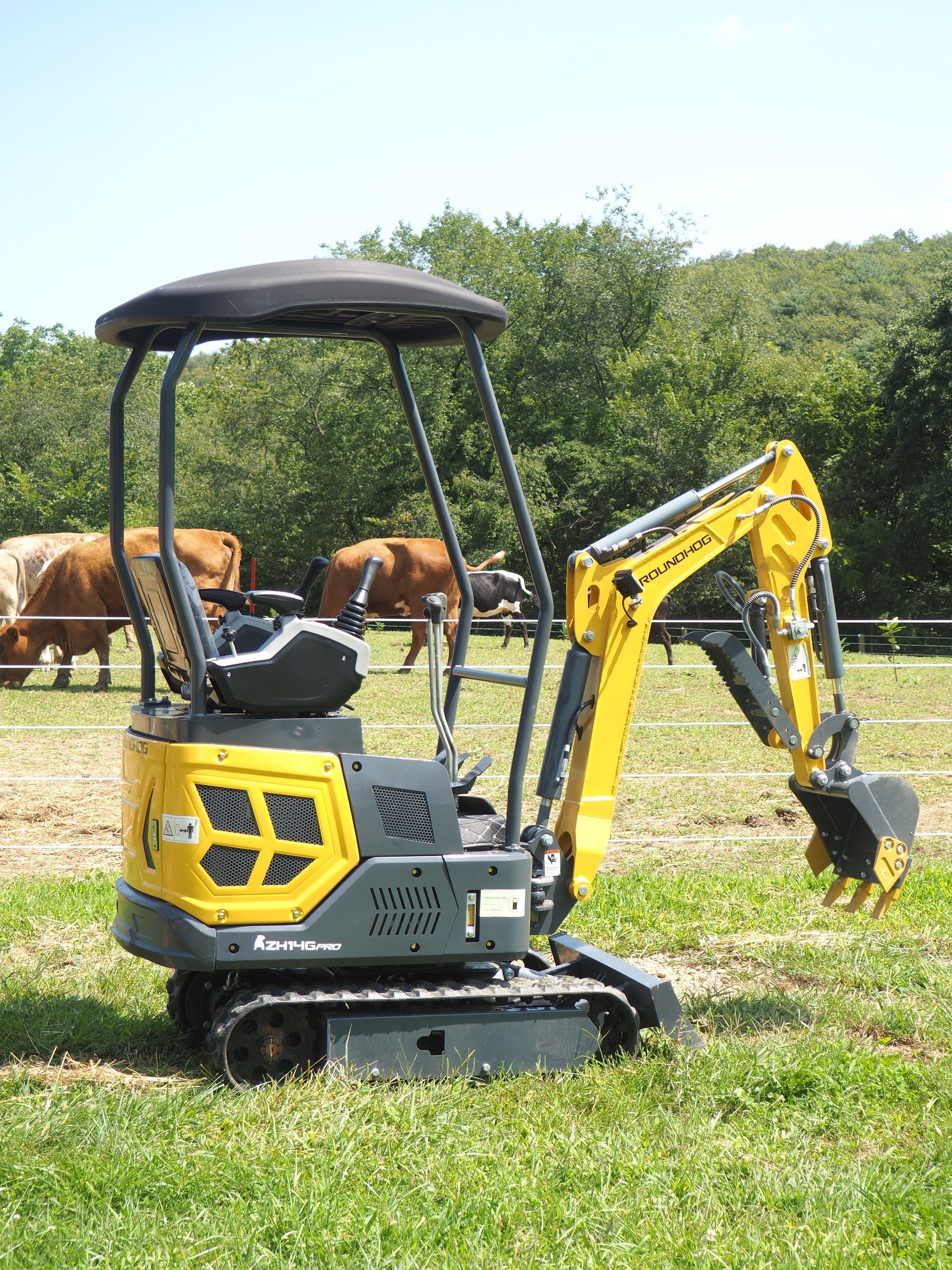

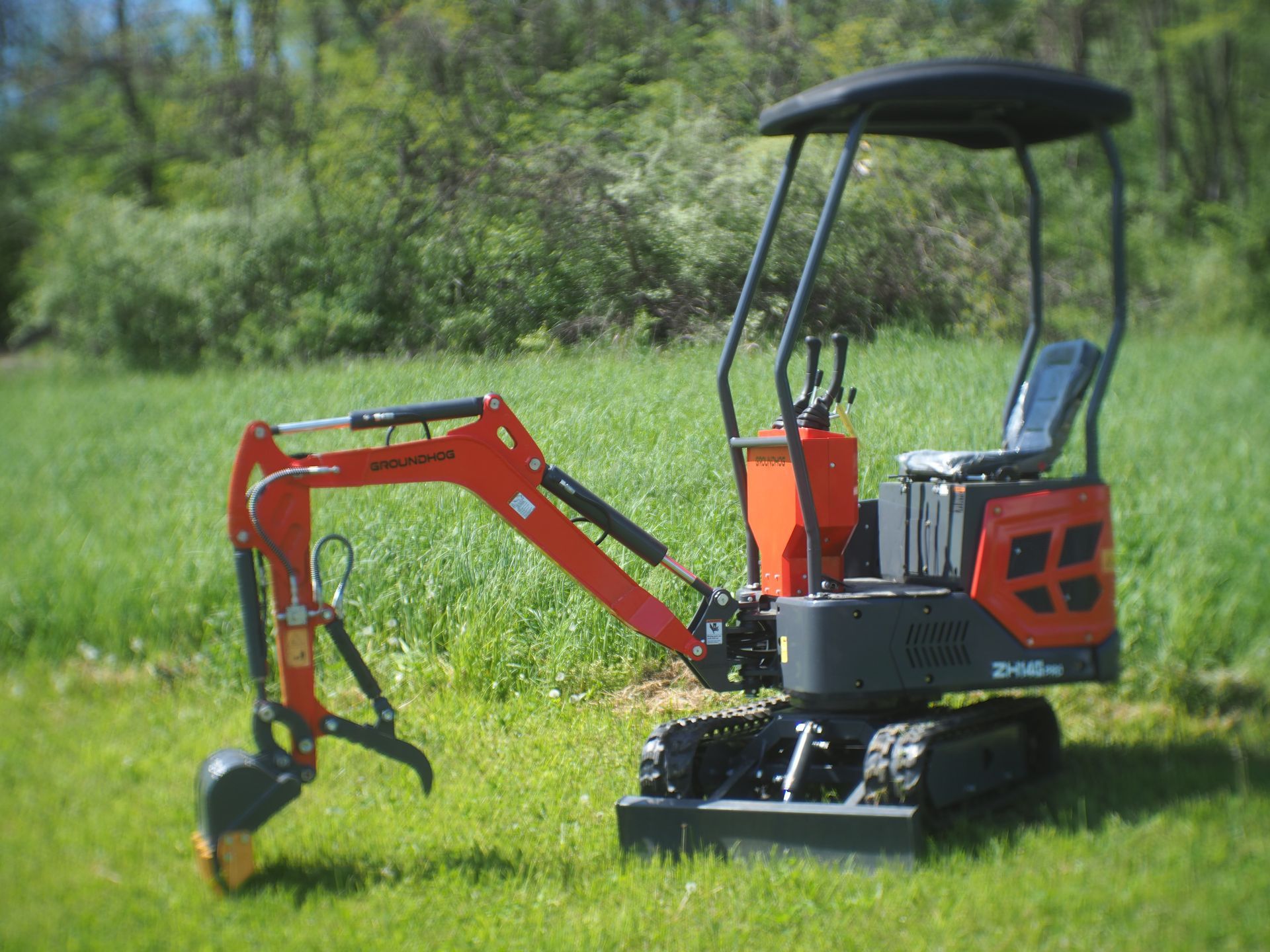

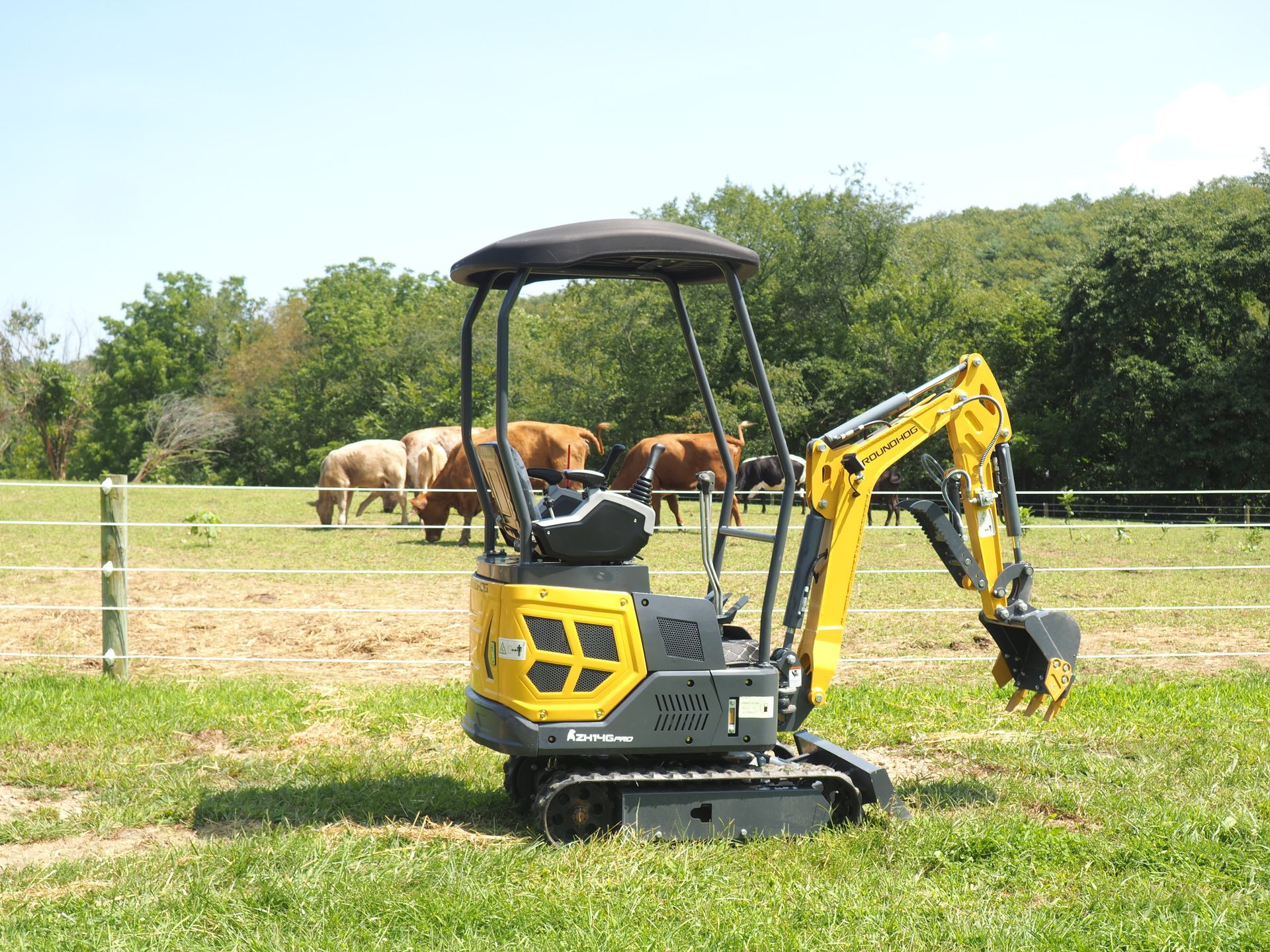

ZH14G Pro Excavator Specs
The ZH14G Pro comes with an upgraded console, U-boom, rear gate, Oil cooler, cylinder protector on the blade cylinder, tie down points, and a poly molded canopy. Optional Upgrades: Side Swing, Window Tint, and Retractable Tracks | ZH14G Pro $8,900 ZH14G Pro w/ pilot controls $9,900 |
Operating Weight – Rubber Tracks | 2100 lbs |
Operating Weight – Steel Tracks | 2700 lbs |
Engine | Briggs and Stratton |
Engine HP | 14 HP |
Bore Stroke | Single cylinder, fan cool |
Main Pump | G5-6 |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 7’4″ |
Ground Clearance | 6″ |
Track Length | 48″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 54″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5’5″ |
Max Digging Height | 103″ |
Max Dumping Height | 73″ |
Max Reach | 8’11” |
Max Digging Radius | 9’3″ |
Bucket Size | 16″ Tooth |

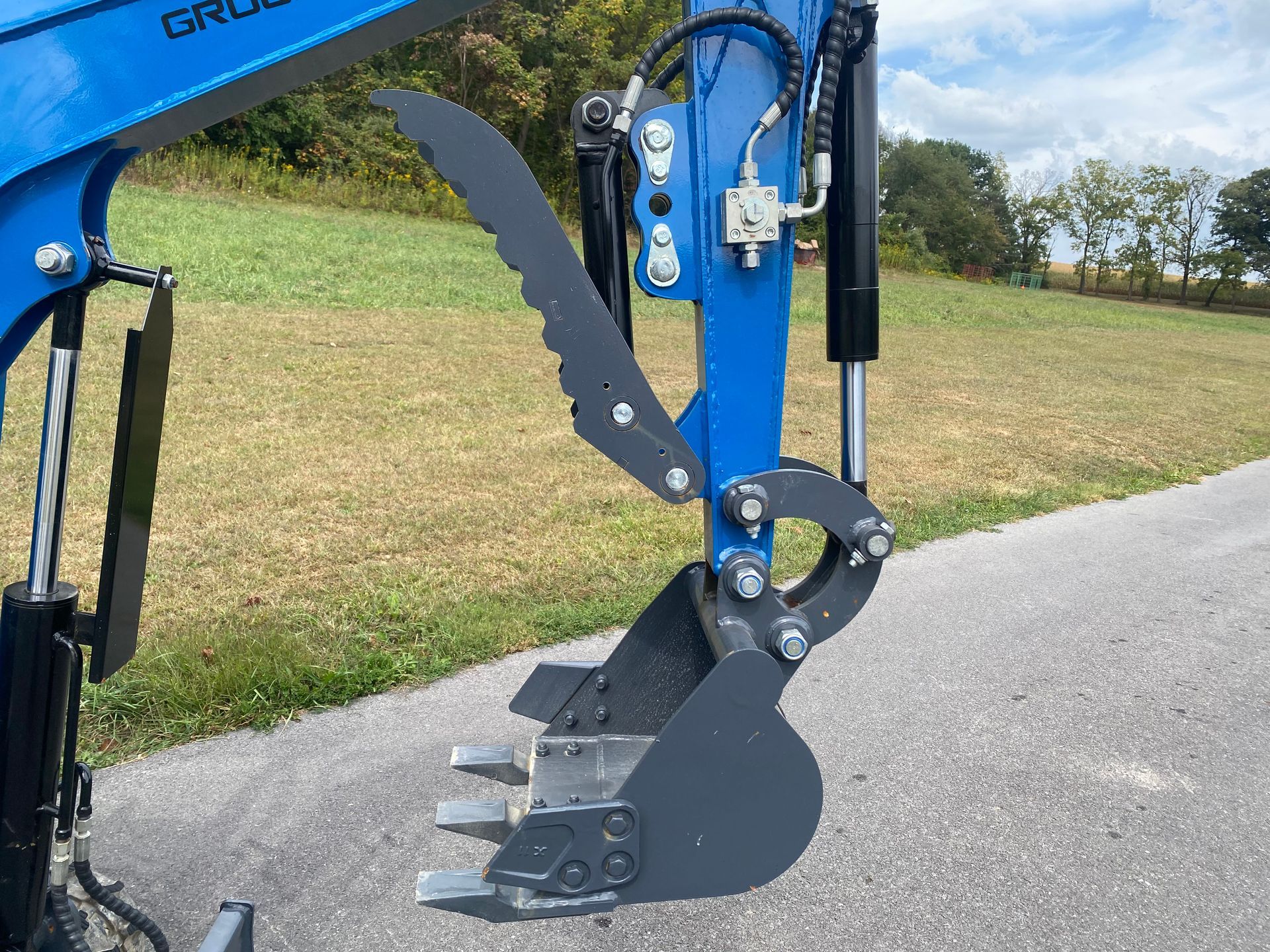

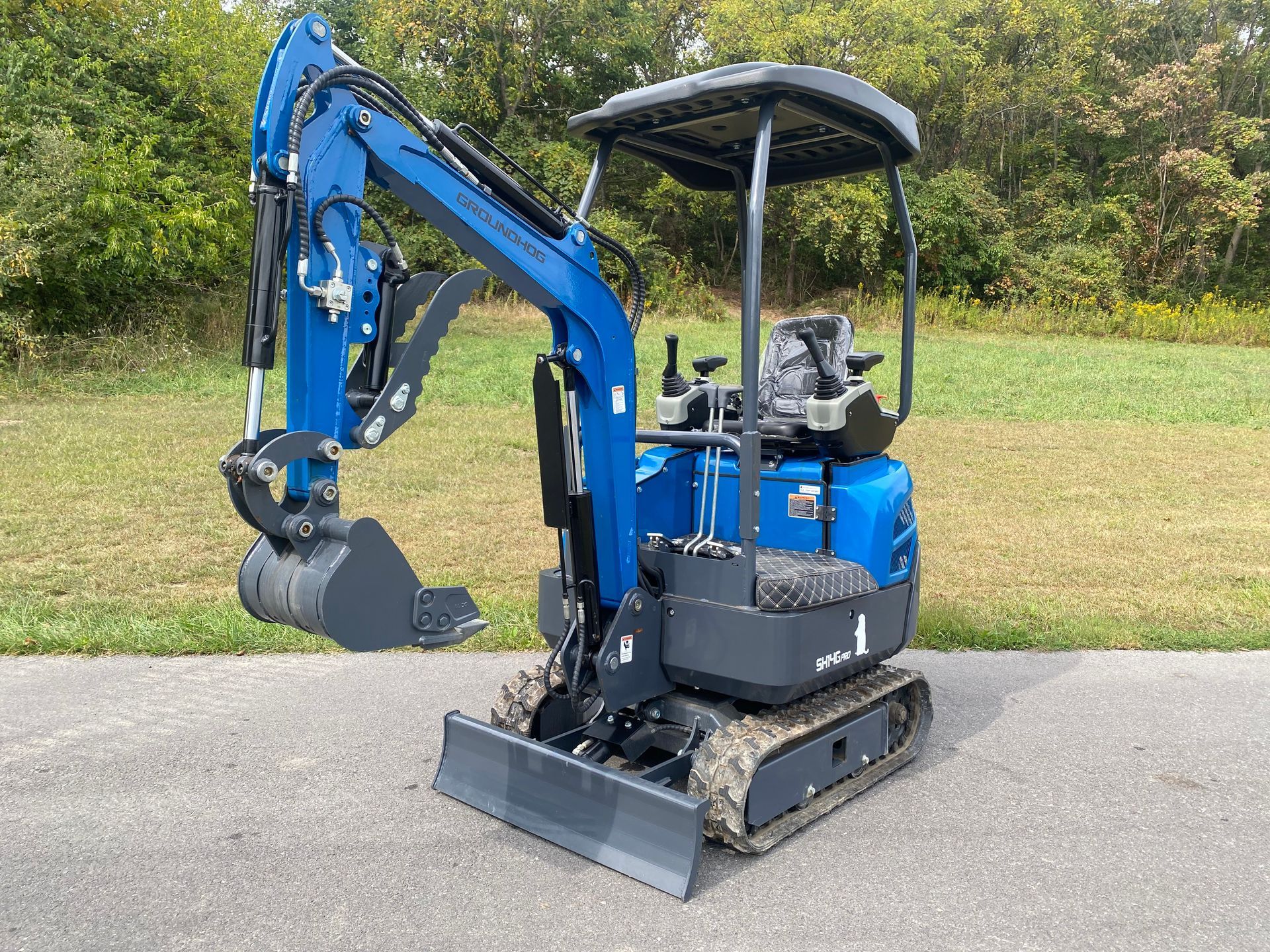

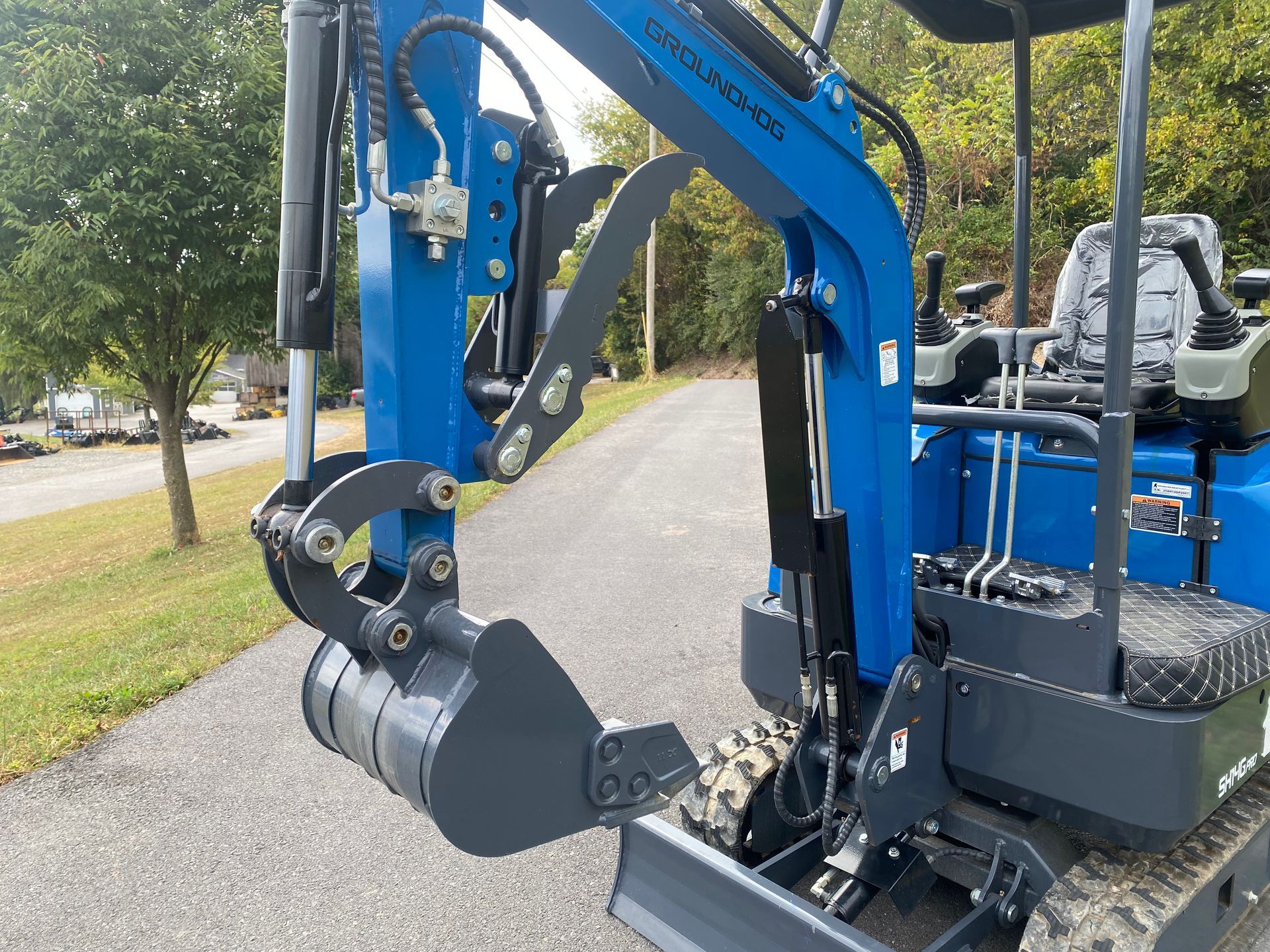

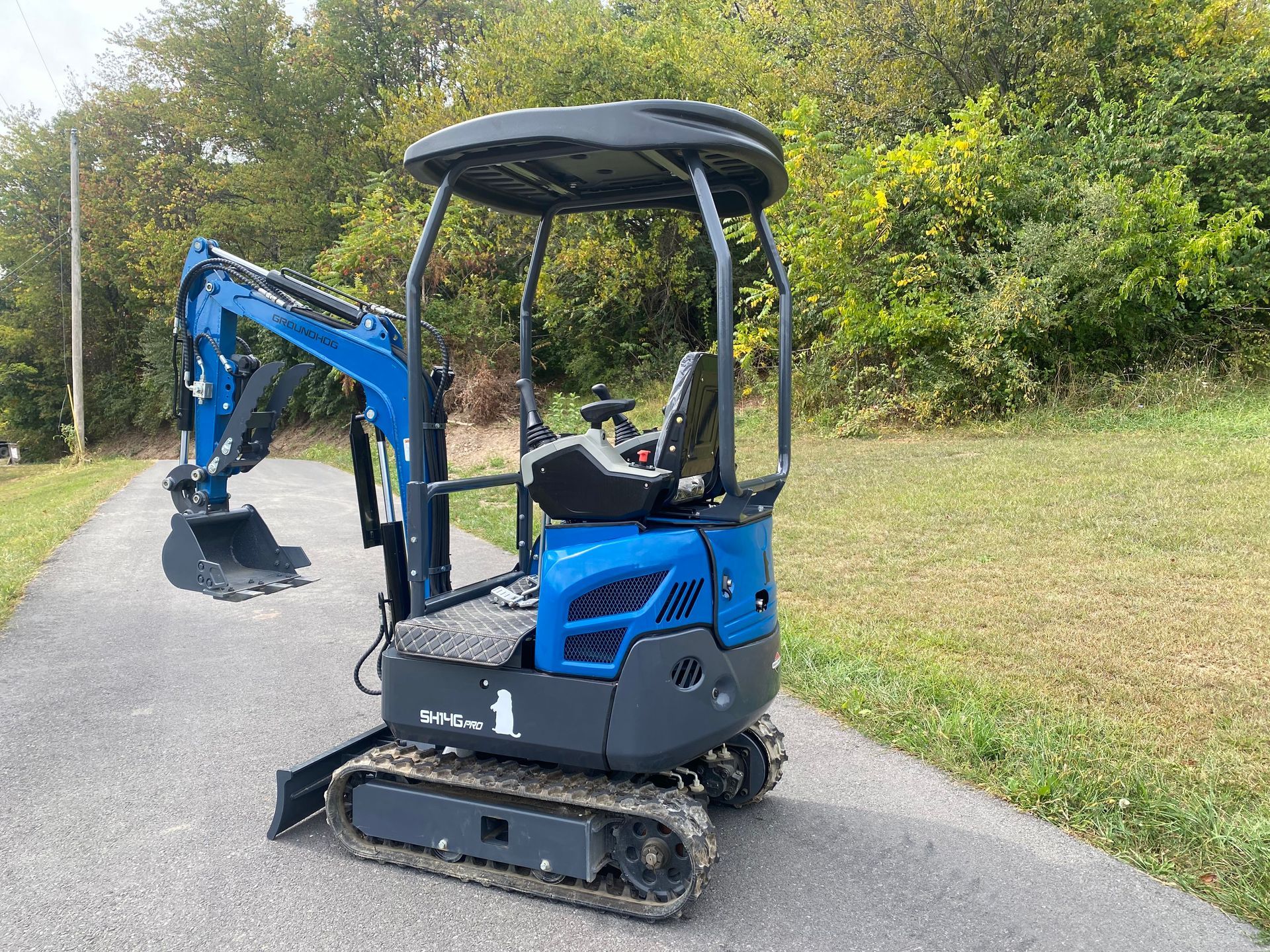

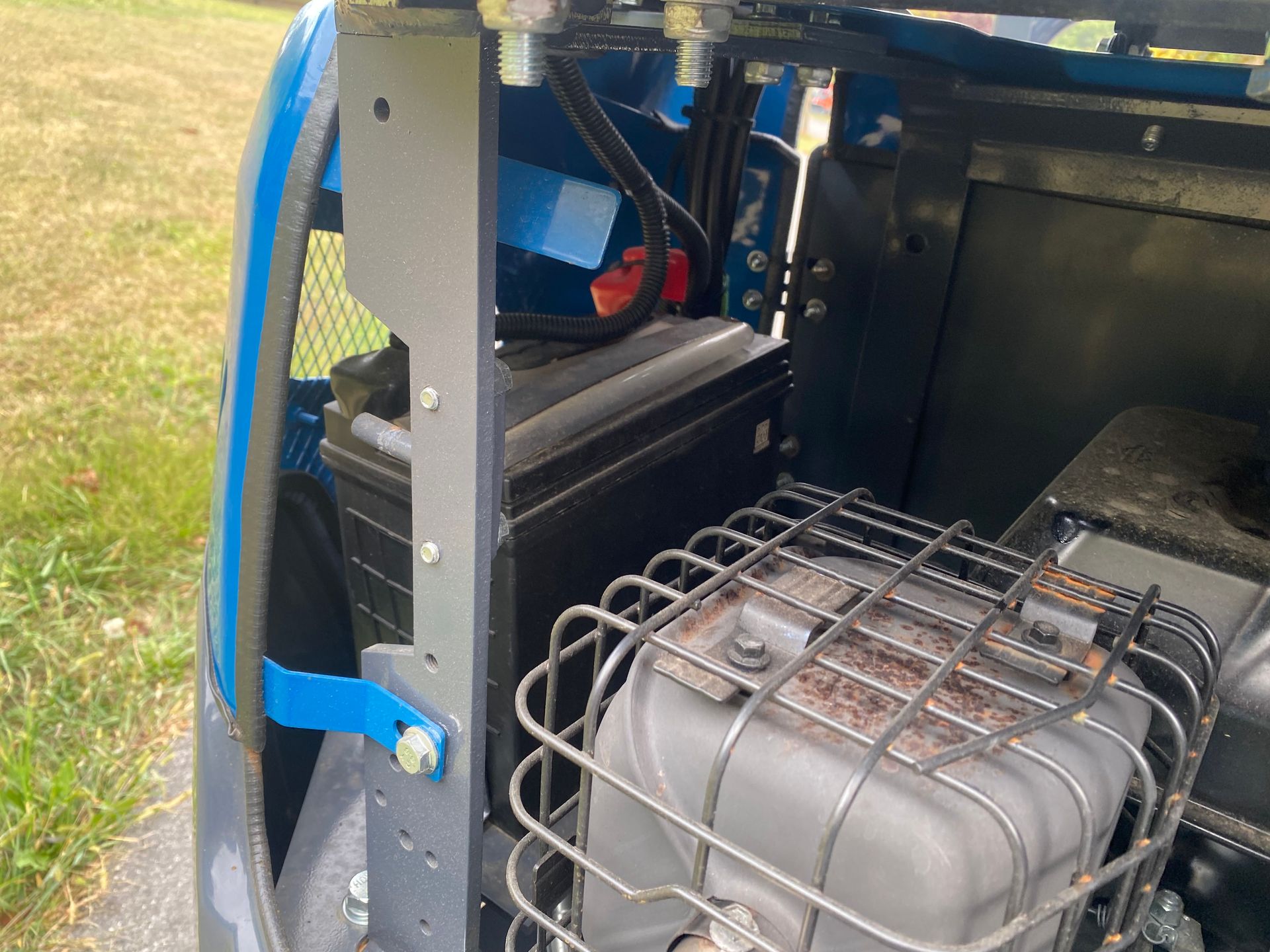

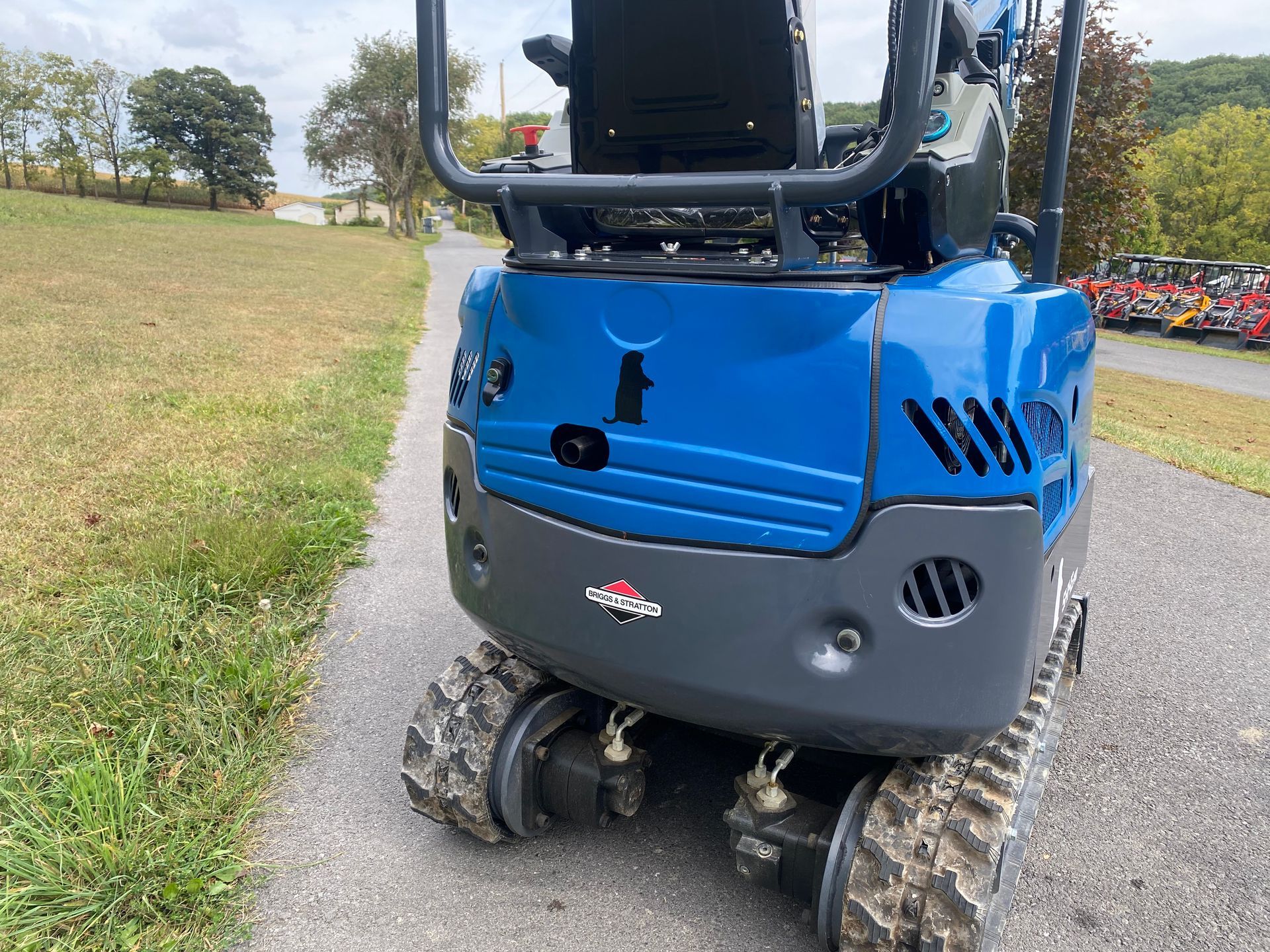

SH14G Pro Excavator Specs
The SH14G Pro comes with an upgraded console, U-boom, rear gate, Oil cooler, cylinder protector on the blade cylinder, tie down points, and a poly molded canopy. Optional Upgrades: Side Swing, Window Tint, and Retractable Tracks | SH14G Pro $9,900 |
Operating Weight – Rubber Tracks | 2100 lbs |
Operating Weight – Steel Tracks | 2700 lbs |
Engine | Briggs and Stratton |
Engine HP | 13.5 HP |
Bore Stroke | Single cylinder, fan cool |
Travel Speed | 1.5km/h |
Overall Dimension | 109″ x 37″ x 87″ |
Machine Width | 36″ |
Machine Height | 7’4″ |
Ground Clearance | 6″ |
Track Length | 4′ 5″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 54″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 5’5″ |
Max Digging Height | 8′ 8″ |
Max Dumping Height | 5′ 9″ |
Max Digging Radius | 9′ |
Bucket Size | 16″ Tooth |
20 SERIES MINI EXCAVATOR
20 Series Excavator Starting Prices
- KH20D $13,900
- ZH20D $16,900
- BH20D $14,900
- BH20D-2 $19,900
- BH20E $19,900
KH20D Excavator Specs
The KH20D comes equipped with a 20 HP Kubota D722 diesel engine, 4 post canopy, hydraulic joysticks, oil cooler, and glow plugs. Optional Upgrades: Side Swing, Window Tint, and Retractable Tracks | KH20D $13,900 |
Operating Weight – Rubber Tracks | 2200 lbs |
Operating Weight – Steel Tracks | 2800 lbs |
Engine | Kubota D722 |
Engine HP | 20 HP |
Travel Speed | 3.5km/h |
Overall Dimension | 8’4″ x 3’1″ x 4’6″ |
Machine Width | 43″ |
Machine Height | 7’2″ |
Ground Clearance | 6″ |
Track Length | 48″ |
7″ Track Size | 180x72x37″ |
9″ Track Size | 230x72x37″ |
Track To Blade | 54″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 6’2″ |
Max Digging Height | 8’7″ |
Max Dumping Height | 5’10” |
Max Reach | 10’1″ |
Max Digging Radius | 10’6″ |
Bucket Size | 16″ Tooth |

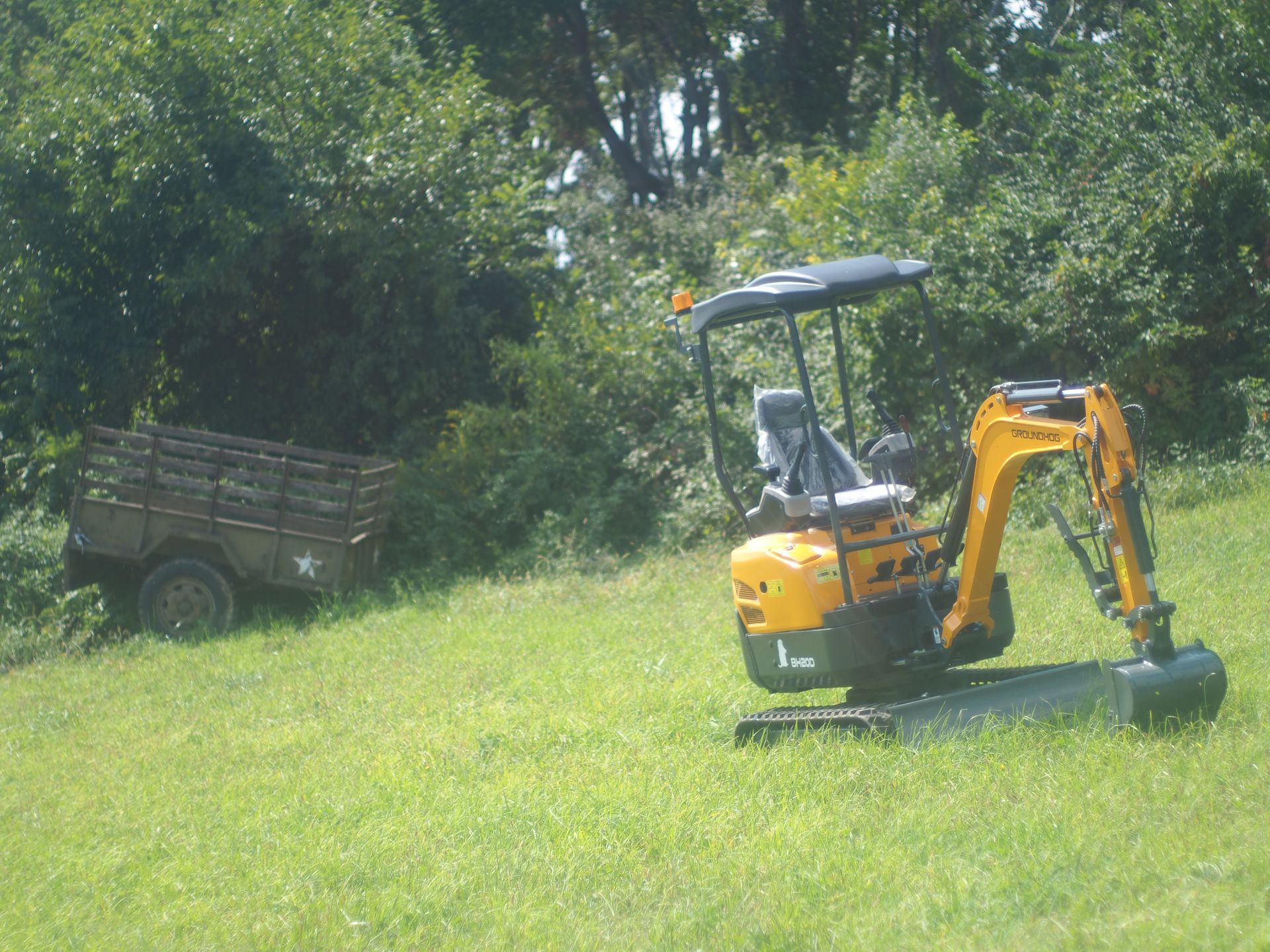

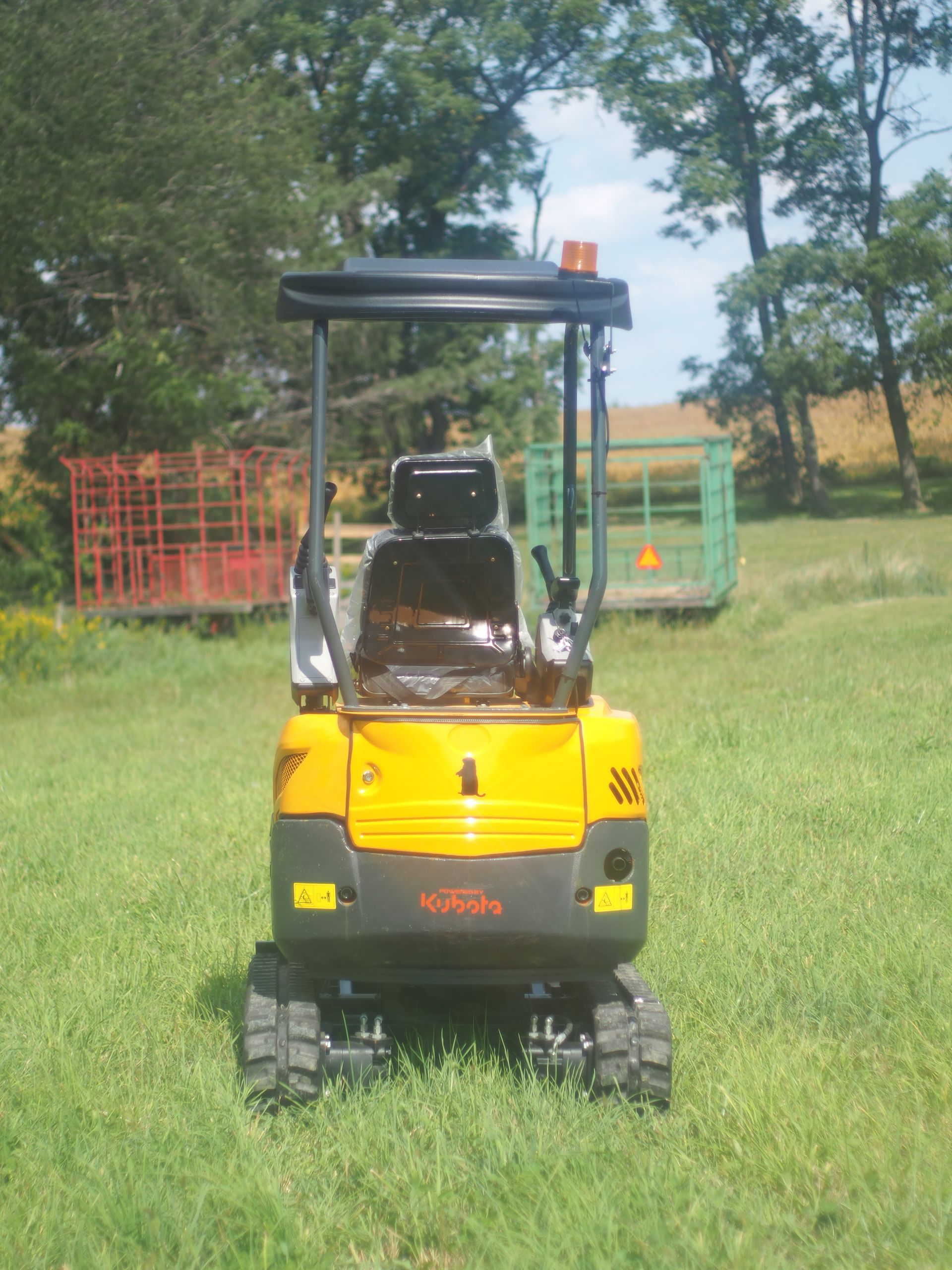

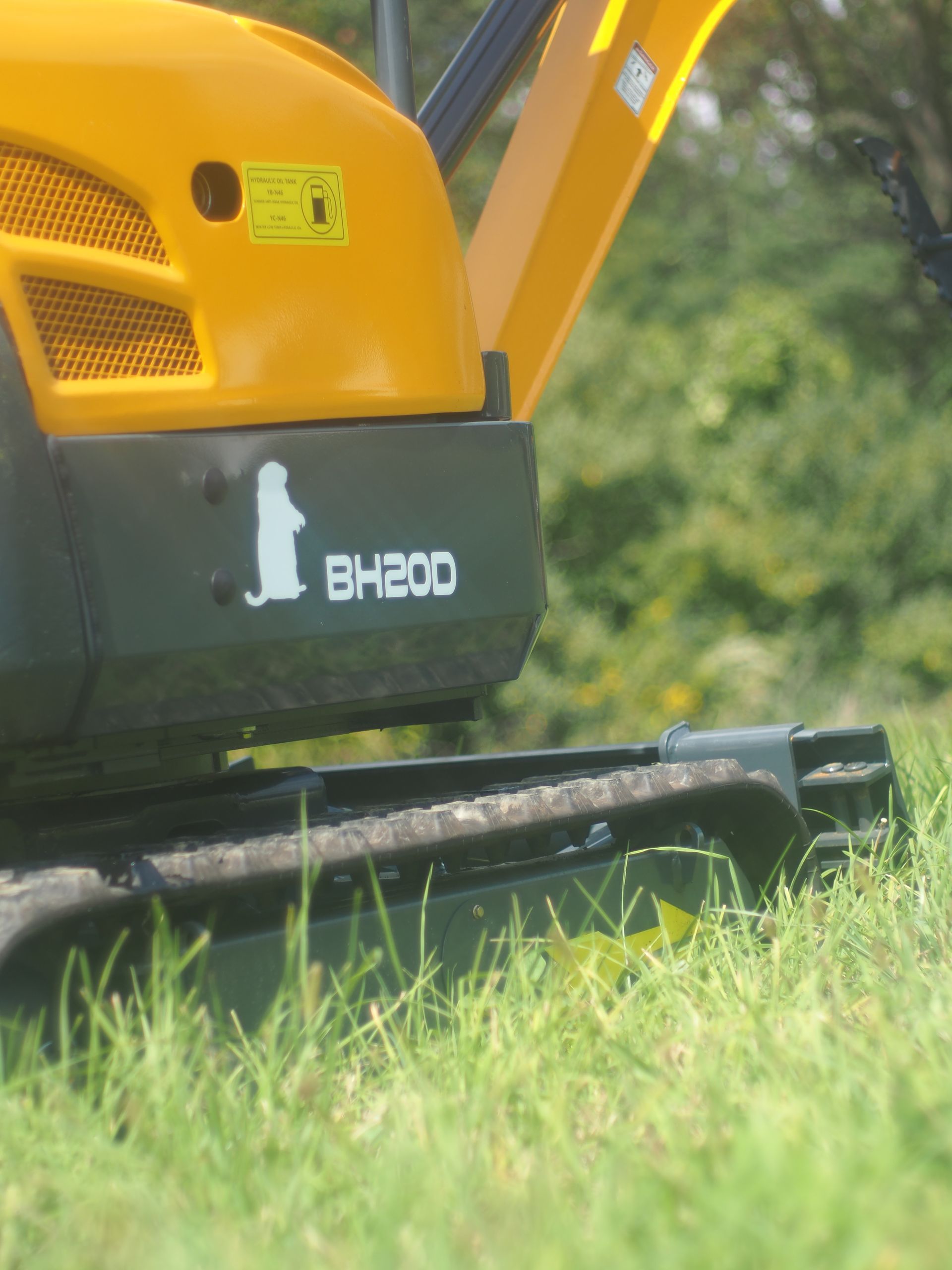

BH20D Excavator Specs

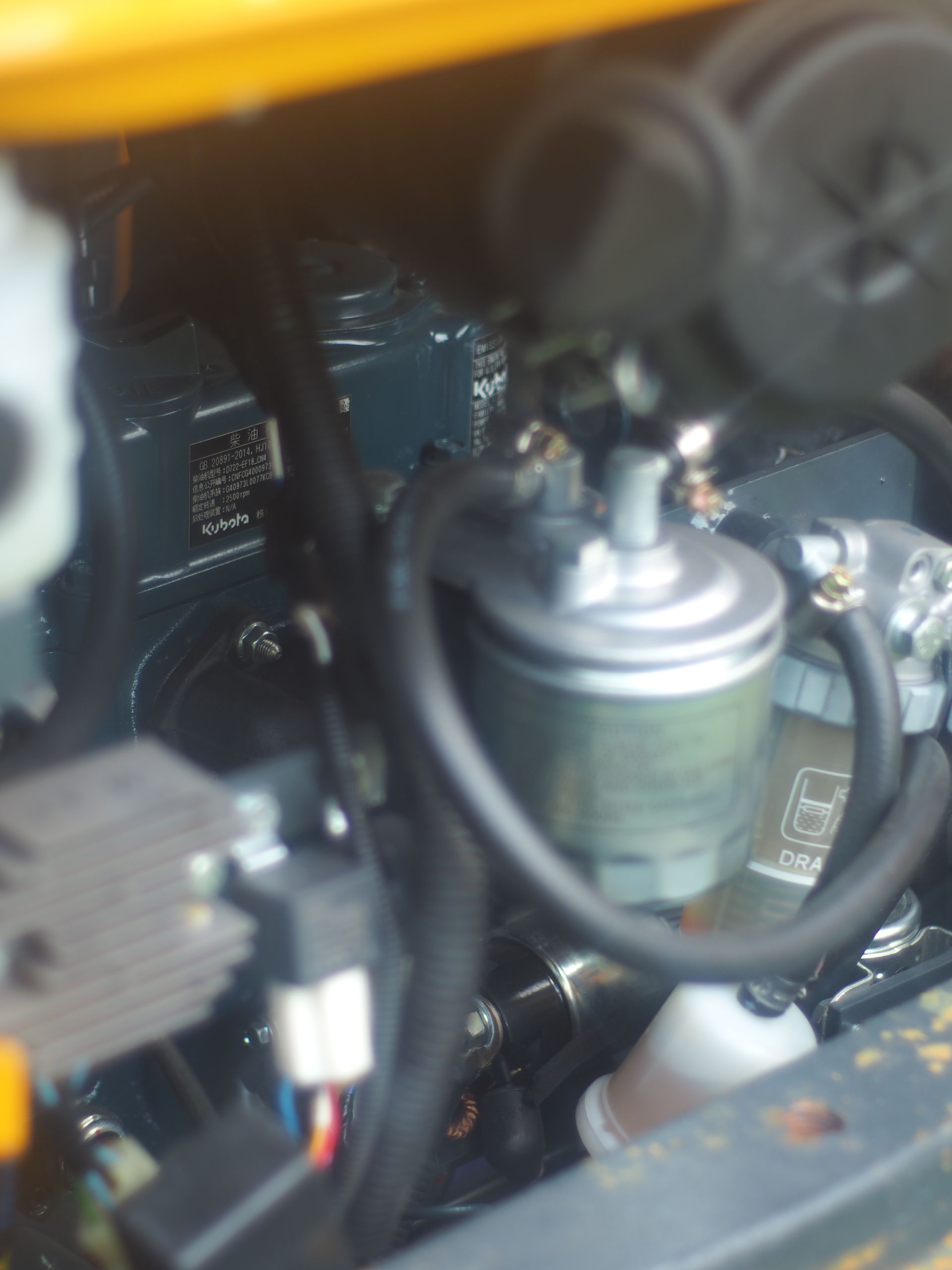

The BH20D comes equipped with a 20 HP Kubota D722 diesel engine, 4 post canopy, hydraulic joysticks, u-boom, oil cooler, and glow plugs. Optional Upgrades: Side Swing, 2 Speed (additional production time), Window Tint and Retractable Tracks | BH20D $14,900 |
Operating Weight – Rubber Tracks | 2700 lbs |
Operating Weight – Steel Tracks | 3600 lbs |
Engine | Kubota D722 |
Engine HP | 20 HP |
Travel Speed | 3.5km/h |
Machine Width | 43″ |
Machine Height | 7’2″ |
Ground Clearance | 6″ |
Track Length | 54″ |
7″ Track Size | 180x72x41″ |
9″ Track Size | 230x72x41″ |
Track To Blade | 58″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 7’1″ |
Max Dumping Height | 5’10” |
Max Reach | 10’1″ |
Max Digging Radius | 10’8″ |
Bucket Size | 16″ Tooth |

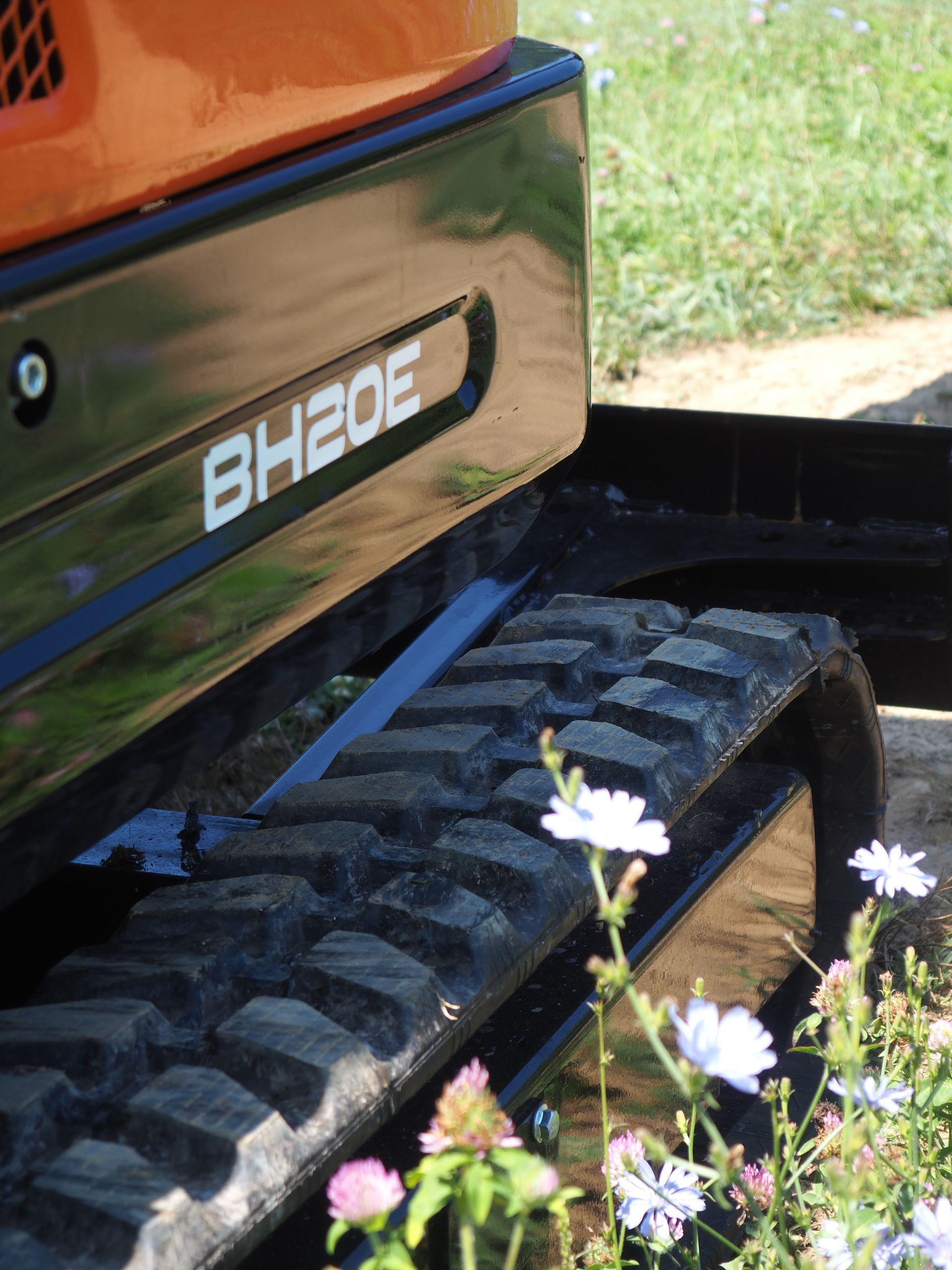

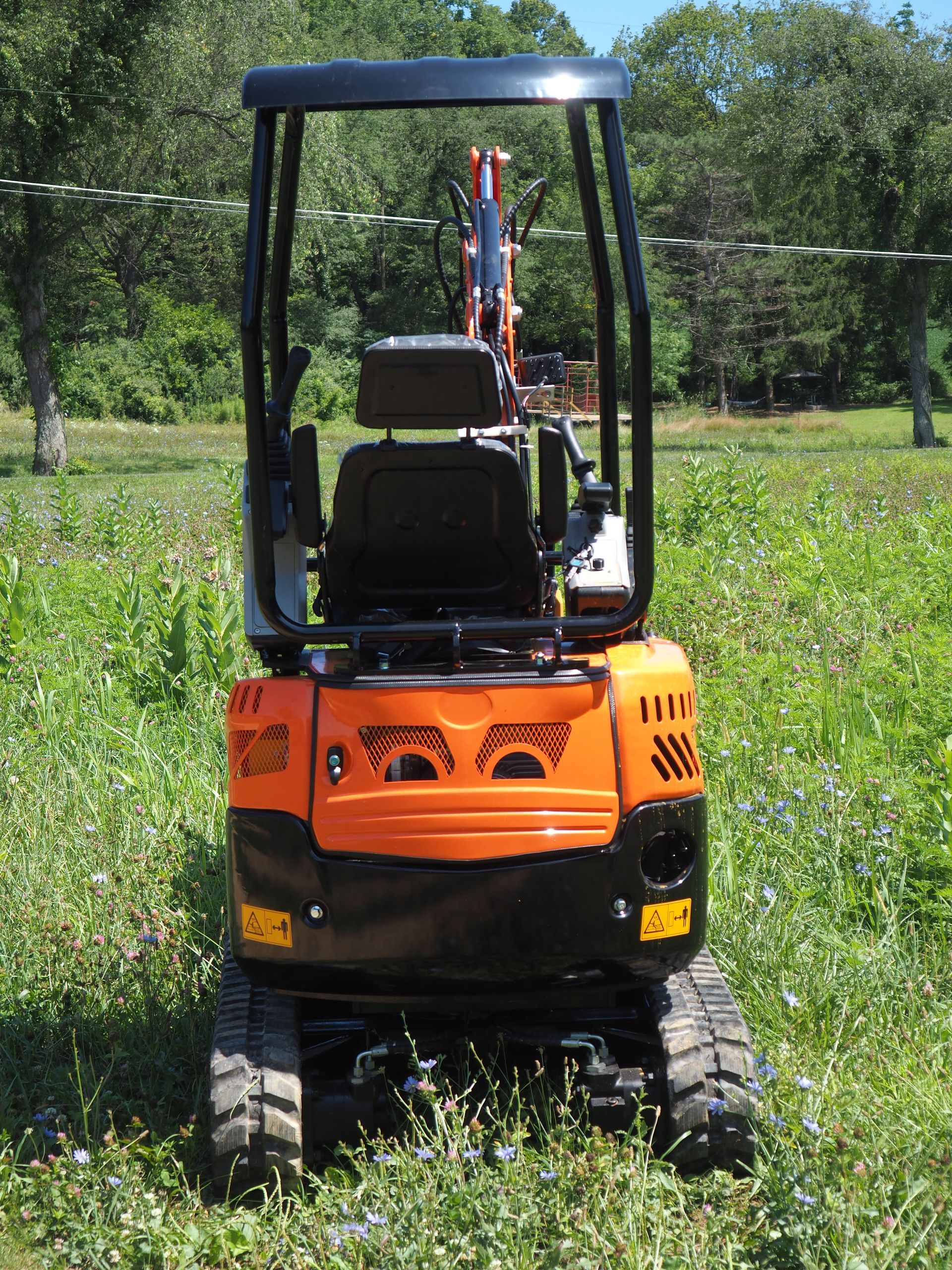

BH20E Excavator Specs

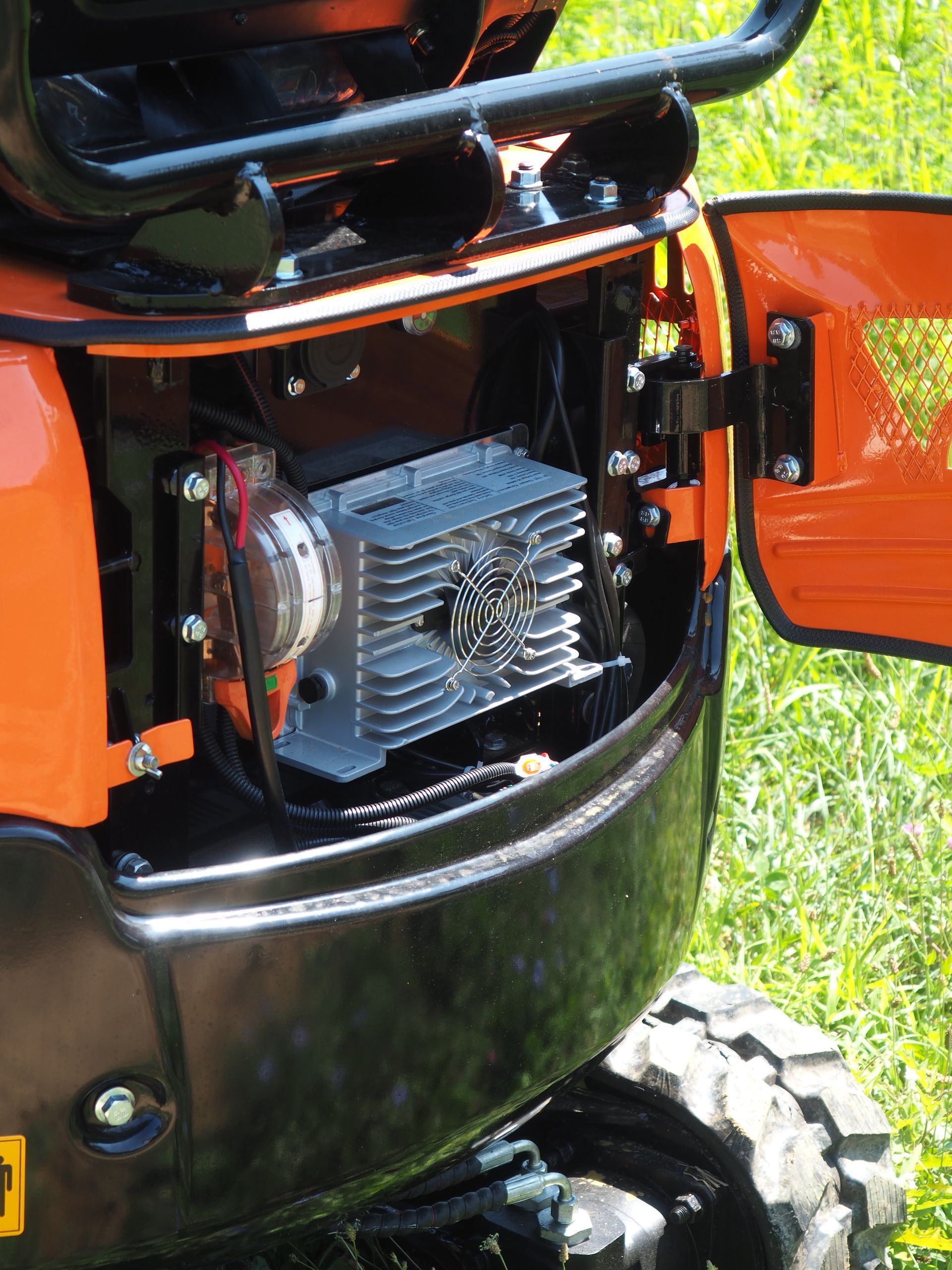

The BH20E comes equipped with a 72 Volt Lithium Electric Motor, 4 post canopy, hydraulic joysticks, u-boom, oil cooler, and glow plugs. Optional Upgrades: Side Swing, 2 Speed (additional production time), Window Tint and Retractable Tracks | BH20E $19,900 |
Operating Weight – Rubber Tracks | 3196 lbs |
Engine | 72 Volt Electric Motor |
Engine HP | 20 HP |
Travel Speed | 3.5km/h |
Machine Width | 43″ |
Track Width | 39″ retracted and 45″ expanded |
Machine Height | 7’3″ |
Ground Clearance | 6″ |
Track Length | 56″ |
7″ Track Size | 230x72x43″ |
Track To Blade | 63″ |
Track Height | 12.5″ |
Max Digging Depth | 7’5″ |
Max Dumping Height | 6’10” |
Max Reach | 10’5″ |
Max Digging Radius | 11′ 11″ |
Bucket Size | 16″ Tooth |

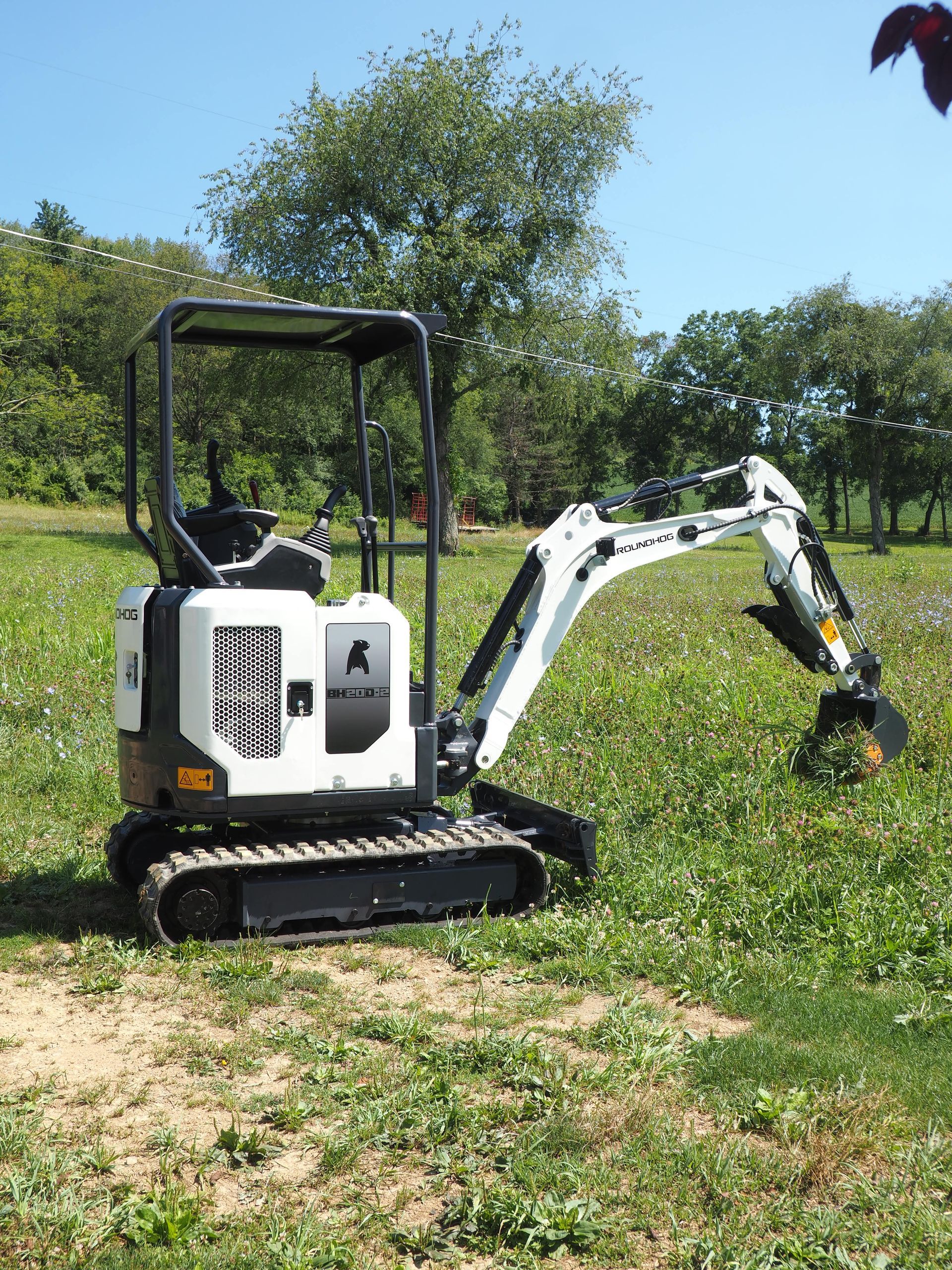

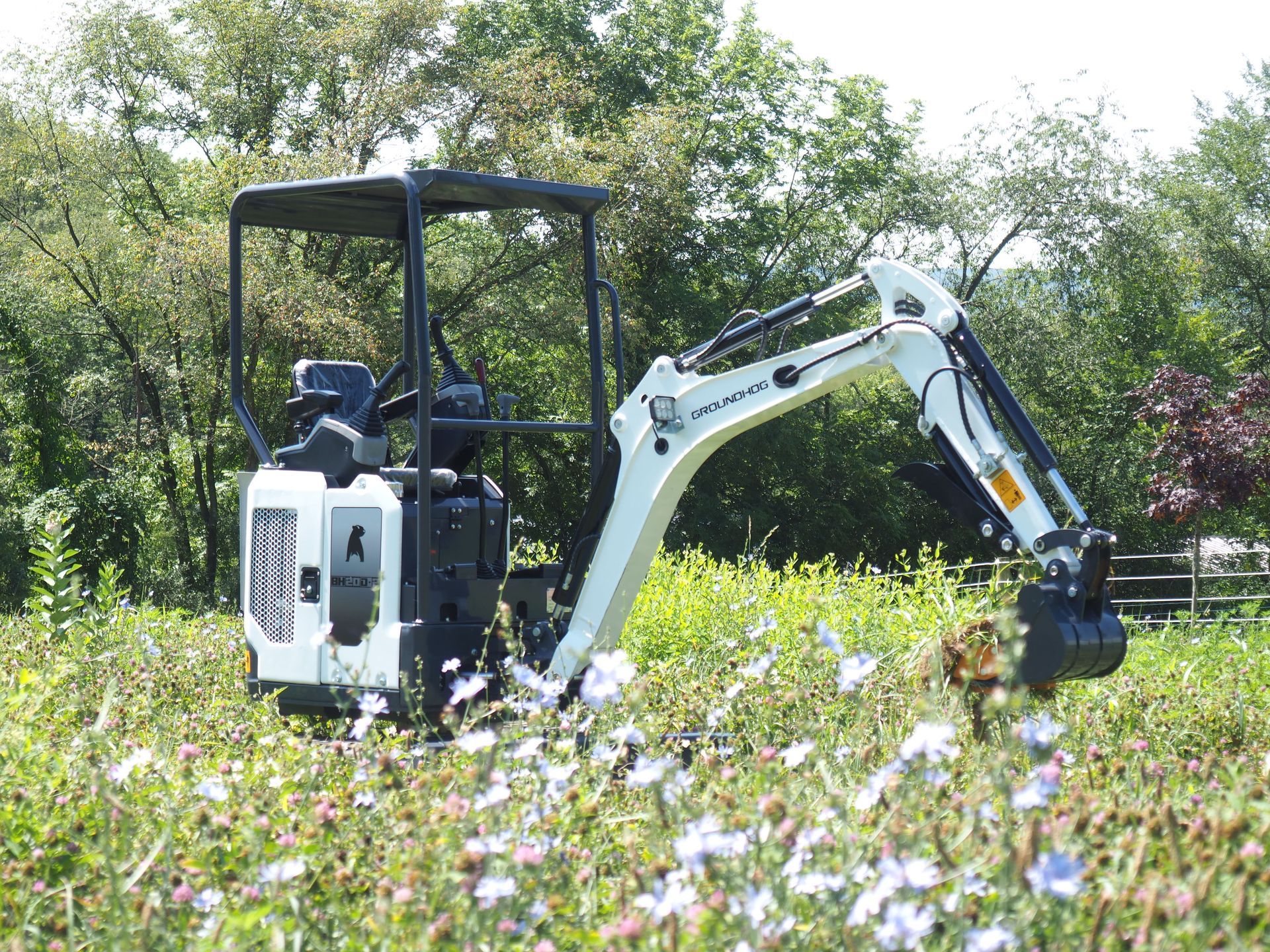

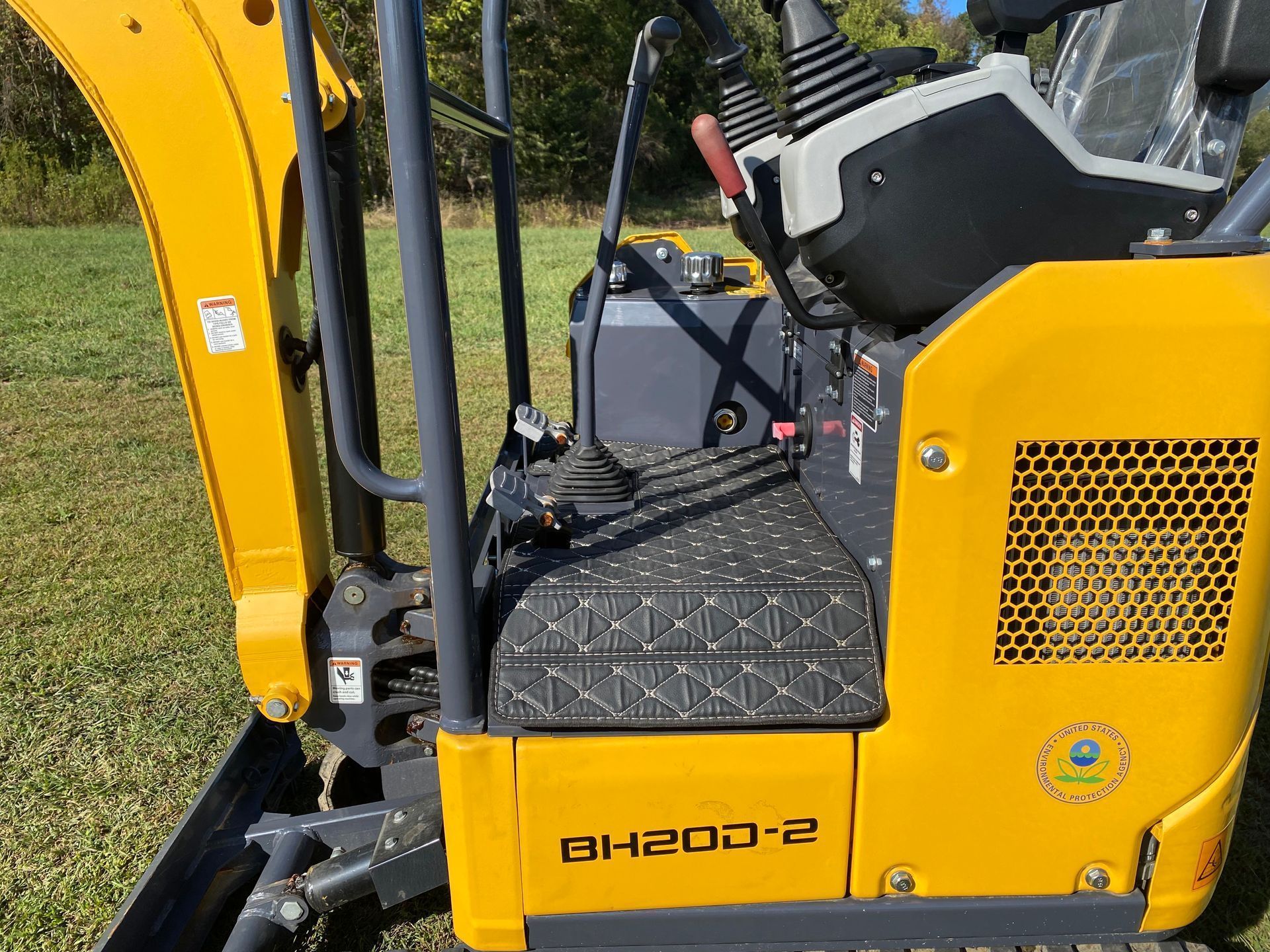

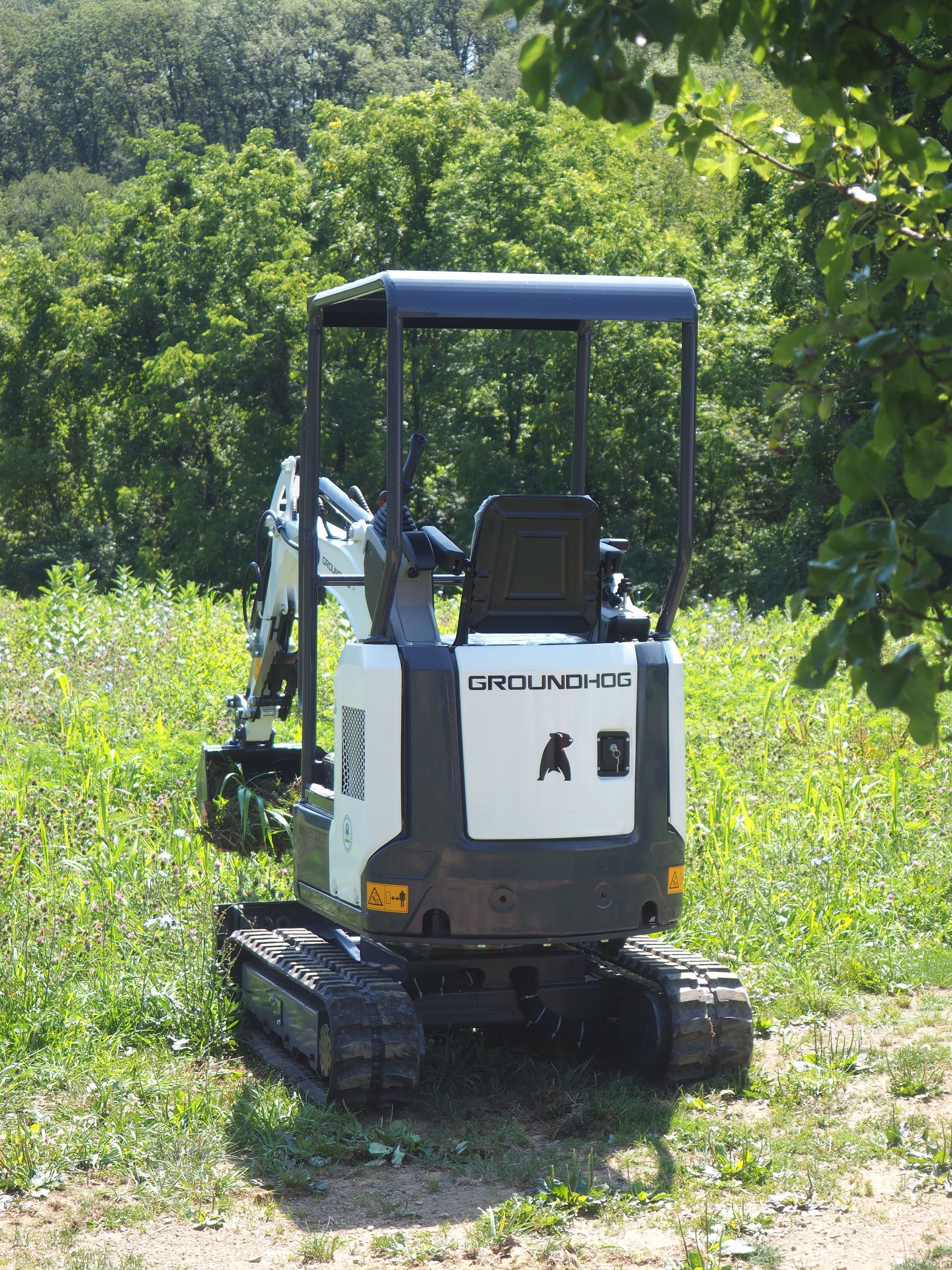

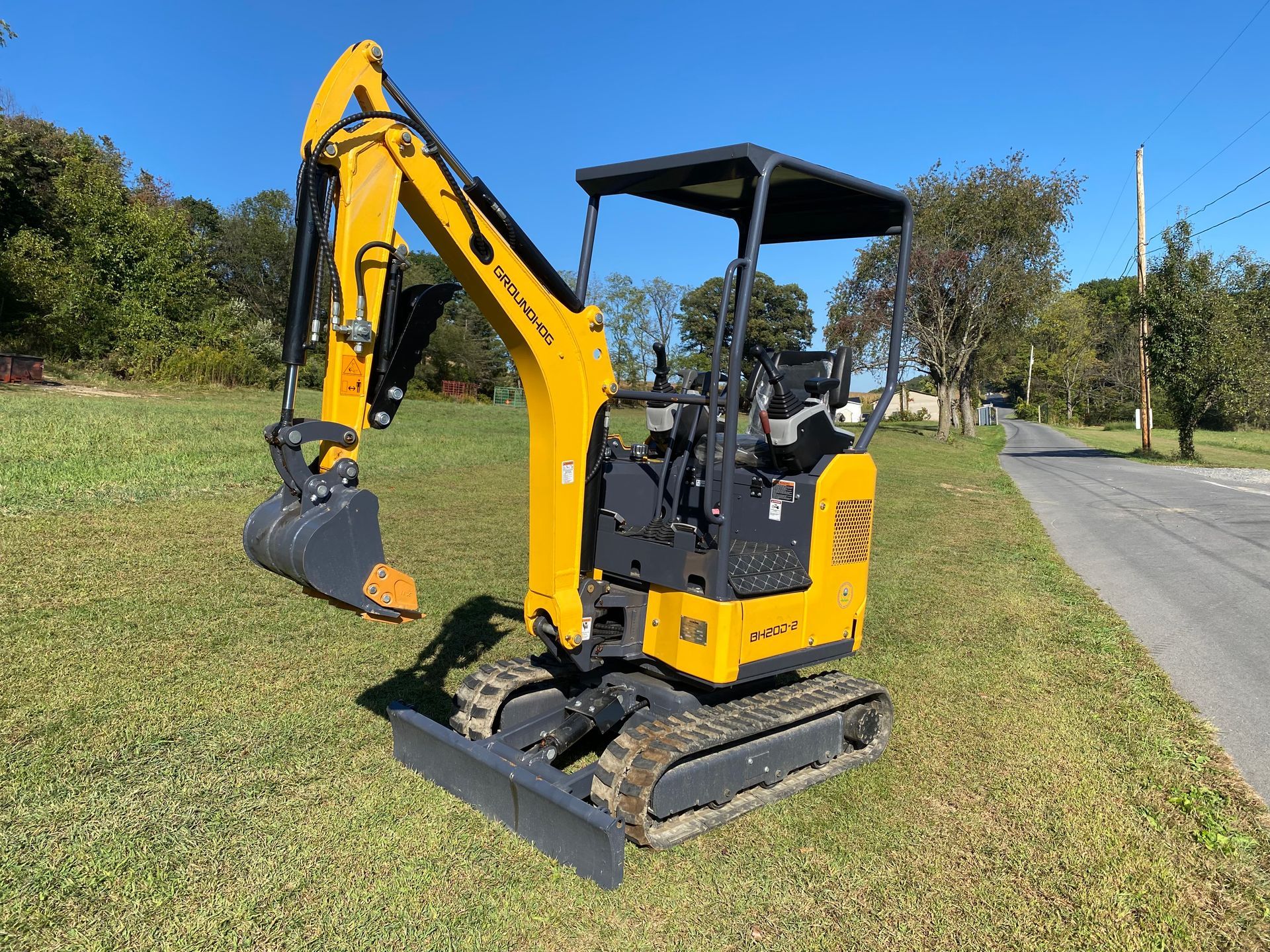

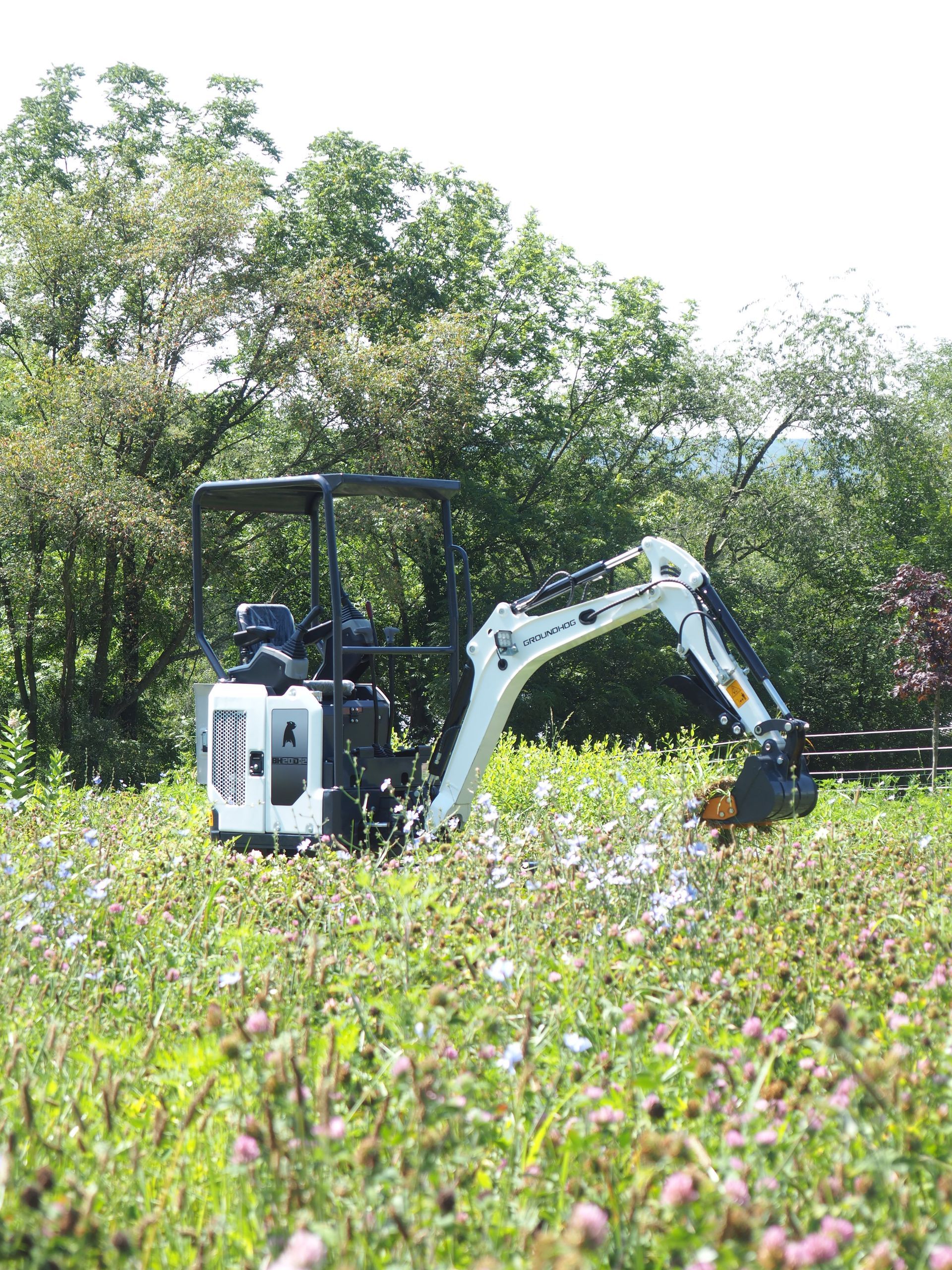

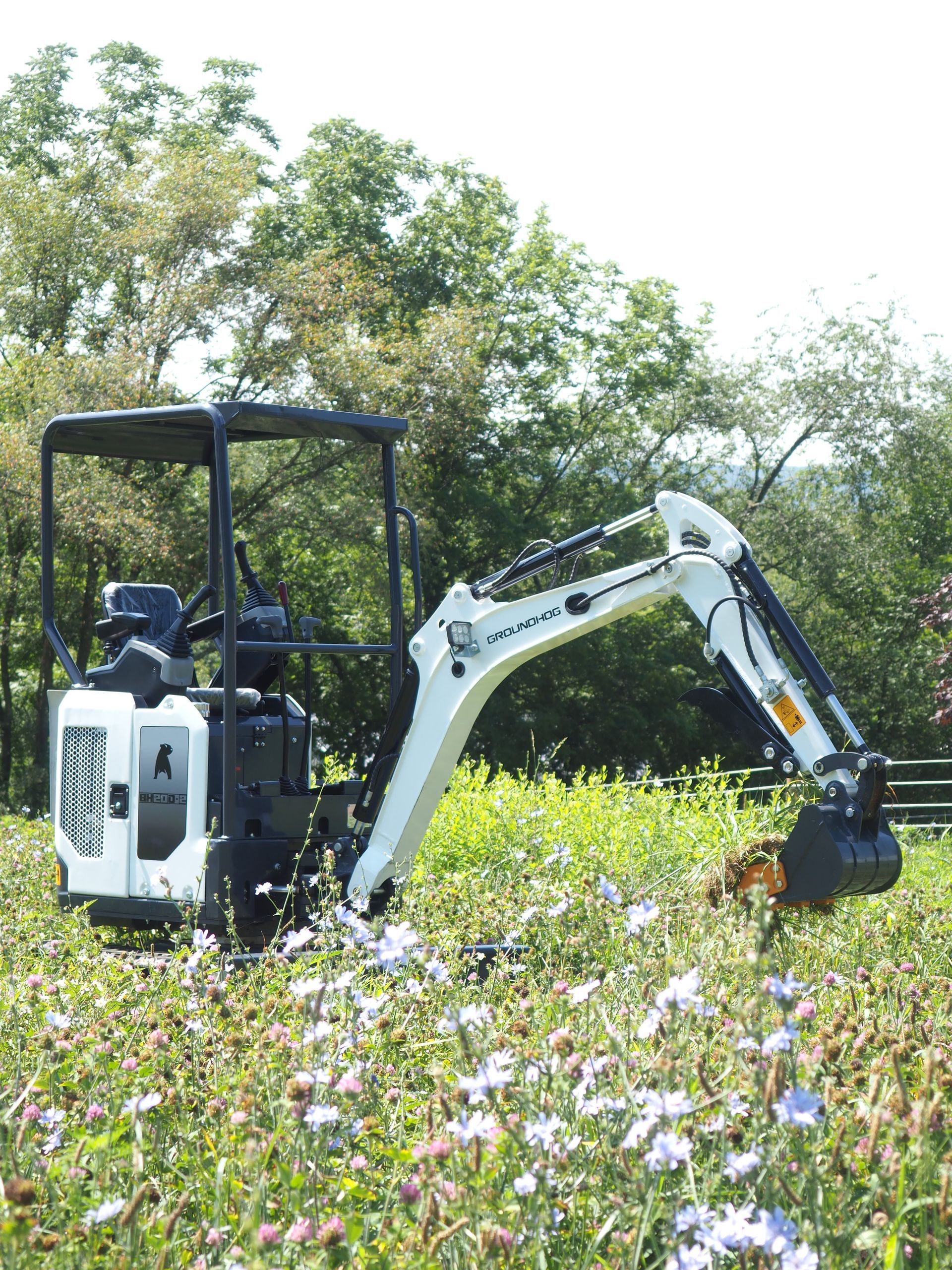

BH20D-2 Excavator Specs
The BH20D-2 comes equipped with a 20 HP Kubota D722 diesel engine, Side Swing, 2 Speed, Retractable Tracks, 4 post canopy, hydraulic joysticks, u-boom, oil cooler, and glow plugs. Optional Upgrades: Window Tint | BH20D $19,900 |
Operating Weight – Rubber Tracks | 3210 lbs |
Engine | Kubota D722 |
Engine HP | 20 HP |
Travel Speed | 3.5km/h |
Machine Width | 43″ |
Track Width | 39″ retracted and 45″ expanded |
Machine Height | 7’3″ |
Ground Clearance | 6″ |
Track Length | 56″ |
7″ Track Size | 230x72x43″ |
Track To Blade | 63″ |
Track Height | 12.5″ |
Max Digging Depth | 7’5″ |
Max Dumping Height | 6’10” |
Max Reach | 10’5″ |
Max Digging Radius | 11′ 11″ |
Bucket Size | 16″ Tooth |

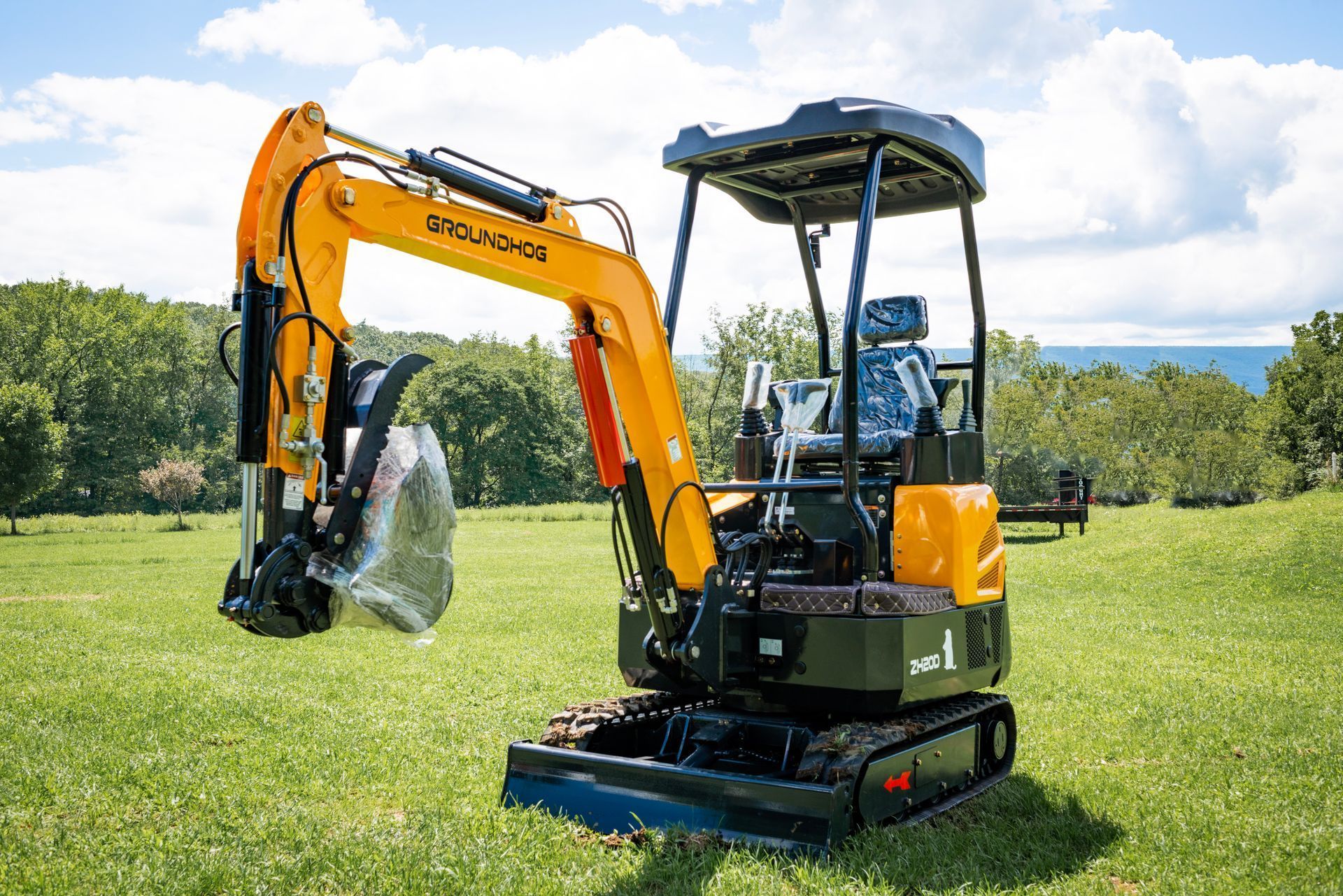

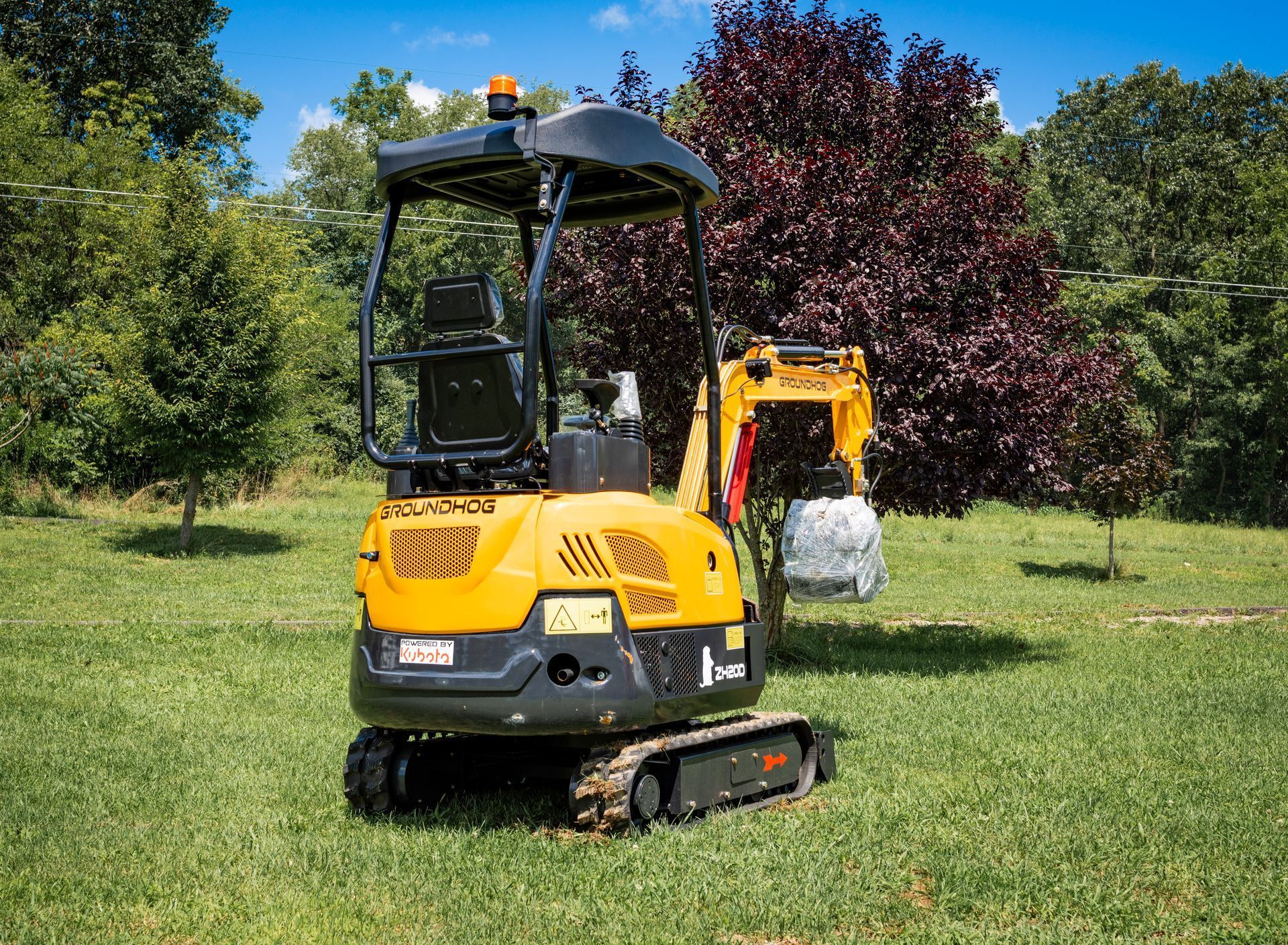

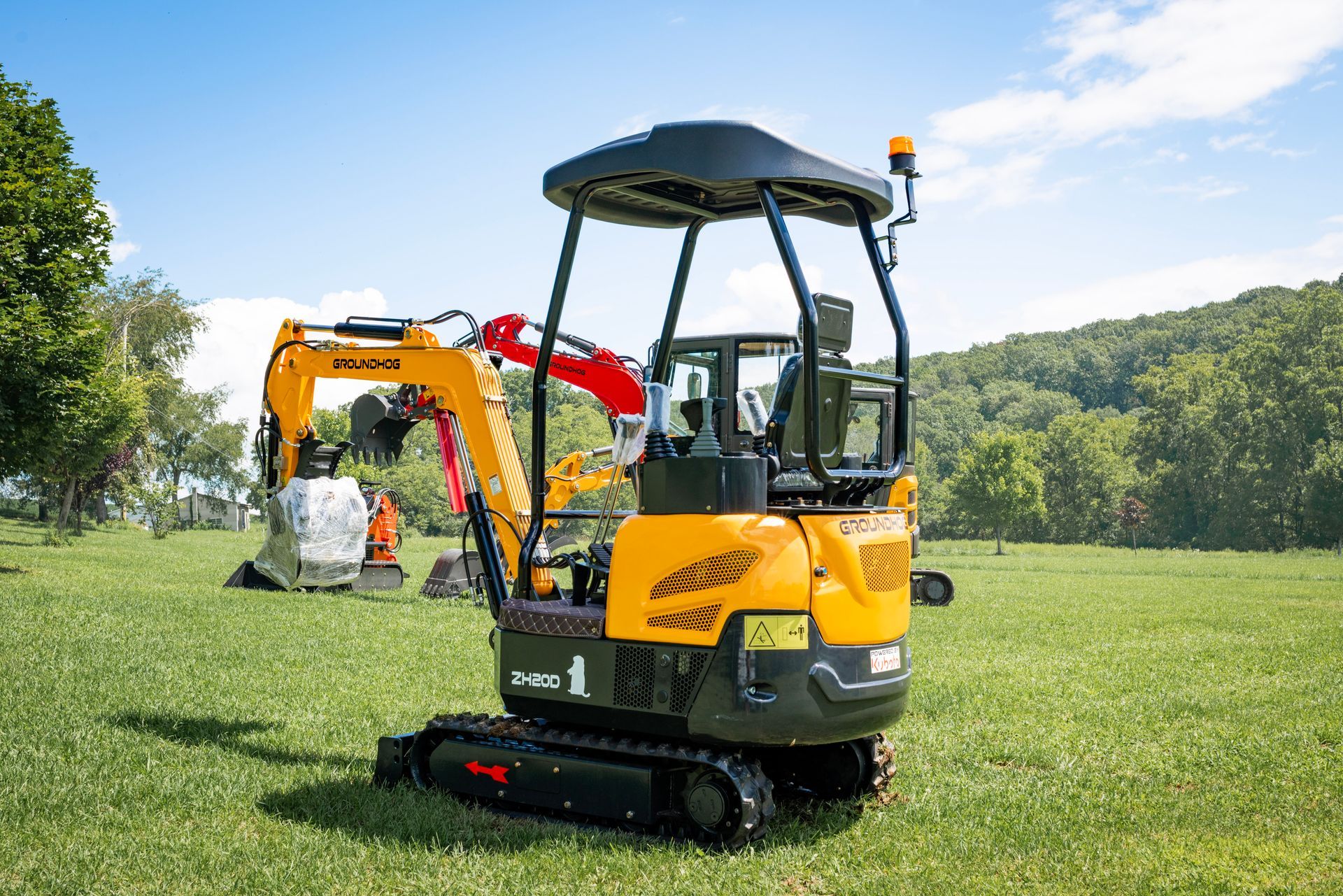

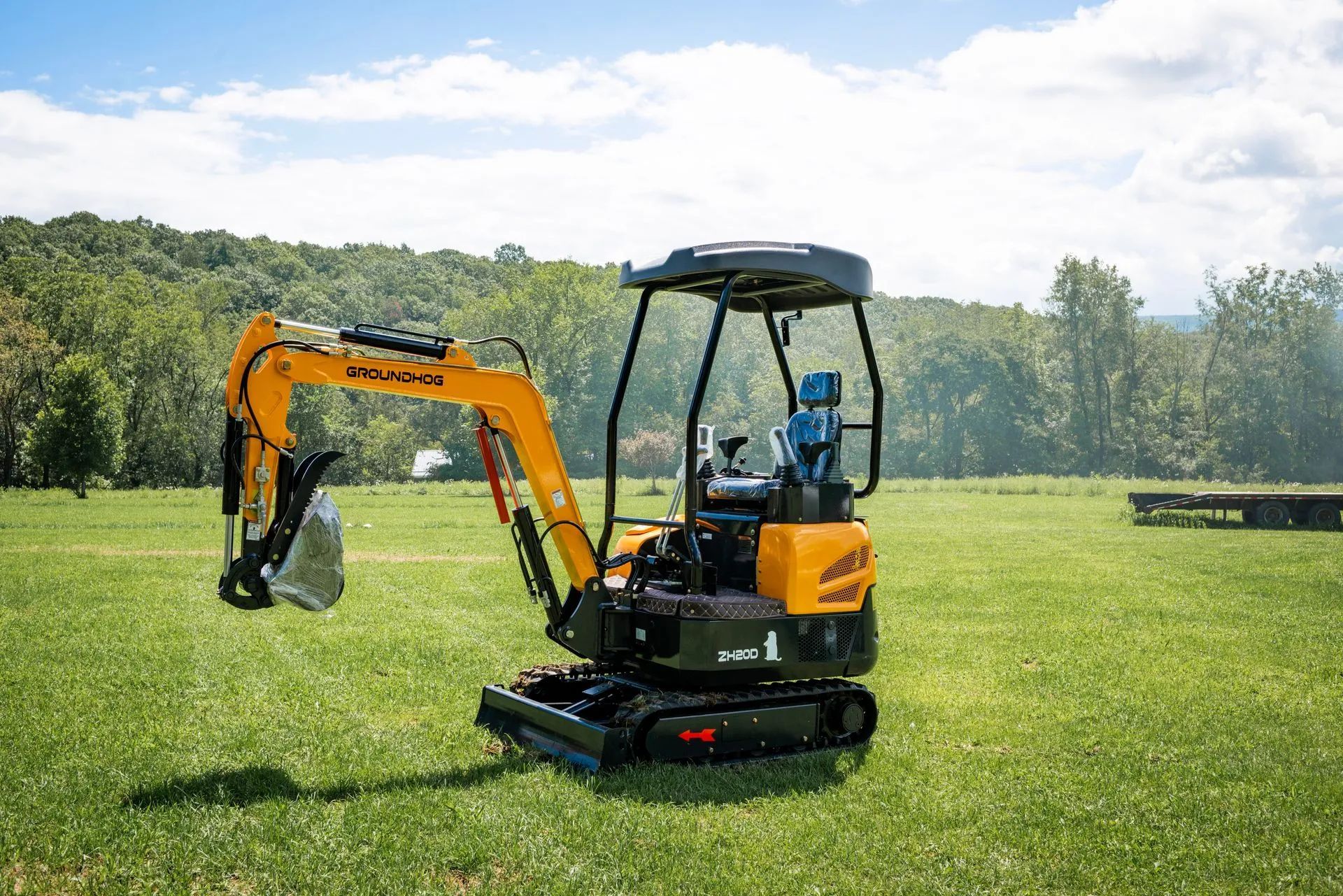

ZH20D Excavator Specs
The ZH20D comes equipped with a 20 HP Kubota D722 diesel engine, 4 post canopy, oil cooler, hydraulic joysticks and glow plugs. Optional Upgrades: Side Swing, 2 Speed, Window Tint and Retractable Tracks | ZH20D $16,900 |
Operating Weight – Rubber Tracks | 3000 lbs |
Operating Weight – Steel Tracks | 3700 lbs |
Engine | Kubota D722 |
Engine HP | 20 HP |
Travel Speed | 3.5km/h |
Overall Dimension | 100″ x 37″ x 45″ |
Machine Width | 43″ |
Machine Height | 7’2″ |
Ground Clearance | 6″ |
Track Length | 54″ |
7″ Track Size | 180x72x41″ |
9″ Track Size | 230x72x41″ |
Track To Blade | 60″ |
Track Width | 7″ |
Track Height | 12.5″ |
Max Digging Depth | 6’7″ |
Max Digging Height | 103″ |
Max Dumping Height | 73″ |
Max Reach | 10’1″ |
Max Digging Radius | 10’8″ |
Flow Rate | 6.8 gpm |
Bucket Size | 16″ Tooth |
22 Series Excavator Starting Prices
- ZH22D $16,900
ZH22D Excavator Specs
The ZH22D is the same body as the ZH20D, but it has a Yanmar engine instead of a Kubota. Optional Upgrades: Side Swing, 2 Speed, Window Tint and Expandable Tracks | ZH22D $16,900 |
Operating Weight – Rubber Tracks | 3000 lbs |
Operating Weight – Steel Tracks | 3700 lbs |
Engine | Yanmar |
Engine HP | 20 HP |
Travel Speed | 3.5km/h |
Machine Width | 43″ |
Machine Height | 7’2″ |
Ground Clearance | 6″ |
Track Length | 48″ |
Track To Blade | 54″ |
Track Width | 7″ |
Max Digging Depth | 6’7″ |
Max Digging Height | 103″ |
Max Dumping Height | 7’3″ |
Max Reach | 10’1″ |
Max Digging Radius | 10’8″ |
Bucket Size | 16″ Tooth |
23 SERIES MINI EXCAVATOR
23 Series Excavator Starting Prices
- KH23G $11,900

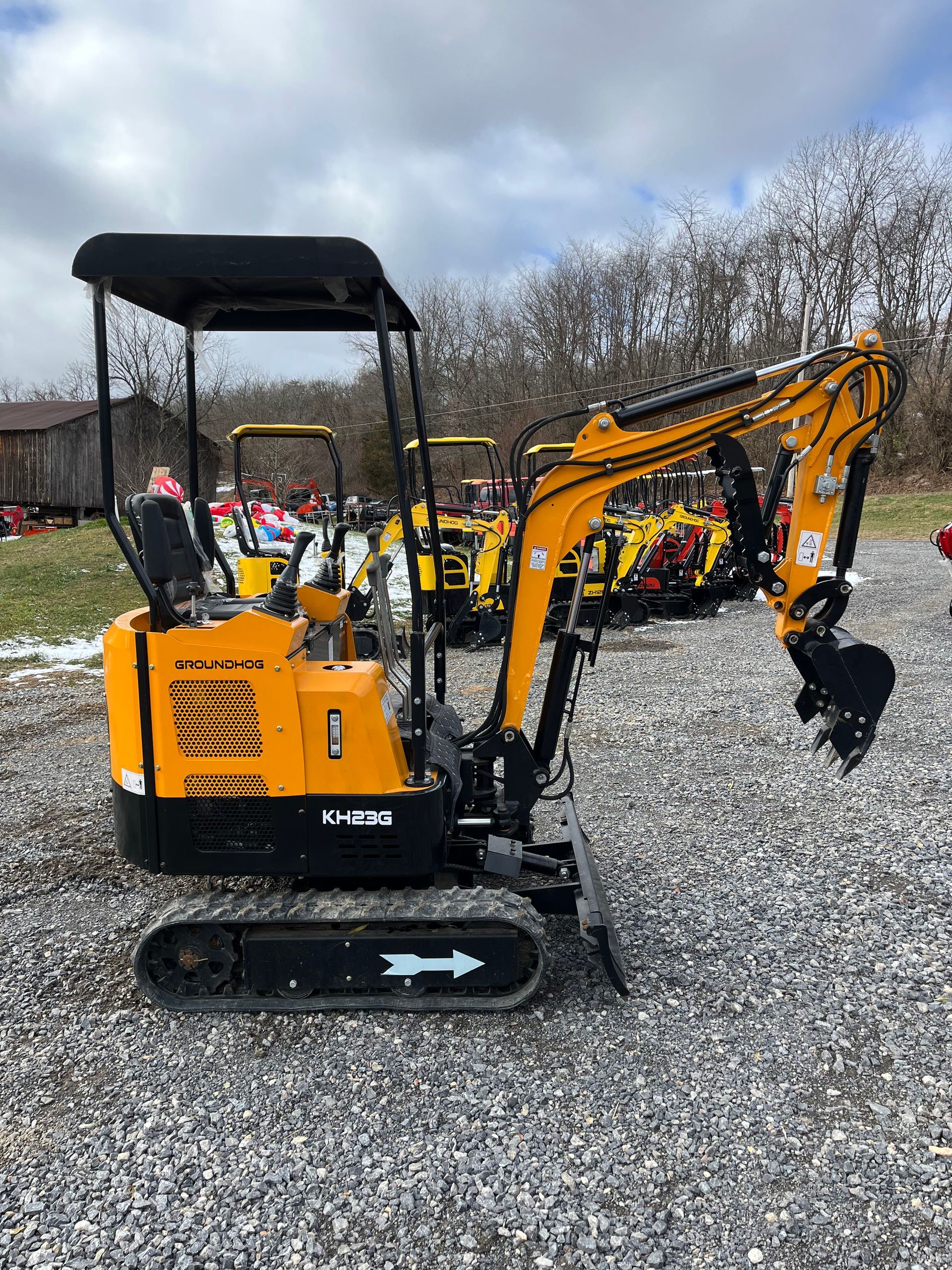

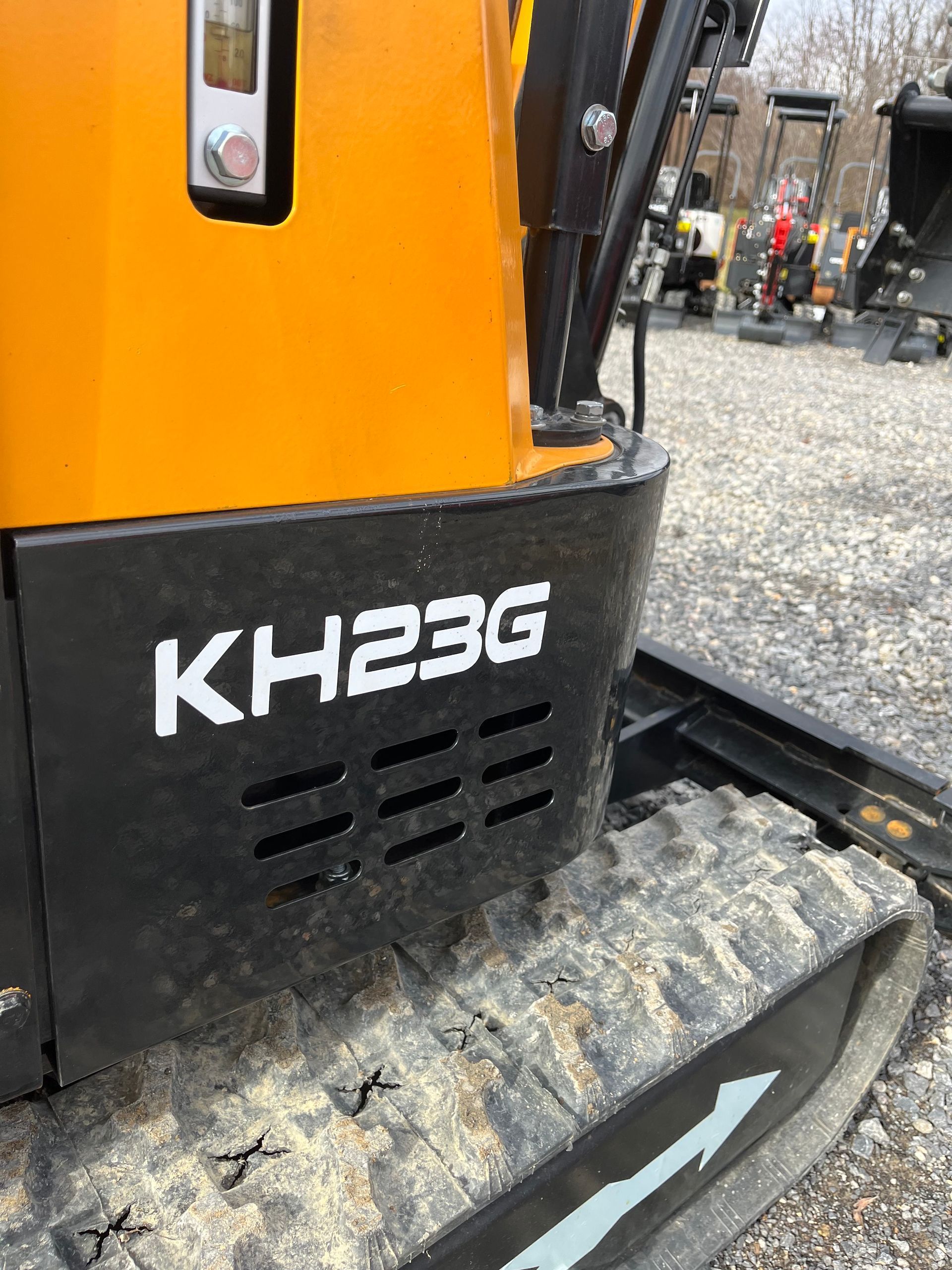

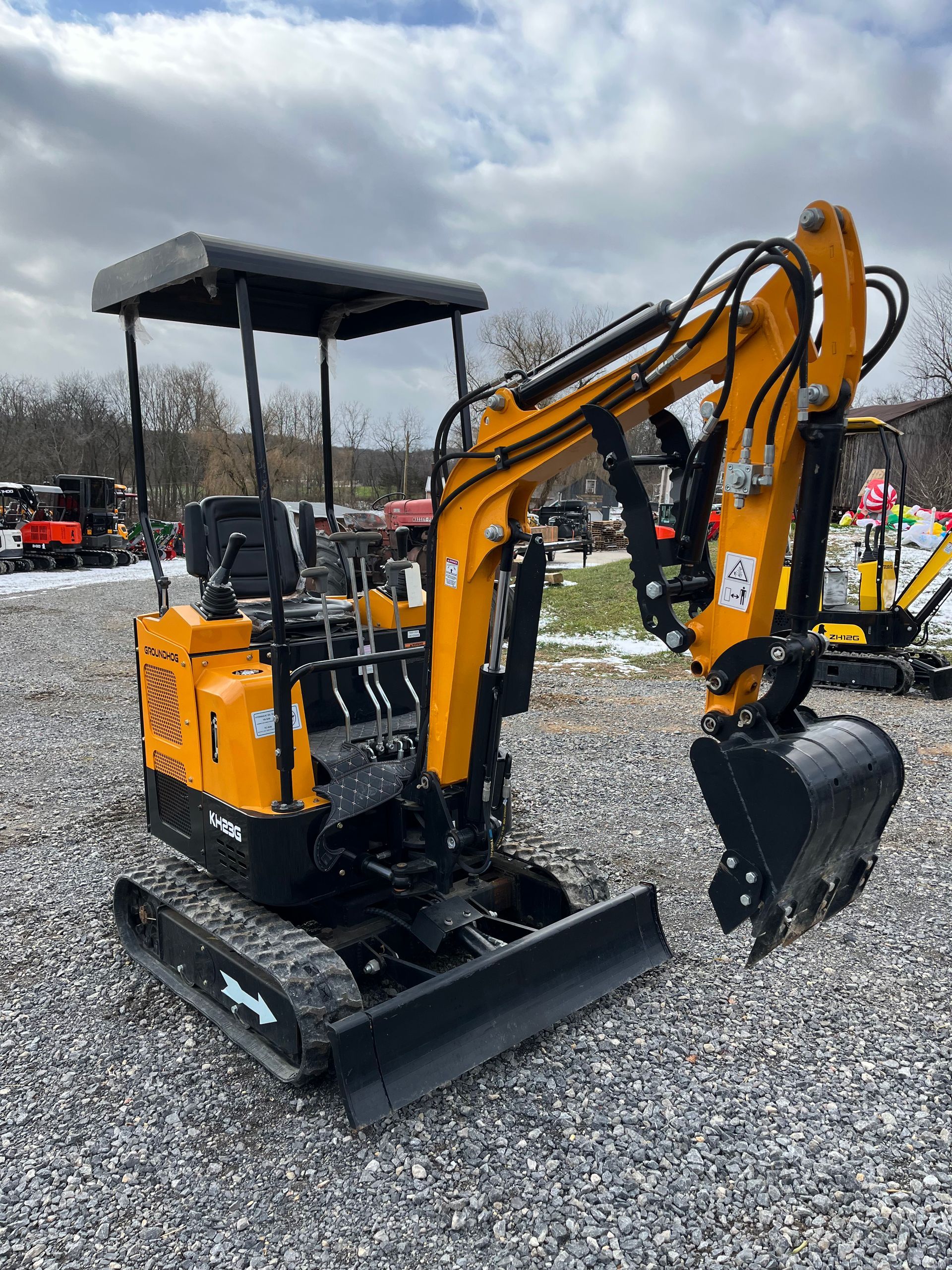

KH23G Excavator Specs
The KH23G comes equipped with a 23 HP Briggs and Stratton Vanguard gas engine, 4 post canopy, oil cooler, and hydraulic joysticks. Optional Upgrades: Side Swing, Window Tint and Expandable Tracks | KH23G $11,900 |
Operating Weight – Rubber Tracks | 2200 lbs |
Operating Weight – Steel Tracks | 2900 lbs |
Engine | Briggs and Stratton Vanguard |
Engine HP | 23 HP |
Travel Speed | 3.5km/h |
Machine Width | 39″ |
Machine Height | 7’4″ |
Ground Clearance | 6″ |
Track Length | 48″ |
Track To Blade | 54″ |
Track Width | 7″ |
Max Digging Depth | 6’2″ |
Max Reach | 8’11” |
Max Digging Radius | 9’8″ |
Bucket Size | 16″ Tooth |
24 SERIES MINI EXCAVATOR
24 Series Excavator Starting Prices
- BH24D $15,900
- ZH24D $16,900
- ZH24D-2 $15,900

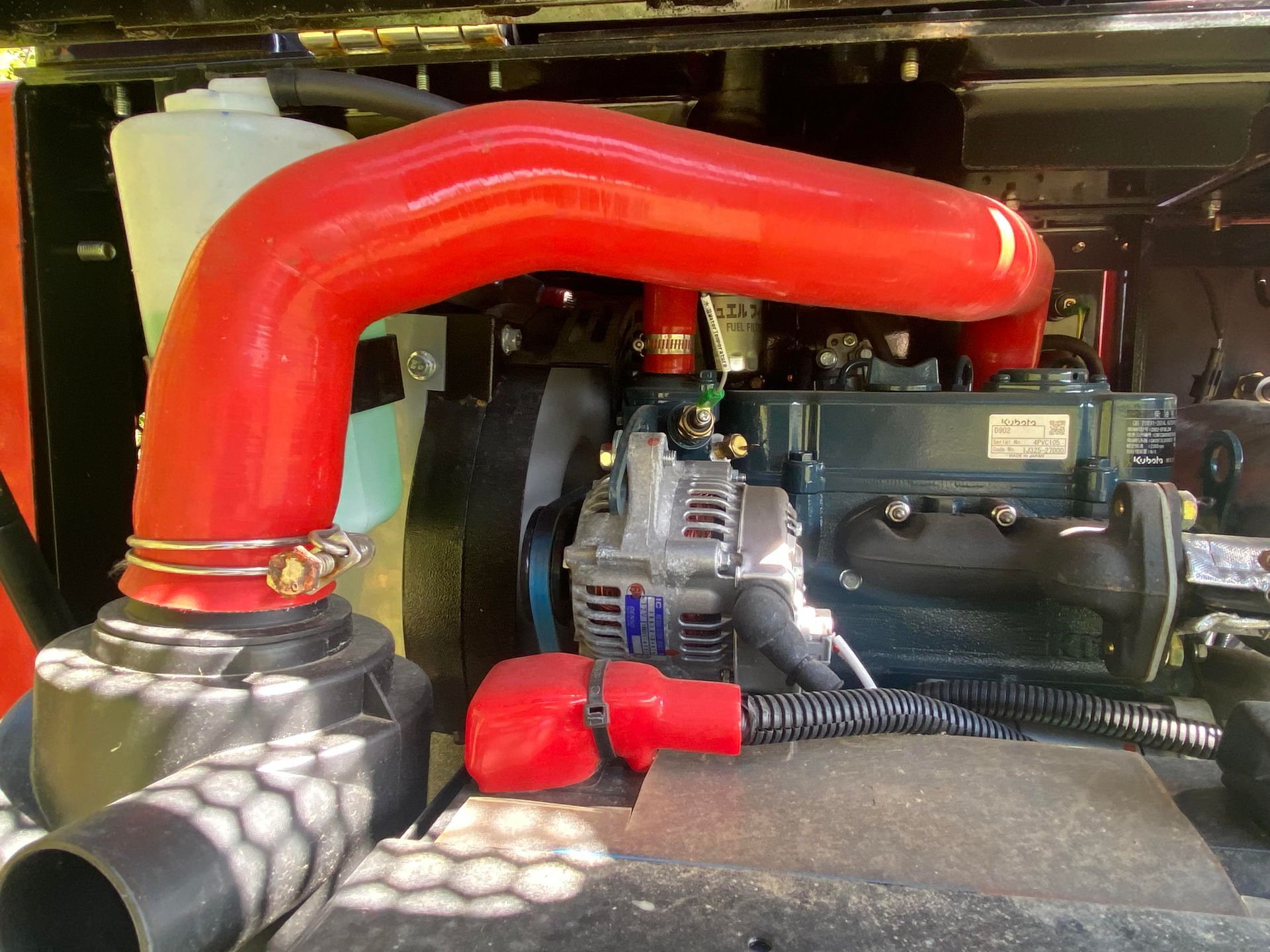

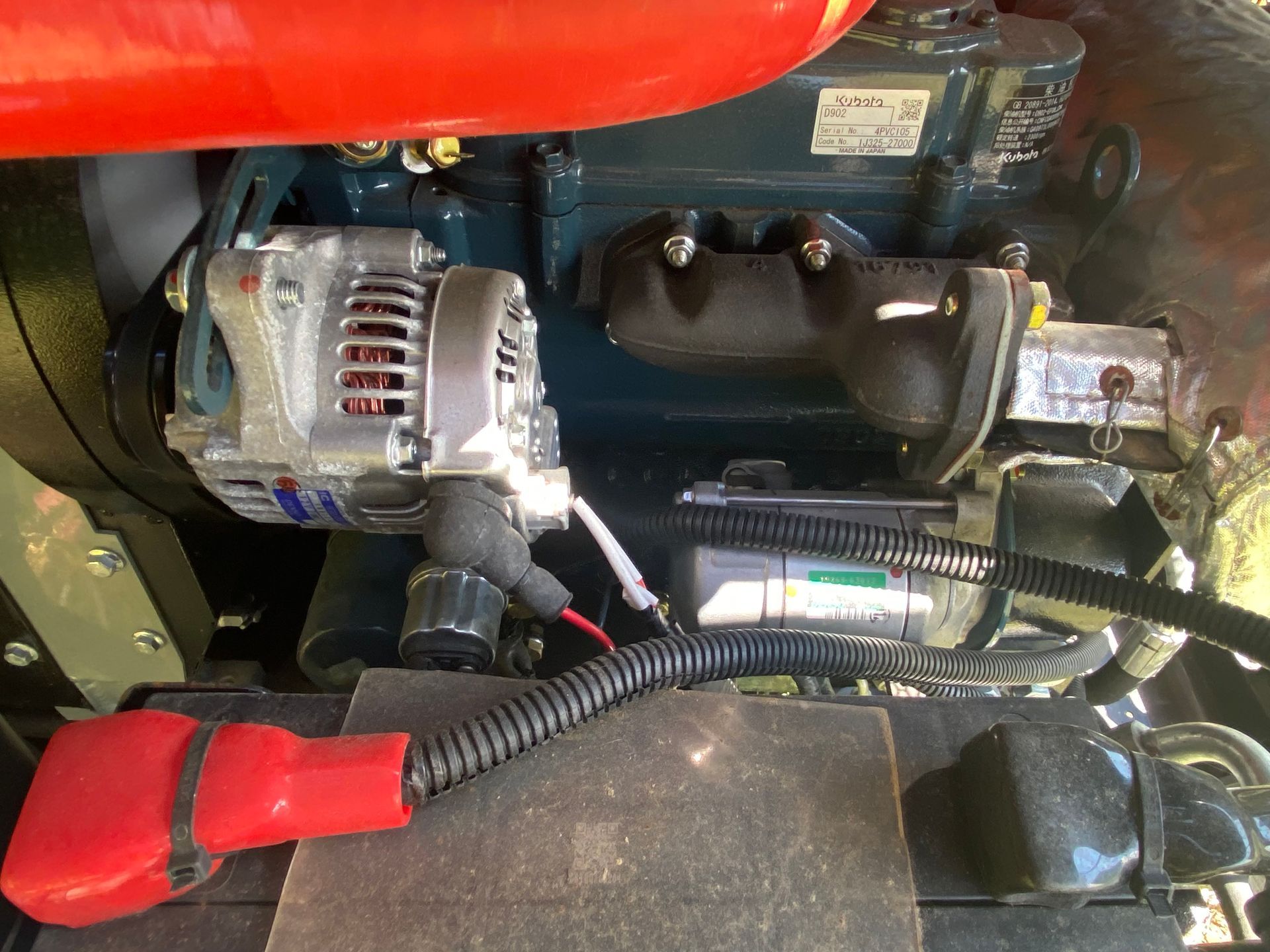

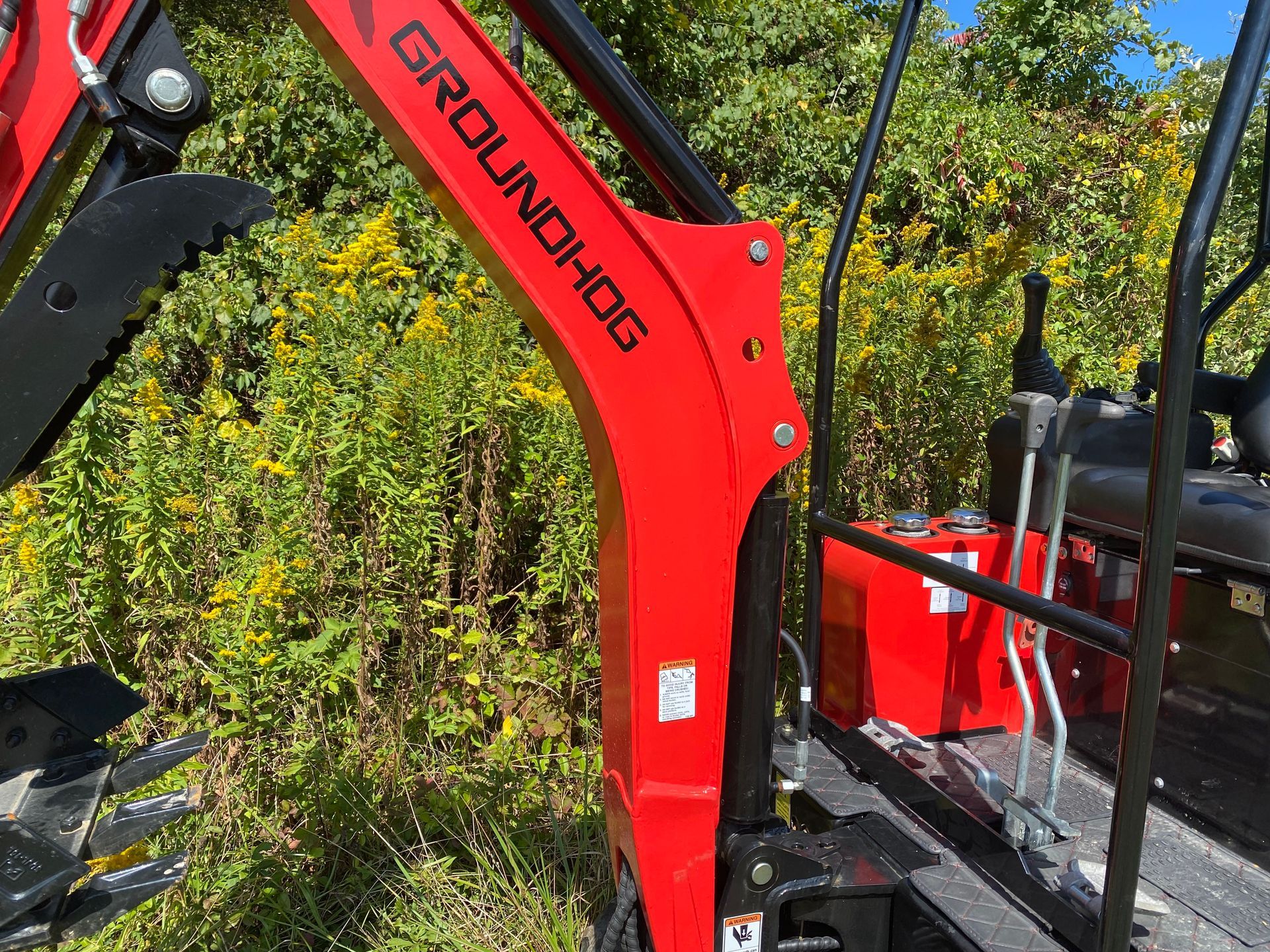

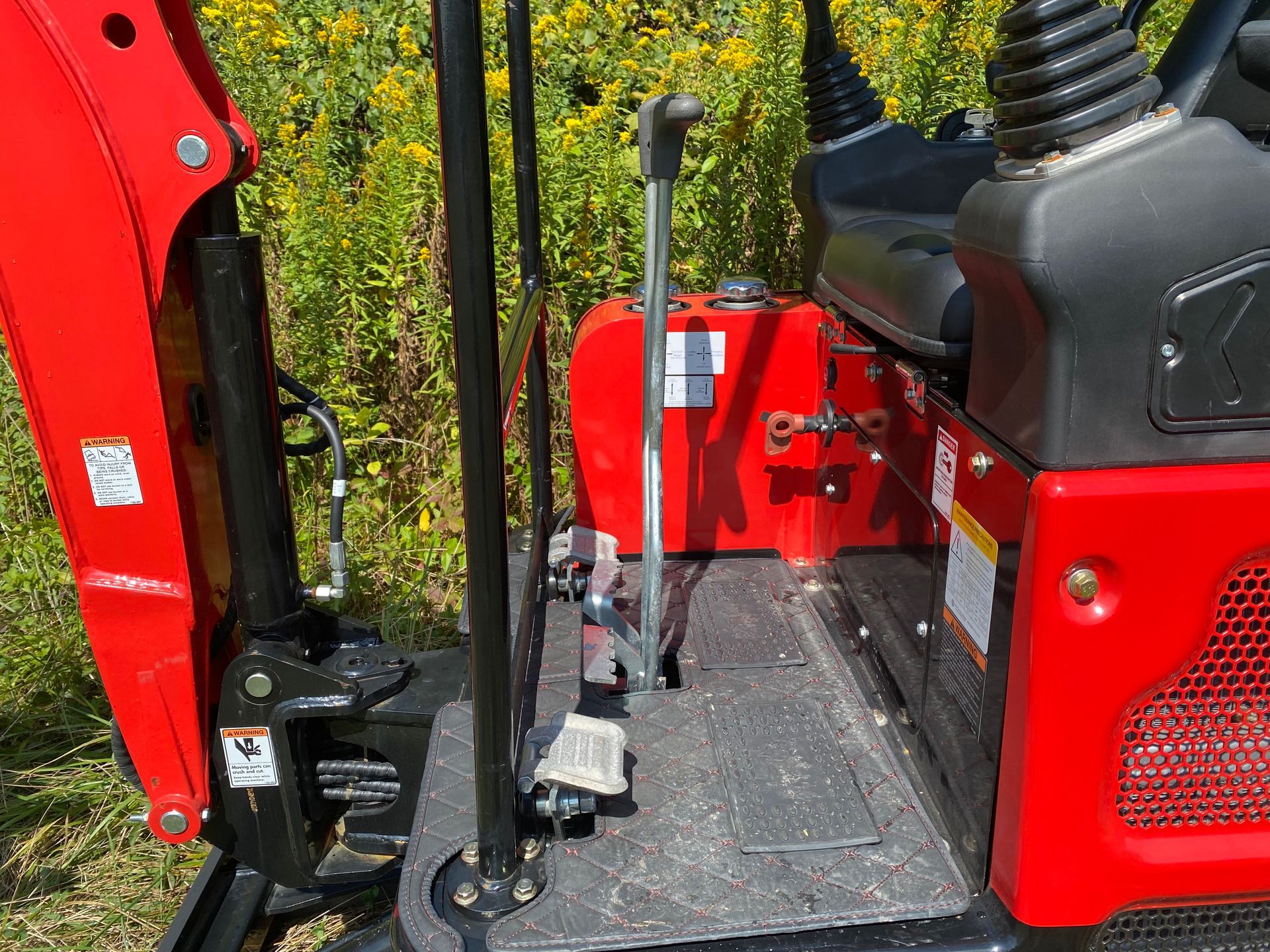

BH24D Excavator Specs
The BH24D comes equipped with either a 20 HP Kubota D722 or a 24 HP Kubota D902 diesel engine, 4 post canopy, oil cooler, hydraulic joysticks and glow plugs. Optional Upgrades: Side Swing, Window Tint and Retractable Tracks | BH24D $15,900 |
Operating Weight – Rubber Tracks | 3300 lbs |
Operating Weight – Steel Tracks | 3900 lbs |
Engine | Kubota D902 or D722 |
Engine HP | 24 HP – D902 20 HP – D722 |
Travel Speed | 3.5km/h |
Machine Width | 43″ |
Machine Height | 7’9″ |
Ground Clearance | 6″ |
Track Length | 54″ |
Track To Blade | 60″ |
Track Width | 7″ |
Max Digging Depth | 6’7″ |
Max Dumping Height | 7’10” |
Max Reach | 10’1″ |
Max Digging Radius | 10’8″ |
Bucket Size | 16″ Tooth |

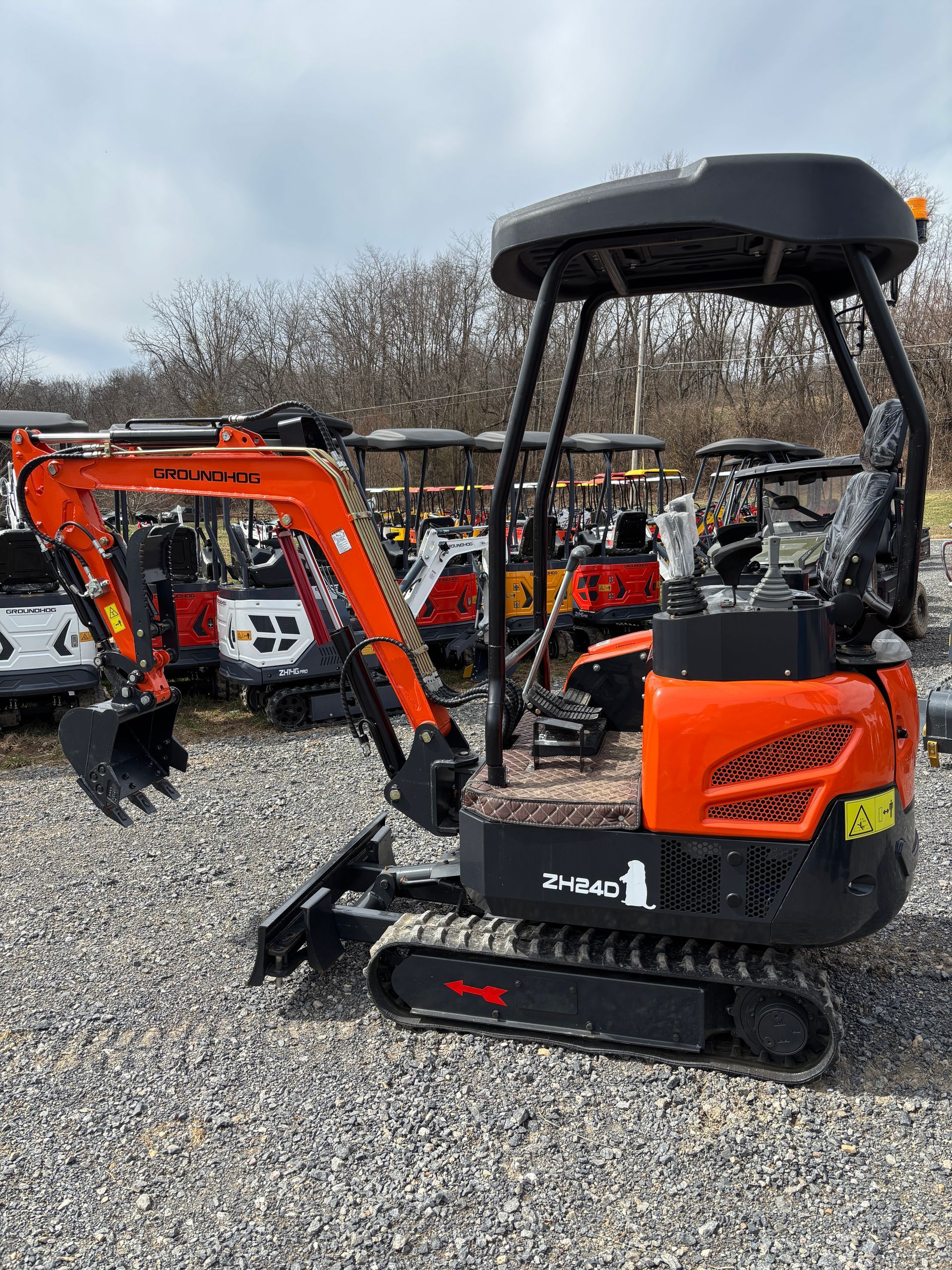

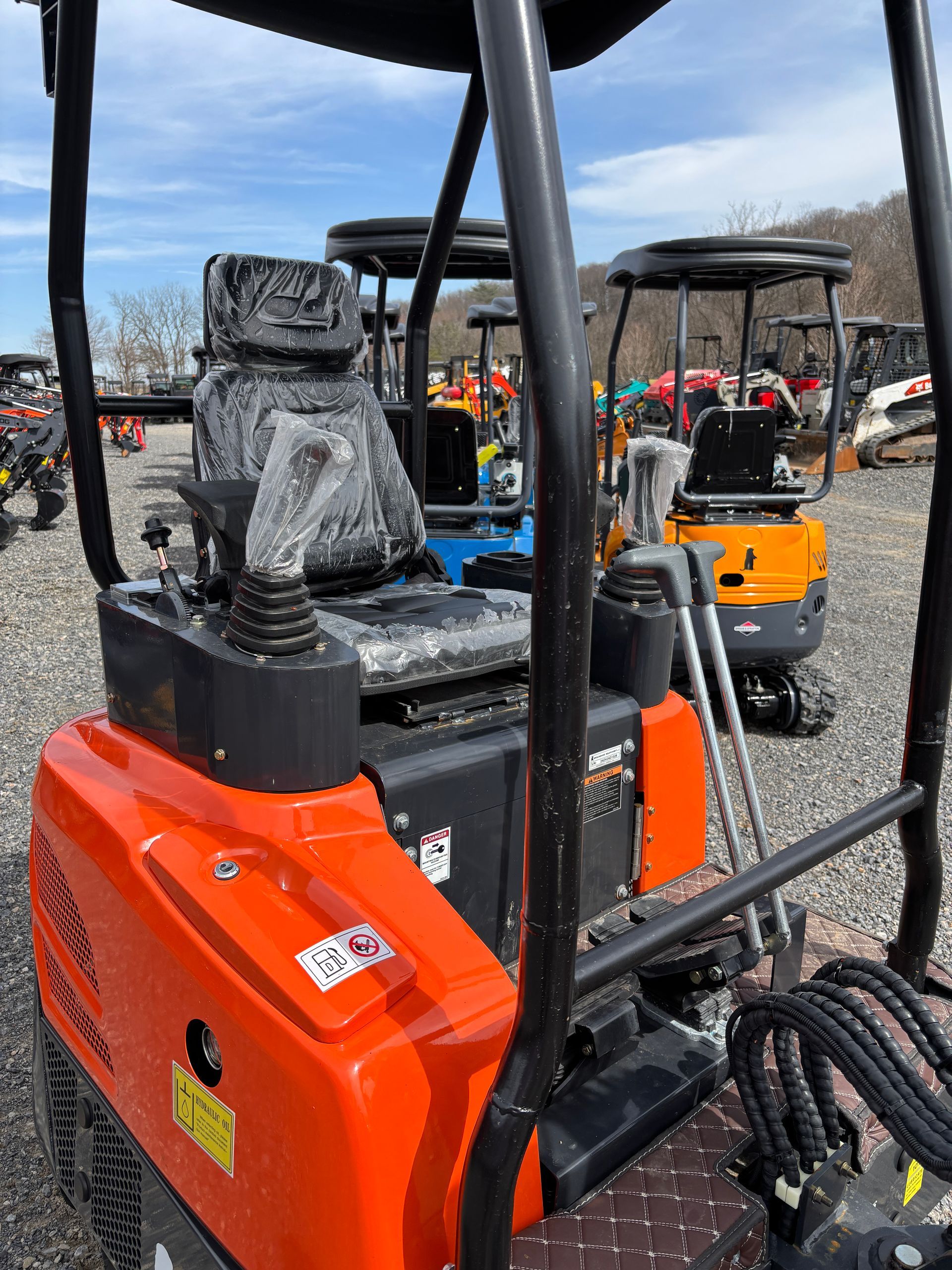

ZH24D Excavator Specs
The ZH24D comes equipped with a 24 HP Kubota D902 diesel engine, 4 post canopy, oil cooler, hydraulic joysticks and glow plugs. Optional Upgrades: Side Swing, 2 Speed, Window Tint and Expandable Tracks | ZH24D $16,900 |
Operating Weight – Rubber Tracks | 3000 lbs |
Operating Weight – Steel Tracks | 3600 lbs |
Engine | Kubota D902 |
Engine HP | 24 HP |
Travel Speed | 3.5km/h |
Machine Width | 43″ |
Machine Height | 7’9″ |
Ground Clearance | 6″ |
Track Length | 54″ |
Track To Blade | 60″ |
Track Width | 7″ |
Max Digging Depth | 6’7″ |
Max Dumping Height | 7’10” |
Max Reach | 10’1″ |
Max Digging Radius | 10’8″ |
Bucket Size | 16″ Tooth |

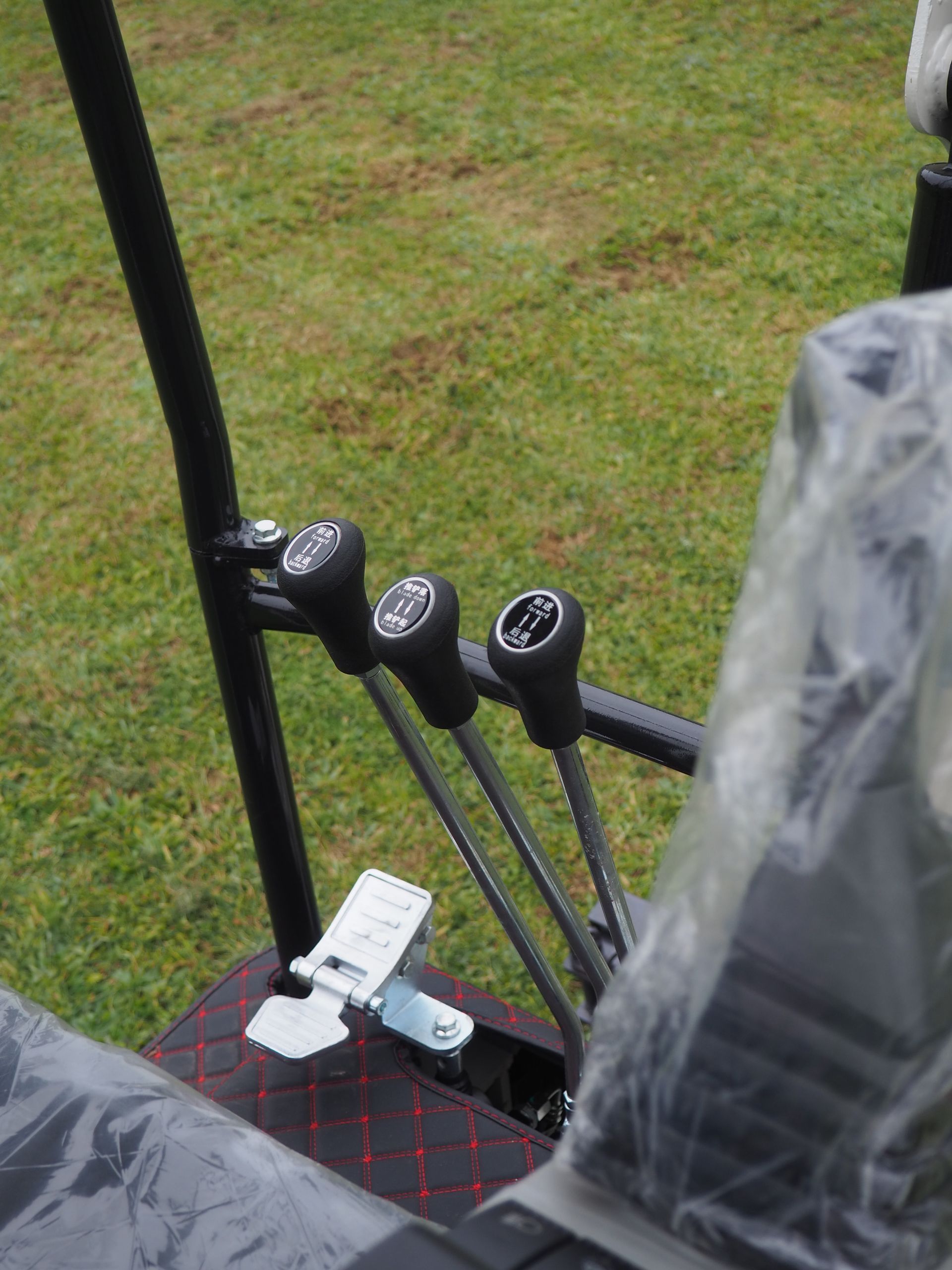

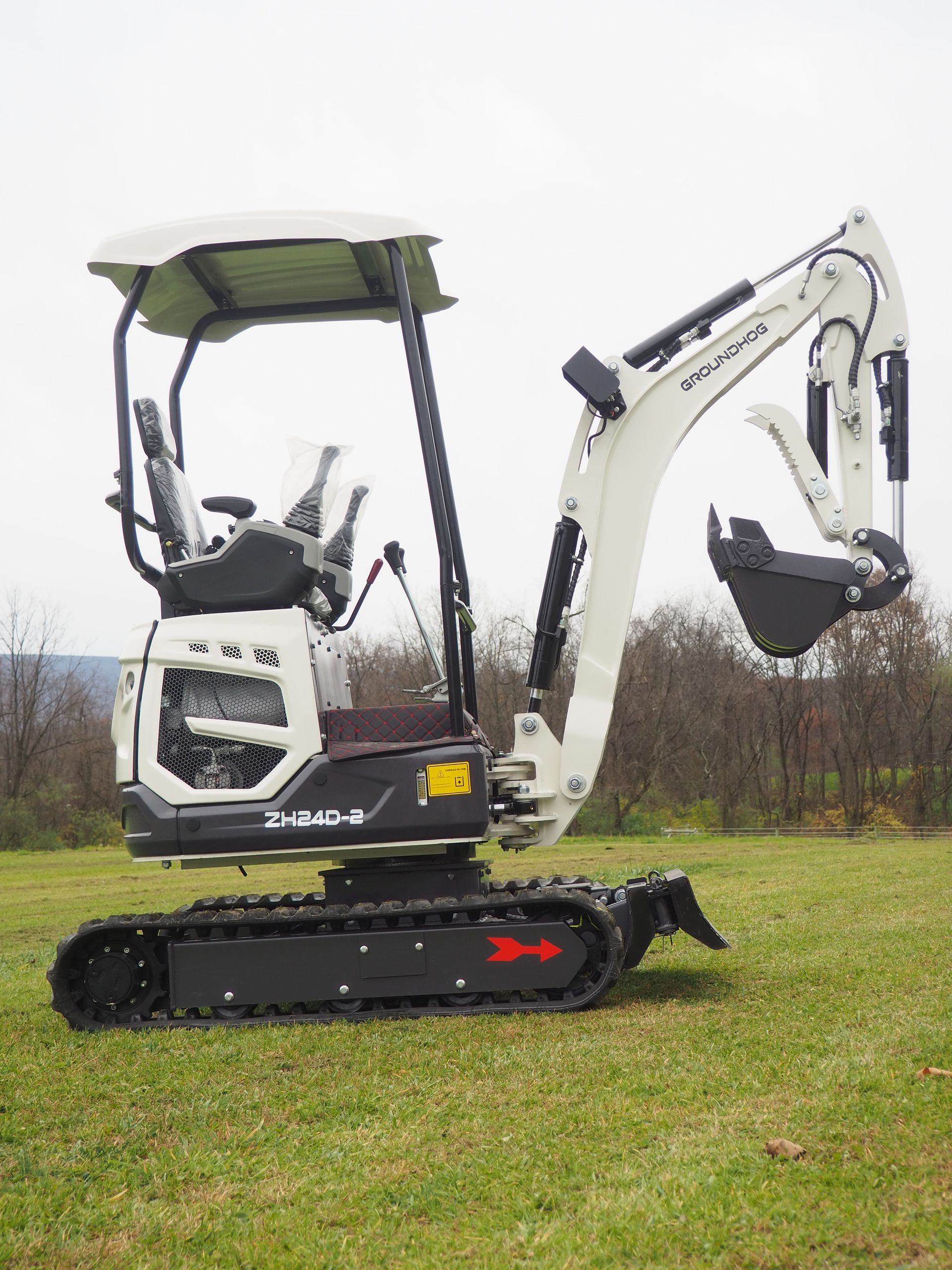

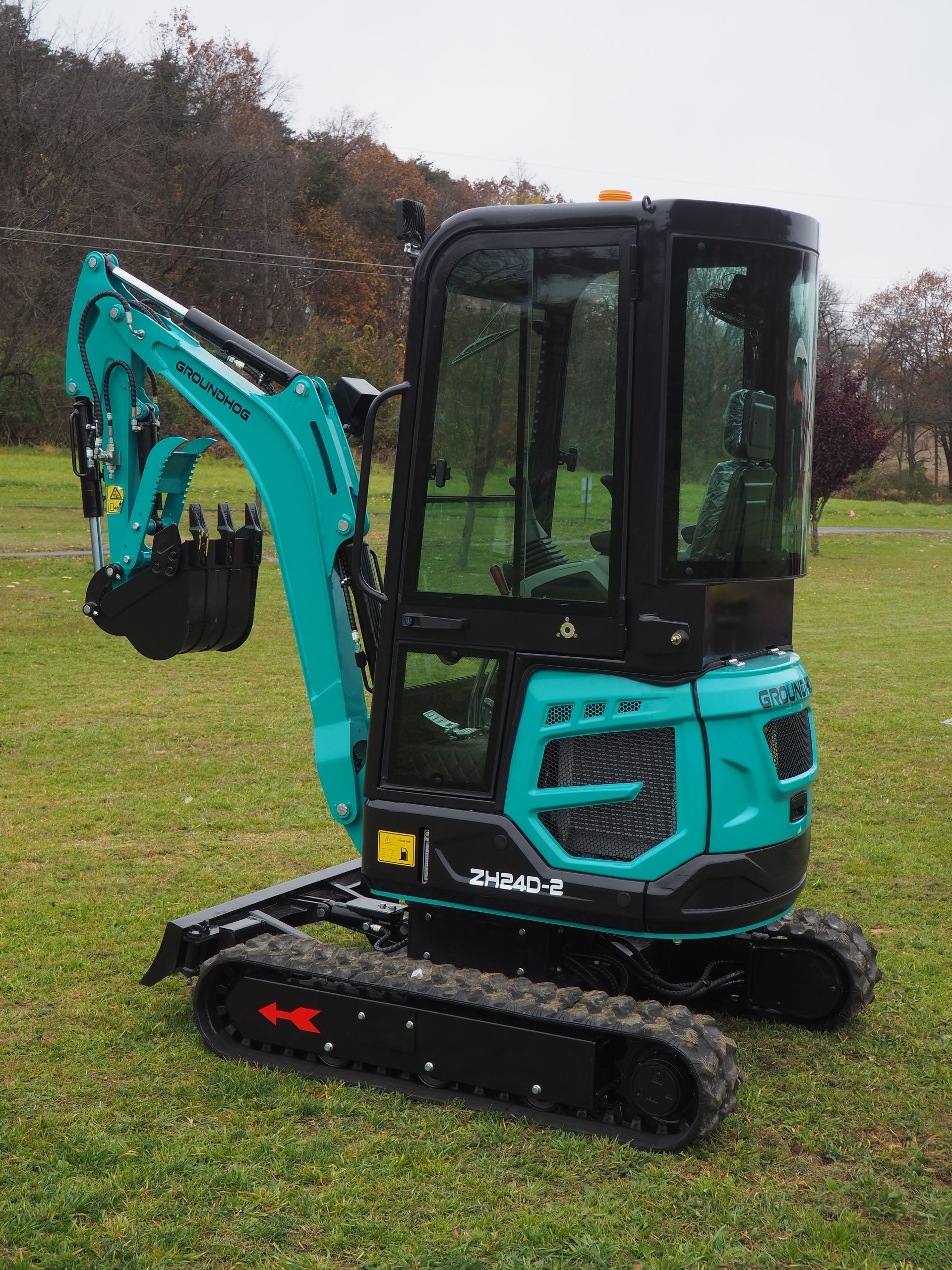

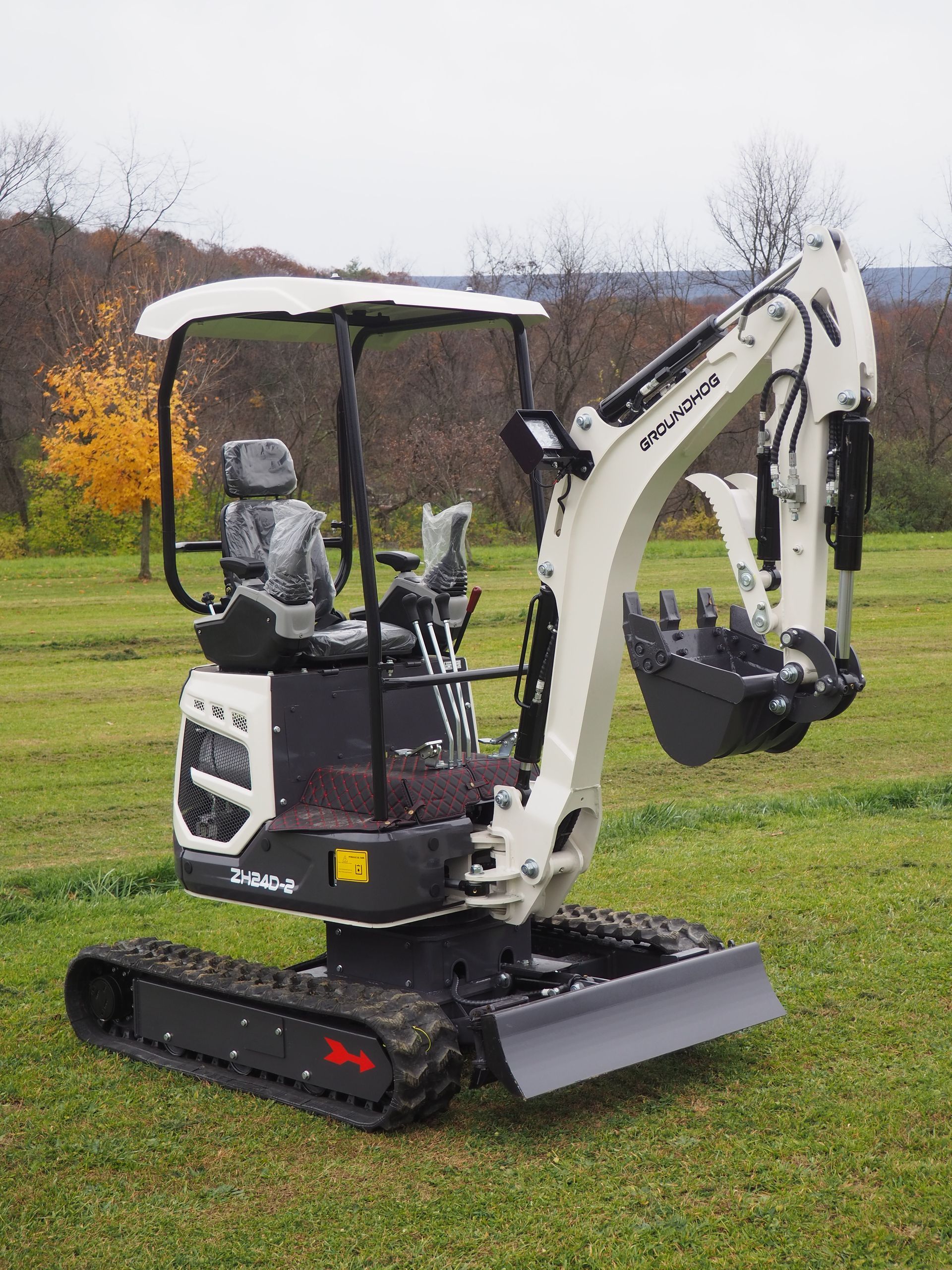

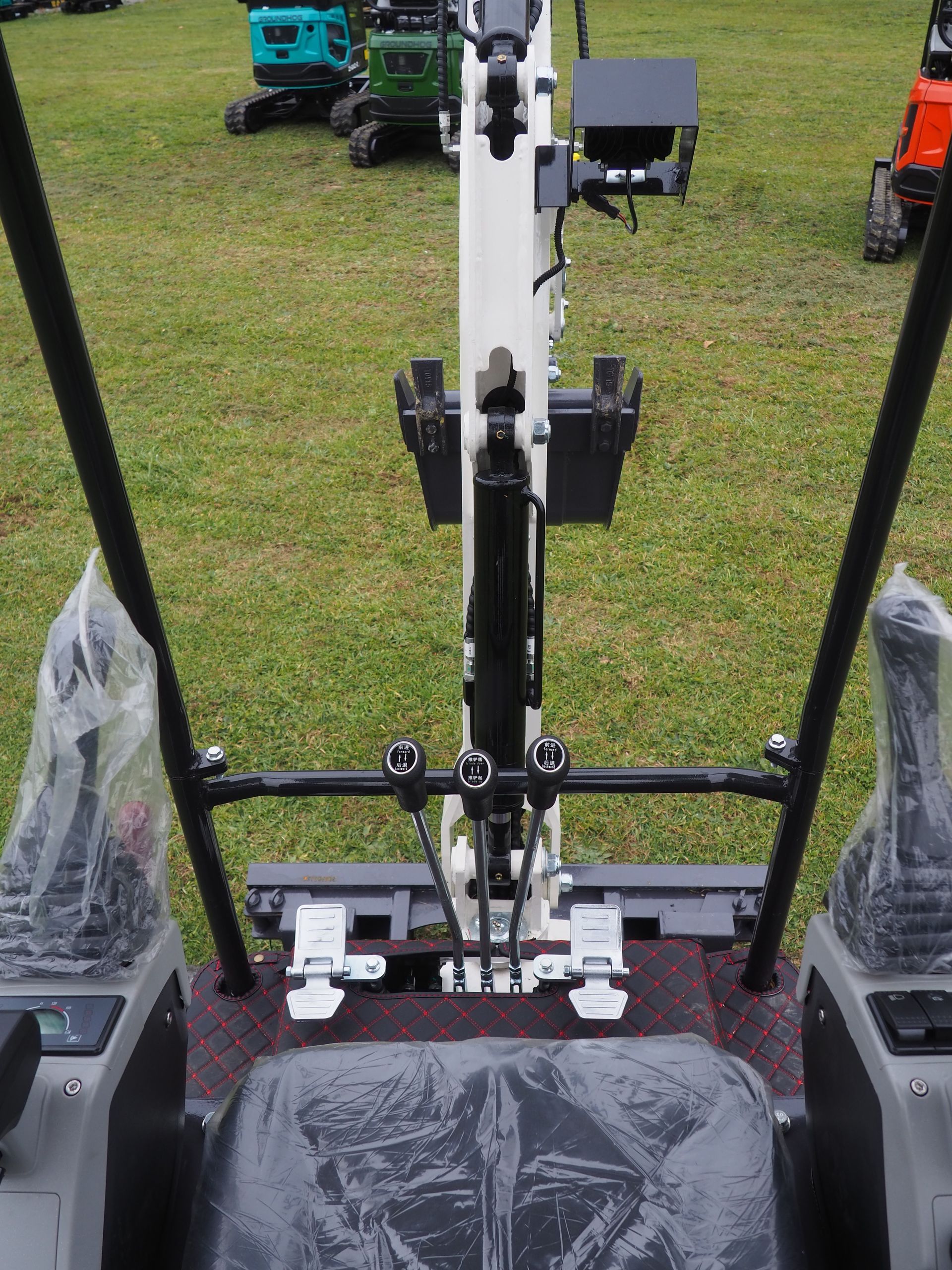

ZH24D-2 Excavator Specs
The ZH24D-2 comes equipped with a 24 HP Kubota D902 diesel engine, oil cooler, 4 post removable canopy, u-boom, hydraulic joysticks and glow plugs. Optional Upgrades: Enclosed Cab with fans and stereo *no heat or a/c, ROPS, Side Swing, 2 Speed, Thumb control on pilot control, Window Tint and Expandable Tracks | ZH24D-2 $15,900 ZH24D-2 w/ cab $17,800 |
Operating Weight – Rubber Tracks | 3000 lbs |
Operating Weight – Steel Tracks | 3600 lbs |
Engine | Kubota D902 |
Engine HP | 24 HP |
Travel Speed | 3.5km/h |
Machine Width | 46″ |
Machine Height | 7’2″ |
Ground Clearance | 5 1/2″ |
Track Length | 60″ |
Track To Blade | 72″ |
Track Width | 7″ (9″ optional) |
Max Digging Depth | 6′ 2″ |
Max Dumping Height | 7’6″ |
Max Reach | 10’6″ |
Max Digging Radius | 12′ 3″ |
Bucket Size | 16″ Tooth |
Hydraulic Flow Rate | 8.8 GPM |
25 SERIES MINI EXCAVATOR
25 Series Excavator Starting Prices
- BH25D $30,900 open cab
- BH25D $32,900 enclosed cab
- BH25D-2 $24,900 open cab
- BH25D-2 $26,900 enclosed cab
- KH25D $23,900 open cab
- KH25D-2 $23,900 open cab
- ZH25D-2 $22,900 open cab
- ZH25D-2 $25,900 enclosed cab
- ZH25D-3 $23,900 open cab
- ZH25D-3 $26,900 enclosed cab

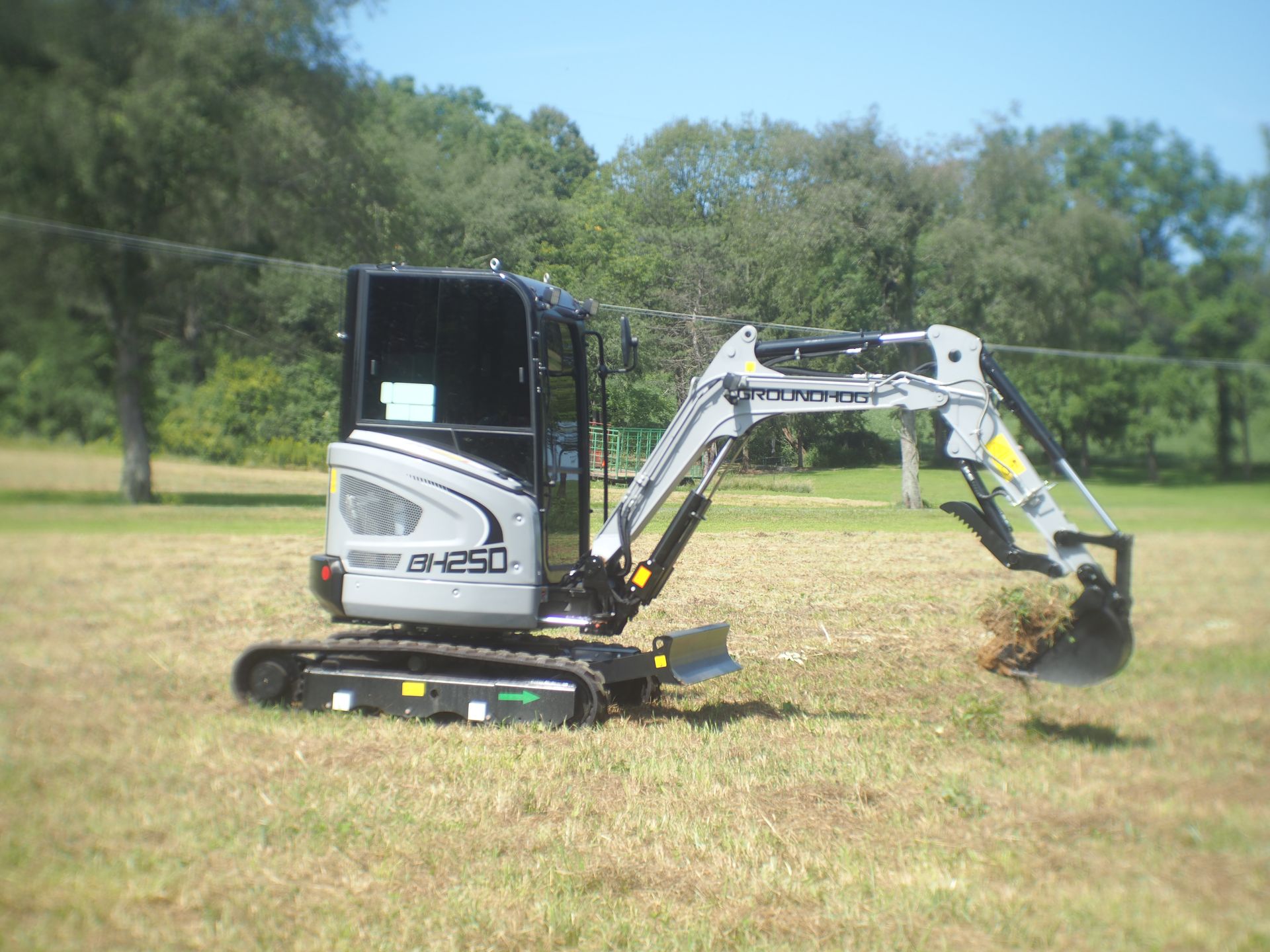

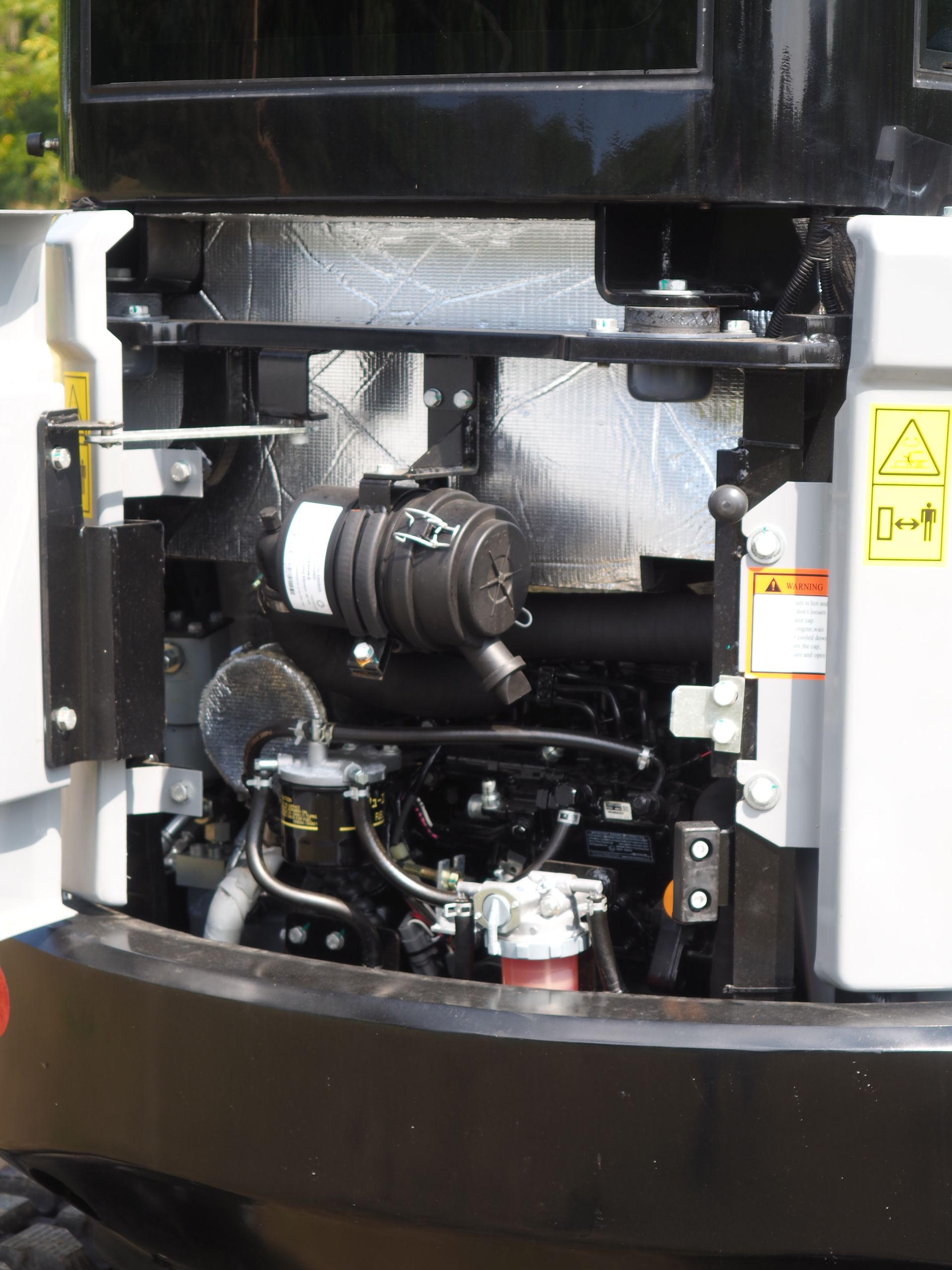

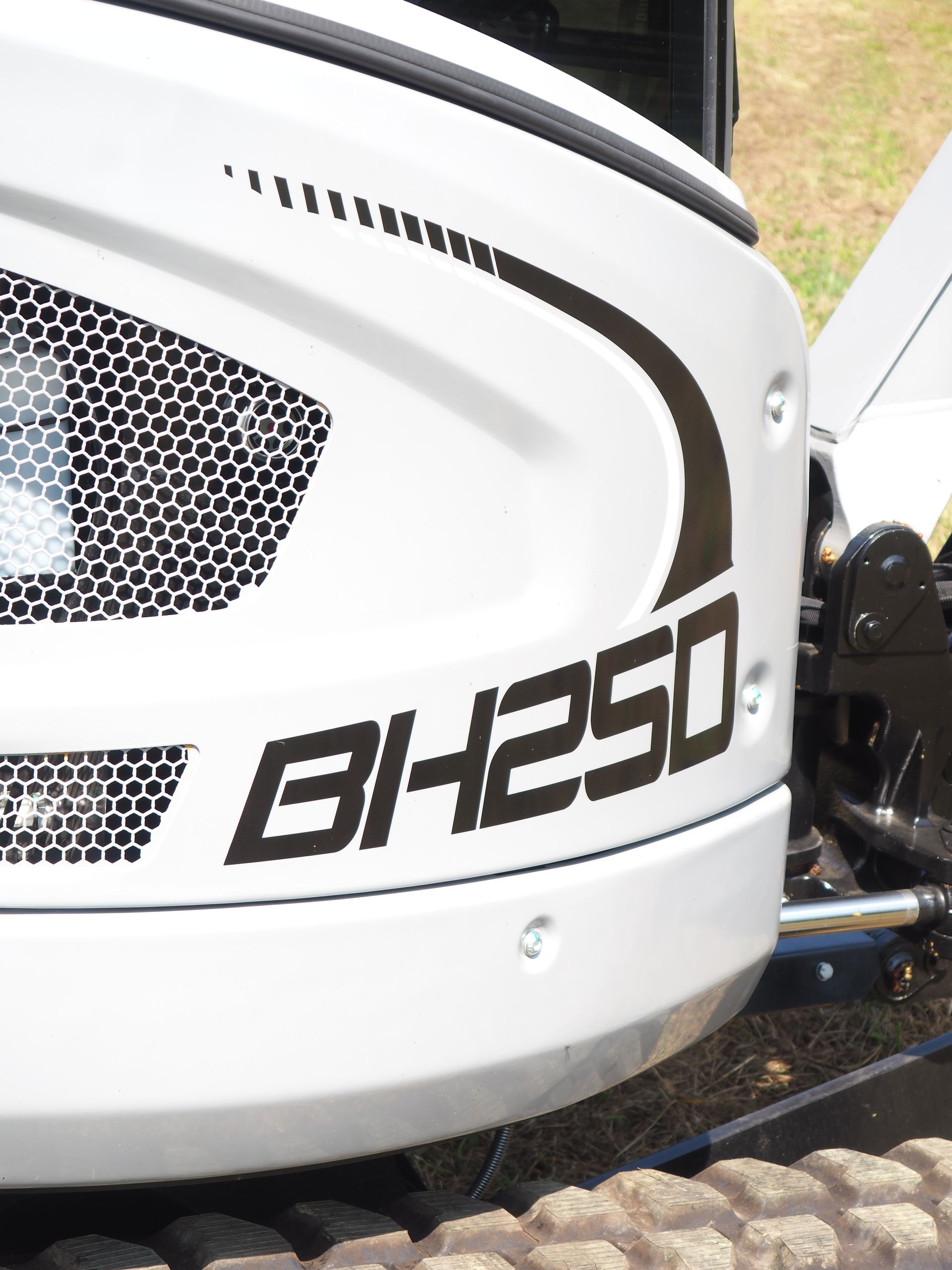

BH25D Excavator Specs
The BH25D comes equipped with a 25 HP Yanmar Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, oil cooler, Side Swing Boom, and 2 Speed. Optional Upgrades: Window Tint | BH25D $30,900 open cab BH25D $32,900 enclosed cab |
Operating Weight | 6100 lbs |
Engine | Yanmar 3TNV80F |
Engine HP | 25 HP |
Travel Speed | 2.5 mph |
Machine Width | 61″ |
Machine Height | 8’1″ |
Ground Clearance | 8″ |
Track Length | 78″ |
Track To Blade | 92″ |
Track Width | 9″ |
Max Digging Height | 12’4″ |
Max Reach | 12’11” |
Max Digging Radius | 14’4″ |
Hydraulic Flow Rate | 19 gpm |
Track Size | 250×52.5×82 |
Bucket Size | 16″ Tooth |

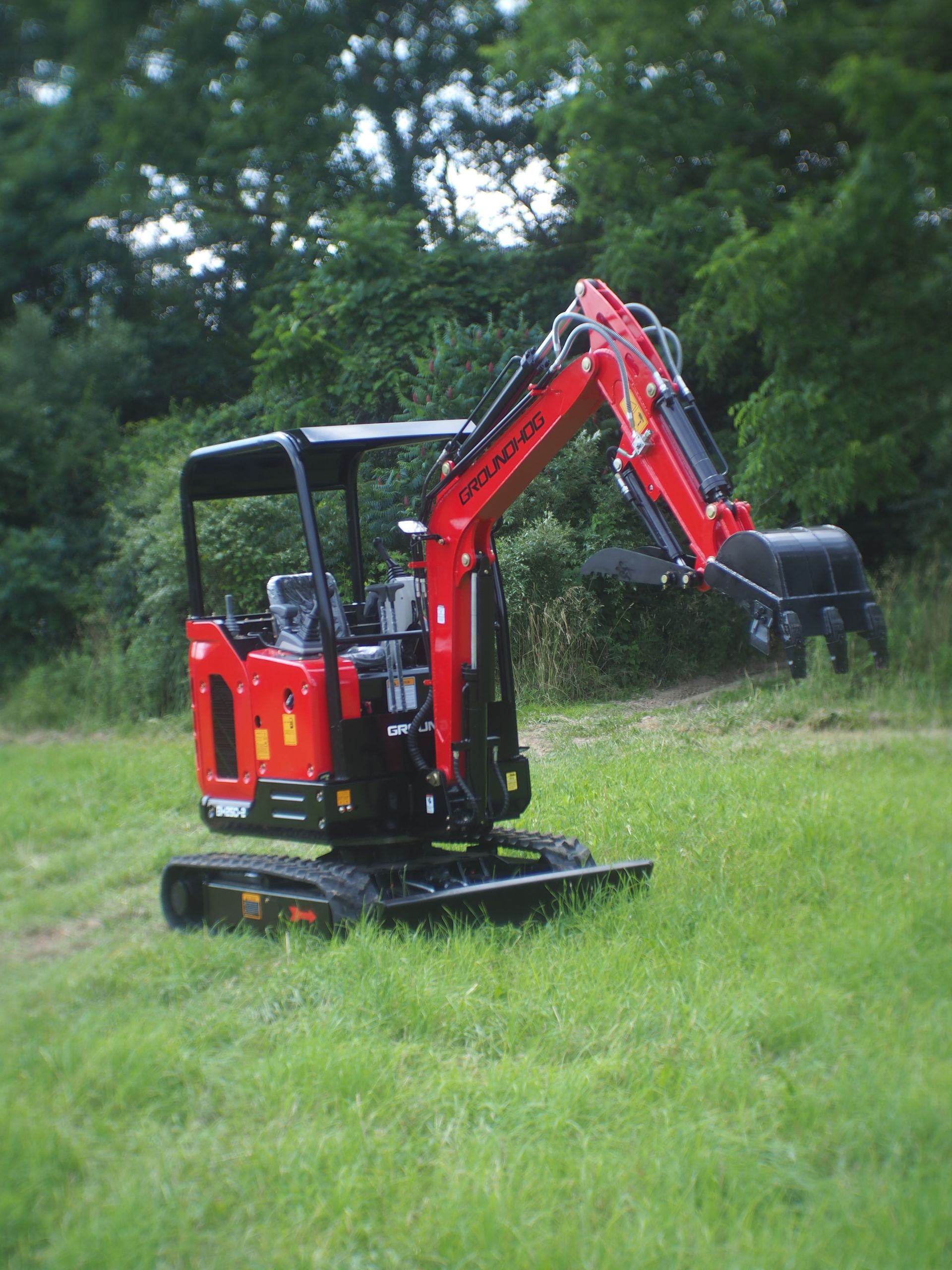

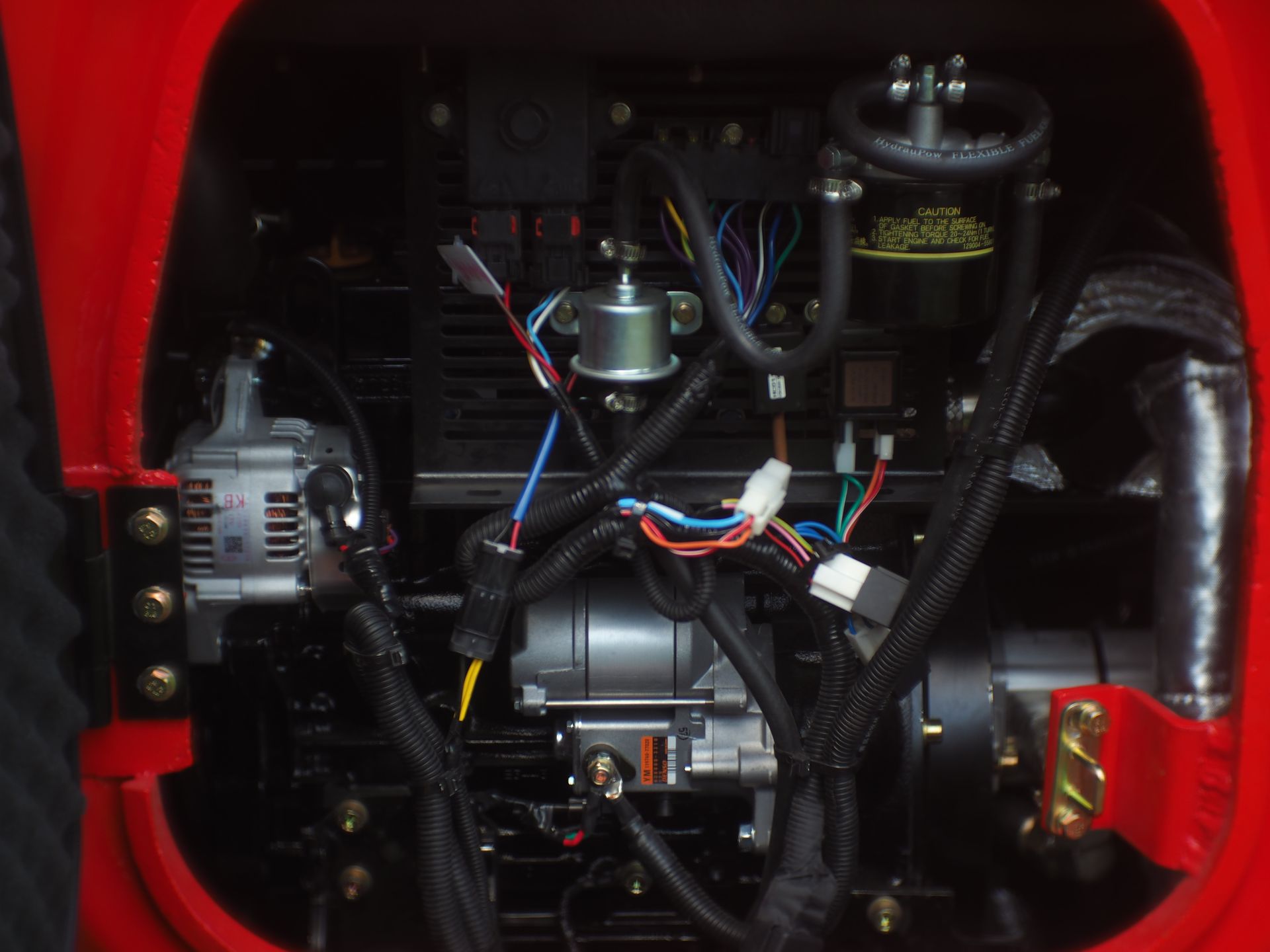

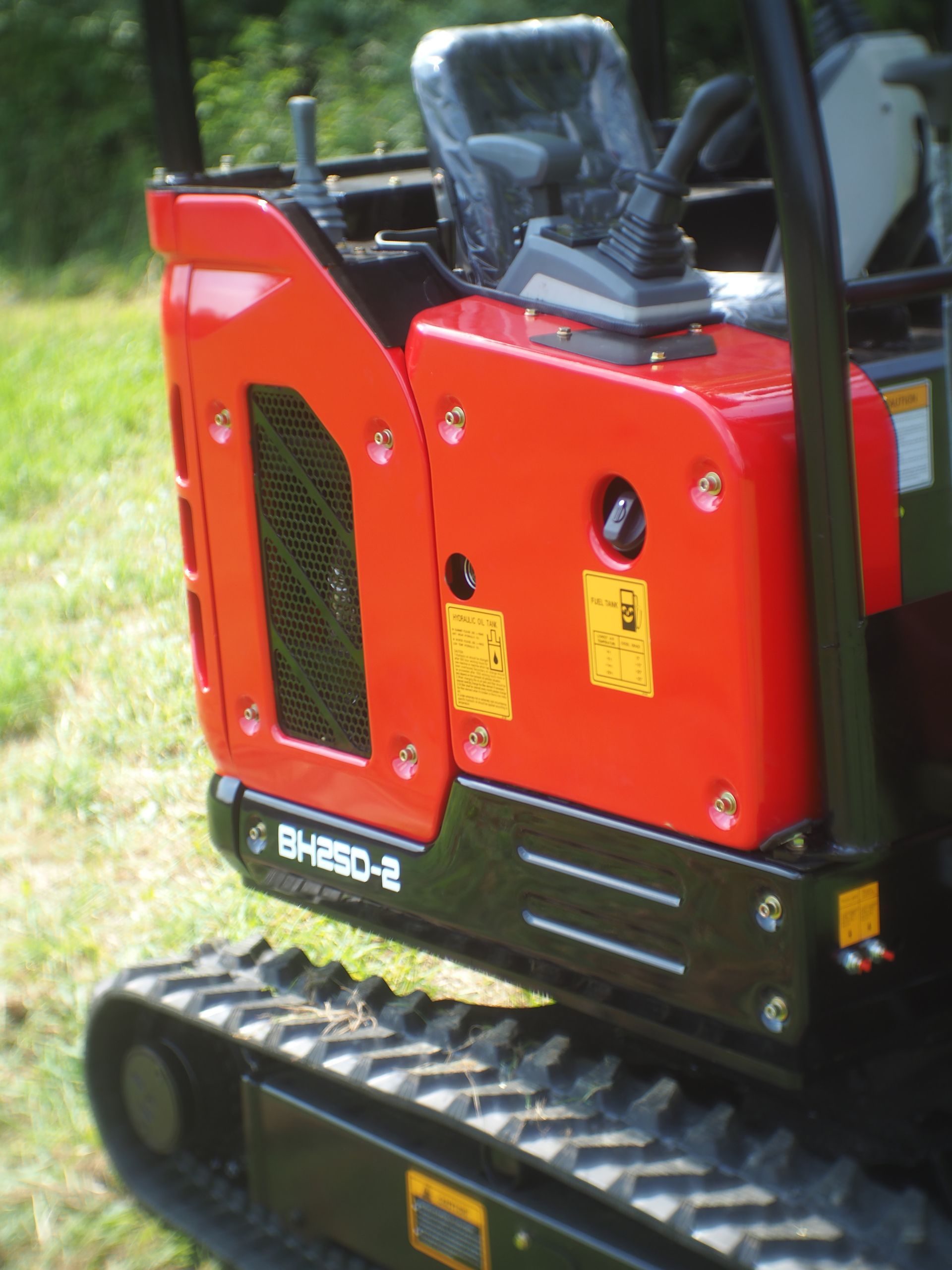

BH25D-2 Excavator Specs
The BH25D-2 comes equipped with a 25 HP Yanmar Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, oil cooler, and Side Swing Boom. Optional Upgrades: 2 Speed, Retractable Tracks, and Window Tint | BH25D-2 $24,900 open cab BH25D-2 $26,900 enclosed cab |
Operating Weight | 4,710 lbs |
Engine | Yanmar 3TNV80F |
Engine HP | 25 HP |
Travel Speed | 2.5 mph |
Machine Width | 53″ |
Machine Height | 90″ |
Ground Clearance | 8″ |
Track Length | 64″ |
Track To Blade | 78″ |
Track Width | 9″ |
Max Digging Height | 12’3″ |
Max Reach | 12’8″ |
Max Digging Radius | 13’6″ |
Track Size | 250x48x74 |
Bucket Size | 18″ Tooth |

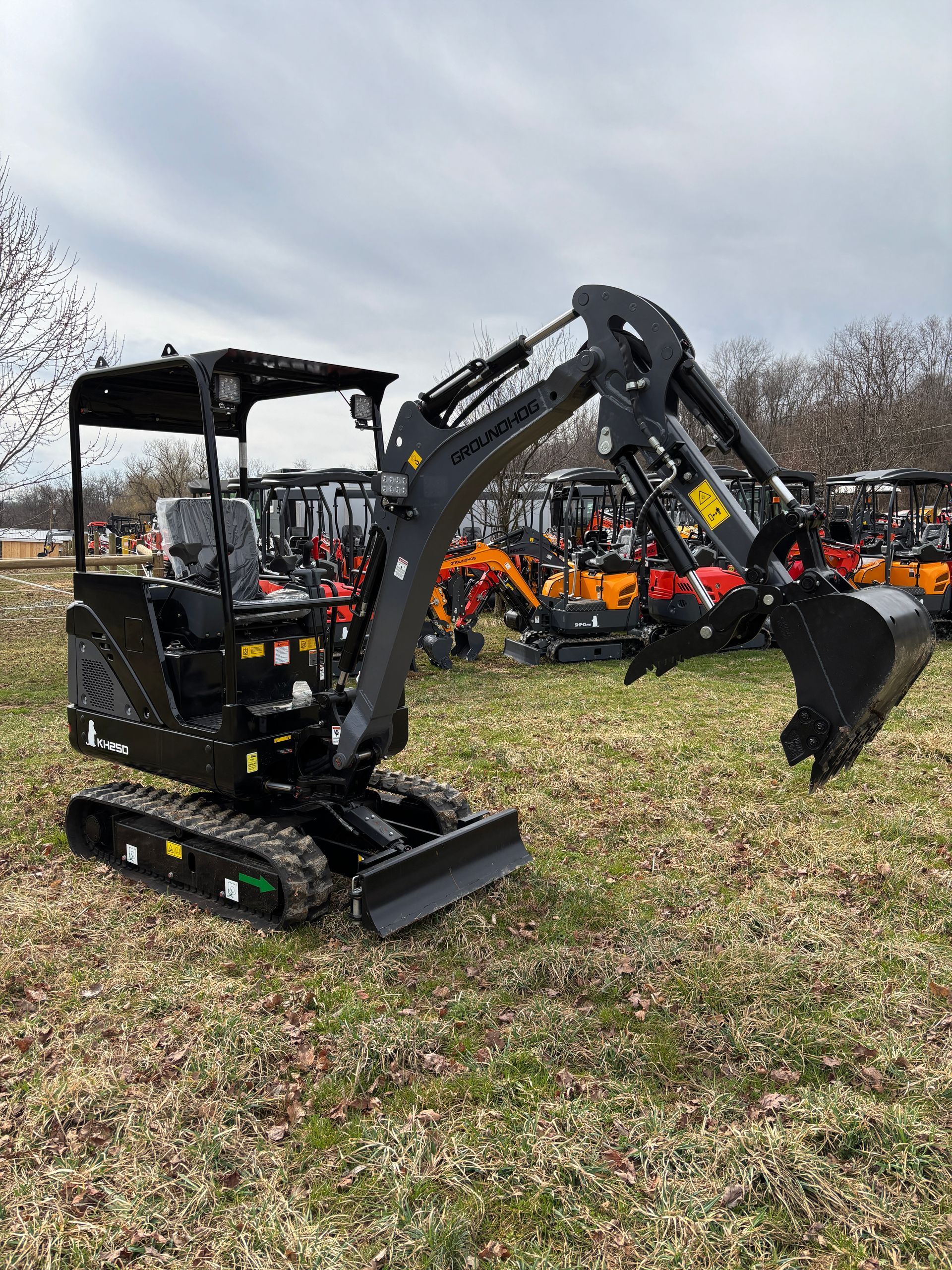

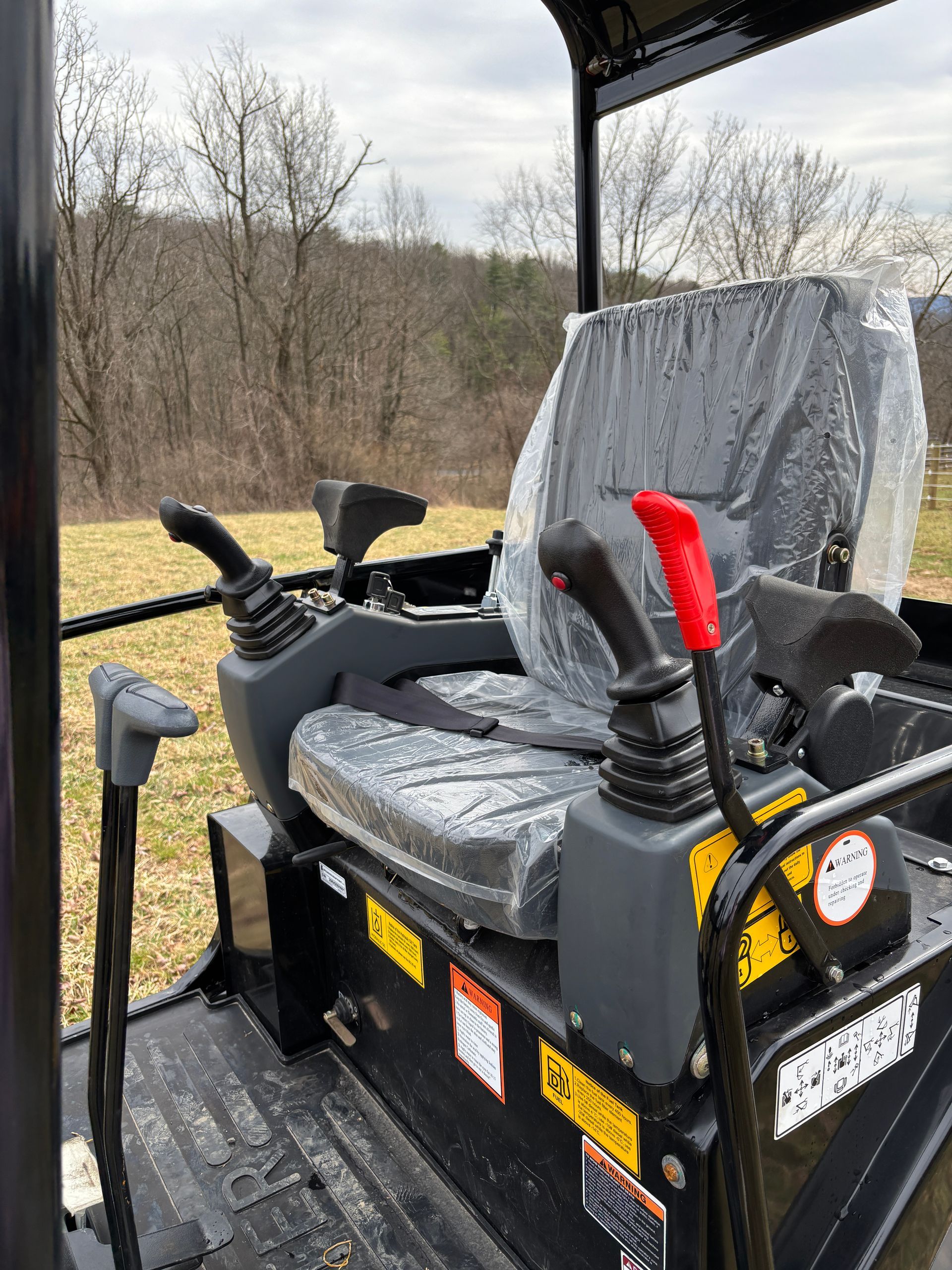

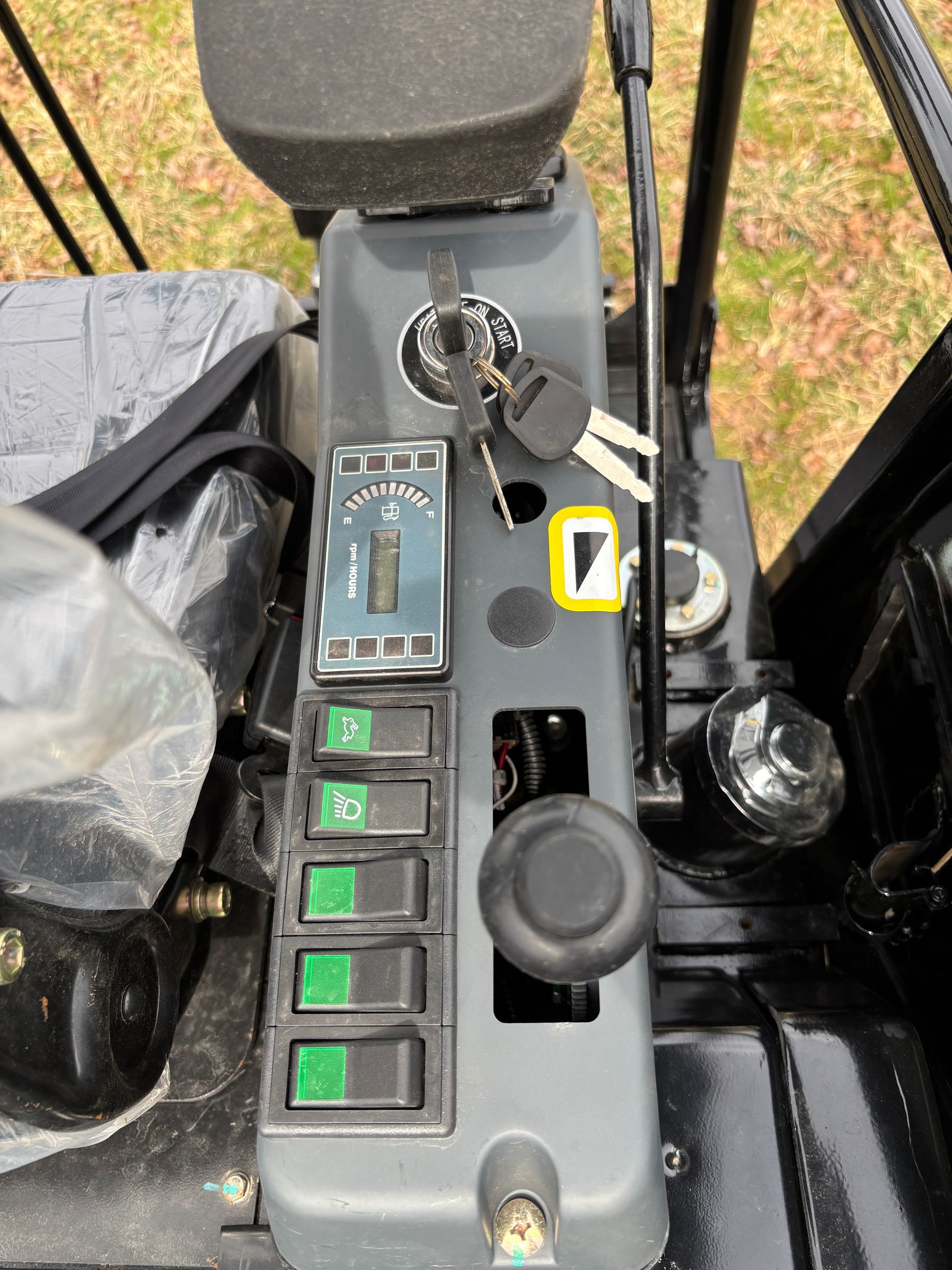

KH25D Excavator Specs
The KH25D comes fully loaded with a 16 HP Yanmar Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Side Swing Boom, 2 Speed, Oil Cooler, and Expandable Tracks. Optional Upgrades: Window Tint | KH25D $23,900 open cab |
Operating Weight | 4150 lbs |
Engine | Yanmar 3TNV74F |
Engine HP | 16 HP |
Travel Speed | 2.5 mph |
Machine Width | 38″ (52″ Expandable Tracks) |
Machine Height | 7′ 6″ |
Machine Length (Boom Extended) | 16′ |
Ground Clearance | 8″ |
Track Length | 62″ |
Track To Blade | 76″ |
Track Width | 9″ |
Max Digging Height | 10′ 10″ |
Max Reach | 11′ 4″ |
Max Digging Radius | 12′ 6″ |
Max Dumping Height | 7′ 11″ |
Track Size | 230x48x72 |
Hydraulic Flow Rate | 14.2 gpm |
Shipping Length | 11′ 6″ |
Bucket Size | 16″ Tooth |

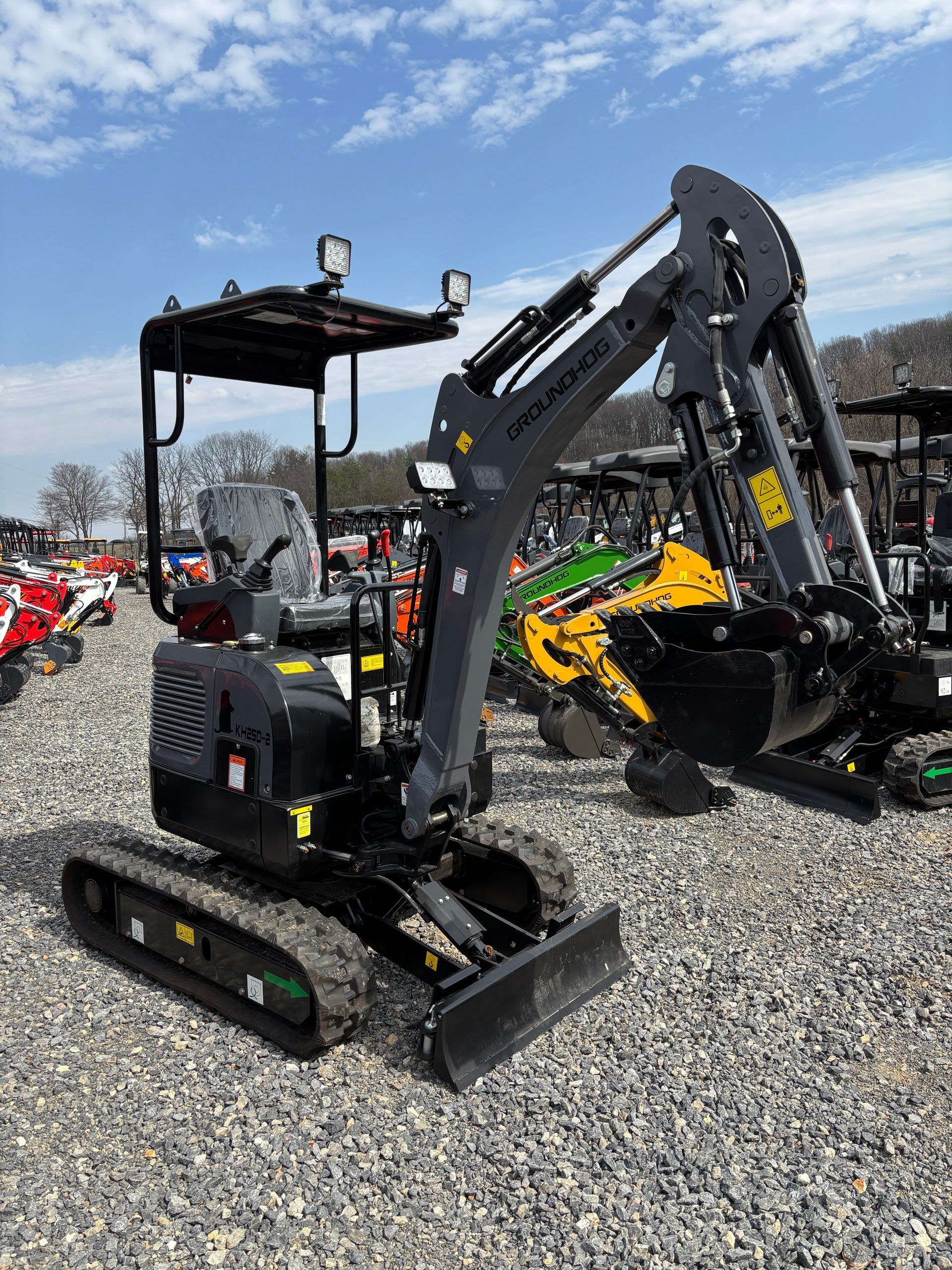

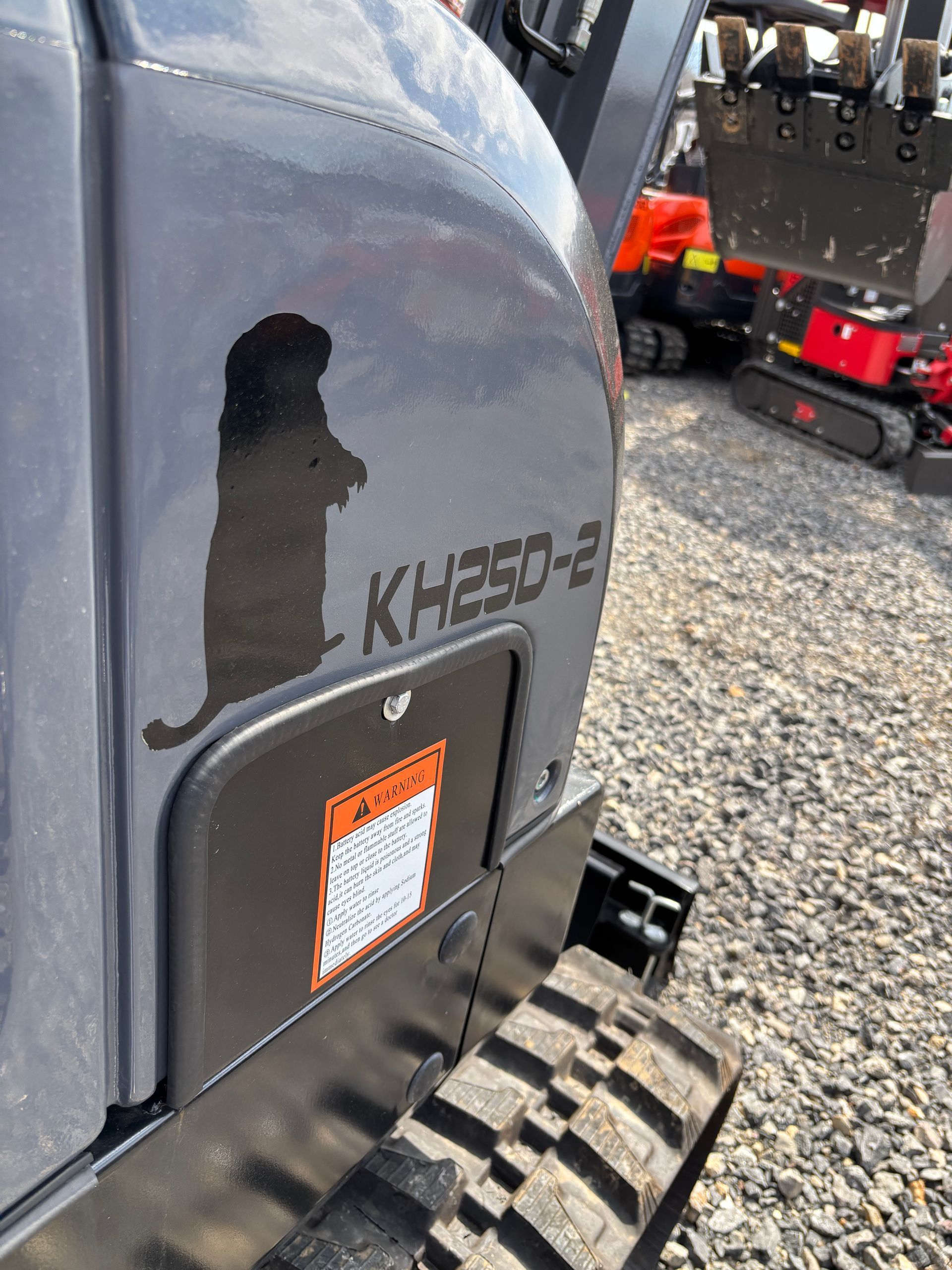

KH25D-2 Excavator Specs
The KH25D-2 comes fully loaded with a 16 HP Yanmar Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Side Swing Boom, 2 Speed, Oil Cooler, and Expandable Tracks. Optional Upgrades: Window Tint | KH25D-2 $23,900 open cab |
Operating Weight | 3990 lbs |
Engine | Yanmar 3TNV74F |
Engine HP | 16 HP |
Travel Speed | 2.5 mph |
Machine Width | 38″ (52″ Expandable Tracks) |
Machine Height | 8′ 1″ |
Machine Length (Boom Extended) | 15′ 4″ |
Ground Clearance | 8″ |
Track Length | 62″ |
Track To Blade | 76″ |
Track Width | 9″ |
Max Digging Height | 10′ 10″ |
Max Reach | 11′ 4″ |
Max Digging Radius | 12′ 6″ |
Max Dumping Height | 7′ 11″ |
Track Size | 230x48x72 |
Hydraulic Flow Rate | 11.4 gpm |
Shipping Length | 10′ 8″ |
Bucket Size | 16″ Tooth |

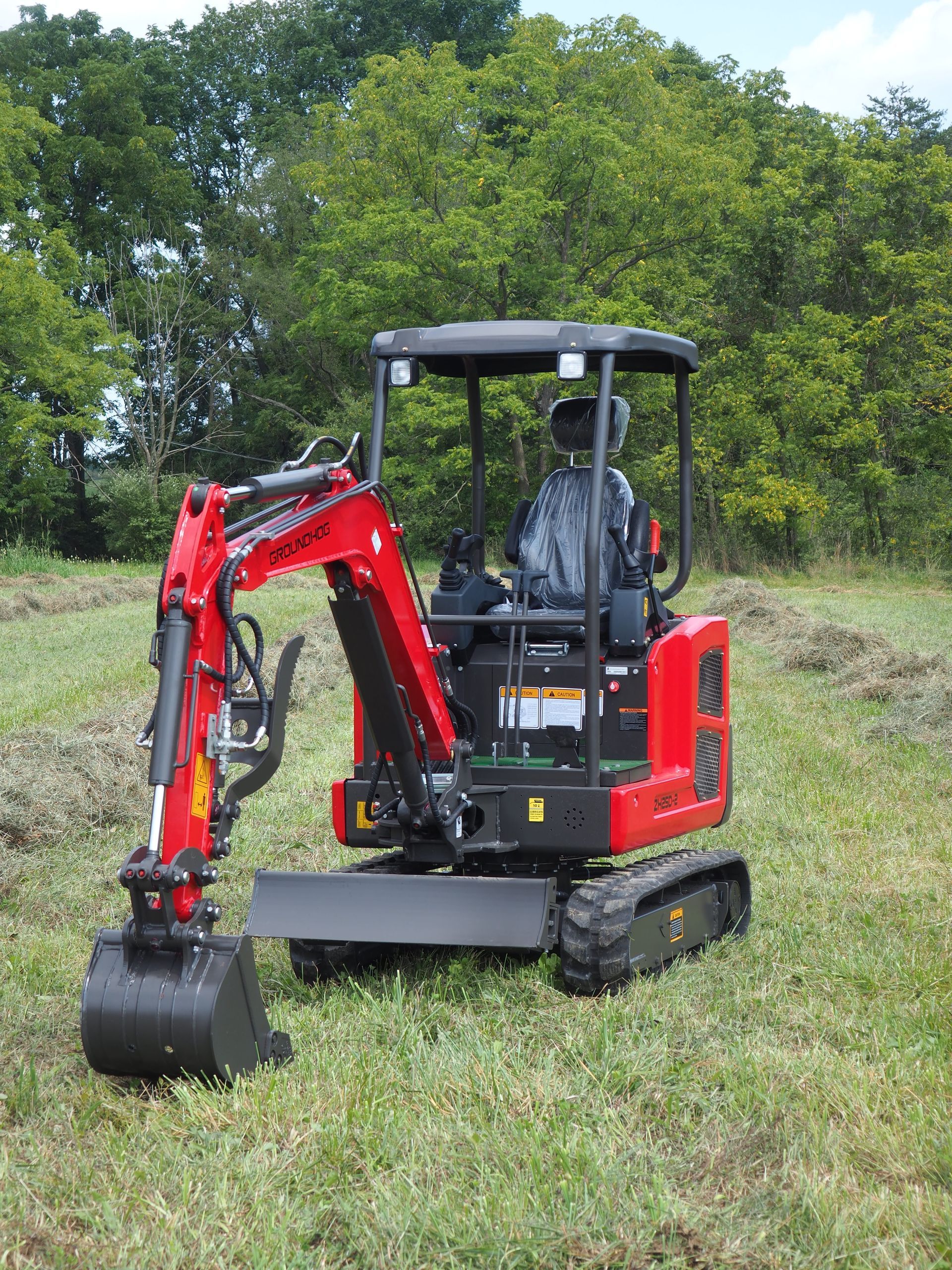

ZH25D-2 Excavator Specs
The ZH25D-2 comes equipped with a 25 HP Kubota D1105 Diesel engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Oil Cooler, and Side Swing Boom. Optional Upgrades: 2 Speed, Window Tint, and Retractable Tracks | ZH25D-2 $22,900 open cab ZH25D-2 $25,900 enclosed cab |
Operating Weight – Rubber Tracks | 4400 lbs |
Operating Weight – Steel Tracks | 4900 lbs |
Engine | Kubota D1105 |
Engine HP | 25 HP |
Travel Speed | 2.7-4.6 km/h |
Machine Width | 41″ | 40-49″ |
Machine Height | 7’6″ |
Ground Clearance | 6″ |
Track Length | *coming soon* |
Track Size | 230x48x72″ |
Track To Blade | 78″ |
Track Width | 9″ |
Max Digging Depth | 8’4″ |
Max Dumping Height | 8’8″ |
Max Reach | 11’8″ |
Max Digging Radius | 13′ |
Flow Rate | 14 gpm |
Bucket Size | 16″ Tooth |

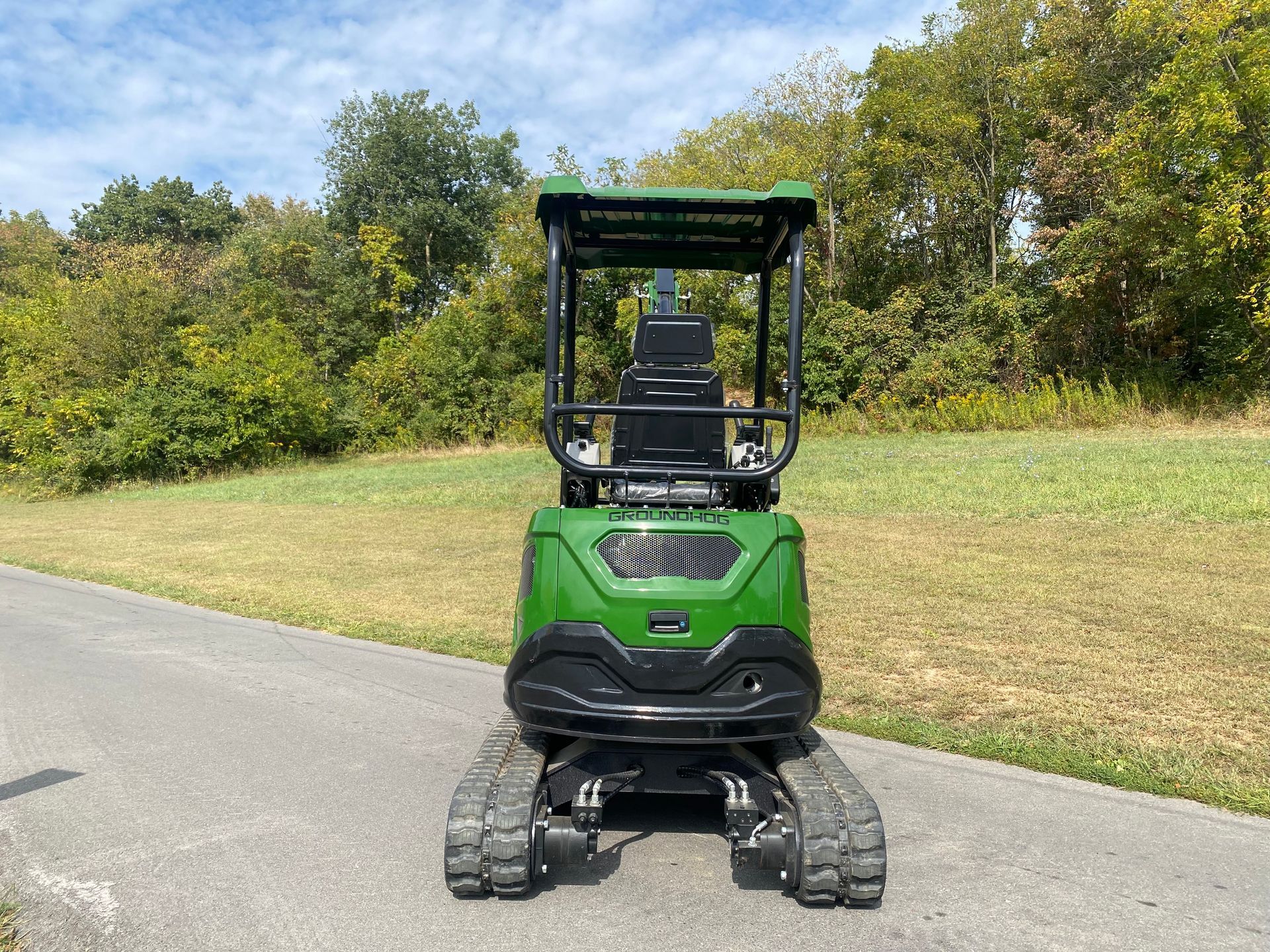

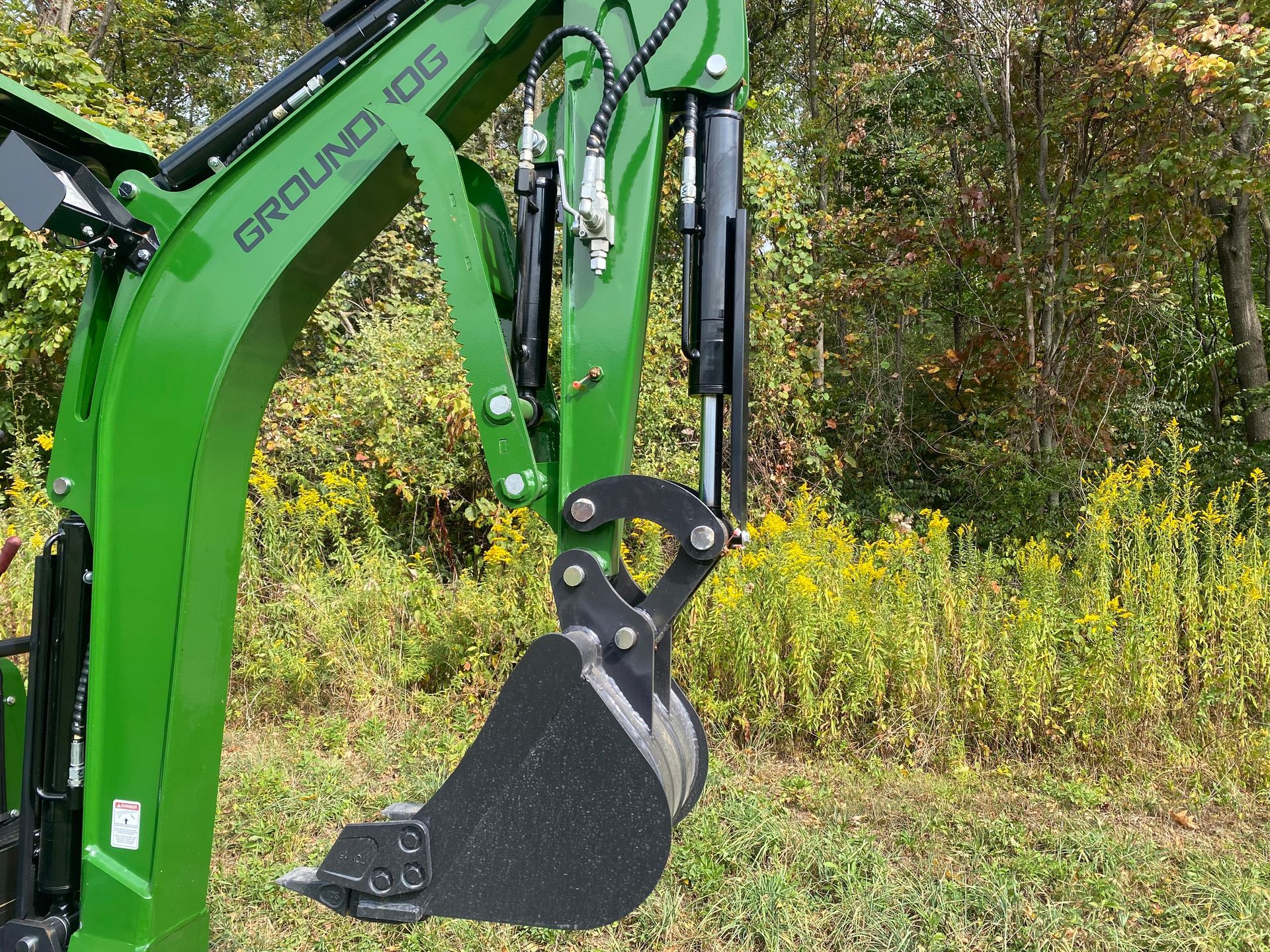

ZH25D-3 Excavator Specs
The ZH25D-3 comes equipped with a 25 HP Kubota D1105 Diesel engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Oil Cooler, and Side Swing Boom. Optional Upgrades: 2 Speed, Window Tint, and Expandable Tracks | ZH25D-3 $23,900 open cab ZH25D-3 $26,900 enclosed cab |
Operating Weight – Rubber Tracks | 4740 lbs |
Operating Weight – Steel Tracks | 5160 lbs |
Engine | Kubota D1105 |
Engine HP | 25 HP |
Travel Speed | 2.7-4.6 km/h |
Machine Width | 41″ | 40-49″ |
Machine Height | 7’6″ |
Ground Clearance | 6″ |
Track Length | 5′ 10″ |
Track Size | 230x48x72″ |
Track To Blade | 78″ |
Track Width | 9″ |
Max Digging Depth | 8’4″ |
Max Dumping Height | 8’8″ |
Max Digging Radius | 13′ 7″ |
Flow Rate | 14 gpm |
Bucket Size | 18″ Tooth |
30 SERIES MINI EXCAVATOR
30 Series Excavator Starting Prices
- BH30D $27,900 open cab
- BH30D $29,900 enclosed cab
- BH30D-2 $30,900 open cab
- BH30D-2 $32,900 enclosed cab
- SH36D $39,900 enclosed cab

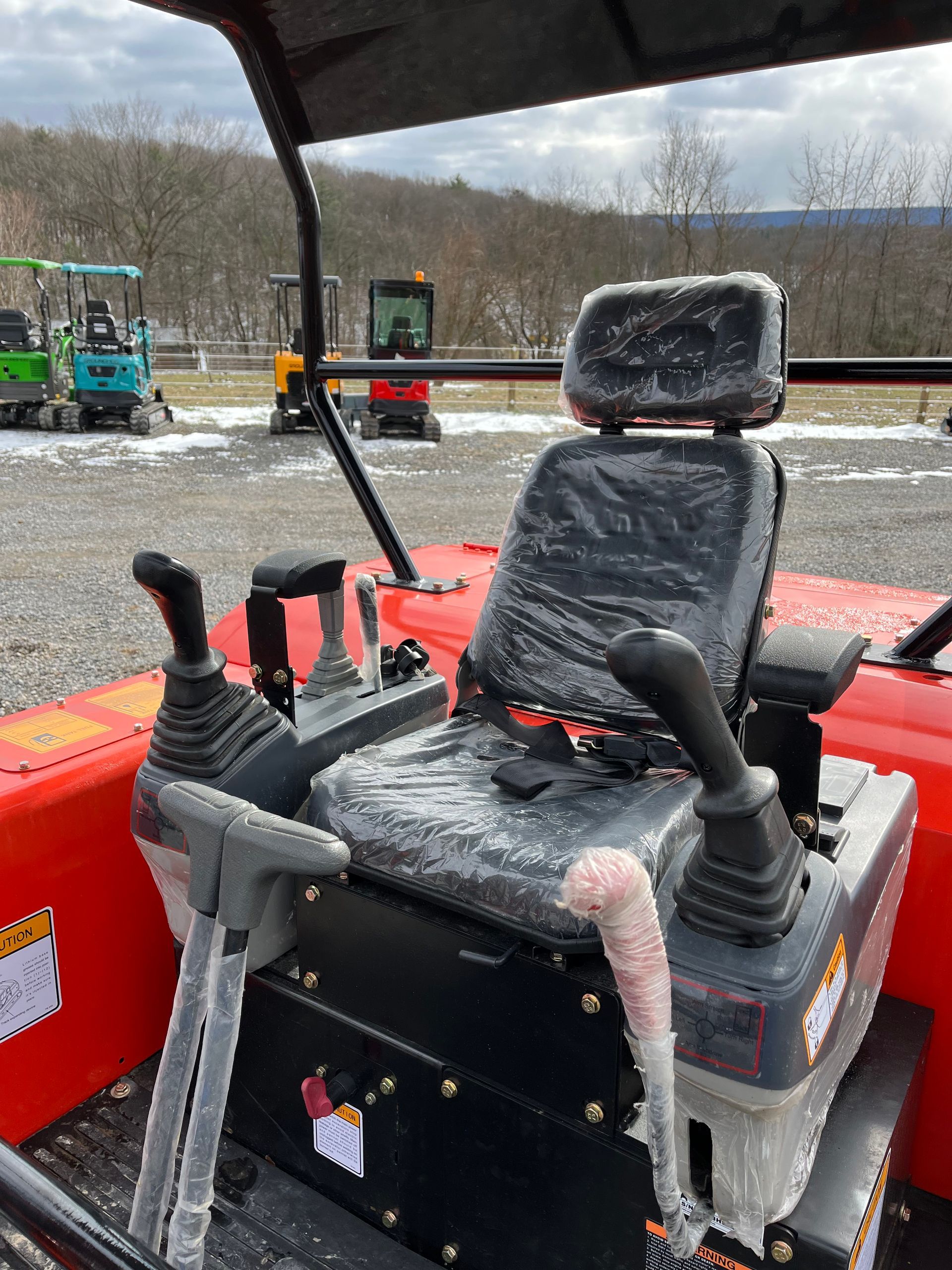

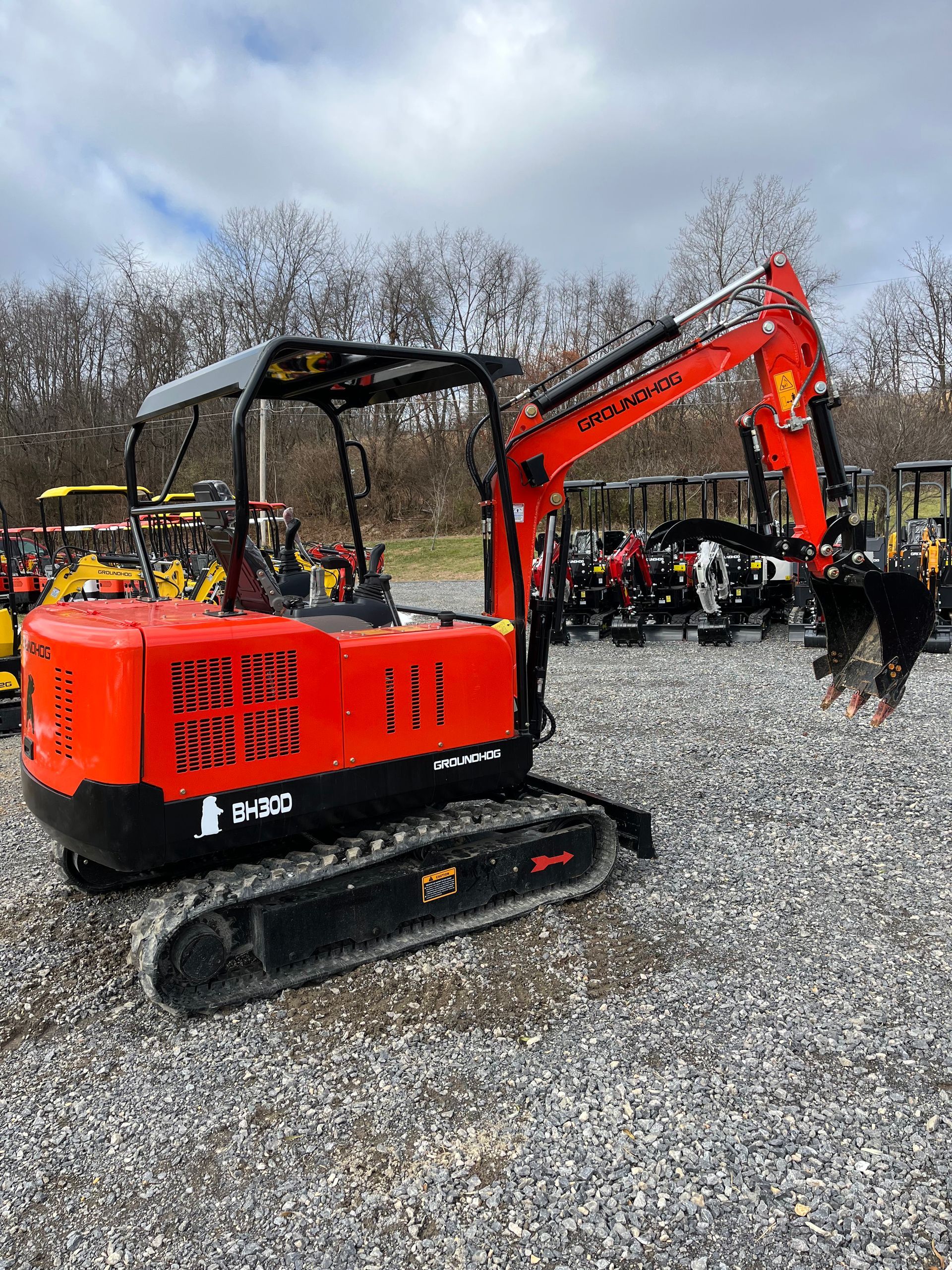

BH30D Excavator Specs
The BH30D comes equipped with a 30 HP Kubota D1703 Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Oil Cooler, 2 Speed and Side Swing Boom. Optional Upgrades: Window Tint, Heat/AC/Stereo equipped Enclosed Cab | BH30D $27,900 open cab BH30D $29,900 enclosed cab |
Operating Weight – Rubber Tracks | 5800 lbs |
Operating Weight – Steel Tracks | 6400 lbs |
Engine | Kubota D1703 |
Engine HP | 30 HP |
Travel Speed | 2.7-4.6 km/h |
Machine Width | 60″ |
Machine Height | 7’9″ |
Ground Clearance | 9″ |
Track Length | 77″ |
9″ Track Size | 230x48x88″ |
Track To Blade | 96″ |
Track Width | 9″ |
Max Digging Depth | 9’5″ |
Max Dumping Height | 10’1″ |
Max Reach | 13’2″ |
Max Digging Radius | 15’6″ |
Bucket Size | 20″ Tooth |

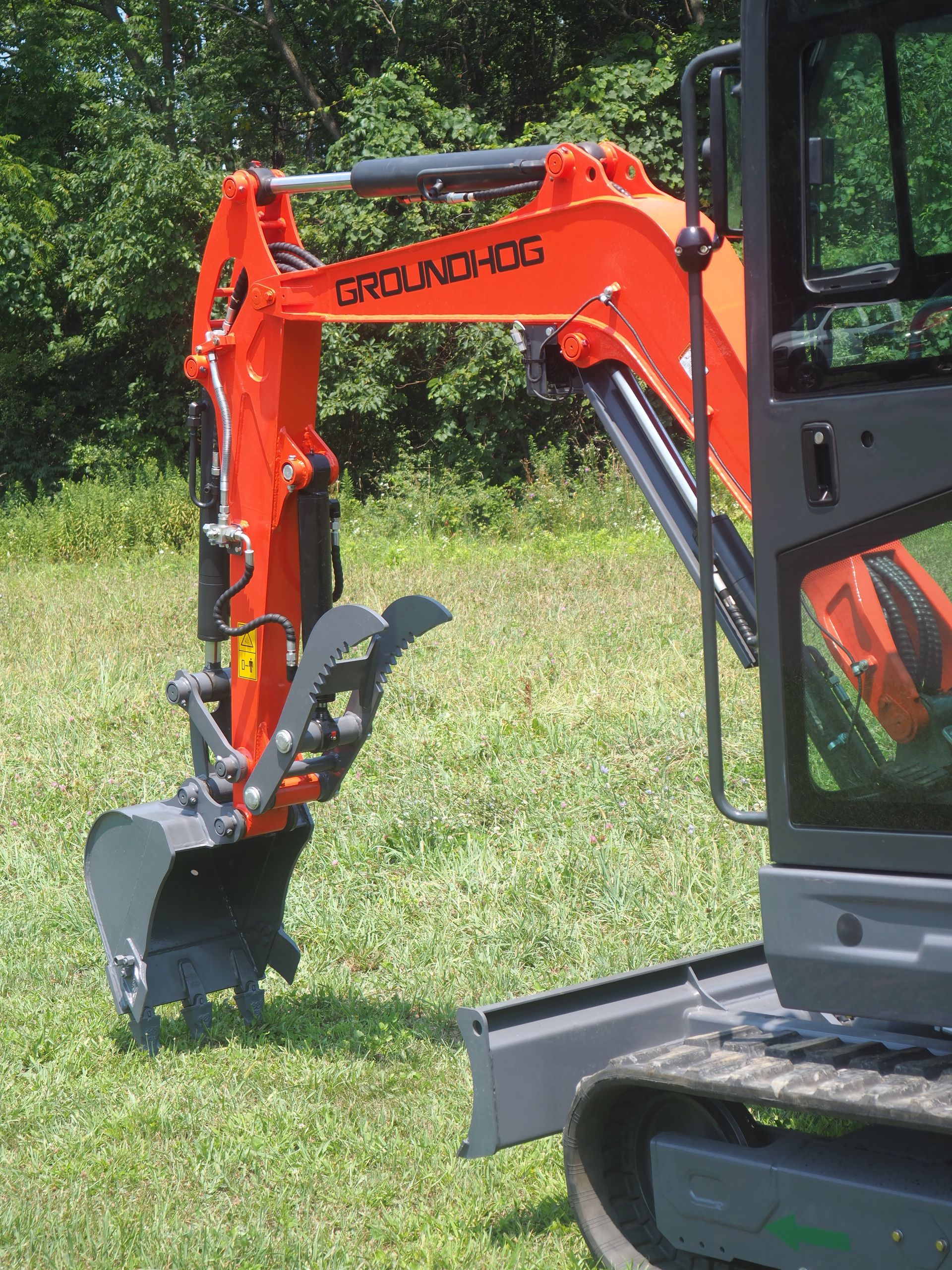

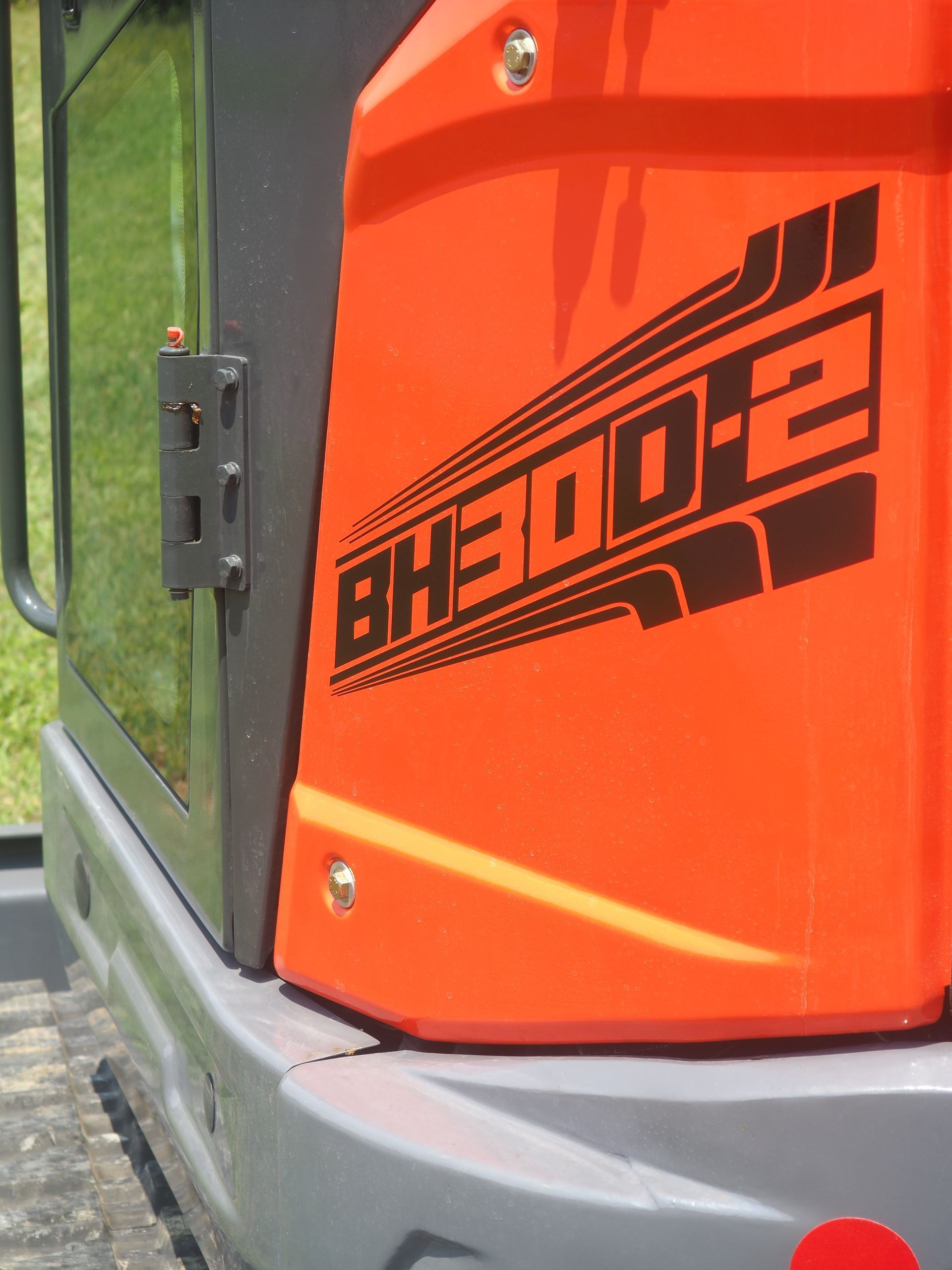

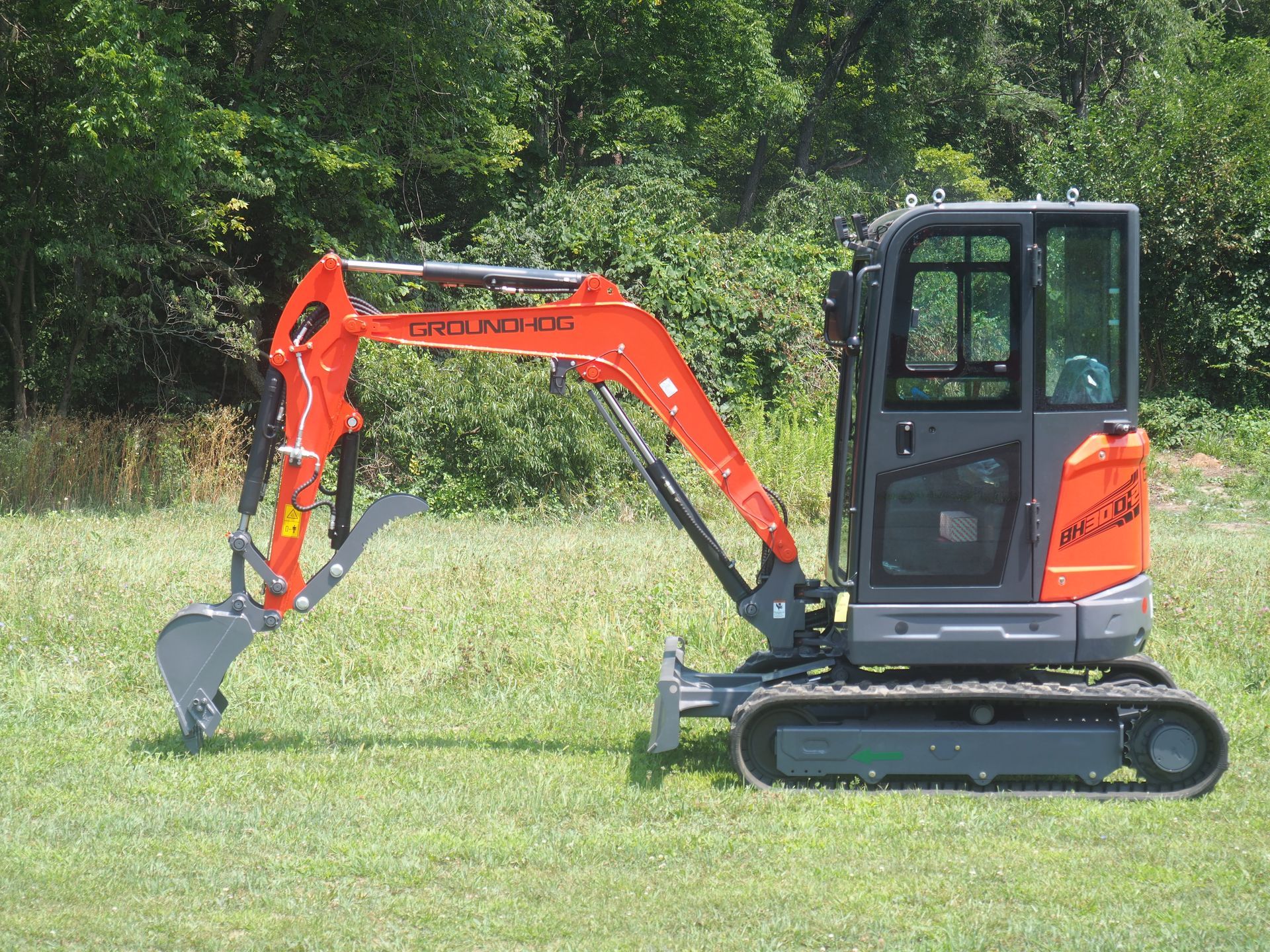

BH30D-2 Excavator Specs
The BH30D-2 comes equipped with a Yanmar 3TNV80F Diesel Engine, hydraulic joysticks, Oil Cooler, Side Swing Boom, 2 Speed and Eddie Drives. Optional Upgrades: Window Tint | $30,900 open cab $32,900 enclosed cab with heat, no a/c |
Operating Weight | 6100 lbs |
Max Digging Height | 13′ 11″ |
Engine | Yanmar 3TNV80F |
Engine HP | 30 HP |
Travel Speed | <5 mph |
Machine Width | 61″ |
Machine Height | 8′ 2″ |
Ground Clearance | 10″ |
Track Length | 80″ |
Track Size | 300x55x80 |
Track To Blade | 92″ |
Track Width | 9″ |
Max Dumping Height | 10′ 1″ |
Max Reach | 13′ 4″ |
Max Digging Radius | 15′ 3″ |
Bucket Size | 18″ Tooth |
Pin Size | 30 mm |
Hydraulic Flow Rate | 21.1 gpm |

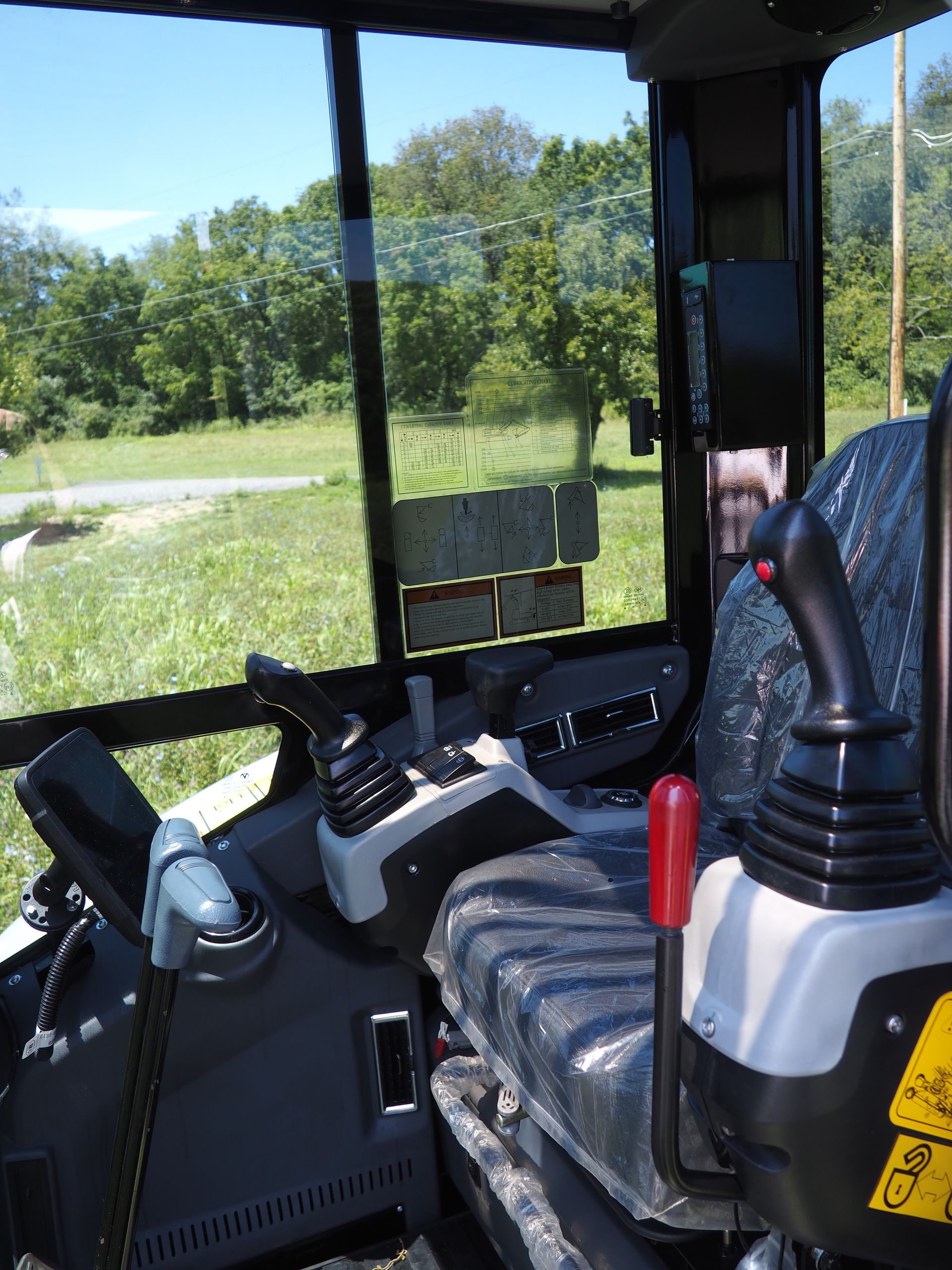

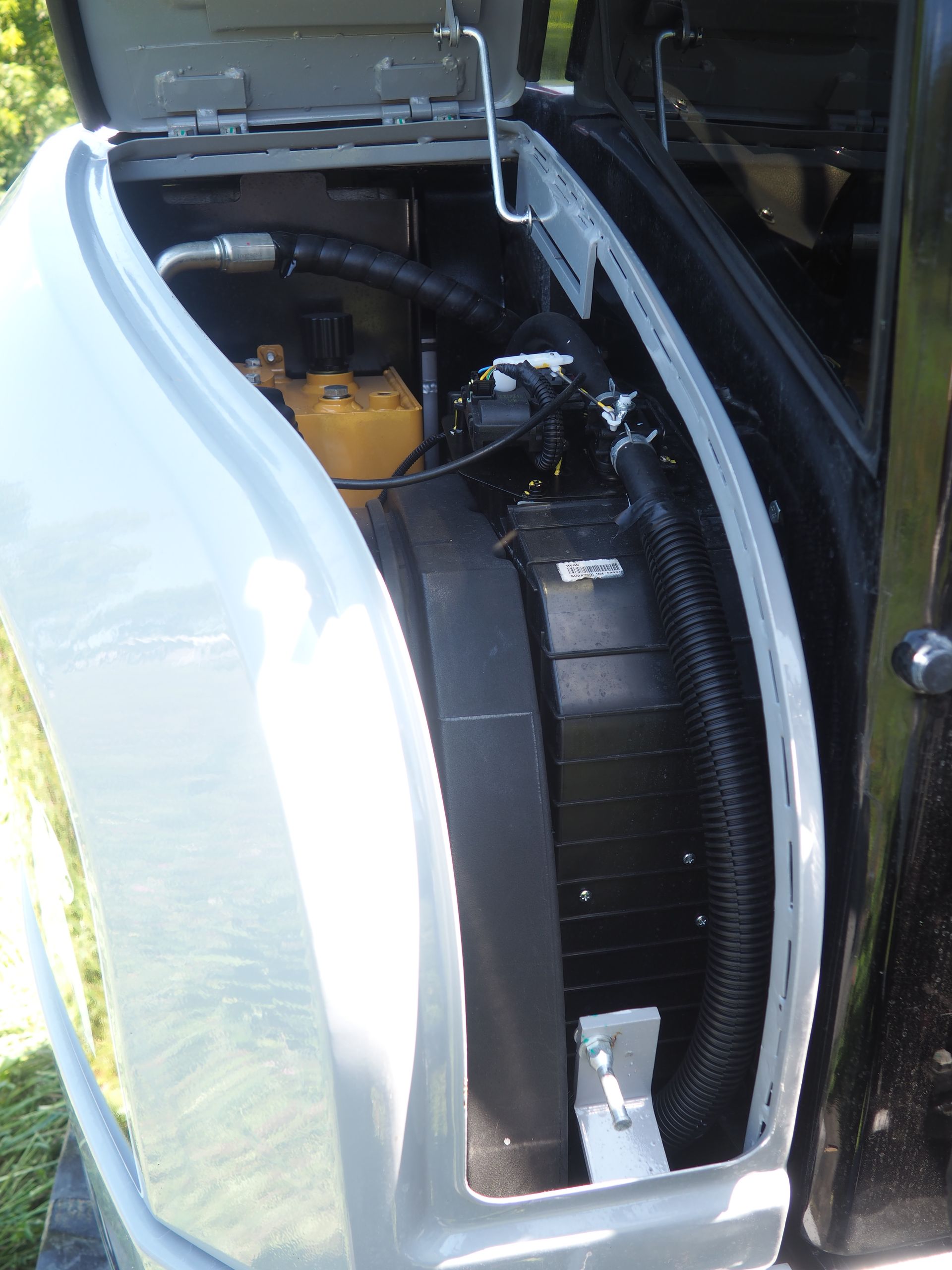

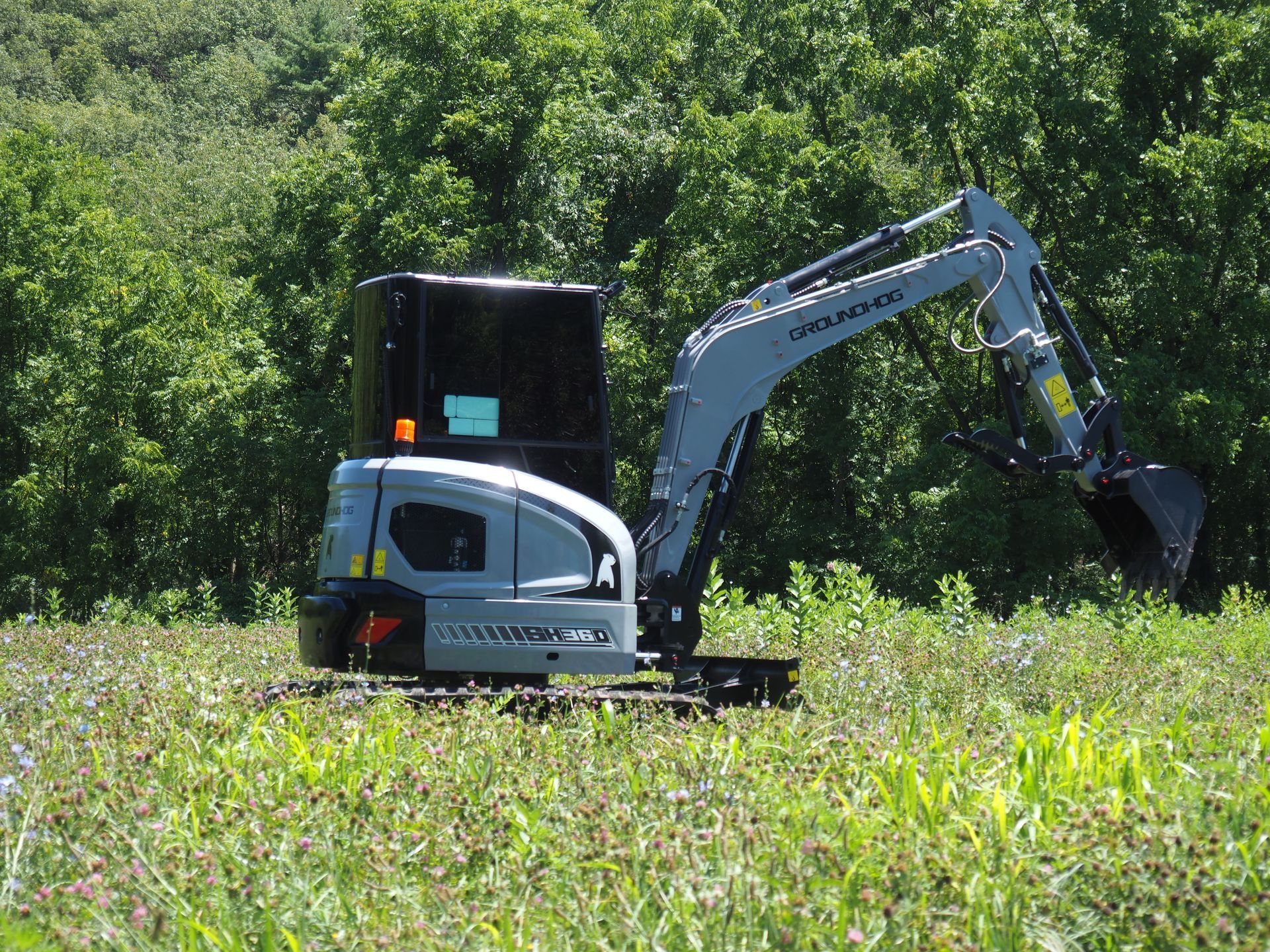

SH36D Excavator Specs
The SH36D comes equipped with a Yanmar 3TNV88 Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Oil Cooler, Glow Plugs, Side Swing Boom, 2 Speed, Variable Piston Pump, Premium Display, Push-to-Start, Additional Counterweight, Zero Tail Swing, Auto-Idle, Window Tint and Stereo with Bluetooth connectivity. | SH36D $39,900 enclosed cab |
Operating Weight – Rubber Tracks | 8100 lbs |
Engine | Yanmar 3TNV88F |
HP | 36HP @ 3600rpm |
Travel Speed | 2.7-5mph |
Machine Width | 68″ |
Machine Height | 8’5″ |
Ground Clearance | 11″ |
Track Length | 83″ |
Track To Blade | 99″ |
Track Width | 11.5″ |
Max Digging Depth | 10’6″ |
Max Dumping Height | 11’3″ |
Max Reach | 15’10” |
Max Digging Radius | 17’9″ |
Hydraulic Flow Rate | 23.2 |
Bucket Size | 18″ Tooth |
40 SERIES MINI EXCAVATOR
40 Series Excavator Starting Prices
- ZH40D $34,900 open cab
- ZH40D $37,900 enclosed cab
- BH40D $36,900 open cab
- BH40D $39,900 enclosed cab
- BH40D-2 $37,900 enclosed cab

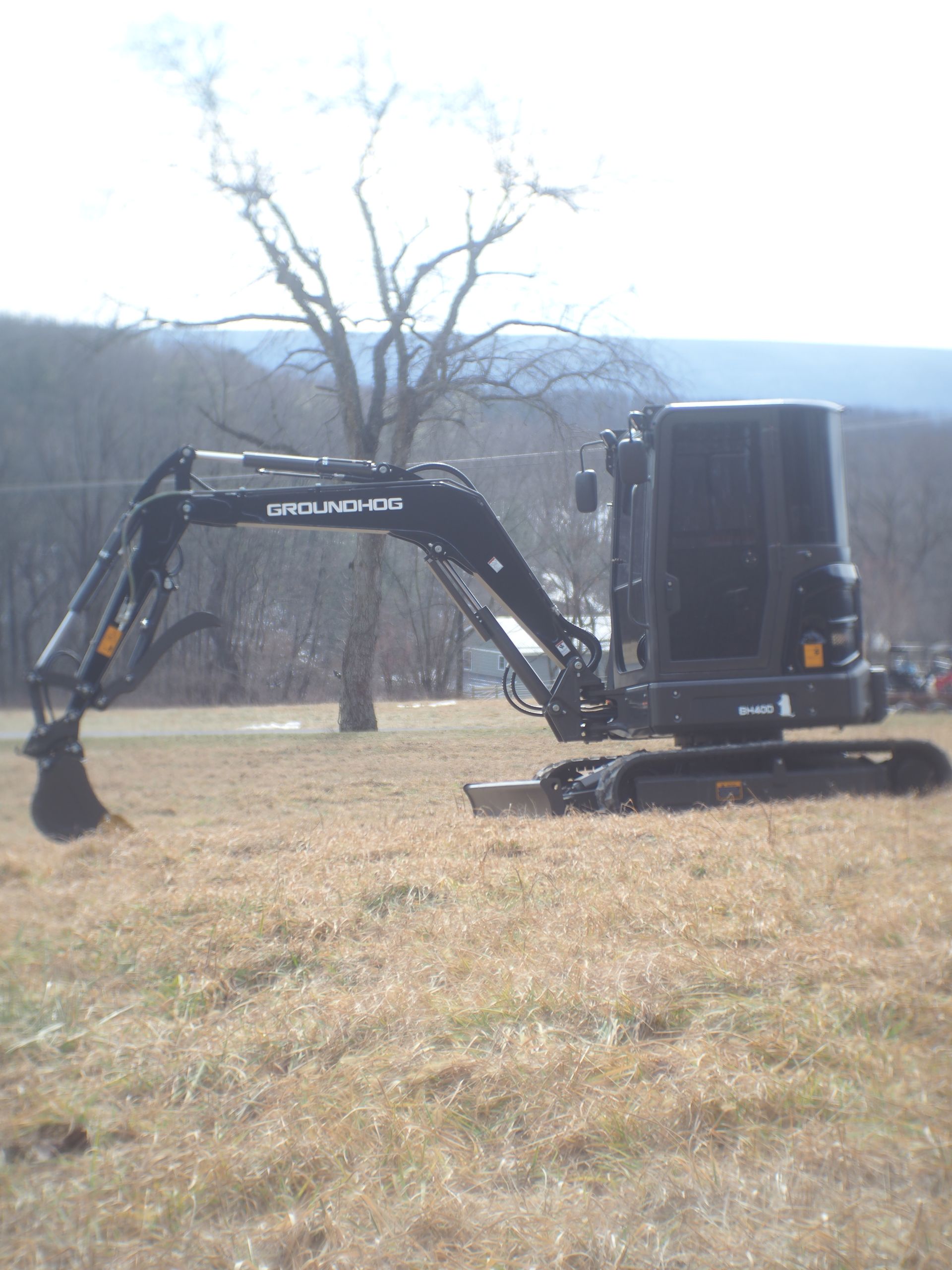

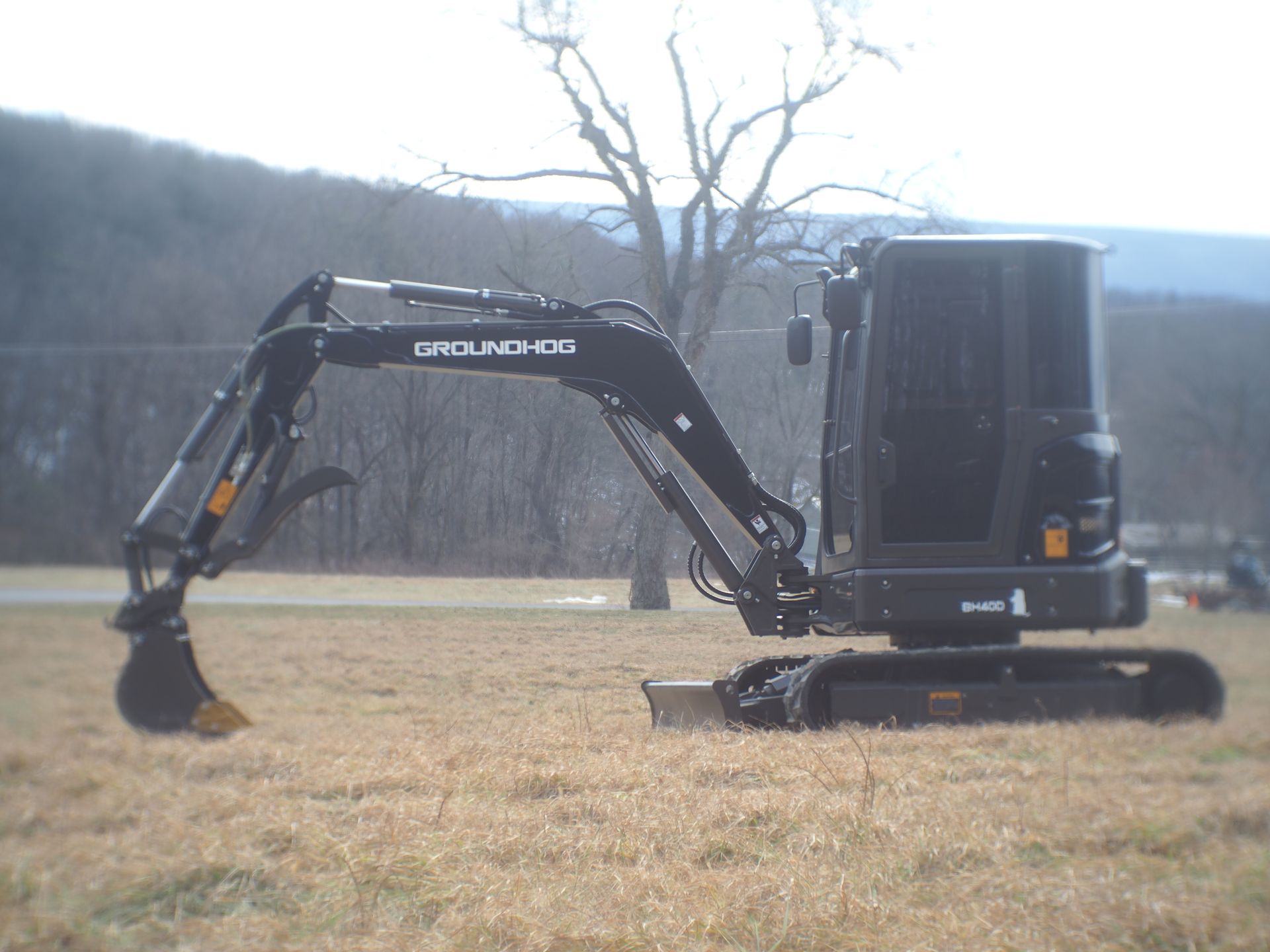

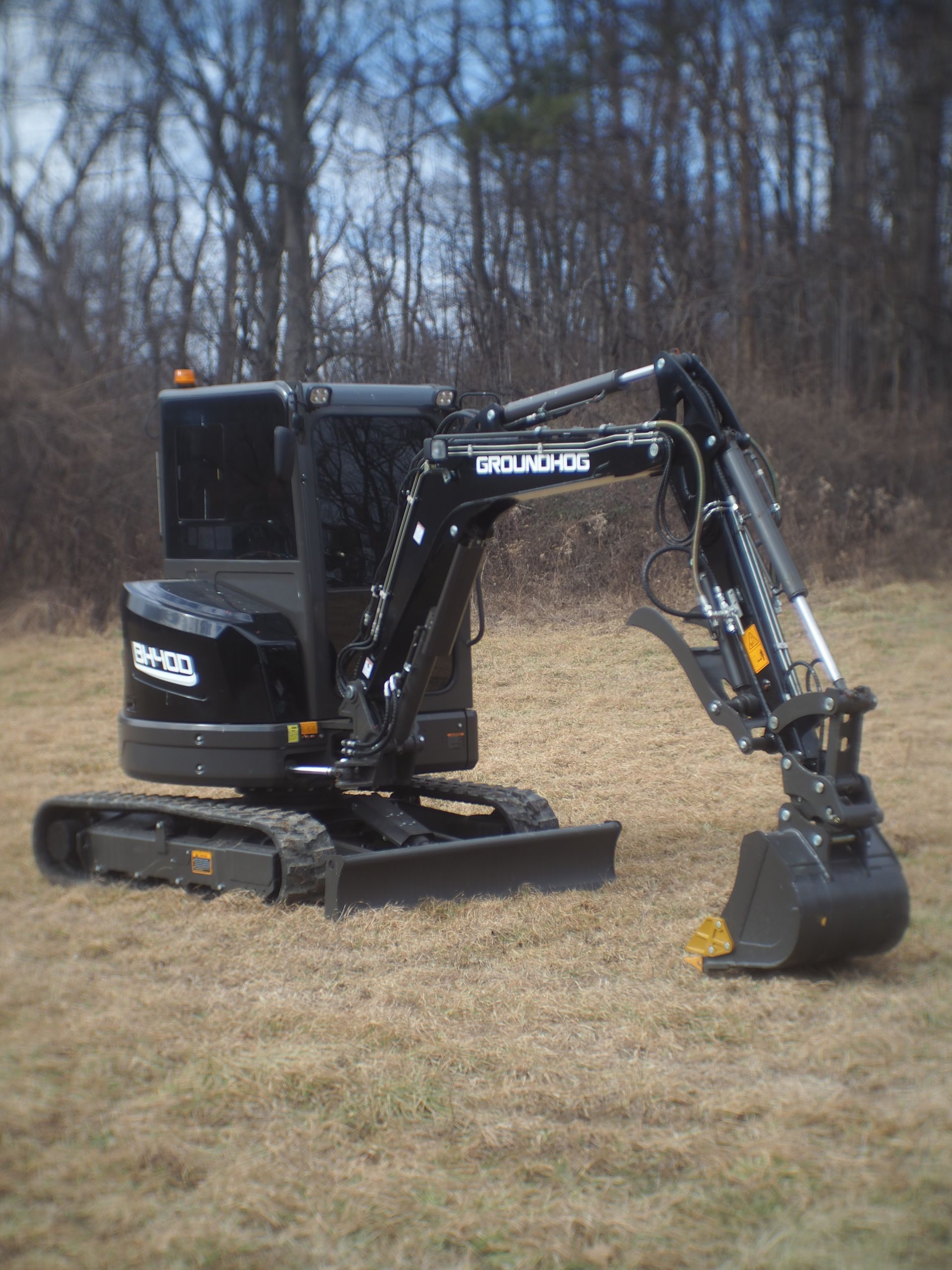

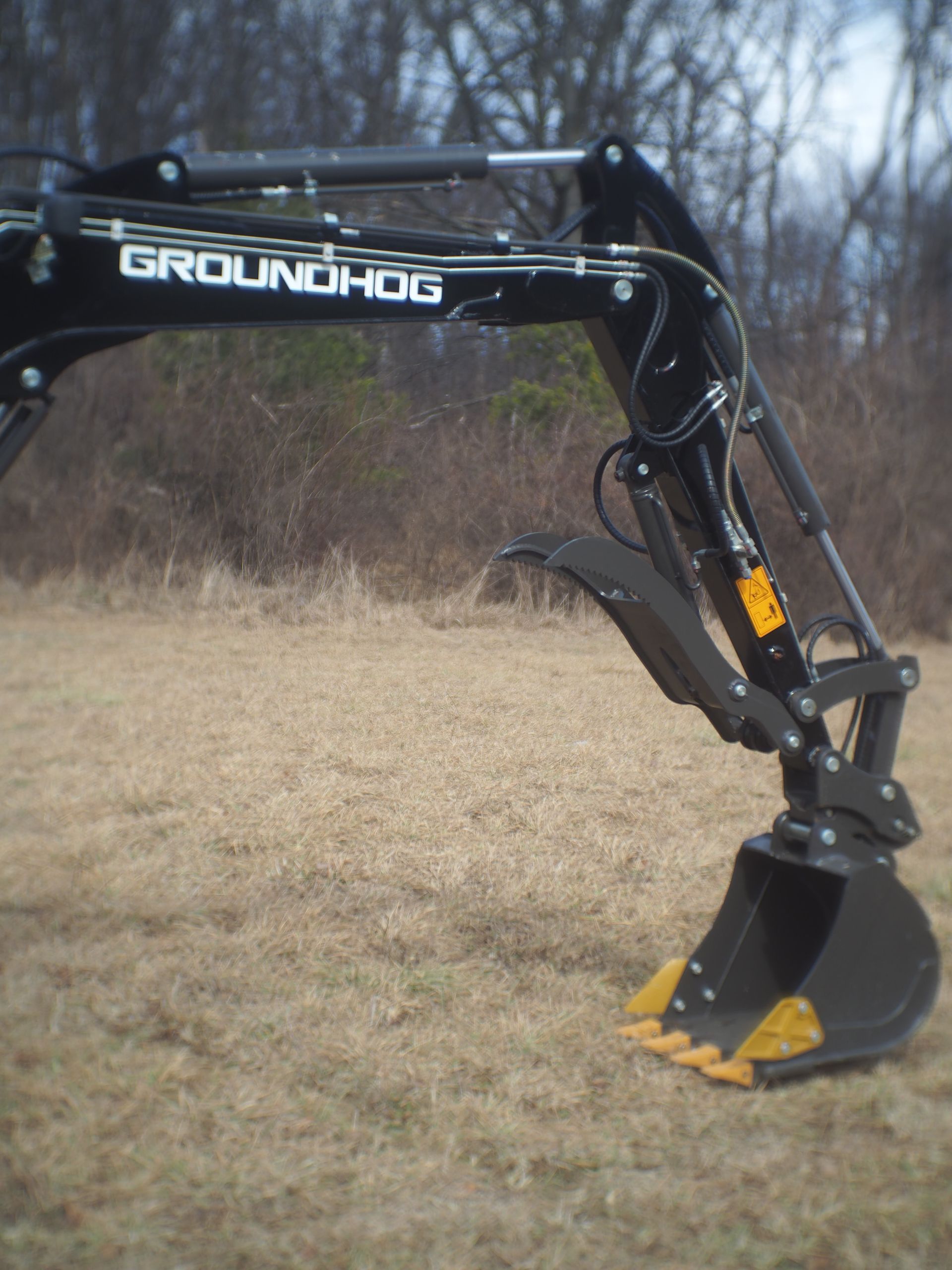

BH40D Excavator Specs
The BH40D comes equipped with Side Swing Boom, 2 Speed, Hydraulic Joysticks, Counterweight Glow Plugs, and an Oil Cooler. Upgrade Options: Window Tint, Enclosed Cab with heat and a/c | BH40D $36,900-open cab BH40D $39,900-enclosed cab |
Operating Weight – Rubber Tracks | 8150 lbs |
Operating Weight – Steel Tracks | 8850 lbs |
Engine | Kubota D1703 |
Engine HP | 34 HP |
Travel Speed | 2.7-4.6 km/h |
Machine Width | 68″ |
Machine Height | 8’2″ |
Ground Clearance | 9″ |
Track Length | 84″ |
Track To Blade | 100″ |
Track Width | 12″ |
Max Digging Depth | 10’8″ |
Max Dumping Height | 11’6″ |
Max Reach | 15’10” |
Max Digging Radius | 17’6″ |
Hydraulic Flow Rate | 23.2 gpm |
Bucket Size | 24″ Tooth |

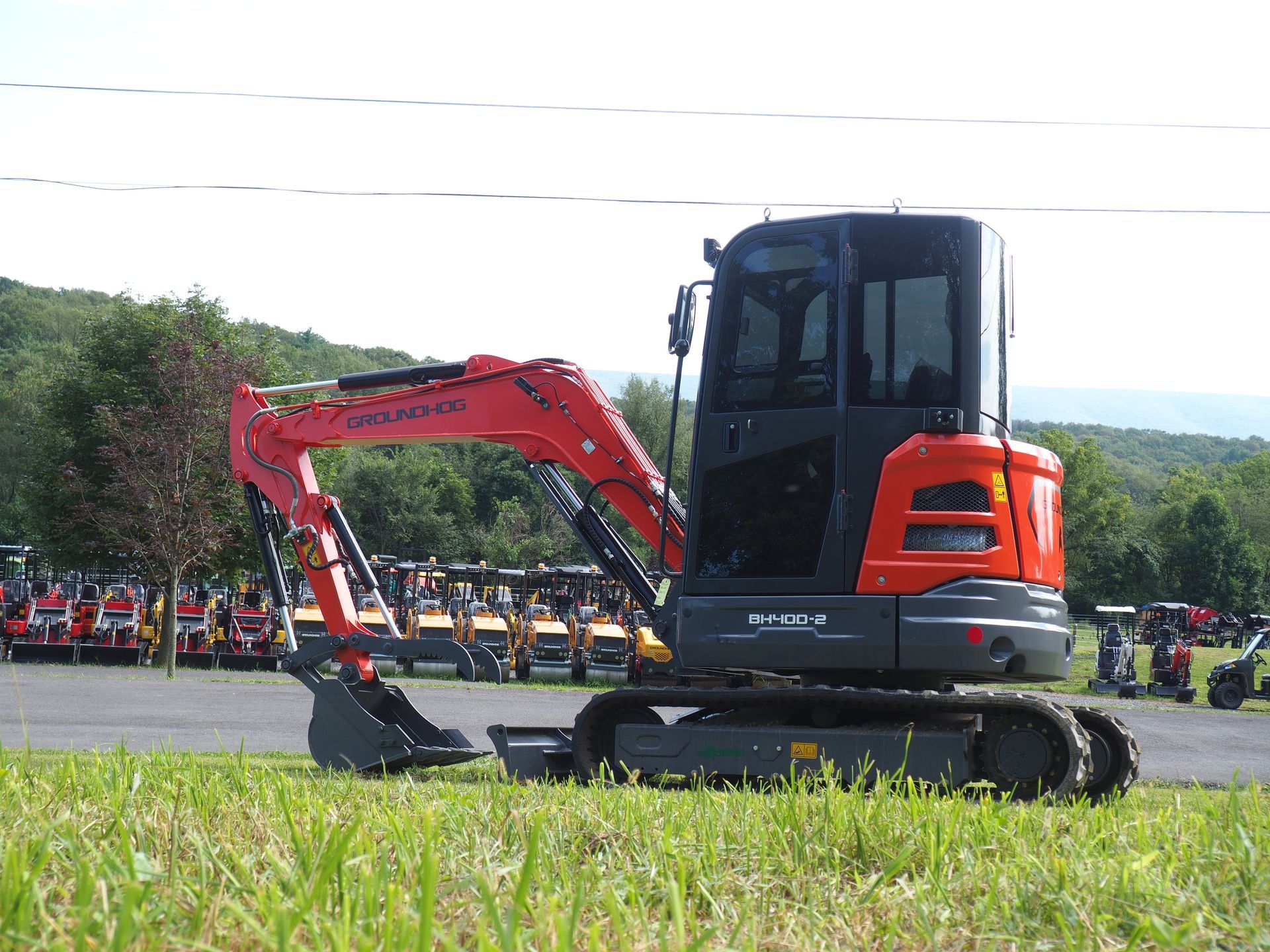

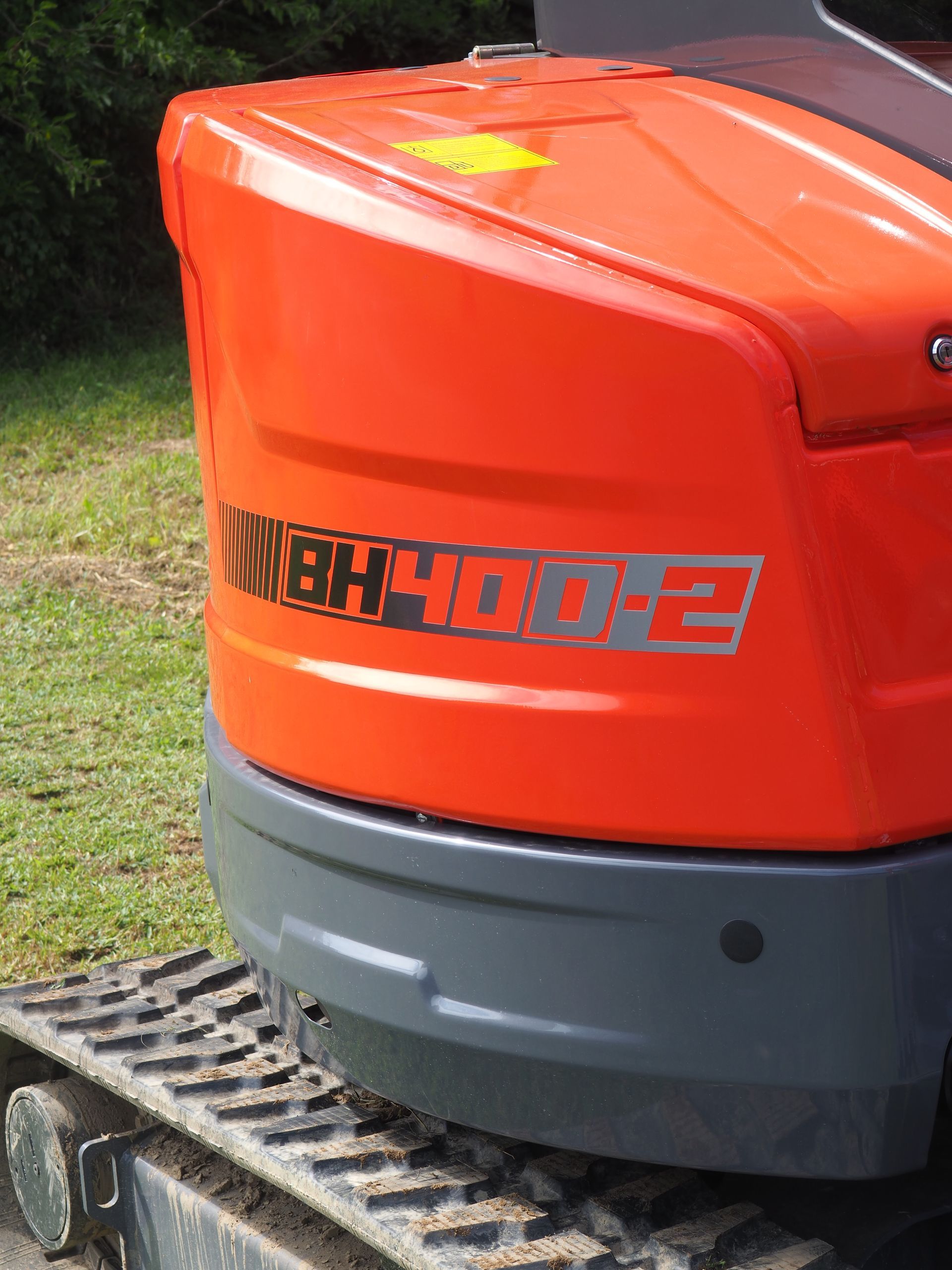

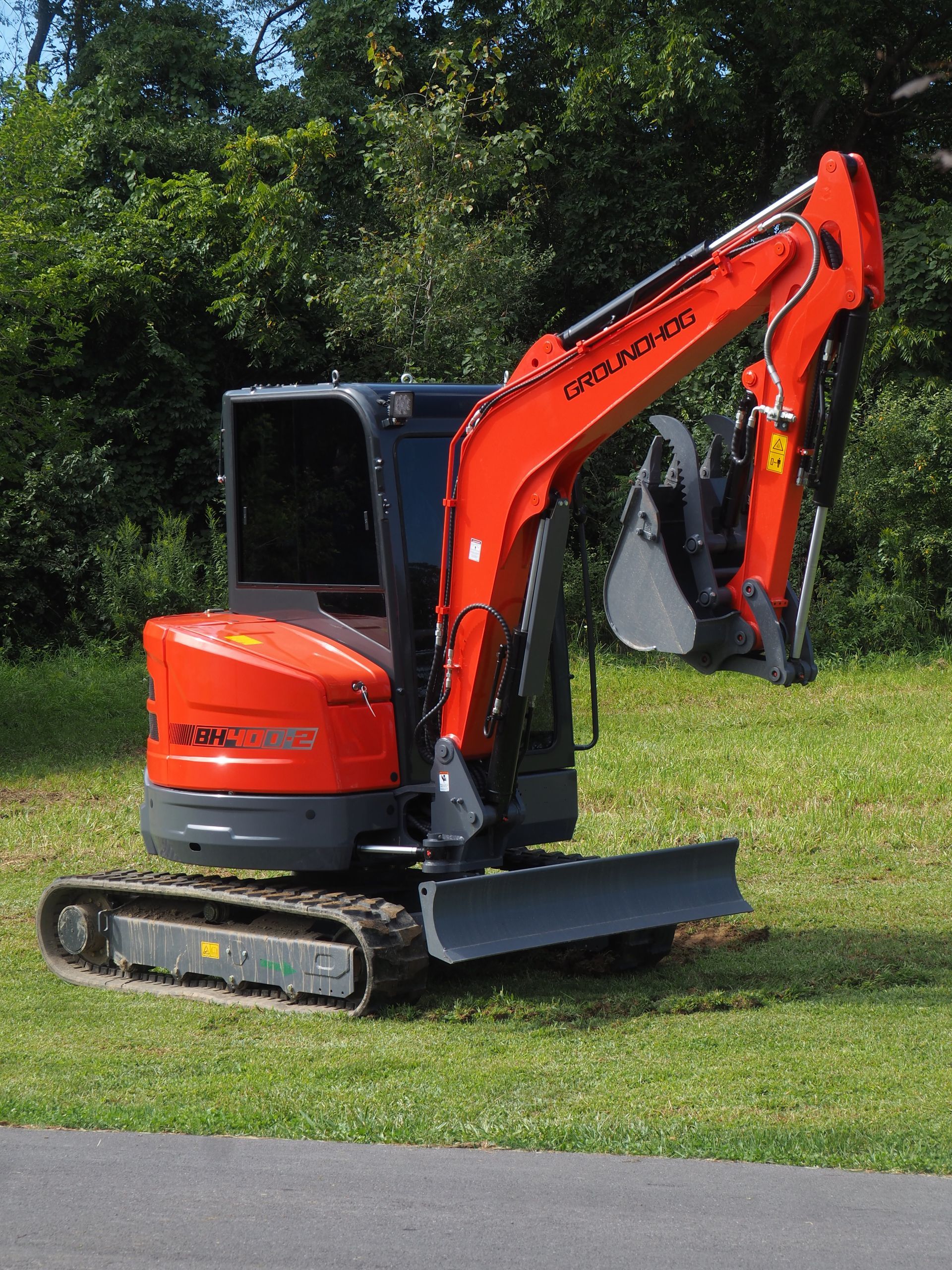

BH40D-2 Excavator Specs
The BH40D-2 comes equipped with Eddie Drives, Oil Cooler, Side Swing, 2 Speed and an Enclosed Cab with Heat and A/C Upgrade Options: Window Tint | $37,900-enclosed cab |
Operating Weight | 8400 lbs |
Engine | Yanmar 3TNV88F |
Engine HP | 24.4 HP @ 2400 rpm |
Travel Speed | 2.7-4.6 mph |
Machine Width | 69″ |
Machine Height | 8′ 5″ |
Ground Clearance | 10 1/2″ |
Track Length | 84″ |
Track Size | 300x55x84 |
Track To Blade | 99″ |
Track Width | 12″ |
Max Digging Height | 14″ 4″ |
Max Dumping Height | 10′ 11″ |
Max Reach | 15′ 7″ |
Max Digging Radius | 17′ 3″ |
Hydraulic Flow Rate | 26.4 gpm |
Bucket Size | 24″ Tooth |
Pin Size | 40 mm |
ZH40D Excavator Specs
The ZH40D comes equipped with a 4 Post ROPS, 2 Speed, Hydraulic Quick Attach, Hydraulic Joysticks, Glow Plugs, Oil Cooler, and a Side Swing Boom. Upgrade Options: Window Tint | ZH40D $34,900 – open cab ZH40D $37,900 – enclosed cab with heat and a/c |
Operating Weight – Rubber Tracks | 7000 lbs |
Operating Weight – Steel Tracks | 7800 lbs |
Engine | Kubota D1505 |
Engine HP | 30 HP |
Travel Speed | 2.7-4.6 km/h |
Machine Width | 61″ |
Machine Height | 8’2″ |
Ground Clearance | 9″ |
Track Length | 80″ |
Track To Blade | 96″ |
Track Width | 12″ |
Max Digging Depth | 10’8″ |
Max Digging Height | 14’8″ |
Max Dumping Height | 11’3″ |
Max Reach | 14’7″ |
Max Digging Radius | 16’10” |
Bucket Size | 16″ Tooth |

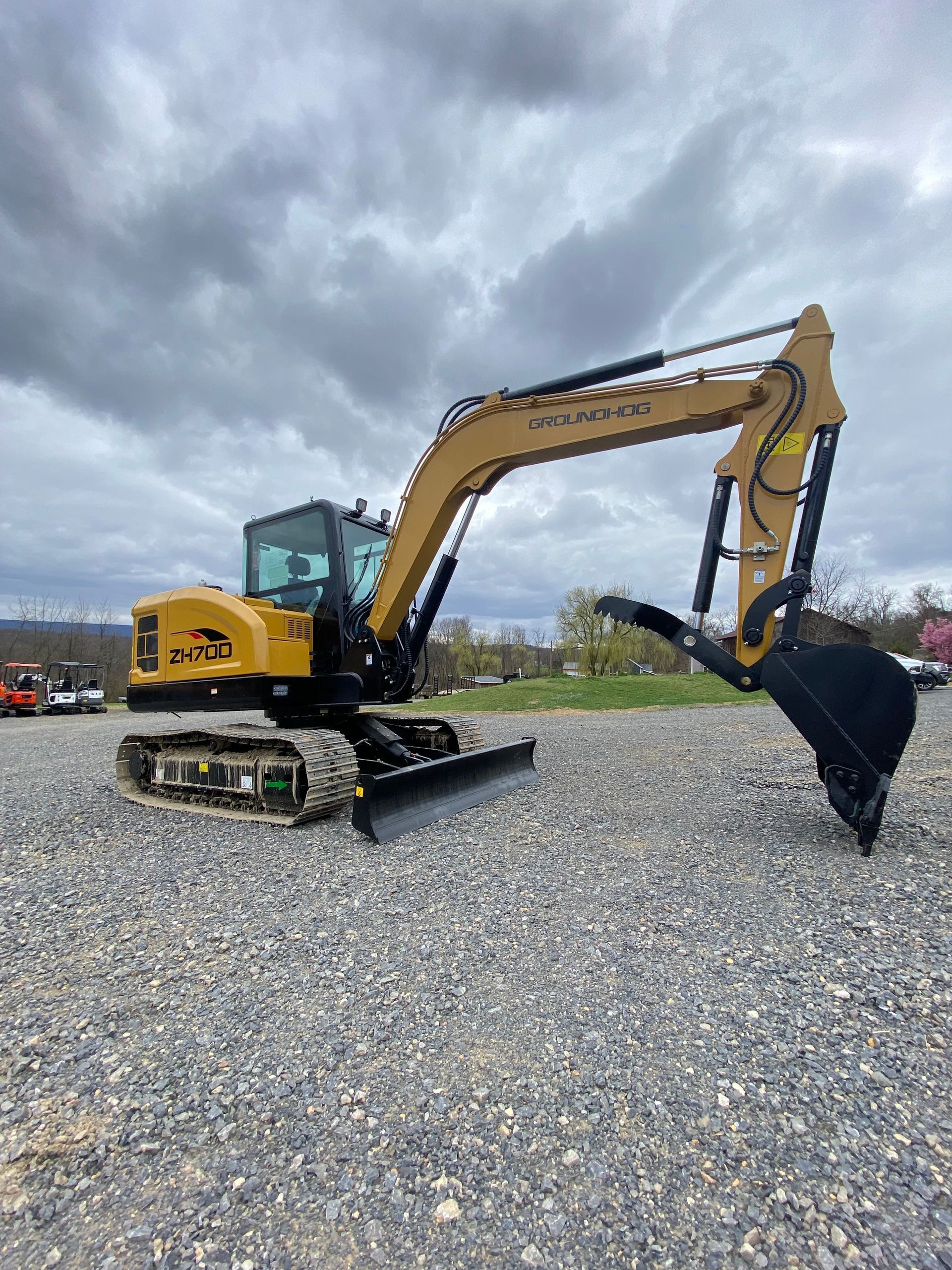

70 SERIES MINI EXCAVATOR
70 Series Excavator Starting Prices

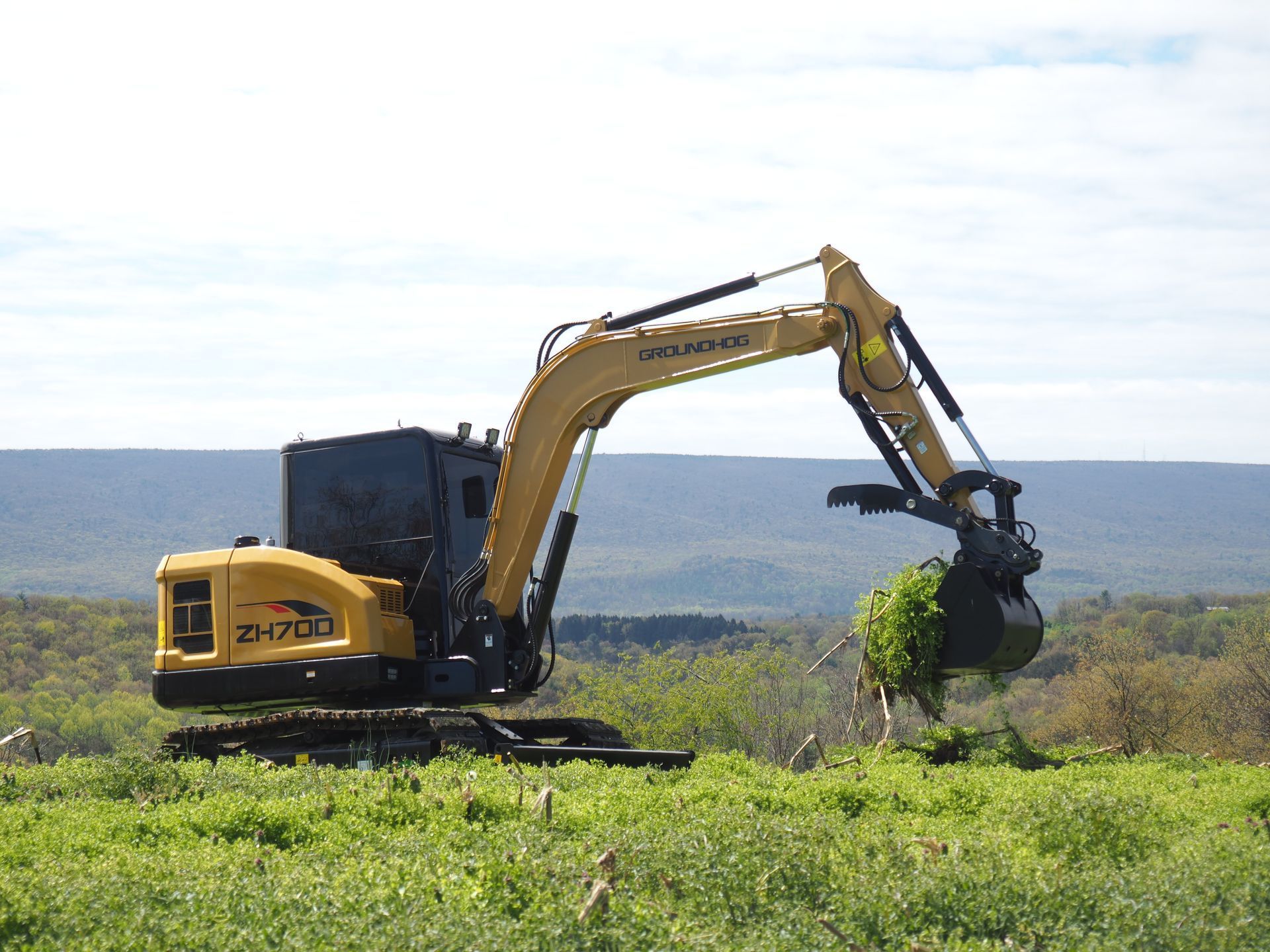

- ZH70D $54,900 enclosed cab
ZH70D Excavator Specs
The ZH70D comes equipped with a Bosch injection pump, 2 Speed, Bosch electrical, oil cooler, hydraulic joysticks, glow plugs, and an enclosed cab with heat and a/c. Upgrade Options: Window Tint, Side Swing Boom | ZH70D $54,900 |
Operating Weight – Steel Tracks | 13,600 lbs |
Engine (best in class fuel consumption & the cleanest engine in its category) | Yanmar 4TNV98C |
Engine HP | 70 HP |
Travel Speed | <3 mph |
Machine Width | 78″ |
Machine Height | 8′ 9″ |
Ground Clearance | 14″ |
Track Length | 8′ 4″ |
Track To Blade | 10′ 1″ |
Track to Track Width | 79 1/2″ |
Max Digging Depth | 12′ 10″ |
Max Digging Height | 18′ 4″ |
Max Dumping Height | 15′ 2″ |
Max Reach | 18′ 10″ |
Max Digging Radius | 20′ 9″ |
Hydraulic Flow Rate | 42.2 gpm |
Bucket Size | 26″ Tooth |
